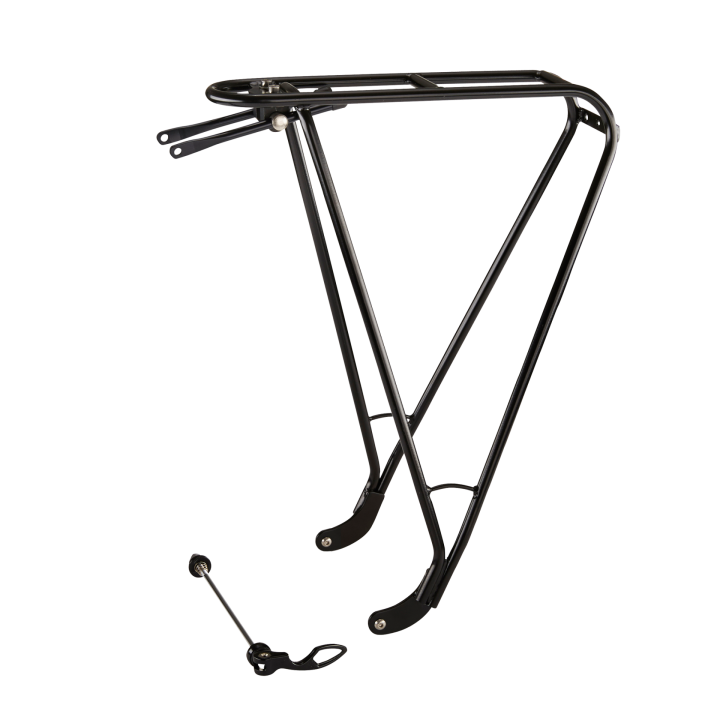

TUBUS Disco 28" rear rack

€119.90
Tax included

Steel rear rack designed for bikes with disc brakes. The Tubus Disco is a dedicated solution for frames without rack mounts, thanks to its quick-release mounting system. Ideal for light to mid-range touring on modern bikes where a traditional rack cannot be installed.



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

Why choose this rack

The Tubus Disco is designed to solve a specific issue: mounting a rack on bikes with disc brakes where eyelets are not present, or where frame geometry makes installing a traditional rack difficult.

Unlike universal solutions, it retains Tubus’ steel construction, offering greater stability and predictability when used with panniers.

It is therefore a specific technical solution: more structured than universal racks, but designed to adapt to setups where standard mounting is not possible.

Compatibility

Bike type

  • trekking / touring with disc brakes
  • gravel
  • some rigid MTBs
  • bikes without rear eyelets

Mounting system

  • rear quick-release mounting (dedicated QR included)
  • can also be mounted on eyelets, if present

Brake compatibility

  • specifically designed for disc brakes

Frame compatibility

  • compatible with quick-release (QR) frames
  • specific adapters may be required for thru-axles
  • full suspension compatibility must be checked case by case

Real-world limits

max load 20 kg
tire clearance up to approx. 55 mm
fender clearance up to approx. 55 mm
foot spacing 150 – 180 mm
max distance between upper stays 64 mm

Wheel & tire compatibility

Compatible with 26" and 28" wheels (in most cases also usable on 29", subject to clearance and frame geometry); always verify real space between rack, frame, and fenders.

Position

  • rear

Important note:
Actual compatibility depends on the combination of frame, brake system, and axle standard. If in doubt, a preliminary check is recommended (info@bikejamming.it).

When it makes sense

The Tubus Disco is a good choice if:

  • your bike has disc brakes and cannot accept a standard rack
  • there are no rear eyelets
  • you want a more stable solution than universal racks
  • you use panniers for light to medium travel

It is a typical solution for adapting modern bikes to touring use.

When it does NOT make sense

  • frames already equipped with eyelets (traditional racks are preferable)
  • trips with very heavy loads
  • expedition setups

In these cases, a rack like Tubus Cargo Evo or Tubus Logo Evo is more suitable.

For a clear overview of load distribution, check out our dedicated guide.

Primary use

  • rear panniers

It works best with medium, well-distributed loads.

Typical pairings

  • with a front lowrider → full touring setup
  • with standard rear panniers

Best for carrying

  • light to medium loads
  • non-extreme travel gear

FAQ – Tubus Disco

Is it compatible with bikes without eyelets?

Yes, thanks to the quick-release mounting system.

Can I use it on a thru-axle bike?

Specific adapters may be required, depending on the frame standard.

Is it compatible with full suspension MTBs?

Compatibility must be checked case by case based on frame geometry and mounting points.

Is it as stable as a traditional rack?

It is more structured than universal racks, but different from direct eyelet-mounted systems.

How much weight can it carry?

Up to 20 kg, as stated by the manufacturer.

Is it suitable for long-distance travel?

Yes, if loads are moderate. It is not designed for expedition use.

Technical notes / considerations

  • compatibility must be evaluated case by case
  • quick-release mounting requires careful installation and periodic checks
  • not compatible with child seats

Notes from external sources

Racks designed for disc brake bikes without eyelets represent a specific technical solution in touring.

They are appreciated for:

  • enabling modern bike adaptation
  • greater stability compared to fully universal systems

In real-world use, they perform well with medium loads, but do not replace structural racks for heavy-duty setups.

Installation instructions and technical drawings are available as attachments.

If you need help with compatibility, mounting, or setup, contact us at info@bikejamming.it — we usually reply within 24 hours.

  • Brand
  • Reference
    2063018500

  • Material
    Steel
  • Use
    Mixed use
  • Position
    Rear
  • Frame Compatibility
    Without eyelets (universal mounting)

tubus_disco_28_mounting_instructions

MOUNTING INSTRUCTIONS TUBUS DISCO 28"

Download (1.39MB)

tubus_disco_28_technical_drawing

TECHNICAL DRAWING TUBUS DISCO 28"

Download (230.03KB)
