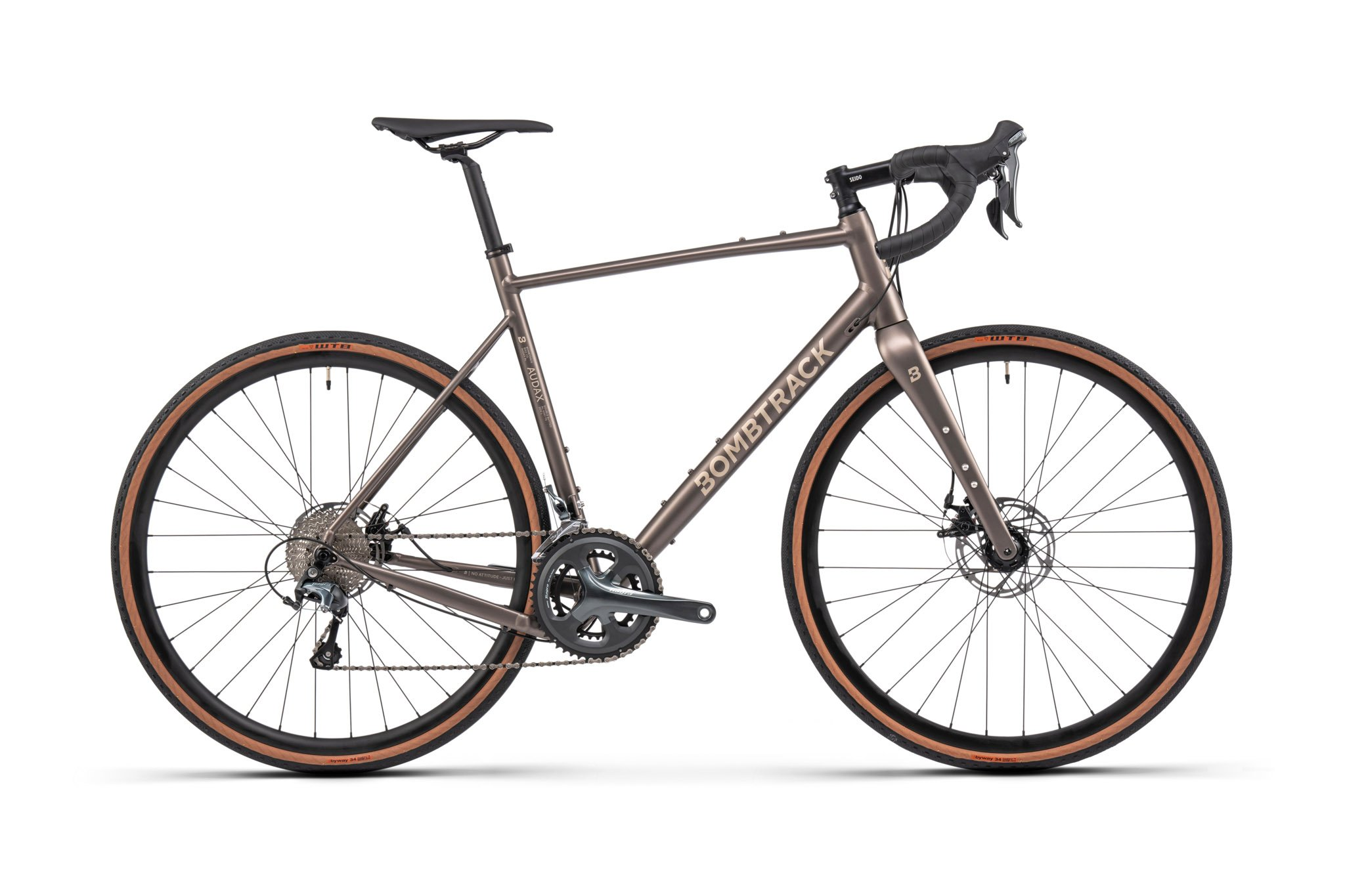

BOMBTRACK Audax AL Road - Matt Warm Grey


New

2 088,00 €

-167,00 €

2 255,00 €

Free Shipping in Italy!

Add to wishlist

Data sheet

Telaio MTBAllroad Endurance
Ruota700c

More info

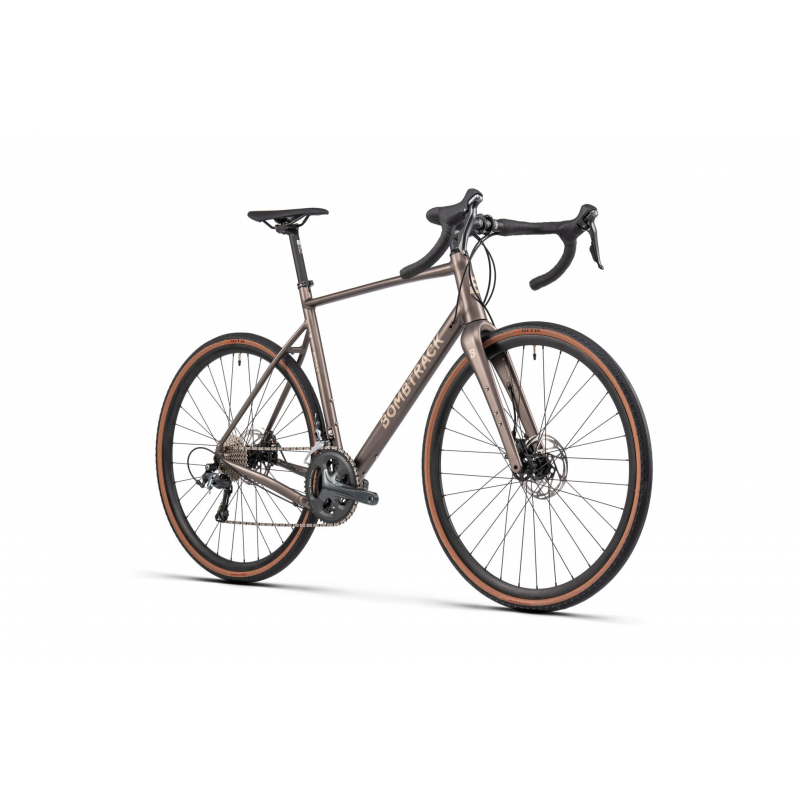

The Bombtrack Audax AL Road is designed for riders who want a fast, efficient and comfortable allroad bike for long distances and mixed surfaces. The 6061-T6 double-butted aluminium frame offers a well-balanced mix of low weight and durability, while the full-carbon fork with multiple mounting points lets you add fenders, cages and accessories without sacrificing precise handling.

The warm matte grey finish gives the bike a modern yet understated look – clean, refined and easy to pair with bags and components, ideal for riders who prefer a subtle, elegant aesthetic.

WHY IT’S AN AUDAX AL ROAD

  • 6061-T6 double-butted aluminium frame: lightweight, durable and optimised for long allroad rides.
  • Full-carbon fork with mounts for fenders and cages: ready for commuting, endurance riding and light touring.
  • Shimano Tiagra 2×10 drivetrain: proven, smooth and easy to maintain, with a double chainring for a wide gear range.
  • 50/34T chainrings and 11–34T cassette: gearing suited to both steep climbs and fast rolling sections.
  • WTB Byway 700×34C tubeless-ready tyres: fast on tarmac, confident on gravel and dirt roads.
  • Endurance/allroad geometry: stability, control and comfort even after many hours in the saddle.

KEY STRENGTHS

  • Comfort-focused position that still feels efficient for long days on the bike.
  • Real-world versatility: from road and broken tarmac to smooth gravel and easy dirt.
  • Mounts for fenders and racks: ready for daily commuting and light touring.
  • Tyre clearance up to 650B × 50C or 700C × 35C: choose your preferred balance between comfort and speed.
  • Matt Warm Grey colour: a warm, neutral tone that pairs well with bags and accessories.

SHORT DESCRIPTION

Audax AL Road is a fast, efficient and comfortable endurance allroad bike. It’s built for riders who want to cover long distances on tarmac and gravel roads, with a reliable double chainring drivetrain, a balanced riding position and all the mounts needed for fenders, bags and accessories.

IDEAL FOR

  • Road, rough tarmac and smooth gravel roads.
  • Randonnée, long-distance and endurance rides.
  • Daily commuting with fenders and a clean, practical setup.
  • Minimalist touring and light bike travel.
  • Riders looking for an allroad platform with a road-oriented feel and long-distance comfort.

TECHNICAL HIGHLIGHTS (Summary)

  • Frame: 6061-T6 double-butted aluminium, thru-axle, fender mounts, T47 86.5 mm bottom bracket shell.
  • Fork: full carbon, thru-axle, fender / cage mounts.
  • Drivetrain: Shimano Tiagra 2×10 (50/34T, 11–34T).
  • Brakes: TRP Spyre C mechanical disc brakes, flat mount, 160 mm rotors.
  • Wheels: Seido Sinus i21 tubeless-ready rims, Bombtrack Arc hubs.
  • Tyres: WTB Byway TCS 700C × 34C, tubeless ready.
  • Seatpost: Seido Beech 27.2 × 350 mm.
  • Approx. weight: 10.3 kg (size L).

TYRE CLEARANCE (official Bombtrack data)

  • Frame – maximum without fenders: 650B × 50C / 700C × 35C.
  • Fork – maximum without fenders: 650B × 50C / 700C × 35C.

TECHNICAL INTERPRETATION

The Audax AL Road is supplied with 700C wheels and 34 mm tyres to maximise speed and rolling efficiency on tarmac and gravel roads. The clearance up to 35 mm in 700C allows slightly larger tyres for extra comfort and grip on long endurance rides.
Support for 650B up to 50 mm opens the door to a more comfort-oriented setup, ideal for riders who regularly ride on broken gravel, rough dirt roads or who simply prefer a more cushioned ride.
In practice, you can choose whether to emphasise the road character (700C × 32–35) or lean more towards allroad/comfort (650B × 47–50) depending on your primary use.

RIDER FIT – SIZE GUIDE

  • XS: 150–161 cm
  • S: 160–171 cm
  • M: 170–181 cm
  • L: 179–190 cm
  • XL: 188–199 cm

For precise sizing advice, you can email us your height and inseam – we’ll reply with a realistic, experience-based recommendation.

RECOMMENDED SETUPS

  • Endurance road/allroad: 700C × 32–35 mm, fenders and a handlebar bag.
  • Comfort allroad: 650B × 47–50 mm to smooth out vibrations and rougher gravel.
  • Everyday commuting: full fenders, optional rear rack and lights.
  • Light touring / randonnée: frame bag + saddle pack + small handlebar bag.

INDEPENDENT FEEDBACK

  • Praised for its comfort and stability on long rides.
  • Considered one of the most versatile platforms for mixed road/allroad use.
  • Geometry that allows many hours in the saddle with reduced fatigue.

WHY BUY FROM US

  • Fast, fully tracked express shipping.
  • Bilingual IT/EN customer support.
  • Honest advice on sizing, setup and intended use.
  • Email replies within 24 hours.

CTA

Ready to ride far on tarmac, gravel roads and mixed terrain?
Add the Bombtrack Audax AL Road – Matt Warm Grey to your cart.
Want to discuss before ordering? Email us at info@bikejamming.it.

Technical Tables

Specifications

Color 1Matt warm grey
Color 2-
Color 3-
Frame6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell

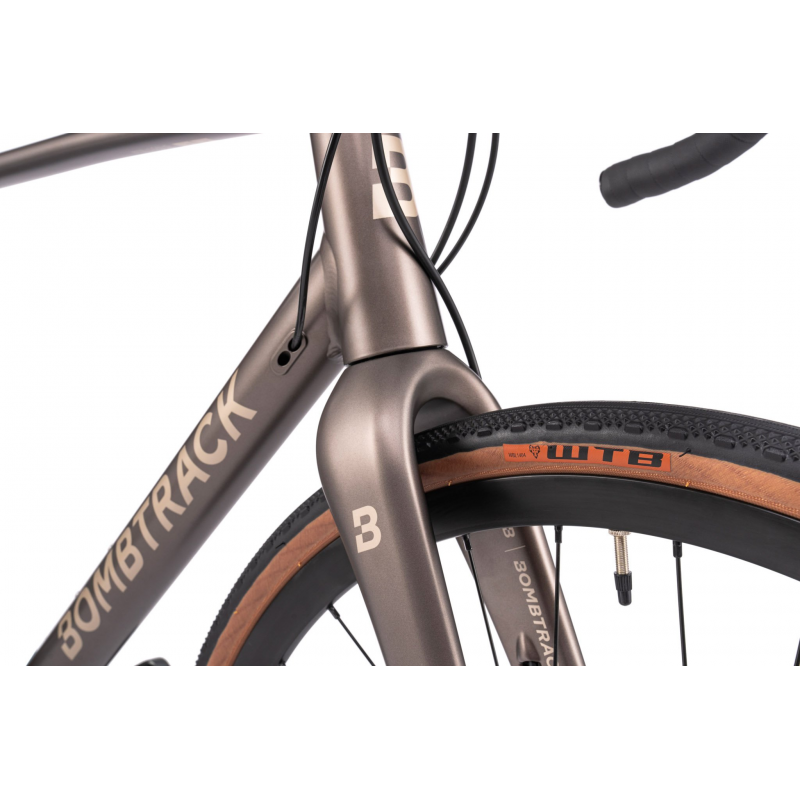

ForkFull carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts

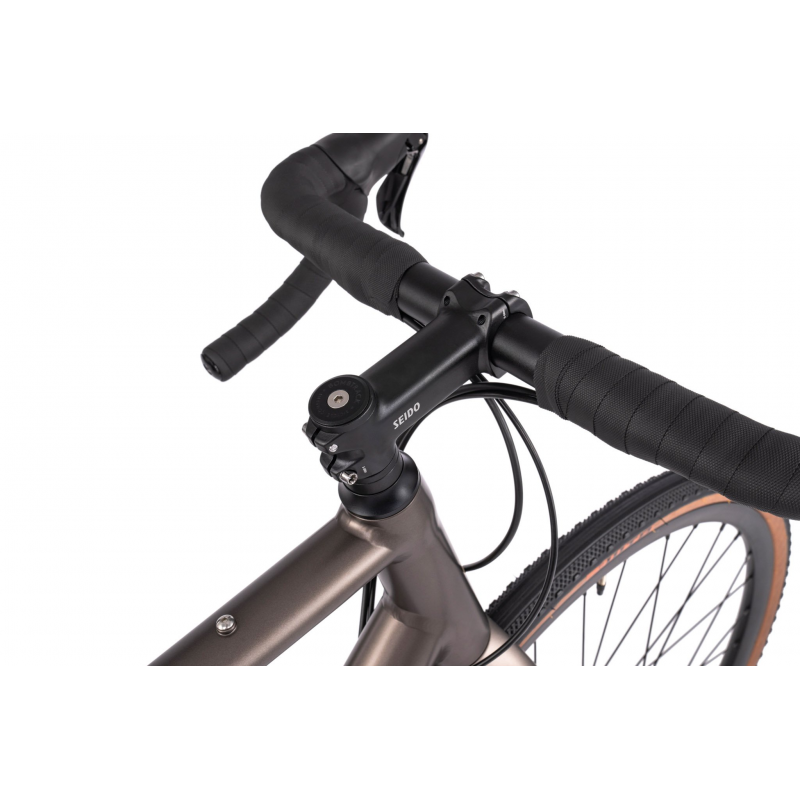

HandlebarSeido CX-10 drop bar, 31.8 mm, 10° flare
GripsBombtrack Command bar tape
StemSeido Meander forged aluminium stem, -6°
HeadsetSealed integrated aheadset, 1.1/2'' - 1.1/8''
LeversShimano Tiagra ST-4700 STI mechanic
ShifterShimano Tiagra ST-4700 STI 2 × 10
BrakesTRP Spyre C flat mount mechanic disc brakes
RotorTektro 160 mm rotors
CranksetShimano Tiagra FC-4700, 24 mm spindle
BBSeido T47 internal sealed BB for 24 mm spindle
Pedals-
ChainKMC X10 chain, 1/2'' × 11/128'', 114L
ChainringShimano Tiagra, 50T / 34T

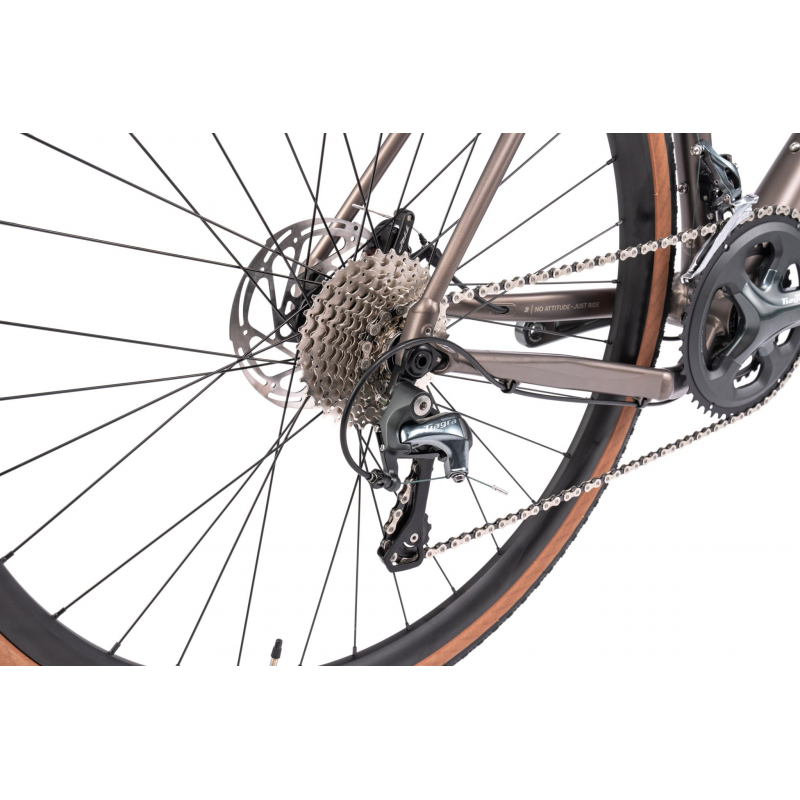

CassetteShimano CS-HG500 10-speed, 11–34T
Front derailleurShimano Tiagra FD-4700-F
Rear derailleurShimano Tiagra RD-4700-GS
Front hubBombtrack Arc sealed hub, 6-bolt disc
Rear hubBombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle12 × 100 mm / 12 × 142 mm
Front rimSeido Sinus i21, tubeless ready, 32h
Rear rimSeido Sinus i21, tubeless ready, 32h
SaddleSeido Comp saddle
Seat postSeido Beech 27.2 mm × 350 mm
Seat clampBombtrack Prime 31.8 mm
Front tireWTB Byway TCS 700C × 34C, tubeless ready
Rear tireWTB Byway TCS 700C × 34C, tubeless ready
Fender-
Rack-
Kickstand-
Light-
Weight10.3 kg (size L)
Weight frameset1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA)
Maximum rider weight120 kg incl. luggage
ASTM riding condition2
NoteFinal product may vary in appearance, finish and minor details.

Mounting Information

BB standardT47 - 86.5 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle36°
Fork steerer inner diameter23.6 mm
Fork max tire clearance w/o fender650B × 50C / 700C × 35C
Frame max tire clearance w/o fender650B × 50C / 700C × 35C
Maximum chainring clearance 1x42T with 45 mm chainline
Maximum chainring clearance 2x50 / 34T with 43.5 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter31.8 mm
Front derailleur clamp diameterIntegrated FD hanger
Frame front derailleur compatibleYes
Brake mount frontFM 140 / 160
Brake mount rearFM 140 / 160
Frame thickness rear brake mount20 mm
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm × 100 mm, 1.5 thread pitch
Rear through axle12 mm × 142 mm, 1.5 thread pitch
ISO testing standardRoad
CrankarmXS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor150 mm
BCD crank110 mm, asymmetric Shimano 4 bolts
Chainring offset0 mm
Chainline43.5 mm
Spoke length front wheeltba
Spoke length rear wheeltba
Spoke count (front / rear)32 / 32
ERD585 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem lengthXS - S 80 mm / M 90 mm / L - XL 100 mm
Stem angle-6°
Headset spacers1 × 10 mm, 2 × 5 mm
Seat post offset24 mm
Seat post length350 mm
Bike trailerApproved
Seat tube mounted child seatNot approved
Derailleur hangerBT-DH-018
Frame small partsBT-CR-013
Hub end caps frontBT-HC-012
Hub end caps rearBT-HC-017
Cassette bodyBT-CB-006
Crankarm boltBT-CRP-002
Through axle frontBT-TA-F-601
Through axle rearBT-TA-R-601

Geometry

Bike SizeXSSMLXL
Wheel size700C700C700C700C700C
Seat Tube Length470500530560590
Horizontal TT length505527551569592
Seat Angle75.0°74.5°74.0°74.0°73.5°
Head Angle71.0°72.0°72.0°72.0°72.0°
Headtube Length100120150180205
BB Drop7068686565
Chainstay Length420420420420420
Fork Offset5353535353
Trail6457575757
Wheelbase Length9911000102110411059
Standover733759787818843
Reach368379390401411
Stack512533561587611
Front Center581590610630647
Axle to Crown385385385385385
Minimum rider height ¹15001600170017901880
Maximum rider height ¹16101710181019001990

¹ The recommended bike size is a general guideline to narrow down options based on rider height. Proper bike fitting is complex and should also consider other body measurements and factors. Since no two riders are exactly alike, it’s impossible to provide a sizing recommendation that is 100% accurate for everyone. The best way to determine the correct size is to consult your Bombtrack dealer (info@bikejamming.it) or a professional bike fitter.
