GENESIS Vagabond

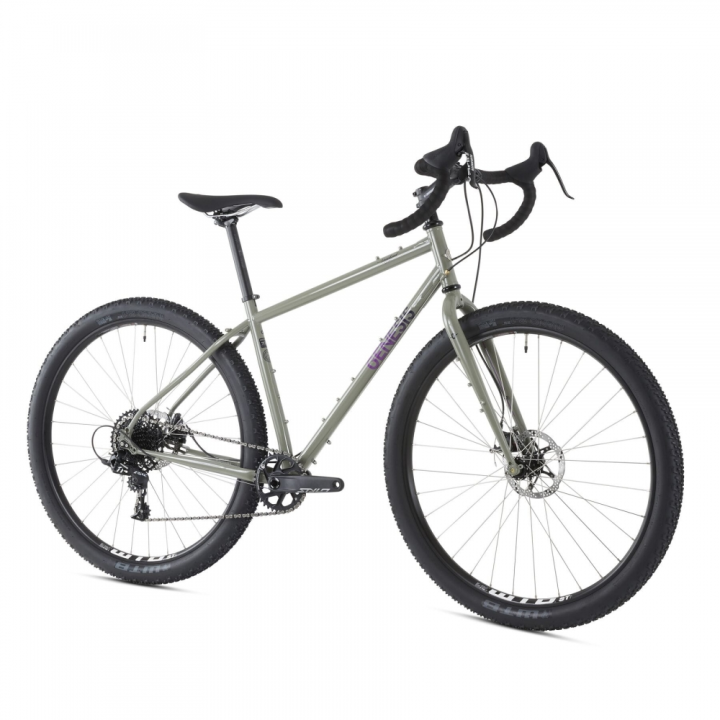

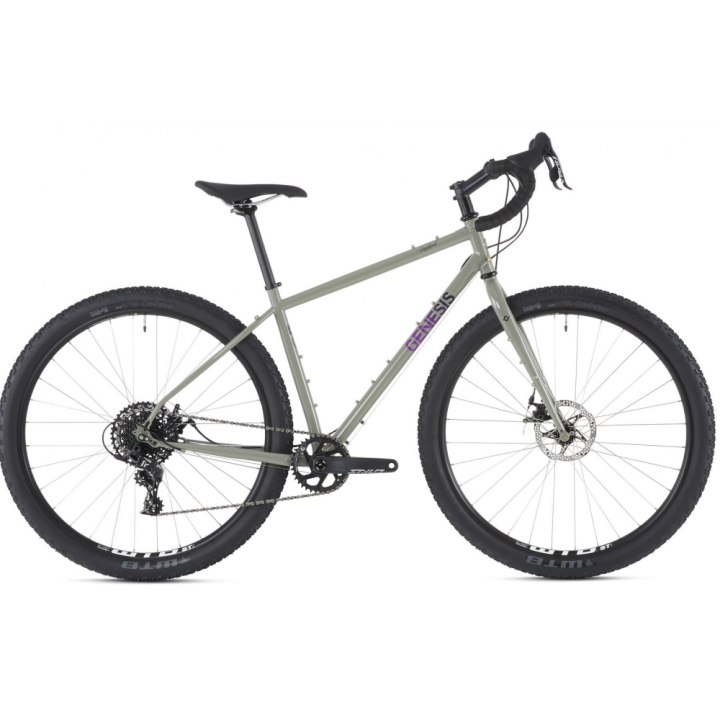

Genesis Vagabond – 29” monstercross adventure bike

The Genesis Vagabond is a drop-bar bicycle designed for gravel and adventure use, positioned within the monstercross category.
It is conceived as a versatile platform intended to cover a wide range of riding applications through changes in tyres and setup.

The frame is built from Reynolds 725 double-butted chromoly tubing, paired with a chromoly unicrown fork, and updated with 12 mm thru-axles.
The stock configuration uses 29” wheels with high-volume tyres.

Key features

• Reynolds 725 Double-Butted Chromoly frame

• Cr-Mo Unicrown Disc fork

• SRAM Apex 1x11 drivetrain

• TRP Spyre-C mechanical disc brakes

• 29” wheelset

• Multi-surface oriented platform

• 12 mm thru-axles

• External cable routing

Stock configuration

The Genesis Vagabond is equipped with:

• 1x drivetrain with a 36T chainring

• 11–42T cassette

• 29” wheels with WTB Nano 29×2.1 tyres

Maximum declared tyre size: 29×2.1.

Pre-order support

Tyre choice and setup directly affect the final configuration.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications

Frame & fork

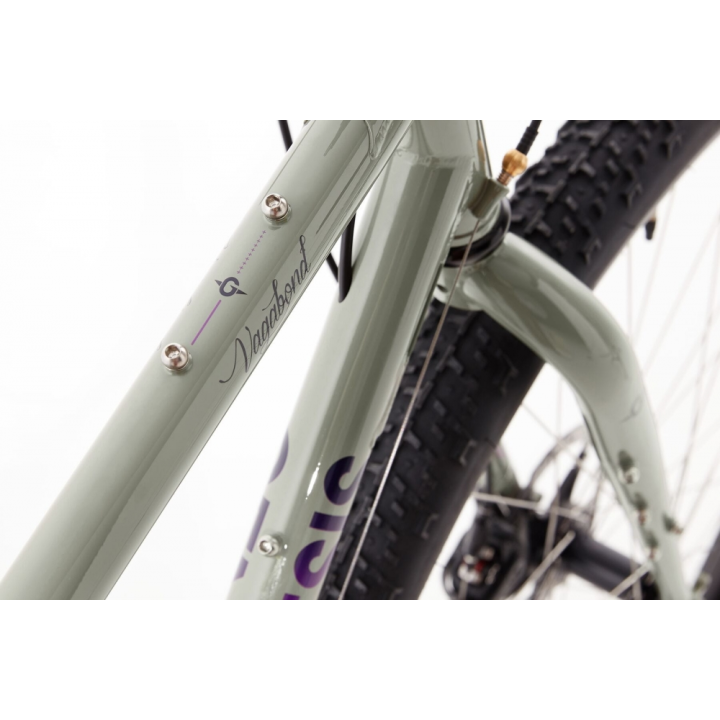

• Frame: Reynolds 725 Double-Butted Chromoly with thru-axle

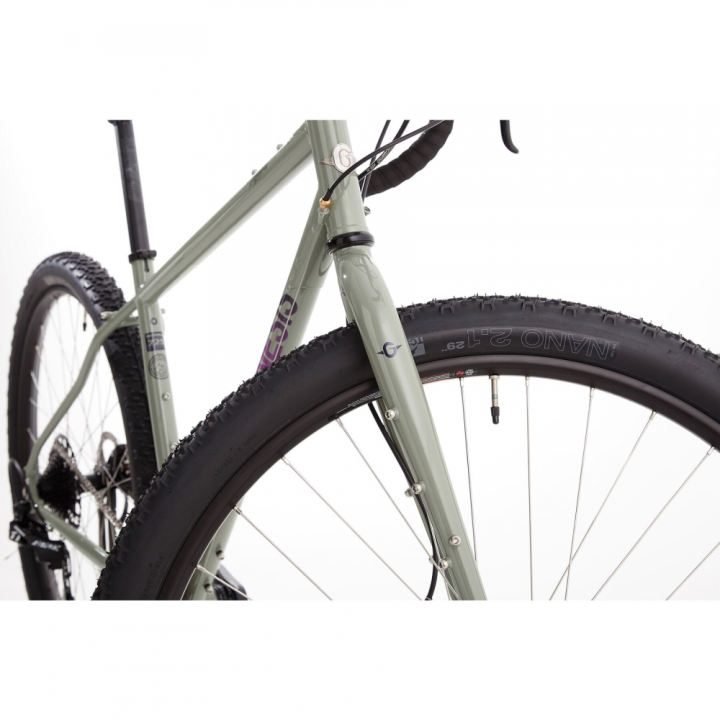

• Fork: Cr-Mo Unicrown Disc with thru-axle

• Headset: Prestine PT-1770, 1 1/8”

Drivetrain

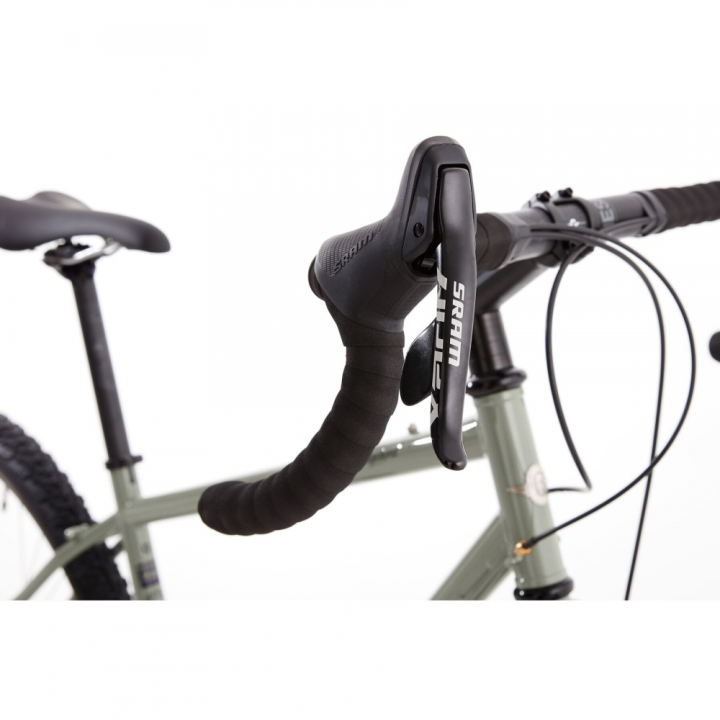

• Shifters: SRAM Apex 1, 11-speed

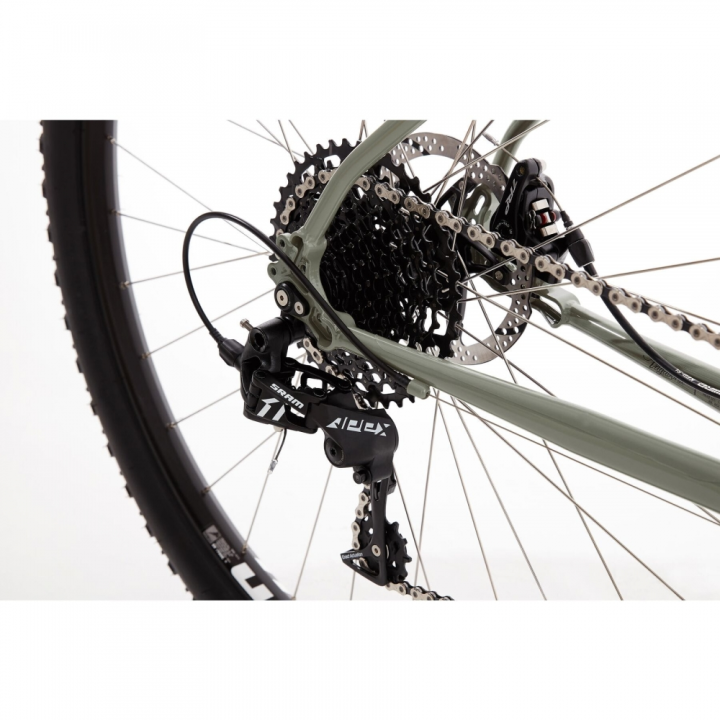

• Rear derailleur: SRAM Apex 1 Long Cage, 11-speed

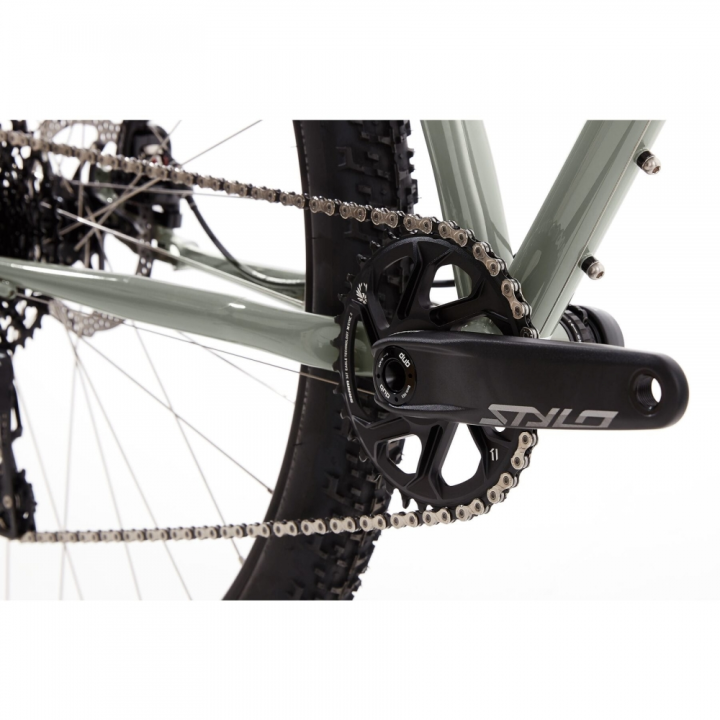

• Crankset: SRAM Stylo, 36T

  • Size S: 170 mm

  • All other sizes: 175 mm

• Bottom bracket: SRAM GXP XR 73

• Cassette: SRAM PG1130, 11–42T

• Chain: KMC X11

Brakes

• Brakes: TRP Spyre-C, 2-piston mechanical disc

• Rotors: 160 mm front / 160 mm rear

• Brake levers: SRAM Apex

Wheels & tyres

• Rims: WTB ST i25 TCS 2.0

• Hubs: KT K-68

• Tyres: WTB Nano 29×2.1

• Max tyre size: 29×2.1

Components

• Handlebar: Genesis Alloy, 16° flare

  • S/M: 440 mm

  • L: 460 mm

  • XL: 480 mm

• Stem: Genesis Alloy, ±17°, 100 mm

• Seatpost: Genesis, 27.2×400 mm

• Saddle: Genesis Road Comfort

General

• Sizes: M, L, XL

• Colour: Grey

• Claimed weight: 11.73 kg (size M)

Geometry

Geometry chart is provided as a separate attached file.
