GENESIS Fugio 10

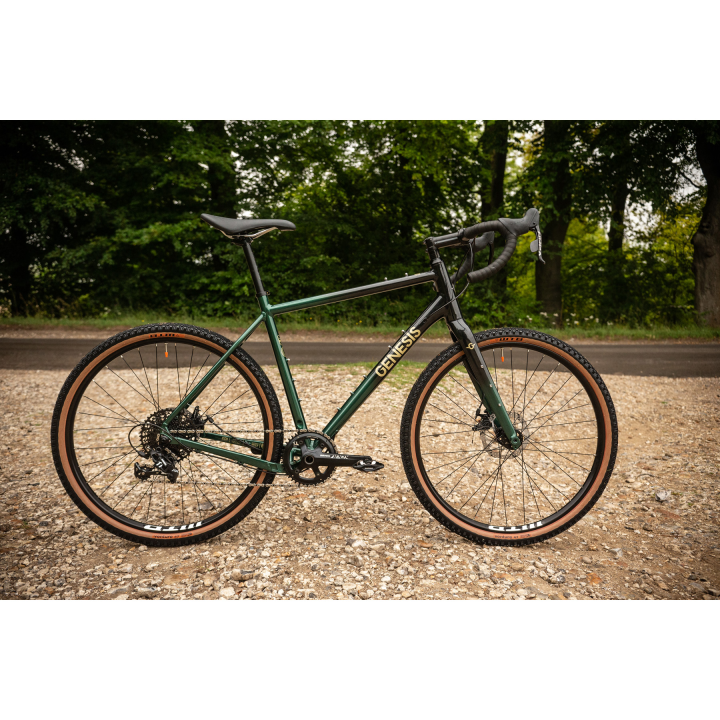

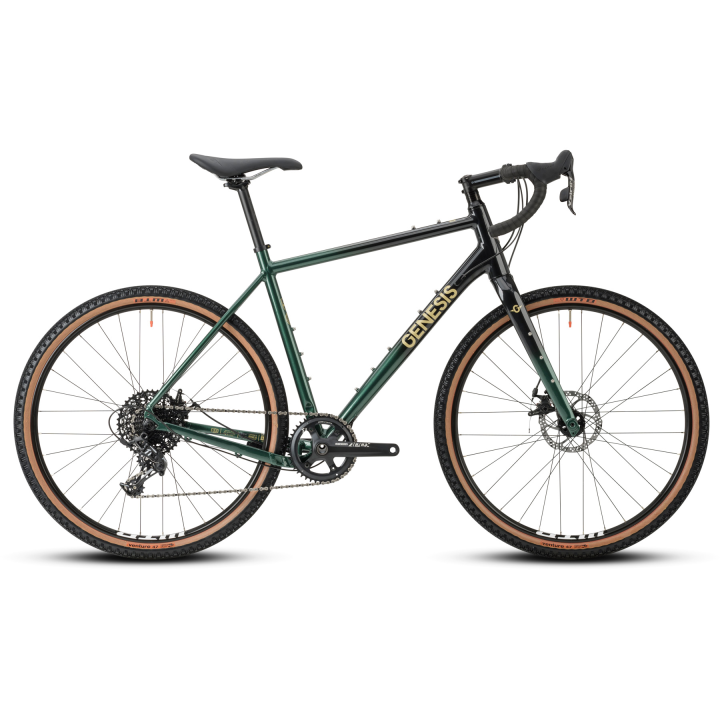

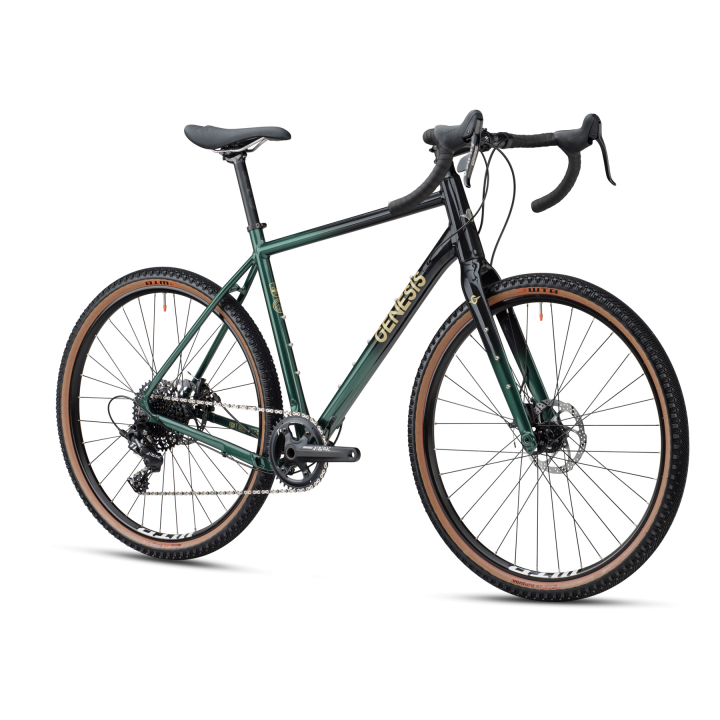

Genesis Fugio 10 – aluminium gravel bike with SRAM Apex

The Fugio 10 is the entry-level model in the Fugio range from Genesis Bikes, designed for gravel and adventure riding with an aluminium frameset and a simple, functional specification.

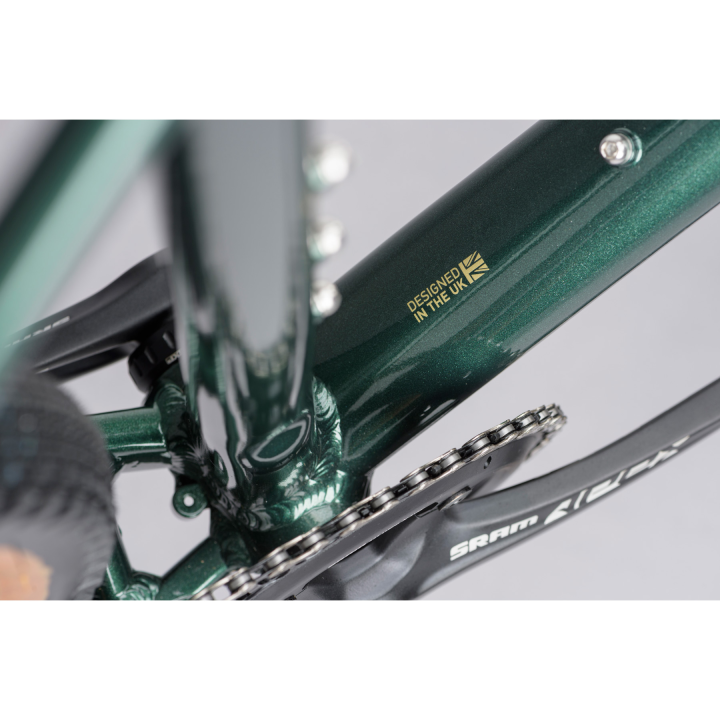

The bike is built around a double-butted ALX8 6066/6061-T6 aluminium frame, paired with a full carbon gravel fork.
It is supplied with 650B wheels as standard and is also compatible with 700C wheels, allowing different setup options.

Key features

• ALX8 6066/6061-T6 double-butted aluminium frame

• Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts

• SRAM Apex 1x11 drivetrain

• TRP Spyre-C dual-piston mechanical disc brakes

• 650B wheelset

• 12 mm thru-axles

• Multiple mounts for luggage, mudguards and accessories

• Tubeless-ready rims and tyres

Stock configuration

The Genesis Fugio 10 is equipped with:

• 1x drivetrain with a 42T chainring

• 11–42T cassette

• WTB Venture 650×47c tyres

Wheel and tyre compatibility

• 650B: up to 47 mm

• 700C: up to 40 mm

Pre-order support

Frame size and wheel/tyre setup directly affect the final configuration.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications

Frame & fork

• Frame: 6061 Aluminium

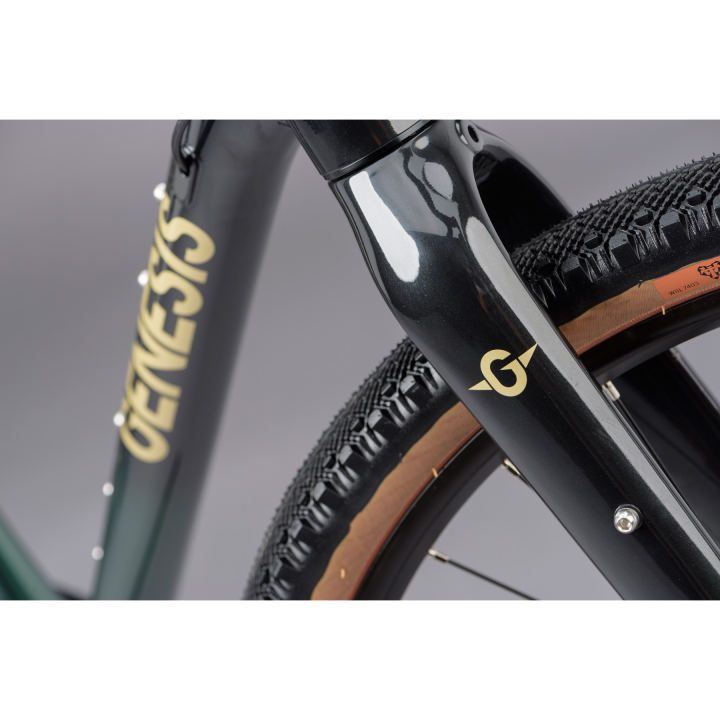

• Fork: Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts

• Headset: F23A-2 Taper 1 1/8” – 1 1/5”

• Derailleur hanger: Replaceable – GNSPR40002

• Warranty: Lifetime on frame and fork

Drivetrain

• Shifters: SRAM Apex, 11-speed

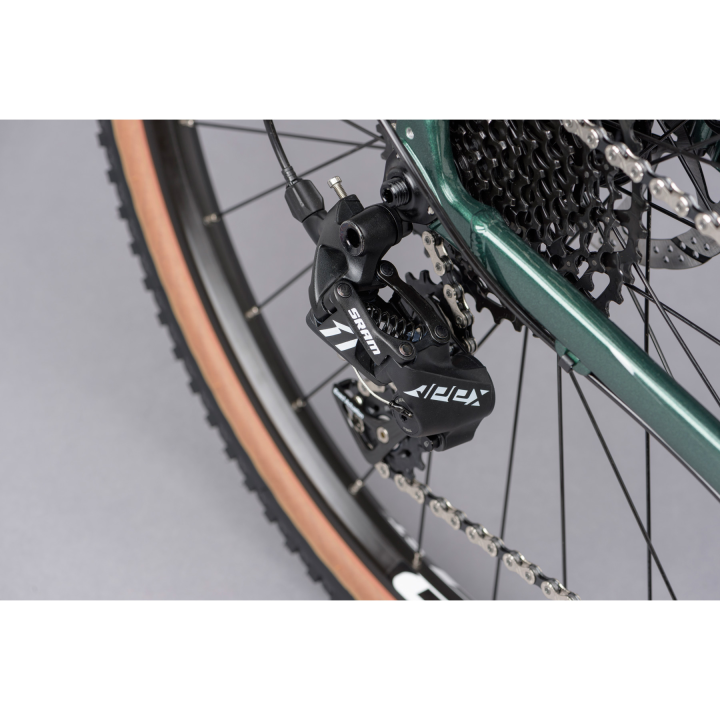

• Rear derailleur: SRAM Apex 1 Long Cage, 11-speed

• Front derailleur: N/A

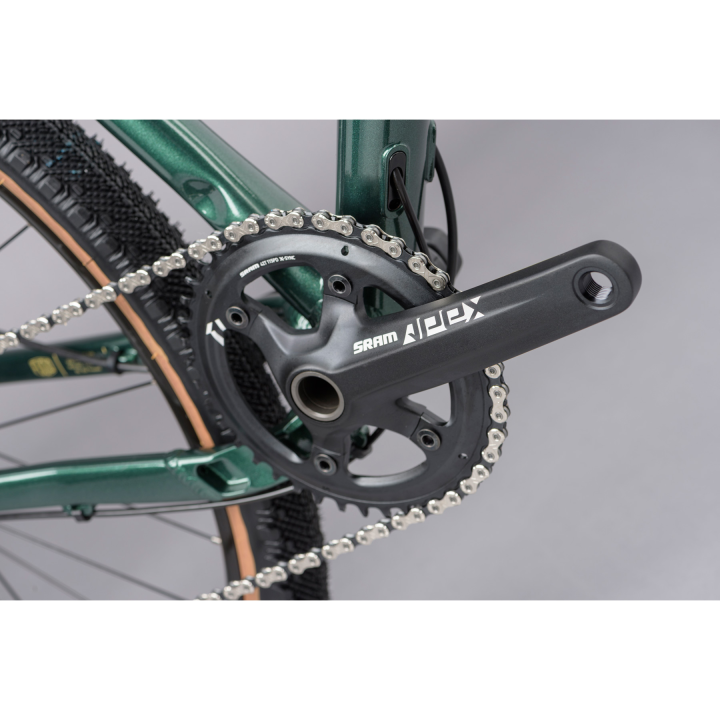

• Crankset: SRAM Apex 1, 42T

  • XS / S: 170 mm

  • M / L: 172.5 mm

  • XL: 175 mm

• Bottom bracket: SRAM BB GXP

• Cassette: SRAM PG-1130, 11–42T

• Chain: KMC X11

Brakes

• Brakes: TRP Spyre-C FM mechanical disc

• Brake levers: SRAM Apex

• Rotors: TRP TR160, 160 mm, 6-bolt

• Brake mount: Flat Mount 140

Wheels & tyres

• Rims: WTB ST i25 TCS 2.0

• Hubs: KT QL-SL2F (front) / QL-X2DR (rear), 6-bolt, 32H

• Spokes: Steel 14G

• Tyres: WTB Venture 650×47c TCS

Components

• Handlebar: Genesis Alloy, 16° flare

  • XS: 420 mm

  • S / M: 440 mm

  • L: 460 mm

  • XL: 480 mm

• Stem: Genesis Alloy, 31.8 mm, −6°, 100 mm

• Bar tape: Genesis Vexgel

• Seatpost: Genesis Alloy 27.2×350 mm

• Saddle: Genesis Adventure

• Pedals: N/A

Standards & compatibility

• Hub spacing: 100 mm front / 142 mm rear

• Seatpost diameter: 27.2 mm

• Seat clamp diameter: 31.8 mm

• Front derailleur mount: Band-on 28.6 mm

• Max chainring size: 46/30, 42T

• Cable routing: External

General

• Product code: GN21300

• Claimed weight: 10.5 kg

• Frame weight limit: Not stated

• Colour: The Black Peas

• Colour codes: RAL-750-M / RAL 9005

• Sizes: XS, S, M, L, XL

• Intended use: Gravel / Adventure
