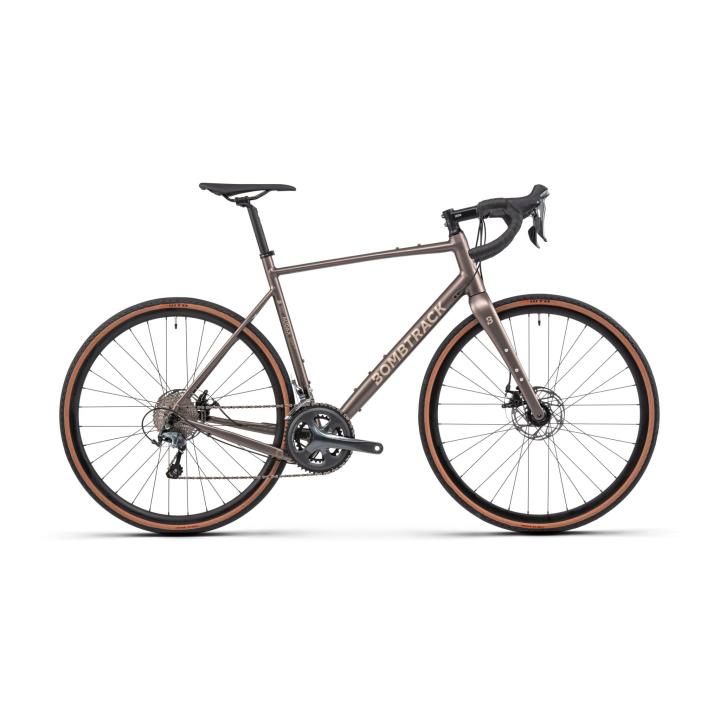

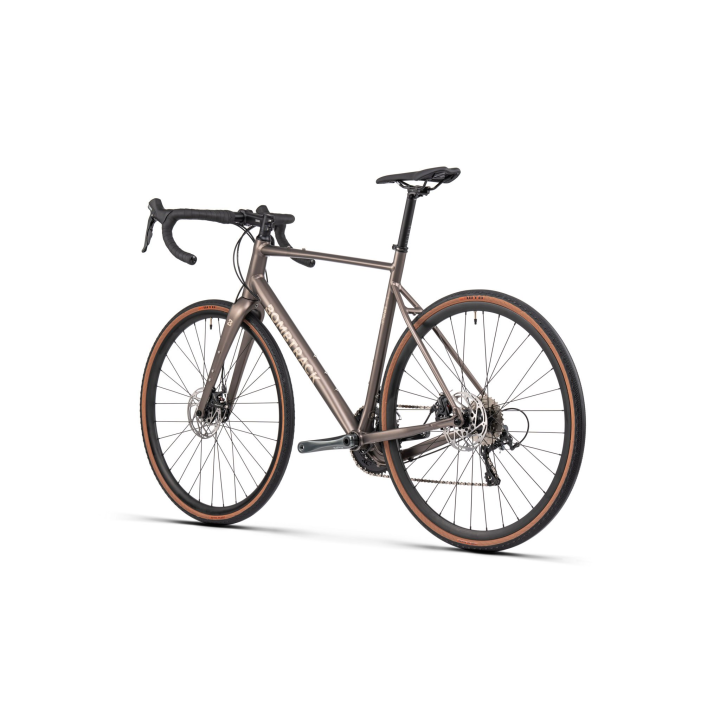

The Bombtrack Audax AL Road is designed for riders who want a fast, efficient and comfortable allroad bike for long distances and mixed surfaces. The 6061-T6 double-butted aluminium frame offers a well-balanced mix of low weight and durability, while the full-carbon fork with multiple mounting points lets you add fenders, cages and accessories without sacrificing precise handling.
The warm matte grey finish gives the bike a modern yet understated look – clean, refined and easy to pair with bags and components, ideal for riders who prefer a subtle, elegant aesthetic.
WHY IT’S AN AUDAX AL ROAD
- 6061-T6 double-butted aluminium frame: lightweight, durable and optimised for long allroad rides.
- Full-carbon fork with mounts for fenders and cages: ready for commuting, endurance riding and light touring.
- Shimano Tiagra 2×10 drivetrain: proven, smooth and easy to maintain, with a double chainring for a wide gear range.
- 50/34T chainrings and 11–34T cassette: gearing suited to both steep climbs and fast rolling sections.
- WTB Byway 700×34C tubeless-ready tyres: fast on tarmac, confident on gravel and dirt roads.
- Endurance/allroad geometry: stability, control and comfort even after many hours in the saddle.
KEY STRENGTHS
- Comfort-focused position that still feels efficient for long days on the bike.
- Real-world versatility: from road and broken tarmac to smooth gravel and easy dirt.
- Mounts for fenders and racks: ready for daily commuting and light touring.
- Tyre clearance up to 650B × 50C or 700C × 35C: choose your preferred balance between comfort and speed.
- Matt Warm Grey colour: a warm, neutral tone that pairs well with bags and accessories.
SHORT DESCRIPTION
Audax AL Road is a fast, efficient and comfortable endurance allroad bike. It’s built for riders who want to cover long distances on tarmac and gravel roads, with a reliable double chainring drivetrain, a balanced riding position and all the mounts needed for fenders, bags and accessories.
IDEAL FOR
- Road, rough tarmac and smooth gravel roads.
- Randonnée, long-distance and endurance rides.
- Daily commuting with fenders and a clean, practical setup.
- Minimalist touring and light bike travel.
- Riders looking for an allroad platform with a road-oriented feel and long-distance comfort.
TECHNICAL HIGHLIGHTS (Summary)
- Frame: 6061-T6 double-butted aluminium, thru-axle, fender mounts, T47 86.5 mm bottom bracket shell.
- Fork: full carbon, thru-axle, fender / cage mounts.
- Drivetrain: Shimano Tiagra 2×10 (50/34T, 11–34T).
- Brakes: TRP Spyre C mechanical disc brakes, flat mount, 160 mm rotors.
- Wheels: Seido Sinus i21 tubeless-ready rims, Bombtrack Arc hubs.
- Tyres: WTB Byway TCS 700C × 34C, tubeless ready.
- Seatpost: Seido Beech 27.2 × 350 mm.
- Approx. weight: 10.3 kg (size L).
TYRE CLEARANCE (official Bombtrack data)
- Frame – maximum without fenders: 650B × 50C / 700C × 35C.
- Fork – maximum without fenders: 650B × 50C / 700C × 35C.
TECHNICAL INTERPRETATION
The Audax AL Road is supplied with 700C wheels and 34 mm tyres to maximise speed and rolling efficiency on tarmac and gravel roads. The clearance up to 35 mm in 700C allows slightly larger tyres for extra comfort and grip on long endurance rides.
Support for 650B up to 50 mm opens the door to a more comfort-oriented setup, ideal for riders who regularly ride on broken gravel, rough dirt roads or who simply prefer a more cushioned ride.
In practice, you can choose whether to emphasise the road character (700C × 32–35) or lean more towards allroad/comfort (650B × 47–50) depending on your primary use.
RIDER FIT – SIZE GUIDE
- XS: 150–161 cm
- S: 160–171 cm
- M: 170–181 cm
- L: 179–190 cm
- XL: 188–199 cm
For precise sizing advice, you can email us your height and inseam – we’ll reply with a realistic, experience-based recommendation.
RECOMMENDED SETUPS
- Endurance road/allroad: 700C × 32–35 mm, fenders and a handlebar bag.
- Comfort allroad: 650B × 47–50 mm to smooth out vibrations and rougher gravel.
- Everyday commuting: full fenders, optional rear rack and lights.
- Light touring / randonnée: frame bag + saddle pack + small handlebar bag.
INDEPENDENT FEEDBACK
- Praised for its comfort and stability on long rides.
- Considered one of the most versatile platforms for mixed road/allroad use.
- Geometry that allows many hours in the saddle with reduced fatigue.
WHY BUY FROM US
- Fast, fully tracked express shipping.
- Bilingual IT/EN customer support.
- Honest advice on sizing, setup and intended use.
- Email replies within 24 hours.
CTA
Ready to ride far on tarmac, gravel roads and mixed terrain?
Add the Bombtrack Audax AL Road – Matt Warm Grey to your cart.
Want to discuss before ordering? Email us at info@bikejamming.it.
Technical Tables
Specifications
| Color 1 |
Matt warm grey |
| Color 2 |
- |
| Color 3 |
- |
| Frame |
6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell |
| Fork |

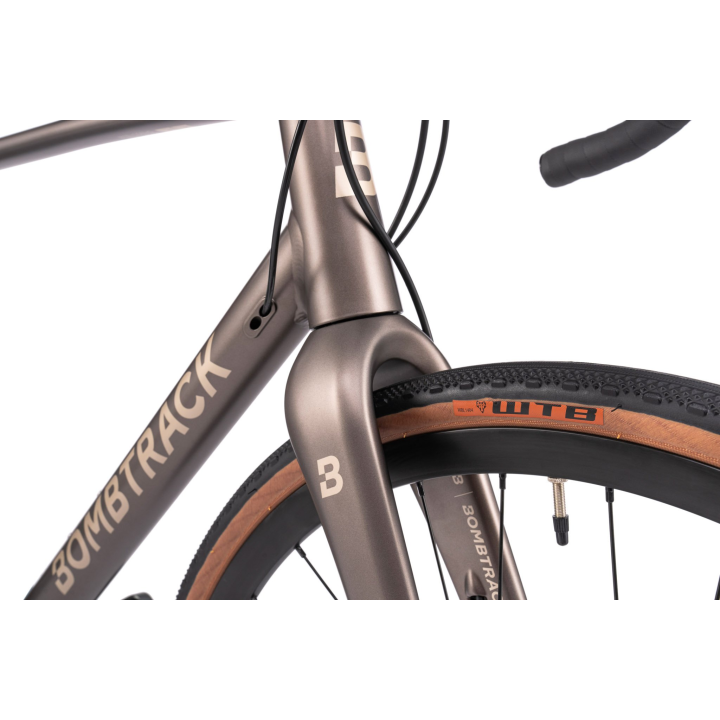

Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts |
| Handlebar |
Seido CX-10 drop bar, 31.8 mm, 10° flare |
| Grips |
Bombtrack Command bar tape |
| Stem |

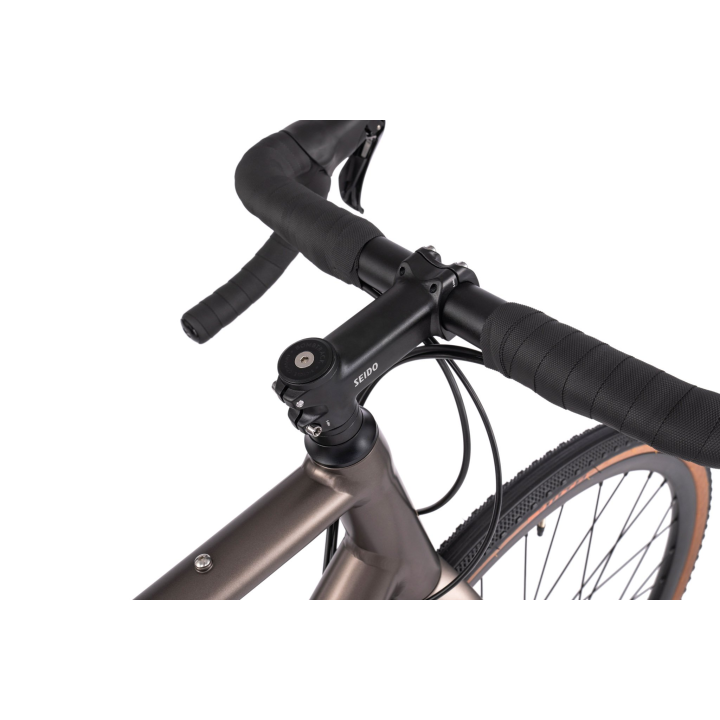

Seido Meander forged aluminium stem, -6° |
| Headset |
Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers |

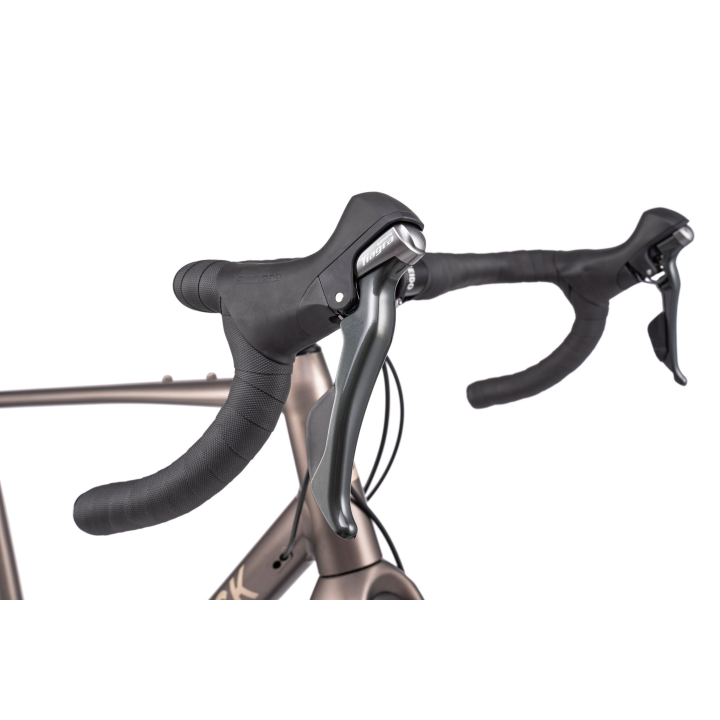

Shimano Tiagra ST-4700 STI mechanic |
| Shifter |
Shimano Tiagra ST-4700 STI 2 × 10 |
| Brakes |
TRP Spyre C flat mount mechanic disc brakes |
| Rotor |
Tektro 160 mm rotors |
| Crankset |

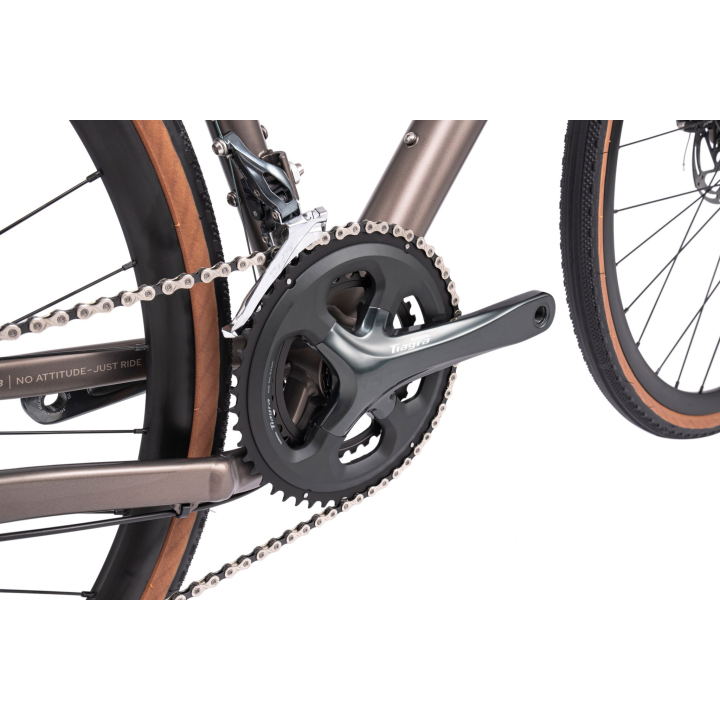

Shimano Tiagra FC-4700, 24 mm spindle |
| BB |
Seido T47 internal sealed BB for 24 mm spindle |
| Pedals |
- |
| Chain |
KMC X10 chain, 1/2'' × 11/128'', 114L |
| Chainring |
Shimano Tiagra, 50T / 34T |
| Cassette |

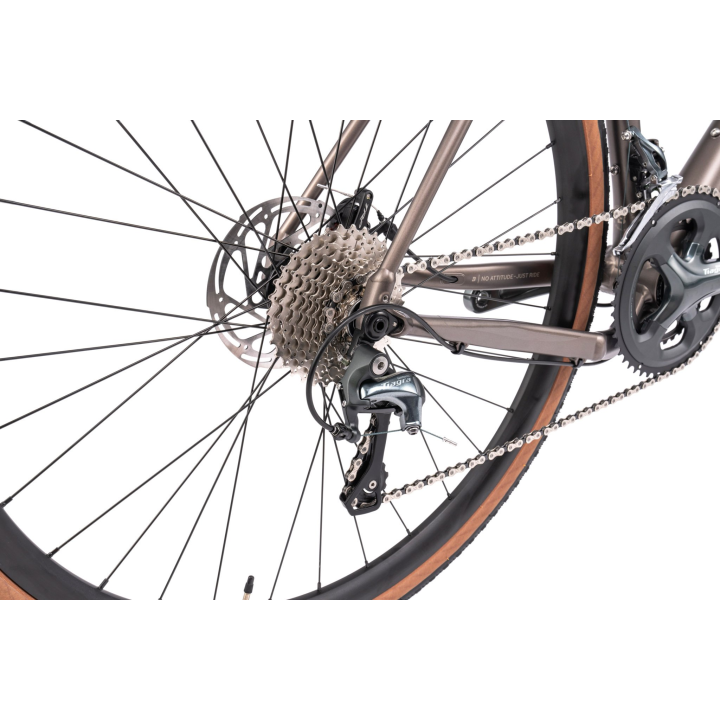

Shimano CS-HG500 10-speed, 11–34T |
| Front derailleur |
Shimano Tiagra FD-4700-F |
| Rear derailleur |
Shimano Tiagra RD-4700-GS |
| Front hub |
Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub |
Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle |
12 × 100 mm / 12 × 142 mm |
| Front rim |
Seido Sinus i21, tubeless ready, 32h |
| Rear rim |
Seido Sinus i21, tubeless ready, 32h |
| Saddle |
Seido Comp saddle |
| Seat post |
Seido Beech 27.2 mm × 350 mm |
| Seat clamp |
Bombtrack Prime 31.8 mm |
| Front tire |
WTB Byway TCS 700C × 34C, tubeless ready |
| Rear tire |
WTB Byway TCS 700C × 34C, tubeless ready |
| Fender |
- |
| Rack |
- |
| Kickstand |
- |
| Light |
- |
| Weight |
10.3 kg (size L) |
| Weight frameset |
1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight |
120 kg incl. luggage |
| ASTM riding condition |
2 |
| Note |
Final product may vary in appearance, finish and minor details. |
Mounting Information
| BB standard |
T47 - 86.5 mm shell width |
| Headset standard (S.H.I.S.) |
IS42 / 28.6 | IS52 / 40 |
| Headset crown race angle |
36° |
| Fork steerer inner diameter |
23.6 mm |
| Fork max tire clearance w/o fender |
650B × 50C / 700C × 35C |
| Frame max tire clearance w/o fender |
650B × 50C / 700C × 35C |
| Maximum chainring clearance 1x |
42T with 45 mm chainline |
| Maximum chainring clearance 2x |
50 / 34T with 43.5 mm chainline |
| Seat post diameter |
27.2 mm |
| Seat clamp diameter |
31.8 mm |
| Front derailleur clamp diameter |
Integrated FD hanger |
| Frame front derailleur compatible |
Yes |
| Brake mount front |
FM 140 / 160 |
| Brake mount rear |
FM 140 / 160 |
| Frame thickness rear brake mount |
20 mm |
| Maximum rotor clearance front |
160 mm |
| Maximum rotor clearance rear |
160 mm |
| Front through axle |
12 mm × 100 mm, 1.5 thread pitch |
| Rear through axle |
12 mm × 142 mm, 1.5 thread pitch |
| ISO testing standard |
Road |
| Crankarm |
XS 165 mm / S - M 170 mm / L - XL 175 mm |
| Q Factor |
150 mm |
| BCD crank |
110 mm, asymmetric Shimano 4 bolts |
| Chainring offset |
0 mm |
| Chainline |
43.5 mm |
| Spoke length front wheel |
tba |
| Spoke length rear wheel |
tba |
| Spoke count (front / rear) |
32 / 32 |
| ERD |
585 mm |
| Front hub PCD |
58 mm |
| Rear hub PCD |
58 mm |
| Front hub flange distance / offset |
56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset |
51 mm center to center / 8.8 mm |
| Stem length |
XS - S 80 mm / M 90 mm / L - XL 100 mm |
| Stem angle |
-6° |
| Headset spacers |
1 × 10 mm, 2 × 5 mm |
| Seat post offset |
24 mm |
| Seat post length |
350 mm |
| Bike trailer |
Approved |
| Seat tube mounted child seat |
Not approved |
| Derailleur hanger |
BT-DH-018 |
| Frame small parts |
BT-CR-013 |
| Hub end caps front |
BT-HC-012 |
| Hub end caps rear |
BT-HC-017 |
| Cassette body |
BT-CB-006 |
| Crankarm bolt |
BT-CRP-002 |
| Through axle front |
BT-TA-F-601 |
| Through axle rear |
BT-TA-R-601 |
Geometry
| Bike Size | XS | S | M | L | XL |
| Wheel size |
700C |
700C |
700C |
700C |
700C |
| Seat Tube Length |
470 |
500 |
530 |
560 |
590 |
| Horizontal TT length |
505 |
527 |
551 |
569 |
592 |
| Seat Angle |
75.0° |
74.5° |
74.0° |
74.0° |
73.5° |
| Head Angle |
71.0° |
72.0° |
72.0° |
72.0° |
72.0° |
| Headtube Length |
100 |
120 |
150 |
180 |
205 |
| BB Drop |
70 |
68 |
68 |
65 |
65 |
| Chainstay Length |
420 |
420 |
420 |
420 |
420 |
| Fork Offset |
53 |
53 |
53 |
53 |
53 |
| Trail |
64 |
57 |
57 |
57 |
57 |
| Wheelbase Length |
991 |
1000 |
1021 |
1041 |
1059 |
| Standover |
733 |
759 |
787 |
818 |
843 |
| Reach |
368 |
379 |
390 |
401 |
411 |
| Stack |
512 |
533 |
561 |
587 |
611 |
| Front Center |
581 |
590 |
610 |
630 |
647 |
| Axle to Crown |
385 |
385 |
385 |
385 |
385 |
| Minimum rider height ¹ |
1500 |
1600 |
1700 |
1790 |
1880 |
| Maximum rider height ¹ |
1610 |
1710 |
1810 |
1900 |
1990 |
¹ The recommended bike size is a general guideline to narrow down options based on rider height. Proper bike fitting is complex and should also consider other body measurements and factors. Since no two riders are exactly alike, it’s impossible to provide a sizing recommendation that is 100% accurate for everyone. The best way to determine the correct size is to consult your Bombtrack dealer (info@bikejamming.it) or a professional bike fitter.
