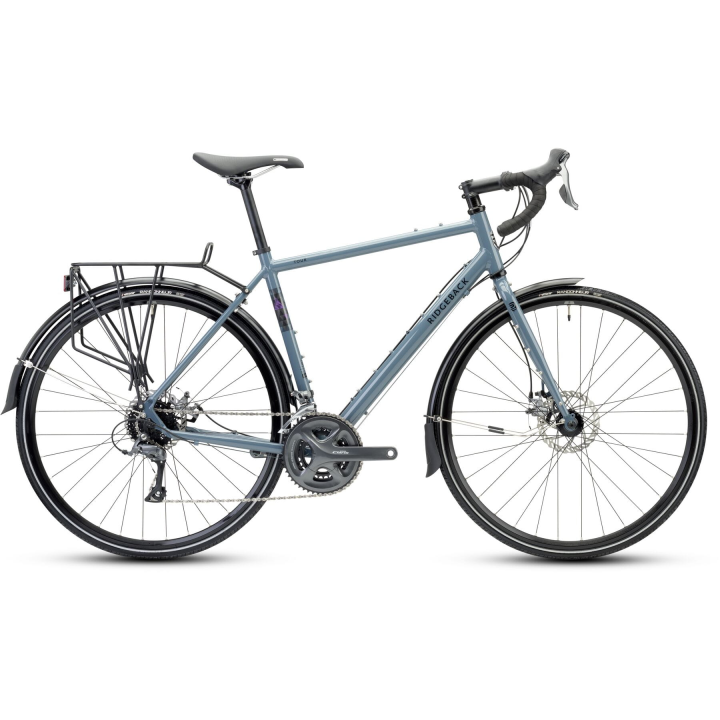

RIDGEBACK Tour

Ridgeback Tour – affordable and fully equipped touring bike

The Ridgeback Tour is a touring bike designed to offer a functional, reliable and cost-effective platform for travel, daily commuting and long-distance riding on tarmac and secondary roads.

The 6061 heat-treated aluminium frame includes all the mounts required for mudguards, racks and bottle cages, making the Tour ready for touring straight out of the box.

Drivetrain

The Shimano Claris 3×8 drivetrain, with a triple chainset and an 11–32T cassette, provides a wide and easy-to-manage gear range, particularly suited to light touring and riding with luggage.

Braking

Promax mechanical disc brakes are chosen for their consistent performance and ease of maintenance, a practical solution for touring and everyday use.

Comfort and rolling efficiency

The Vittoria Randonneur 700×32 mm tyres are selected for durability and smooth rolling over long distances.
The riding position is comfort-oriented, suitable for extended time in the saddle rather than aggressive riding.

Equipment

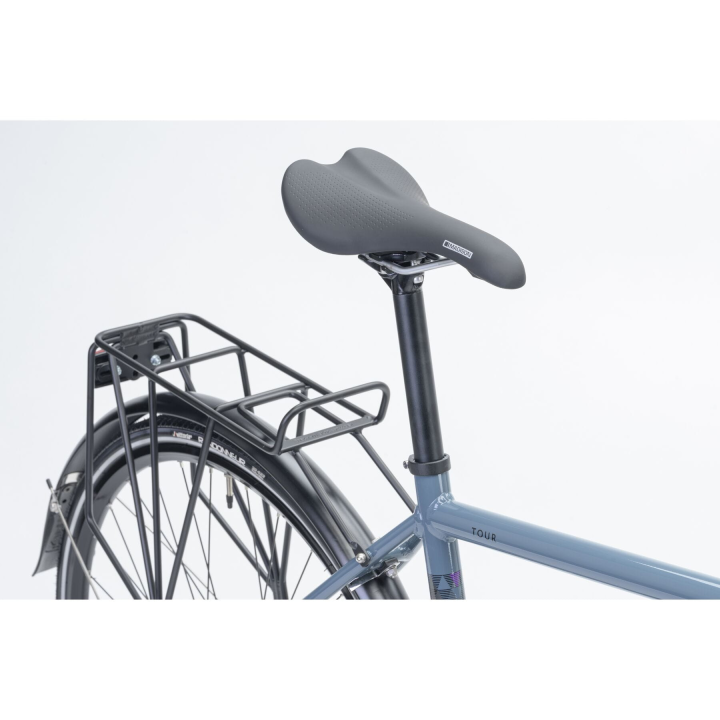

The Ridgeback Tour is supplied with fitted mudguards and a rear pannier rack, allowing immediate use for touring or commuting without additional accessories.

Technical specifications

Frame and fork

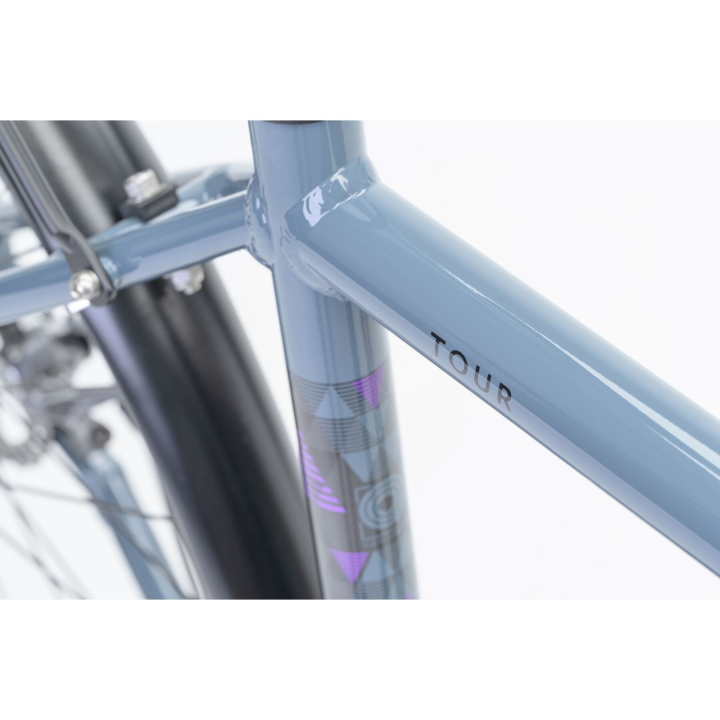

• Frame: 6061 heat-treated aluminium

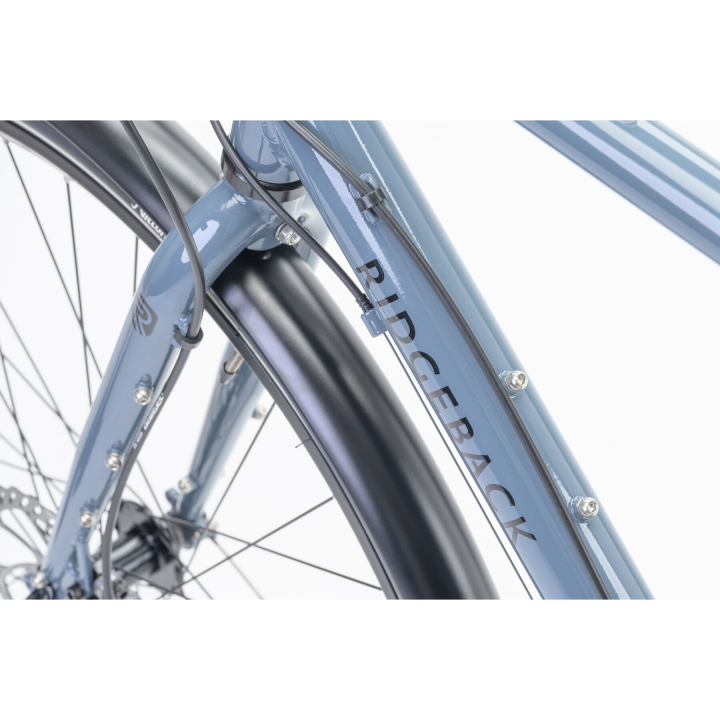

• Fork: Ridgeback Chromoly Disc, 1 1/8" steerer

• Headset: Prestine PT-1606

Drivetrain

• Shifters: Shimano Claris ST-R2030, 3×8-speed

• Rear derailleur: Shimano Claris RD-R2000 GS, 8-speed

• Front derailleur: Shimano Claris FD-R2030 Triple

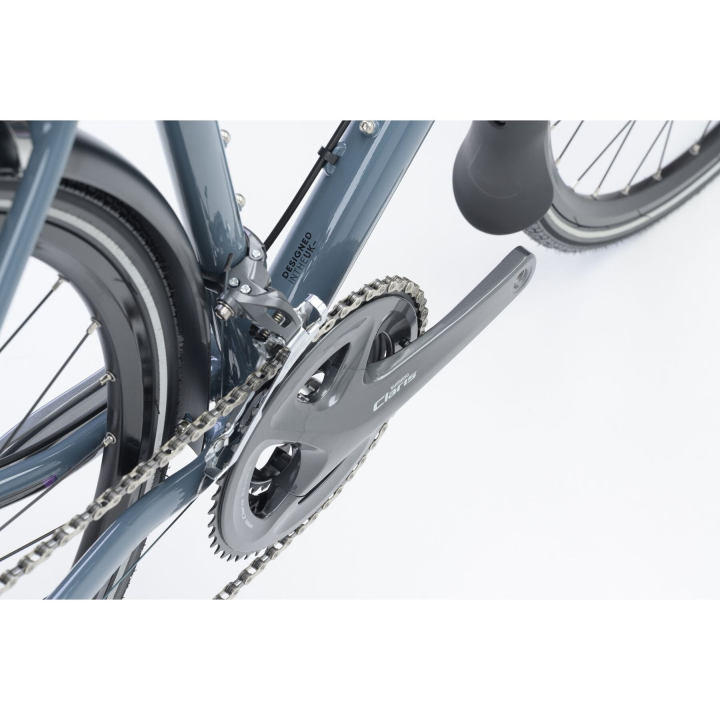

• Chainset: Shimano Claris FC-R2030 50/39/30T

  • XS–M: 170 mm

  • L–XL: 175 mm

• Cassette: Shimano HG31 11–32T, 8-speed

• Chain: KMC X8

Brakes

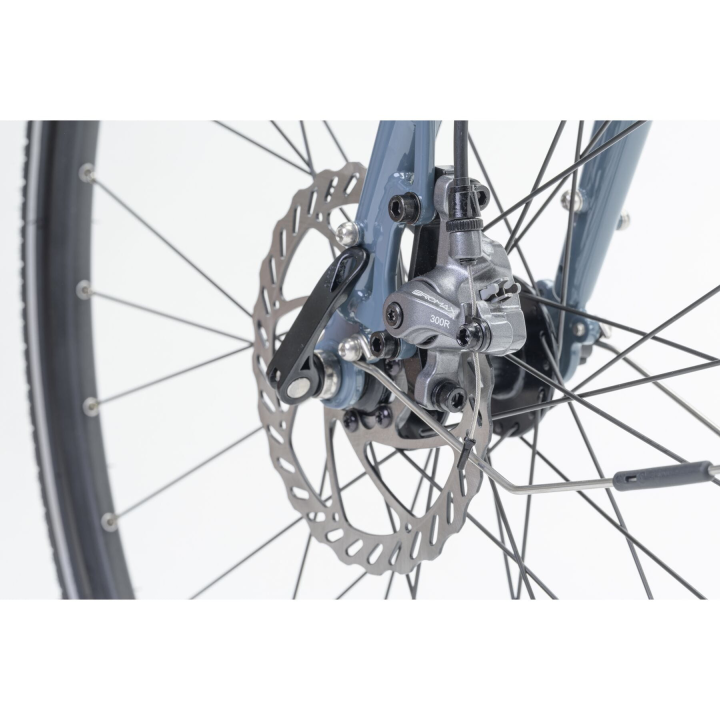

• Brakes: Promax DSK-300R mechanical disc

• Brake levers: Shimano Claris ST-R2030

Wheels and tyres

• Rims: Shining DB-31

• Hubs: KT68F / KT68R

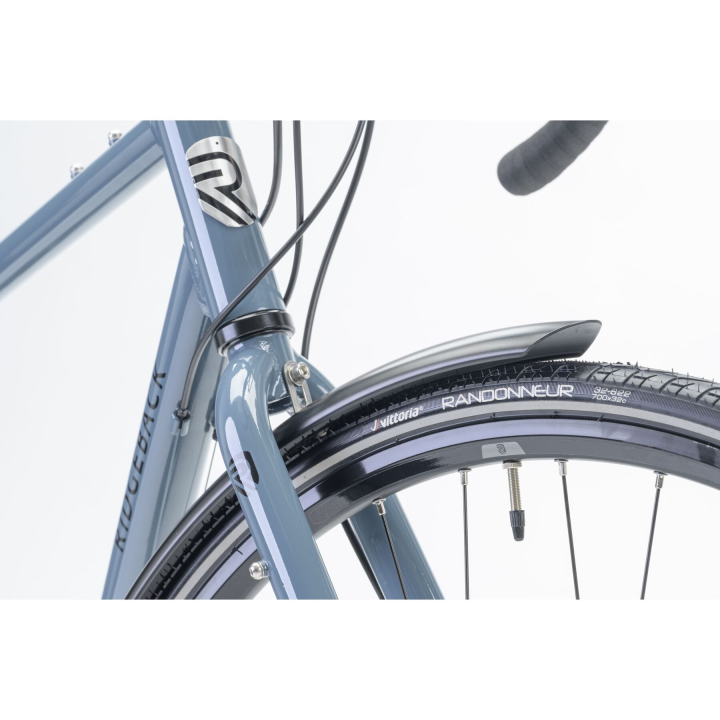

• Tyres: Vittoria Randonneur 700×32 mm

• Wheel size: 700c

Components

• Handlebar: Ridgeback Alloy 31.8 mm, 12° flare

  • XS: 400 mm

  • S/M: 420 mm

  • L/XL: 440 mm

• Stem: Ridgeback Alloy 100 mm, −7°

• Seatpost: Ridgeback Alloy 27.2×350 mm

• Saddle: Madison Flux

Accessories

• Mudguards: fitted

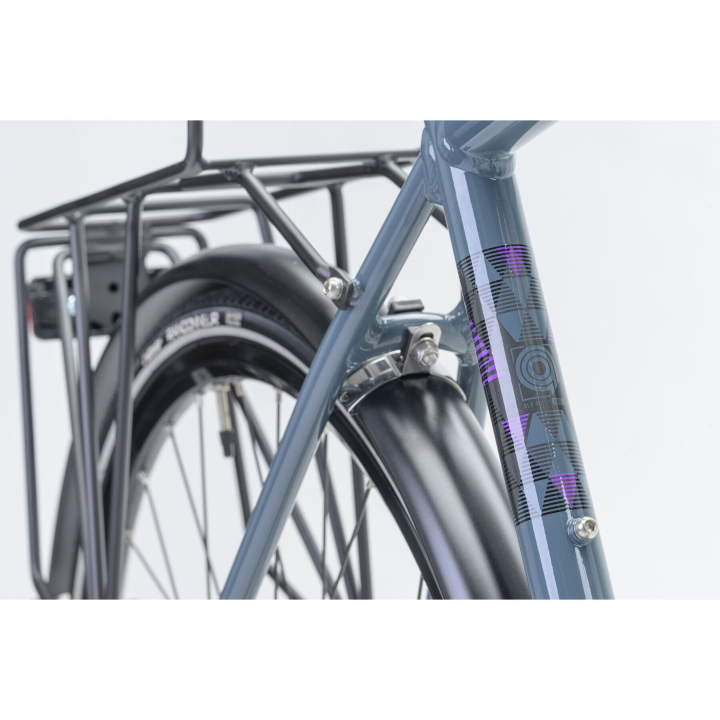

• Rear rack: fitted

Frame geometry (mm)

Sizing guide (indicative)

• XS: 156–164 cm

• S: 164–172 cm

• M: 171–179 cm

• L: 178–186 cm

• XL: 185–193 cm

(These are general guidelines. Final size choice should consider riding style and intended use. Size consultation is available.)
