RIDGEBACK Voyage

Ridgeback Voyage – classic touring bike for long-distance riding

The Ridgeback Voyage is a traditional touring bike designed for long-distance riding on tarmac and secondary roads, with a clear focus on comfort, stability and load-carrying capability. Its classic design and proven components make it suitable both for everyday use and for multi-day touring.

The frame is built from Reynolds 520 chromoly steel, paired with a gently raked chromoly fork, contributing to a smooth, predictable ride, particularly when the bike is loaded with panniers.

Comfort and stability over long distances

The combination of:

• Reynolds 520 steel frame

• Kenda Kwest 700×32 mm tyres

• dedicated touring geometry

delivers stable handling and comfort on extended rides. The frame offers clearance for tyres up to 700×35 mm, allowing more comfort-oriented setups if required.

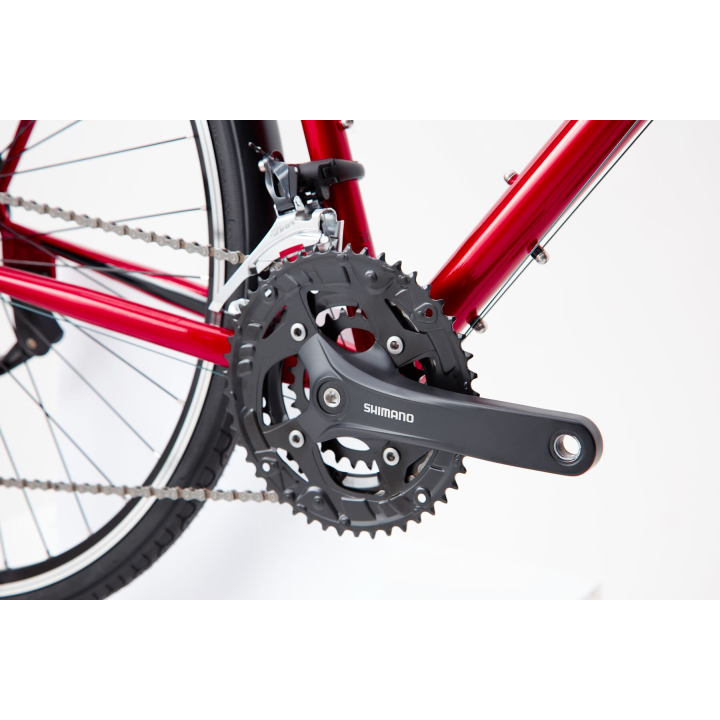

Drivetrain designed for loaded touring

The Ridgeback Voyage features a Shimano triple drivetrain:

• 48-36-26T chainset

• 11–34T cassette

This gearing range is well suited to steep climbs with luggage, providing low ratios for controlled climbing while maintaining versatility on flatter terrain.

Braking performance and touring equipment

Tektro RX6 Mini-V brakes provide increased braking power compared to traditional cantilever systems, while remaining compatible with road brake levers.

The bike comes fully equipped for touring, including:

• full-length mudguards

• rear pannier rack

• FPD road pedals with toe clips supplied as standard

Technical specifications

Frame & fork

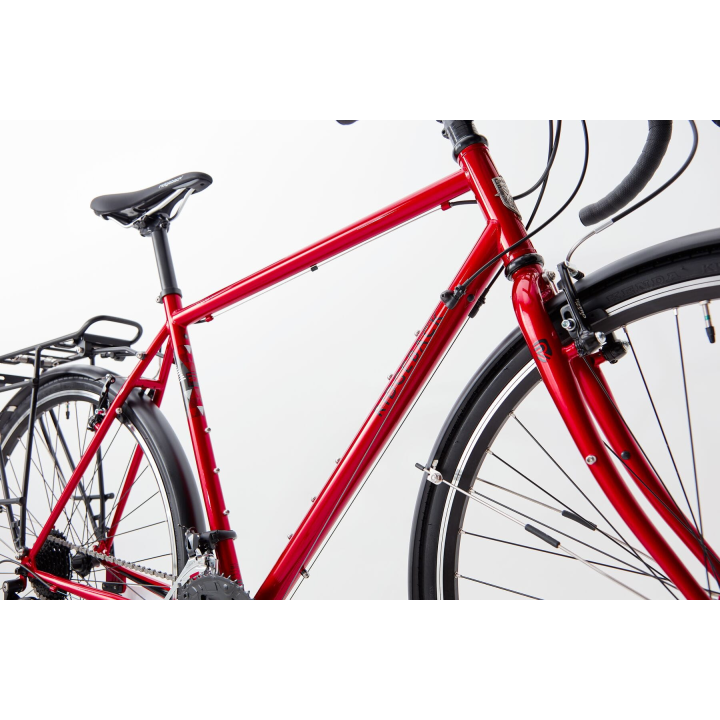

• Frame: Reynolds 520 Chromoly steel

• Fork: Chromoly steel

• Headset: Threadless 1-1/8" – EC34/28.6 | EC34/30

• Cable routing: External

Drivetrain

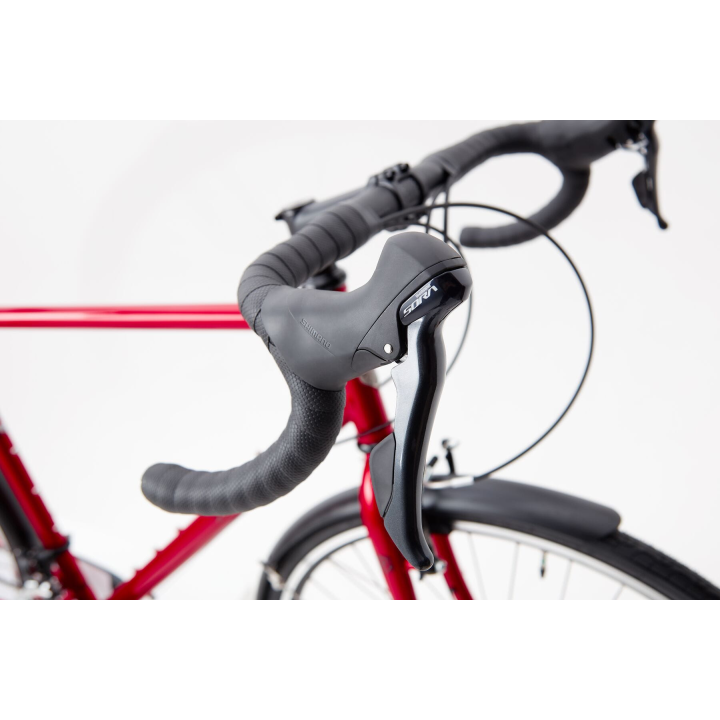

• Shifters: Shimano Sora ST-R3030

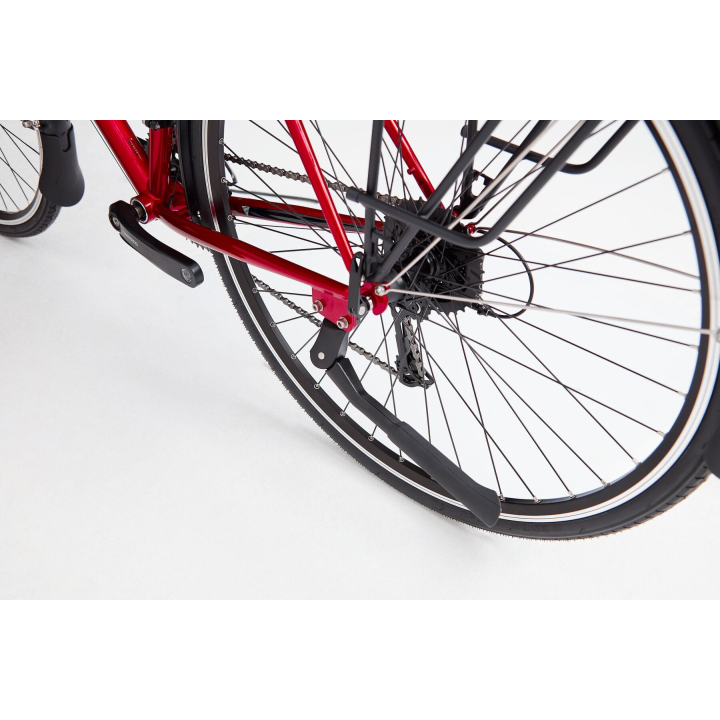

• Rear derailleur: Shimano Acera RD-T3000 SGS

• Front derailleur: Shimano Sora FD-R3030

• Chainset: Shimano FC-T3010, 48-36-26T

• Bottom bracket: Shimano BB-UN300

• Cassette: Shimano HG200, 11–34T

• Chain: KMC CNHG-53

Brakes

• Brakes: Tektro RX6 Mini-V

• Brake levers: Shimano Sora ST-R3030

Wheels & tyres

• Rims: Jalco DM23

• Hubs: KT-GP5F (front) / KT-AEZR (rear)

• Spokes: Stainless steel 14G with brass nipples

• Tyres: Kenda Kwest 700×32 mm

• Maximum tyre size: 700×35 mm

Components

• Handlebar: Ridgeback Alloy

  • XS 400 mm / S-M 420 mm / L-XL 440 mm

• Stem: Ridgeback Alloy

  • XS 90 mm / S-M 100 mm / L-XL 110 mm

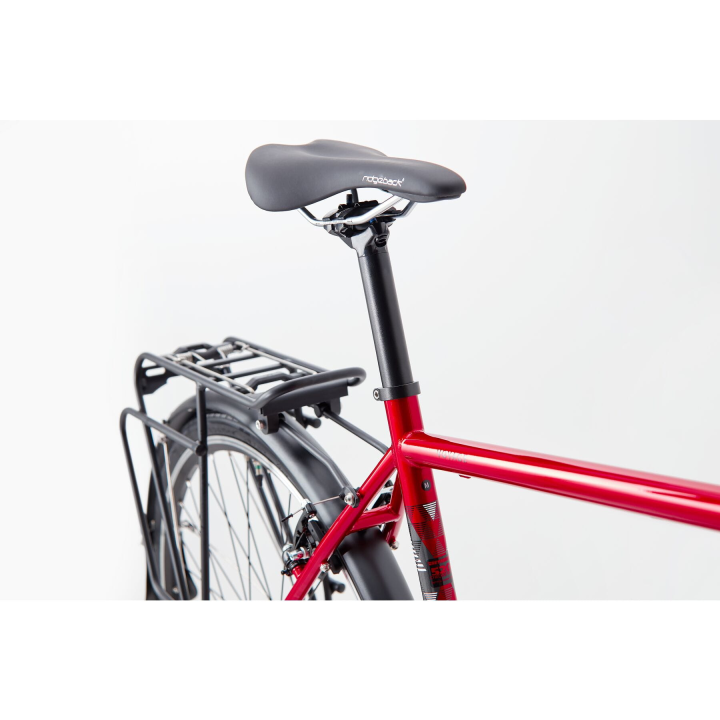

• Seatpost: Ridgeback Alloy 27.2×350 mm

• Saddle: Ridgeback Custom

• Bar tape: Ridgeback

Accessories

• Mudguards: fitted, matte black

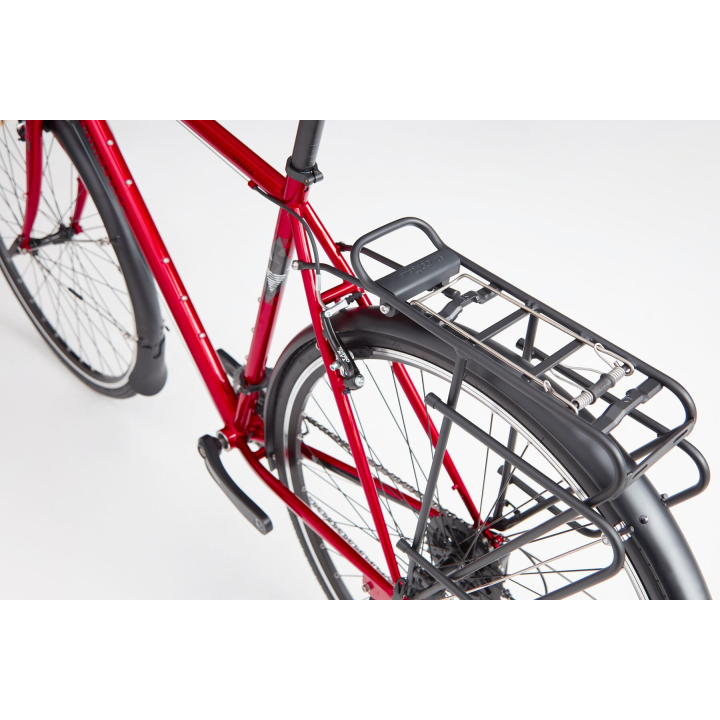

• Rear rack: fitted

• Pedals: FPD road pedals with toe clips

General

• Category: Touring

• Wheel size: 700c

• Brake type: Rim

• Drivetrain: Triple

• Frame material: Steel

• Colour: Black

Geometry (mm)

Sizing guide (indicative)

• XS: 156–164 cm

• S: 164–172 cm

• M: 171–179 cm

• L: 178–186 cm

(These guidelines are indicative; personalised sizing consultation is available.)
