GENESIS Equilibrium

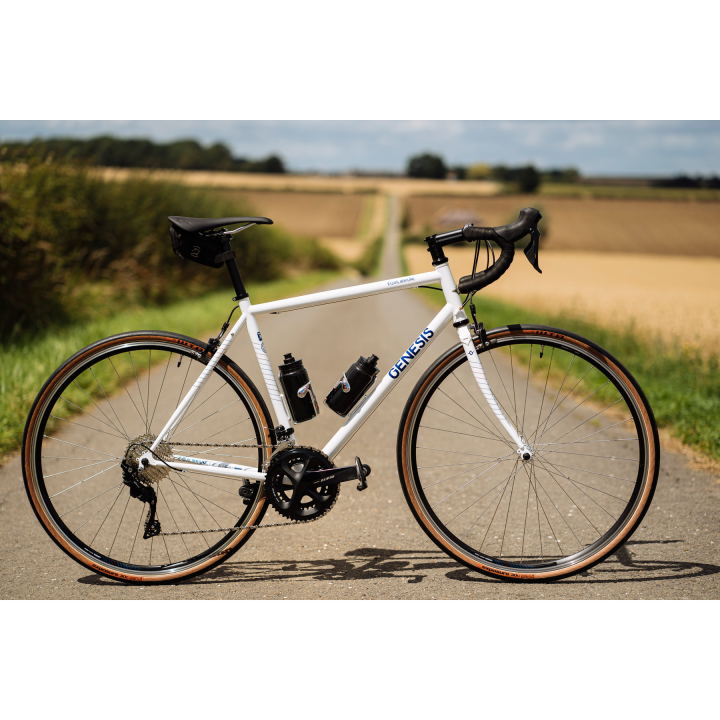

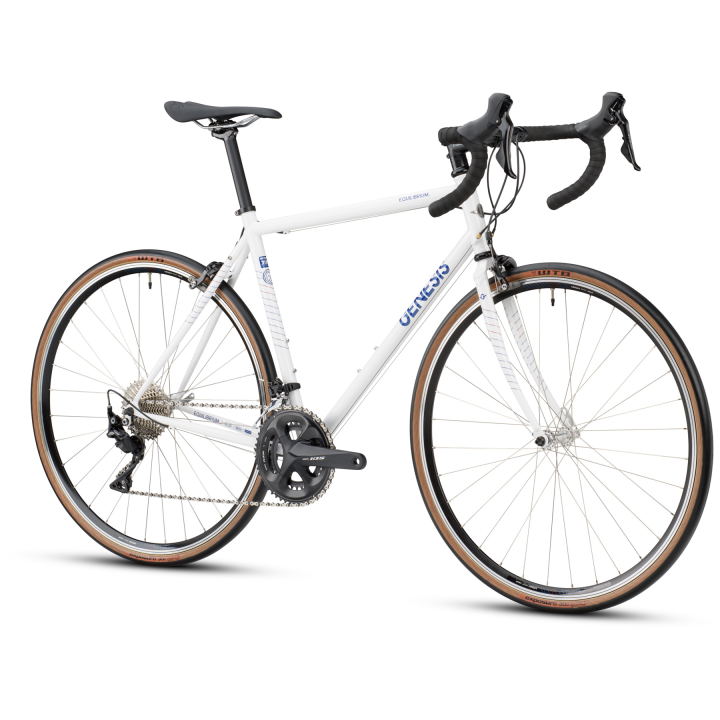

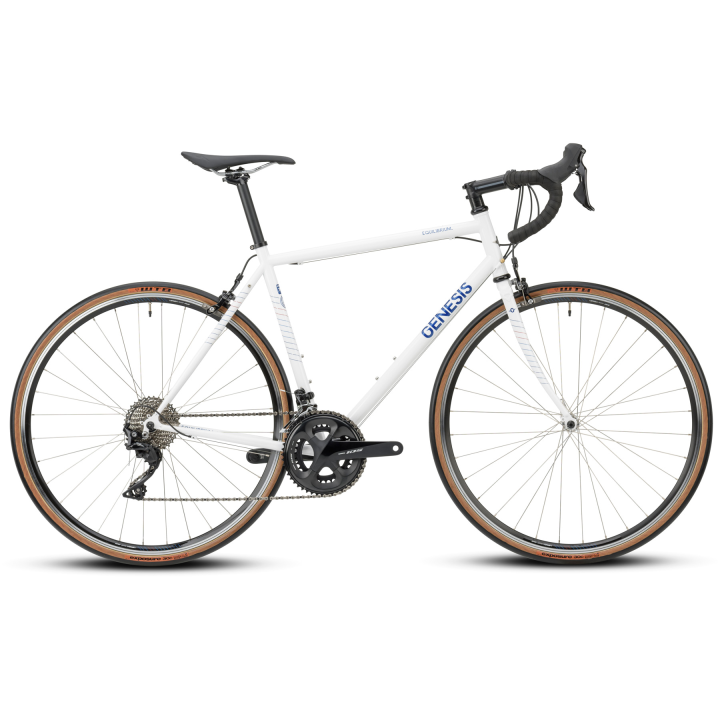

Genesis Equilibrium – four-season steel road bike with rim brakes

The Equilibrium has long been a cornerstone of the Genesis Bikes range, developed as a steel road bike built for real-world riding.
In this rim brake version, the Equilibrium retains a classic, functional setup aimed at year-round road use.

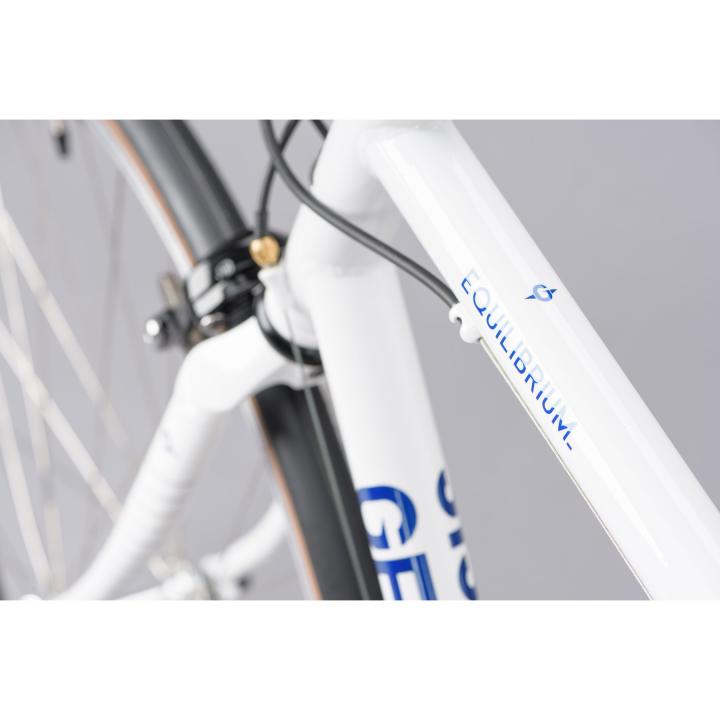

The Reynolds 725 heat-treated chromoly frameset combines durability, low weight and a refined ride feel on rough or broken tarmac. A steel fork maintains consistent handling characteristics and complements the overall balanced nature of the bike.

Model positioning

The Genesis Equilibrium (rim brake) is designed for:

• endurance road riding

• long-distance road use

• four-season riding with mudguards

• riders looking for a classic, comfortable and stable road bike

Compared to aggressive race frames, the Equilibrium features a more relaxed geometry, with a longer wheelbase and conservative steering angles, favouring comfort, stability and confidence over short-distance performance.

Ride setup and usability

Supplied with 700×30 mm tyres, the Equilibrium offers increased comfort compared to traditional narrow-tyre road bikes, while remaining firmly road-oriented.
The presence of mudguard and rack mounts allows the bike to be configured for commuting or light touring.

The Shimano 105 11-speed drivetrain provides a proven, versatile gear range, while long-drop rim brakes ensure compatibility with full-length mudguards without compromising braking function.

Technical specifications

Frame & fork

• Frame: Reynolds 725 Heat-Treated Chromoly

• Fork: Genesis Steel

• Headset: PT-1767D EC34 Upper / EC34 Lower

• Warranty: Lifetime on frame and fork

Drivetrain

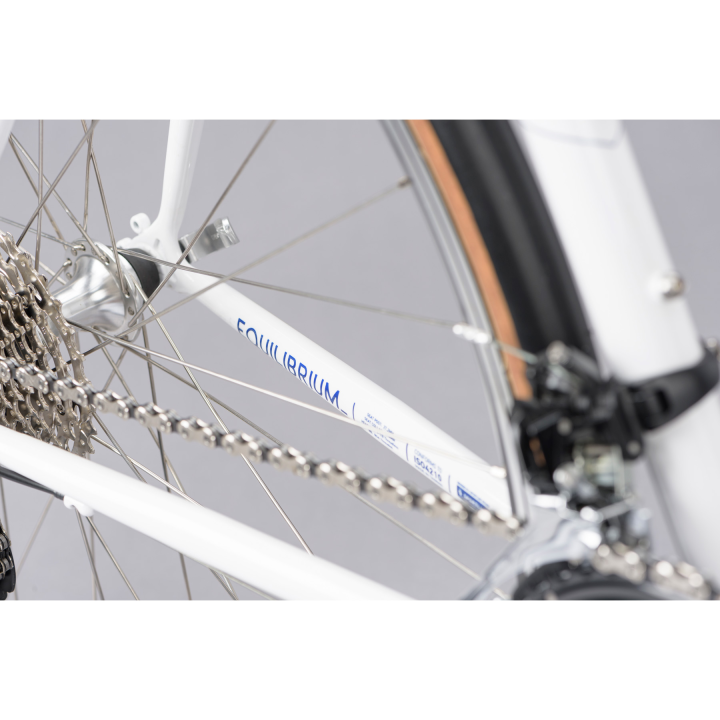

• Shifters: Shimano 105 ST-R7000, 11-speed

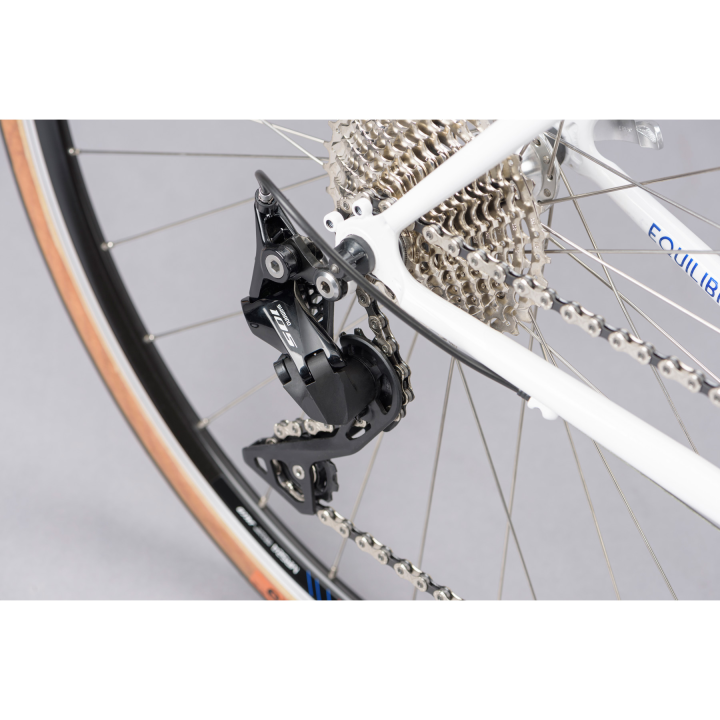

• Rear derailleur: Shimano 105 RD-R7000-GS

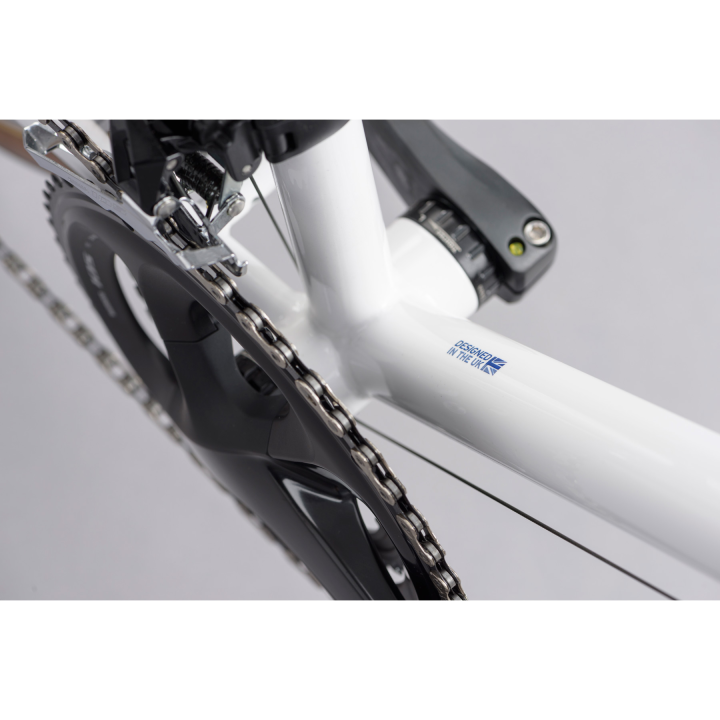

• Front derailleur: Shimano 105 FD-R7000-L

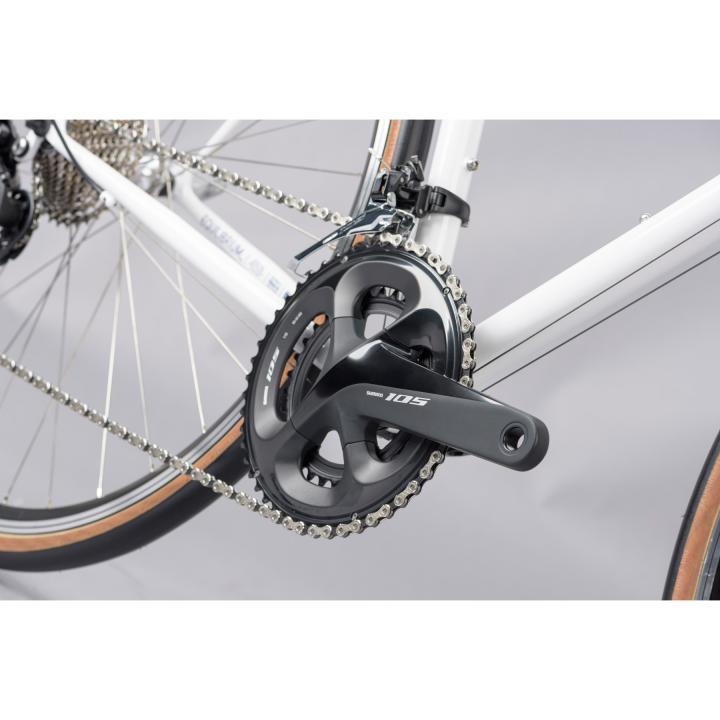

• Crankset: Shimano 105 FC-R7000 50/34T

  • XS: 170 mm

  • S / M: 172.5 mm

  • L / XL: 175 mm

• Bottom bracket: Shimano SM-BBR60

• Cassette: Shimano CS-HG700-11, 11–34T

• Chain: KMC X11

Brakes

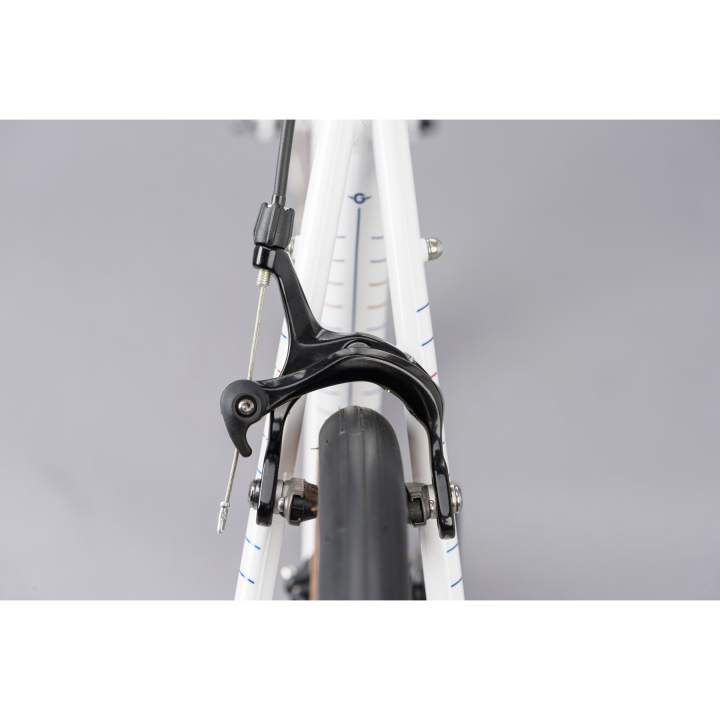

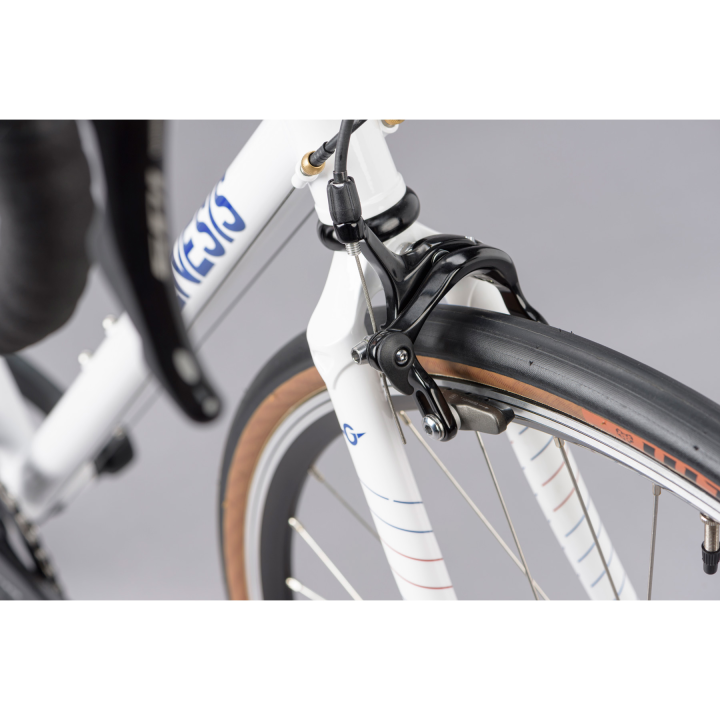

• Brakes: Promax RC-477 long-arm caliper

• Brake levers: Shimano 105 ST-R7000

Wheels & tyres

• Rims: Promax RC-477

• Hubs: Shimano 105

• Spokes: Steel 14g

• Tyres: Schwalbe Marathon

• Maximum tyre size: 700×30 mm

Components

• Handlebar: Genesis Alloy

  • XS: 400 mm

  • S / M: 420 mm

  • L / XL: 440 mm

• Stem: Genesis Alloy −7°

  • XS: 90 mm

  • S / M: 100 mm

  • L / XL: 110 mm

• Seatpost: Genesis Alloy 27.2×350 mm

• Saddle: Genesis Road

• Bar tape: Genesis Vexgel

Standards & compatibility

• Wheel size: 700c

• Brake type: long-arm caliper

• Seatpost diameter: 27.2 mm

• Seat clamp diameter: 29.8 mm

• Front derailleur: band-on 28.6 mm

• Derailleur hanger: integrated

General

• Claimed weight: 10.04 kg

• Frame weight limit: not specified

• Colour: The Whitehouse Family

• Colour code: White

Available sizes

XS – S – M – L – XL

Final size choice should be evaluated based on geometry, riding style and intended use. Personal sizing consultation is available.
