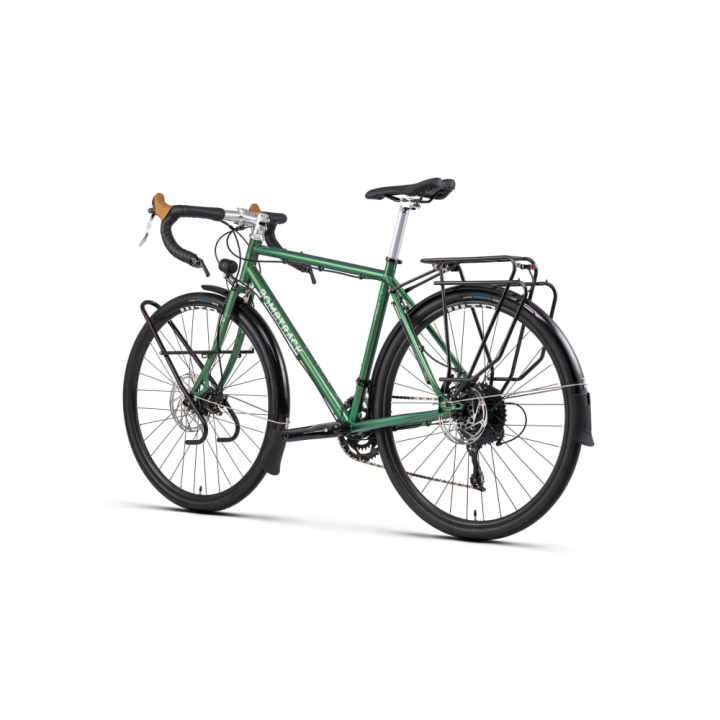

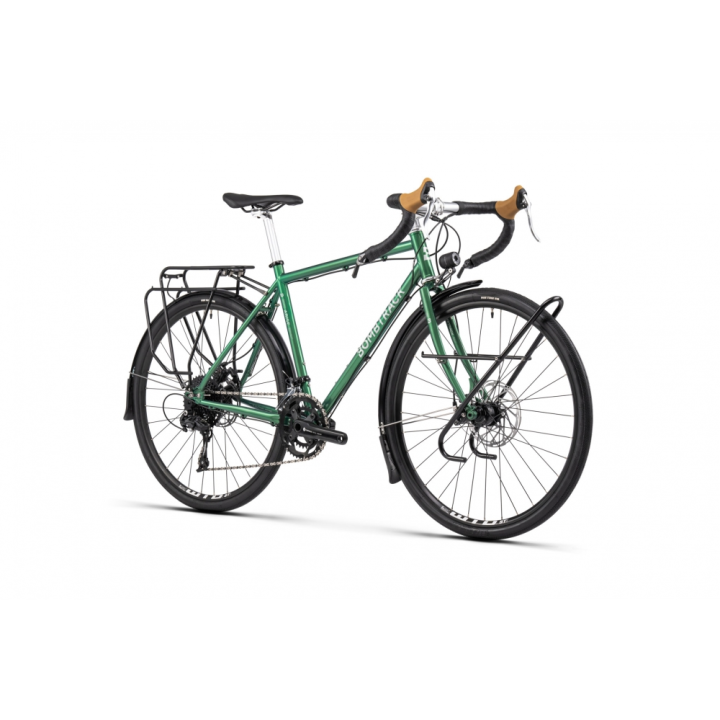

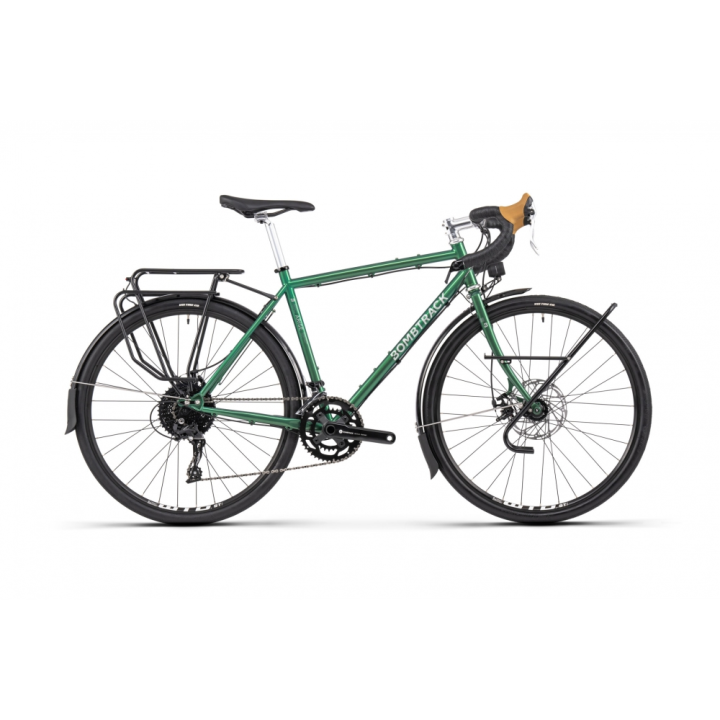

BOMBTRACK Arise Tour - Metallic Green

€2,700.00 (Save €255.50)
€2,444.50
Tax included

A steel touring bike fully equipped for long-distance travel, bike touring and heavy-duty commuting, with racks, fenders and dynamo lights already included.



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

The ultimate touring bike for long-distance adventure

Do you dream of shutting down your computer, loading your bags and setting off on a journey without limits?
The Bombtrack Arise Tour is a Cr-Mo steel touring bike designed for riders who want to explore the world on two wheels. Strong, reliable and already fully equipped to handle thousands of kilometres, it is the ideal companion for cycle touring if you are looking for a solid, comfortable and complete setup.

Built around a 4130 double-butted Cr-Mo steel frame and a matching steel fork, the Arise Tour delivers stable and comfortable handling even when fully loaded.
It comes equipped from the factory with everything you need to start riding immediately:

  • Tubus front and rear racks in Cr-Mo steel

  • Bombtrack Ward aluminium fenders

  • Supernova E3 lighting system powered by a KT hub dynamo

  • Microshift 2x10 drivetrain with 46/30T chainrings and an 11–42T cassette, suitable even for demanding climbs

  • TRP Spyre C mechanical disc brakes with 180/160 mm rotors for full control on descents

Every detail is focused on reliability: from the WTB ST tubeless-ready wheels to the hardware and internal cable routing, all the way to the 12 mm thru-axles for added stiffness and stability.

Key features

  • Frame and fork: 4130 double-butted Cr-Mo steel, with mounts for racks and fenders

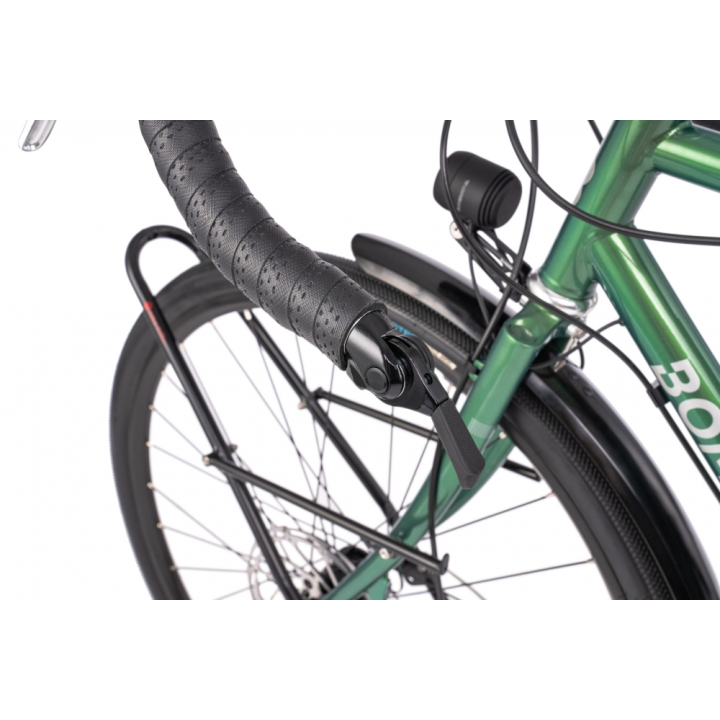

  • Shifting: Microshift BS-M10 bar-end shifters, 2x10 speed

  • Crankset: Bombtrack Ames 46/30T

  • Cassette: Microshift 11–42T (wide 585% range)

  • Brakes: TRP Spyre C mechanical disc, 180 mm (front) / 160 mm (rear)

  • Wheels:

    • XS–S: 650B x 38C

    • M–XL: 700C x 40C

  • Lighting: Supernova E3 Pure 3 front + E3 Tail Light 2 rear, powered by hub dynamo

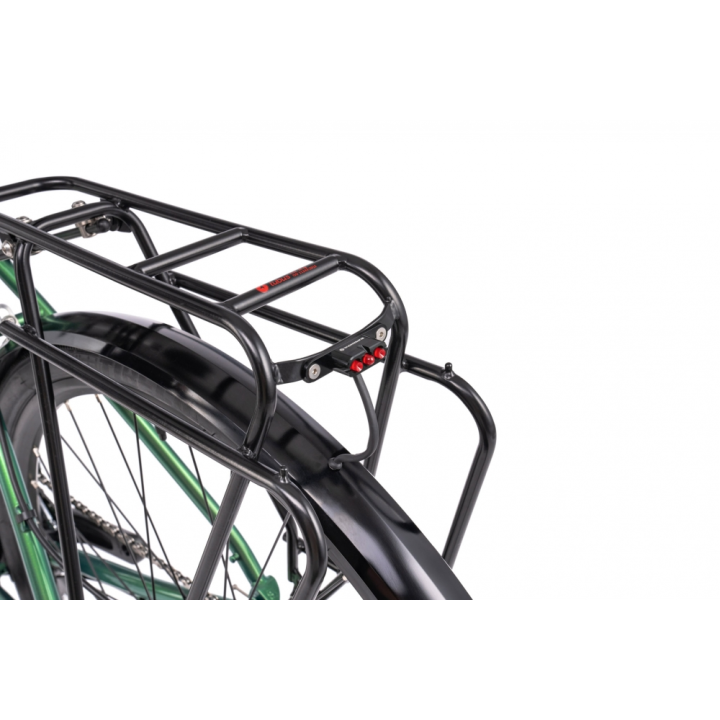

  • Racks: Tubus Tara (front) + Tubus Logo Evo (rear)

  • Bike weight: 14.7 kg (size M)

  • Max system weight (rider + luggage): 130 kg

Key strengths

✅ Proven reliability: components selected to handle thousands of kilometres
✅ Adventure-ready: delivered fully equipped with racks, fenders and lights
✅ Comfort and stability: touring geometry optimised for long-distance riding
✅ Low maintenance: bar-end shifters and mechanical brakes are easy to service, even on the road
✅ Maximum versatility: compatible with bikepacking setups and bike trailers

Who it’s for

The Bombtrack Arise Tour is ideal for riders planning long-distance journeys on asphalt or compact gravel roads, as well as for those looking for a reliable daily commuting bike with an adventurous mindset.
From a weekend ride to an intercontinental trip, this bike is designed for those who value a slower pace and the freedom of self-supported travel.

Sizes

  • XS–S: 650B wheels (27.5″) for improved handling

  • M–XL: 700C wheels (29″) for maximum efficiency

  • Frame weight: 2.48 kg (size M)

  • Fork weight: 1.37 kg

Colour

Metallic Green

Summary

The Bombtrack Arise Tour is a touring bike ready for anything: as solid as the steel it is built from, carefully designed in every detail, and ready to take you towards the horizon.
Load your bags, switch on the Supernova lights and start pedalling: your adventure begins here.

Technical specifications

Specifications

Component Description
Frame 4130 double butted Cr-Mo, heat-treated front triangle, TA sliding dropouts, rack / fender mounts, BSA 68 mm BB shell
Fork 4130 Cr-Mo, TA, rack / fender mounts, internal hub dynamo cable routing
Handlebar Bombtrack CX-10 drop bar, Ø 31.8 mm, 10° flare
Bar tape Bombtrack Escape bar tape
Stem Seido Meander forged aluminium, -6°
Headset Neco H282 sealed, external 1 ⅛″
Brake levers Tektro RL-340
Shifters Microshift BS-M10 bar-end shifter, 2x10
Brakes TRP Spyre C mechanical disc, post-mount
Rotors 180 mm (front) / 160 mm (rear)
Crankset Bombtrack Ames forged aluminium, 24 mm axle
Bottom bracket BSA sealed, external cups
Chain KMC X10, 116 links
Chainrings Steel, 46 / 30 T (subcompact)
Cassette Microshift CS-H103 10-speed, 11 – 42 T
Front derailleur Microshift FD-R552-B
Rear derailleur Microshift RD-M62L (long cage)
Front hub KT dynamo hub, 6-bolt disc
Rear hub Bombtrack Arc sealed, 11-speed, 6-bolt disc
Thru-axles 12 × 100 mm / 12 × 142 mm
Rims WTB ST i19 TCS 2.0, double wall, 32h
Saddle Bombtrack Fuzz
Seatpost Bombtrack Beech 27.2 × 300 mm
Seat clamp Bombtrack Origin 29.8 mm
Tyres XS-S → 650B × 38C / M-XL → 700C × 40C, Vee Tire Speedster
Fenders Bombtrack Ward aluminium, 50 mm
Racks Tubus Tara (front) / Tubus Logo Evo (rear)
Lights Supernova E3 Pure 3 (front) / E3 Tail Light 2 (rear), dynamo-powered
Bike weight 14.7 kg (size M)
Frameset weight Frame 2.48 kg (size M) / Fork 1.37 kg
Max system weight 130 kg
ASTM usage category Category 2 (road / touring)

Assembly information

Parameter Value
BB standard BSA – 68 mm
Headset standard (S.H.I.S.) EC34 / 28.6
Headset crown angle 45°
Fork steerer inner diameter 25.4 mm
Max tyre clearance (without fenders) XS-S → 650B × 42C / M-XL → 700C × 42C
Max chainring 1x 44 T with 45 mm chainline
Max chainring 2x 52 / 36 T with 45 mm chainline
Seatpost diameter 27.2 mm
Seat clamp diameter 29.8 mm
Front derailleur clamp diameter 28.6 mm
Front derailleur compatibility Yes
Brake mount front/rear PM 6″ / PM 6″
Max front rotor 180 mm
Max rear rotor 160 mm
Thru-axles Front 12 × 100 mm (1.5 mm pitch) / Rear 12 × 142 mm (1.5 mm pitch)
ISO test standard Road
Crank length XS 165 mm / S-M 170 mm / L-XL 175 mm
Q-Factor 170 mm
Crank BCD 104 / 64 mm (4 bolts)
Chainring offset Inner 0 mm / Outer –2 mm
Chainline 45 mm
Spokes (front/rear) XS-S 273/272-274 mm / M-XL 292/291-293 mm
Spoke count 32 / 32
ERD XS-S 570 mm / M-XL 604 mm
Hub PCD (front/rear) 58 mm / 58 mm
Front hub flange 46.8 mm center-to-center
Rear hub flange 51 mm center-to-center / offset 8.8 mm
Stem 80 mm, -6°
Headset spacers 1×10 mm + 2×5 mm
Seatpost offset 24 mm
Seatpost length 300 mm
Trailer / child seat Approved
Spare parts codes Derailleur hanger BT-DH-022 / Axles BT-TA-F-603 / BT-TA-R-603 / Other small parts BT-CR-007

Frame geometry

Size XS S M L XL
Wheel size 650B 650B 700C 700C 700C
Seat tube (mm) 460 490 520 550 580
Effective top tube (mm) 506 529 554 578 602
Seat angle (°) 73.5 73.5 73 73 73
Head angle (°) 70 70.5 70.5 71 71
Head tube (mm) 100 130 150 180 210
BB drop (mm) 55 55 70 70 70
Chainstay (mm) 420 420 435 435 435
Fork offset (mm) 55 55 55 55 55
Trail (mm) 64 60 68 65 65
Wheelbase (mm) 995 1016 1045 1065 1090
Standover (mm) 733 762 799 828 857
Reach (mm) 351 370 379 394 409
Stack (mm) 508 538 572 602 631
Front center (mm) 582 602 619 639 664
Axle-to-crown (mm) 390 390 390 390 390
Min rider height (mm) 1500 1600 1700 1790 1880
Max rider height (mm) 1610 1710 1810 1900 1990

Frequently asked questions about the Bombtrack Arise Tour

Is the Bombtrack Arise Tour suitable for long-distance touring?

Yes. It is specifically designed for long-distance travel, with Tubus racks, fenders, dynamo lighting and stable geometry even when fully loaded.

Is the Bombtrack Arise Tour ready for touring out of the box?

Yes. It comes equipped with front and rear racks, aluminium fenders and a Supernova lighting system powered by a hub dynamo.

What gearing does the Bombtrack Arise Tour use?

It features a Microshift 2x10 drivetrain with 46/30T chainrings and an 11–42T cassette, providing a wide gear range suitable for climbing.

Does the Bombtrack Arise Tour have mechanical or hydraulic brakes?

It uses TRP Spyre C mechanical disc brakes, a solution appreciated for its simplicity, reliability and ease of service while travelling.

What wheel size does the Bombtrack Arise Tour use?

Sizes XS and S use 650B wheels, while sizes M to XL use 700C wheels.

Is the Bombtrack Arise Tour suitable for daily commuting?

Yes. Thanks to dynamo lighting, fenders, racks and a robust setup, it can also be used as a year-round heavy-duty commuter.

What is the maximum load capacity?

The maximum system weight (rider + luggage) is 130 kg.
