New Reduced price! RITCHEY Outback Frameset - Winter Sage (GREEN/WHITE)

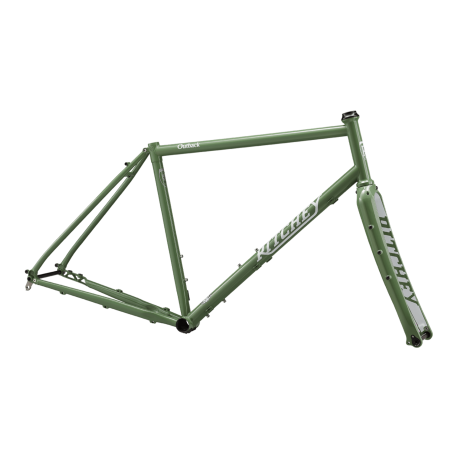

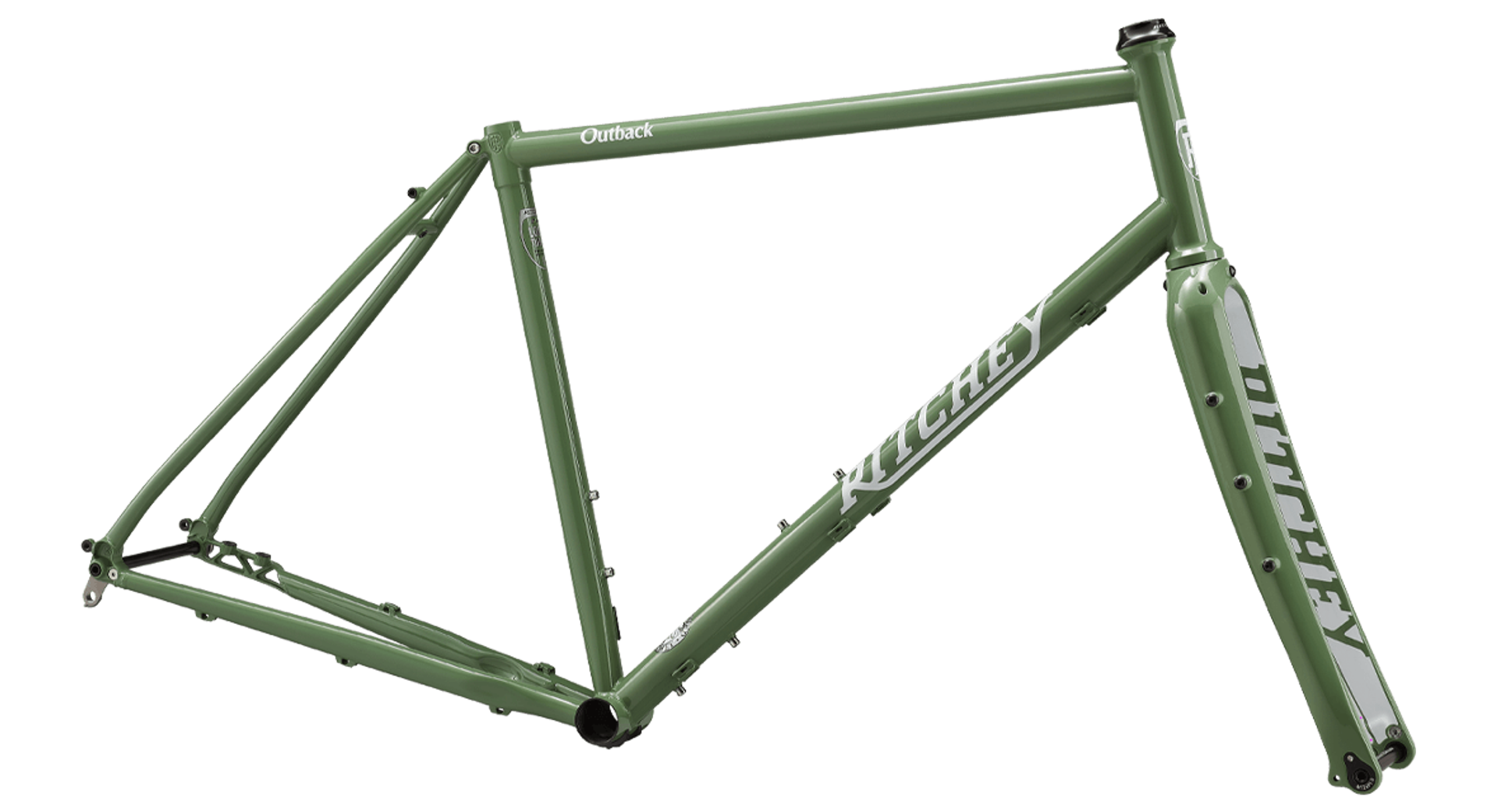

RITCHEY Outback Frameset - Winter Sage (GREEN/WHITE)

Condition New

Data sheet

Frame	Gravel / Bikepacking Ready
Wheel Size	700C/27.5"

More info

Gravel and adventure built for real travel

The Ritchey Outback is a frameset designed for travel-oriented gravel riding, bikepacking and dirt-road touring. It’s a platform developed to handle mixed terrain, long days in the saddle and loaded configurations, while maintaining stability and control when conditions become demanding.

Independent reviews consistently highlight the Outback’s balance between comfort and precision, its predictable handling on rough surfaces, and a geometry that works equally well when fully loaded or in lighter, more agile setups. It’s not an extreme frame, but a coherent tool for riders who cover serious distances on varied terrain.

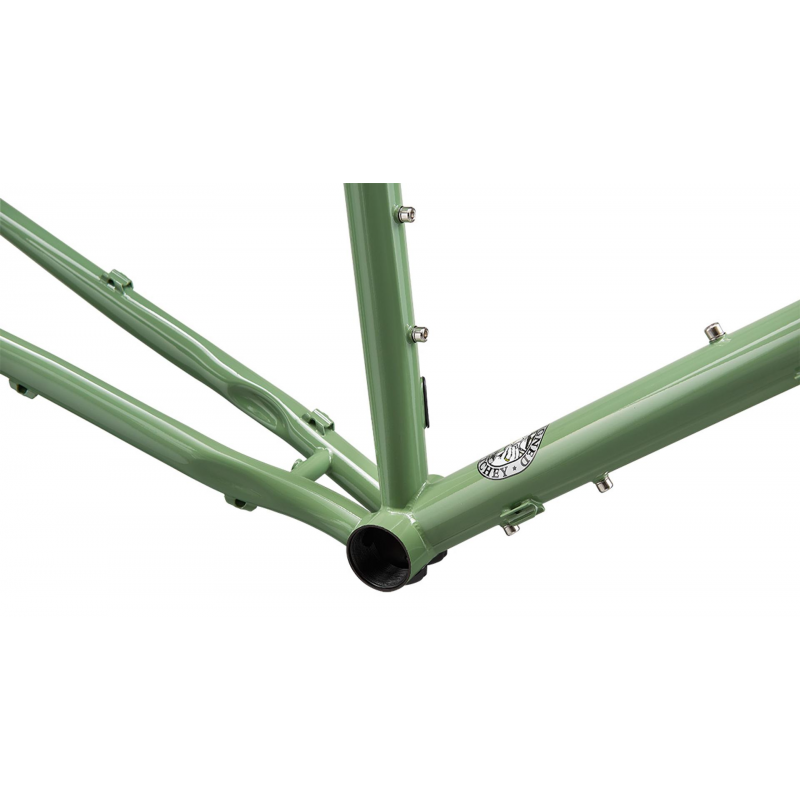

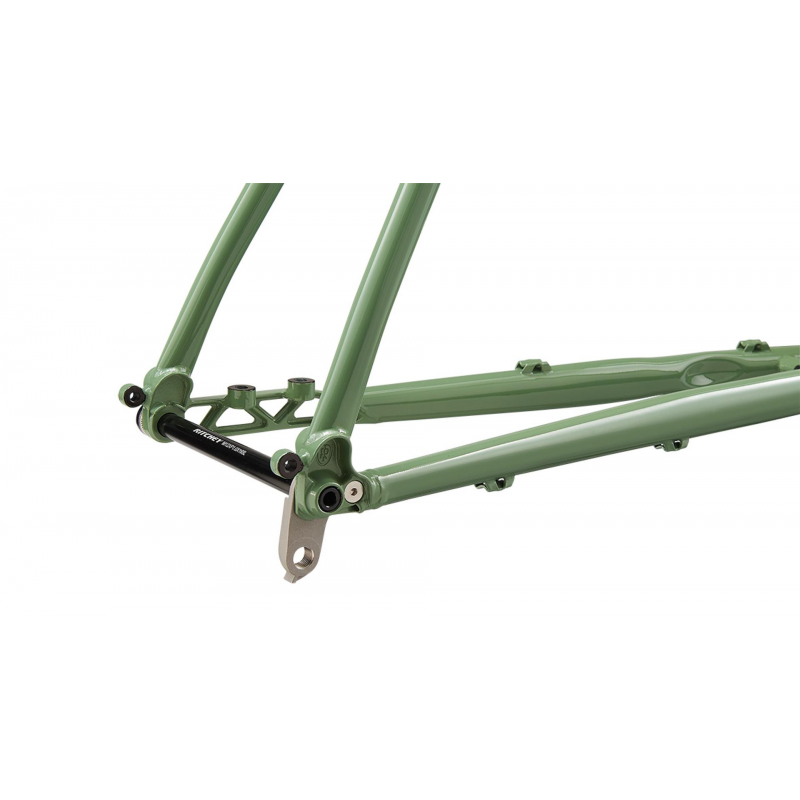

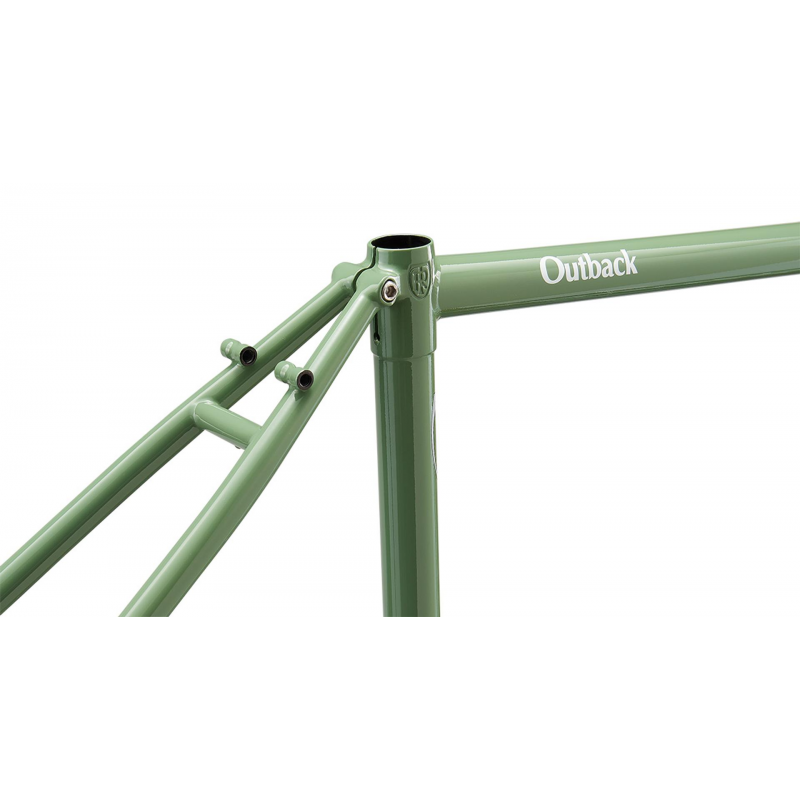

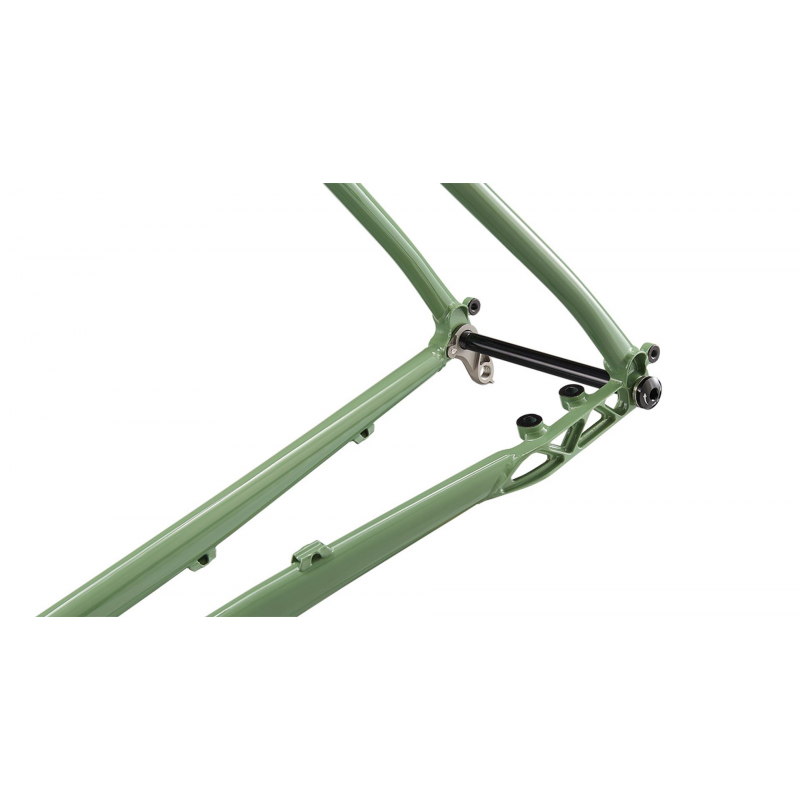

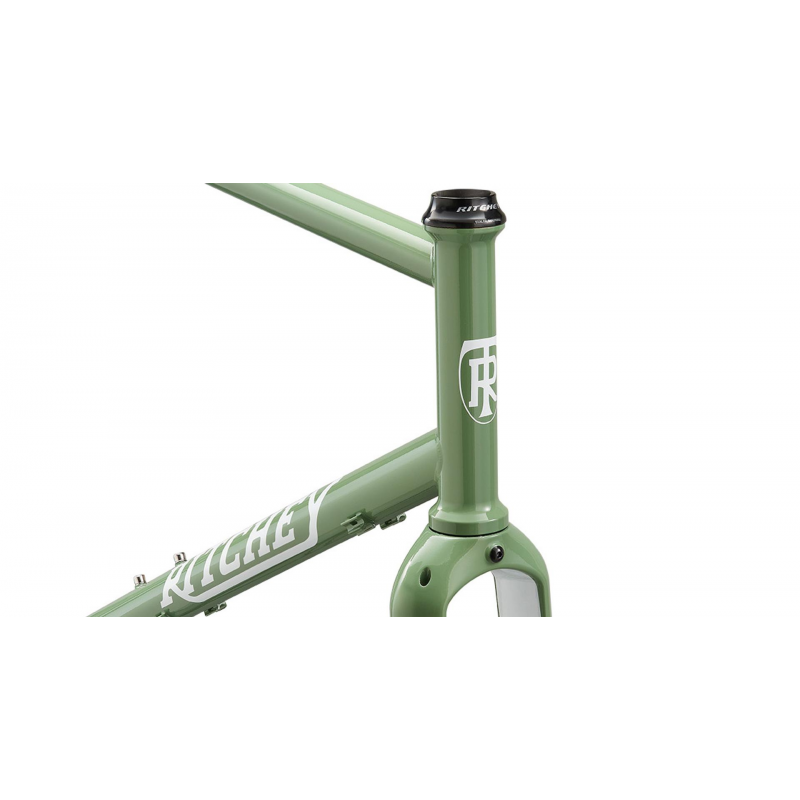

Frame: Ritchey Logic steel and durability-focused construction

The frame is built from triple-butted, heat-treated Ritchey Logic steel tubing and TIG welded to Tom Ritchey’s specifications. An EPD Coat treatment improves corrosion resistance, an important detail for riders travelling in variable weather or on long-distance routes.

The tapered head tube (1-1/8" – 1-1/2") is designed to work with modern forks and ensures precise steering even with front-end load. The 27.2 mm seatpost standard contributes to long-distance comfort, a characteristic often noted in both gravel and adventure-focused reviews.

Mounting points

The Outback offers a complete and practical mounting layout:

3 bottle cage mounts on the frame
Fender mounts
Rear rack mounts

This makes the frameset suitable both for minimalist gravel builds and for more traditional, fully equipped travel setups.

Technical standards and compatibility

Bottom bracket: 68 mm, English threaded (BSA)
Drivetrain compatibility: 1x and 2x
Front derailleur support: brazed-on
Seatpost diameter: 27.2 mm
Headset: tapered (not included)
Axles: thru-axle
Brakes: disc, flat mount

Included fork: carbon adventure fork with internal cable routing

The frameset includes the Ritchey Comp Carbon Adventure Fork, designed specifically for gravel and adventure use.

Key features:

Tapered steerer
Thru-axle compatibility
Accessory mounts on fork legs
Flat mount disc brake compatibility
Internal cable routing through the fork

The internal cable routing is especially appreciated by travel-focused riders, as it reduces exposure to mud and external elements while contributing to a cleaner, more reliable setup over time.

Wheel and tire compatibility

The Outback supports a wide range of configurations:

700c wheels: tire clearance up to 48 mm
650b wheels: tire clearance up to 2.0"

This allows riders to choose a faster, smoother setup with 700c wheels or a more stable and comfortable configuration with 650b and high-volume tires, depending on terrain and load.

Geometry and size choice: stability, control and predictability

The Outback’s geometry is clearly oriented toward off-road stability and control when loaded. Independent reviews often point out its predictable handling, confident descending on rough terrain, and a riding position that remains comfortable over many hours.

The progressive stack and reach values allow the bike to be set up either for a more performance-oriented gravel position or for a relaxed, travel-focused posture.

If you’re unsure about size selection or want to compare the geometry with a bike you already ride, we’re happy to go through the numbers together before purchase.

Intended use

The Ritchey Outback is well suited for:

Gravel riding on mixed terrain
Bikepacking
Dirt-road touring
Multi-day travel with bags and accessories

It’s a platform built for riders who value reliability, coherent design and real-world versatility over trends or technical extremes.

Why buy from Bikejamming

Tracked express shipping across Europe
Bilingual support (IT / EN)
Fast, clear communication
Concrete pre-purchase advice on sizing, compatibility and build options

If you’re planning how to configure your Outback (drivetrain choice, wheel size, travel vs sport-oriented setup), contact us before purchasing. We’ll help you build a bike that truly matches the routes you have in mind.

Size guidelines (manufacturer reference)

Ritchey provides the following general size recommendations based on rider height:

XS: 154–160 cm
S: 157–170 cm
M: 168–178 cm
L: 175–186 cm
XL: 183–191 cm
XXL: 188–196 cm

These values are intended as general guidelines. No two riders are the same: body proportions, inseam length, flexibility and intended use all play a key role in choosing the correct size.

For personalised sizing advice, please send us your height and inseam. We reply within 24 hours.

TECHNICAL SPECIFICATIONS

Frame

Item	Details
Material	Heat-treated, triple-butted Ritchey Logic steel tubing, TIG welded
Head tube	Straight 1-1/8", forged and machined
Corrosion protection	ED Coat (Electrophoretic Deposition)
Seat tube clamp diameter	28.6 mm (max torque 2.5 Nm for derailleur clamps and chain guides)
Seatpost diameter	27.2 mm with integrated seat collar (max torque 6 Nm)
Bottom bracket	68 mm, English threaded (BSA)
Rear spacing	142 mm (12 mm alloy thru-axle included)
Compatible chainrings (1x)	36 to 46 teeth
Compatible chainrings (2x)	46/30 to 50/34
Drivetrain compatibility	1x and 2x
Chainline	49 mm
Direct Mount / T-Type compatibility	Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
Bottle cage mounts	3
Rack and fender mounts	Yes
Electronic cable routing	Stealth routing for semi-wireless Di2 groupsets
Di2 compatibility	Shimano Di2 EW-SD300 wire only (12-speed systems)
Internal cable routing	DSP internal routing (seat tube only)
External cable routing	Yes
Headset included	Ritchey WCS (upper IS42/28.6 – 16 mm stack height
Derailleur hanger	Replaceable stainless steel

Fork

Item	Details
Included fork	Ritchey Carbon Adventure Fork (new model)
Fork mounts	Multi-purpose mounts for racks and fenders
Steerer tube	Straight 1-1/8" with integrated 45° crown race
Steerer length	300 mm
Fork length	390 mm
Axle-to-crown	393 mm
Rake / Offset	50 mm
Front spacing	100 mm (12 mm alloy thru-axle included)
Dynamo light mount	Yes
Dynamo cable routing	Internal
Maximum fork load	3 kg per side
Maximum spacers below stem	30 mm

Wheel and Tire Compatibility

Item	Details
Wheel and tire compatibility	700 x 48 mm or 650 x 2.0" (depending on tire and rim manufacturer)
Frame clearance	58 mm
Fork clearance	60 mm

Brake Compatibility

Item	Details
Brake type	Flat mount, front and rear
Rotor size	140 mm (160 mm max – adapters sold separately)
Frame flat-mount bracket height	10 mm

Details

Item	Details
Available sizes	XS / S / M / L / XL / XXL
Frame weight	2,175 g (size L, without thru-axle)
Fork weight	445 g (uncut steerer, axle not included)
Color	Aurora & Winter Sage

Download
