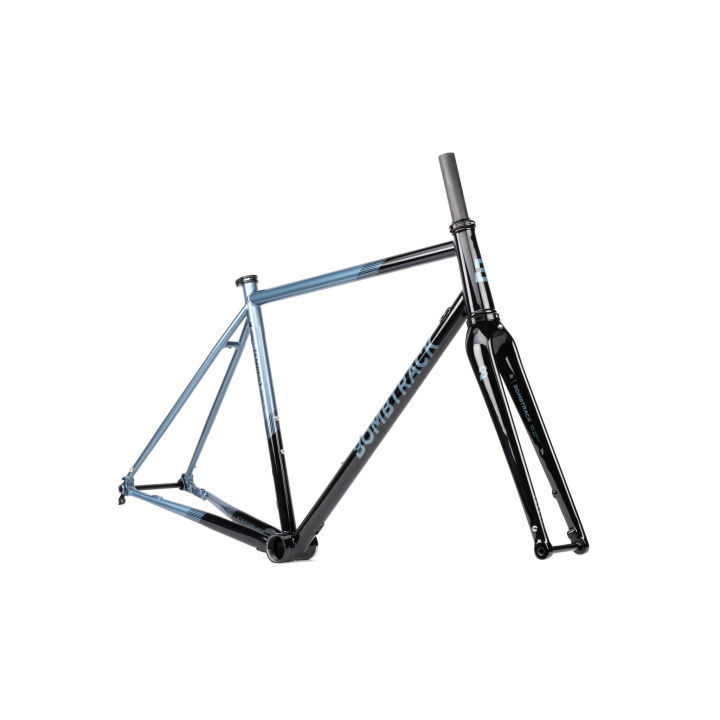

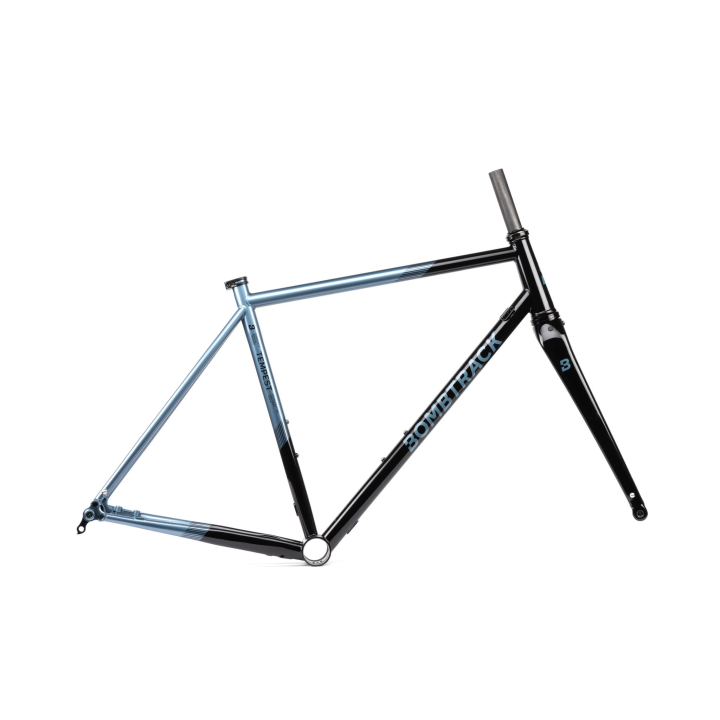

BOMBTRACK Tempest Frameset - Storm Blue

The Bombtrack Tempest Frameset in Storm Blue is a modern steel road platform built around comfort, precision and all-day endurance. The lively feel of a steel frame is paired with a carbon fork for accurate steering and vibration damping—ideal for fast road riding with “all-road” tolerance when the route turns rougher than expected.

If you want a road-first frameset that stays confident on imperfect pavement and compact backroads, Tempest is a clean, practical base for a performance-oriented build.

What’s included

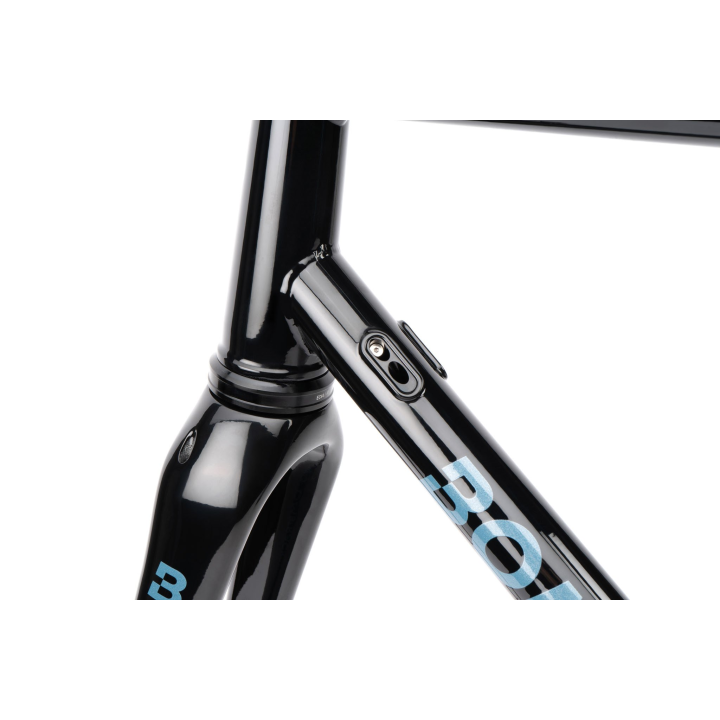

• Frame: 4130 double butted CrMo, TA, rack / fender mounts, internal light cable routing, 85.5 mm T47 BB shell

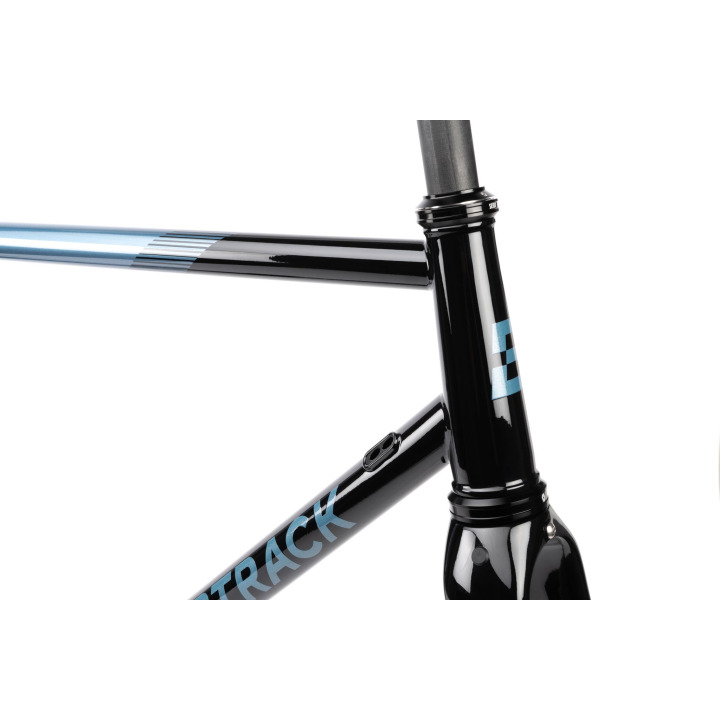

• Fork: full carbon, TA, 1 1/2'' – 1 1/8''

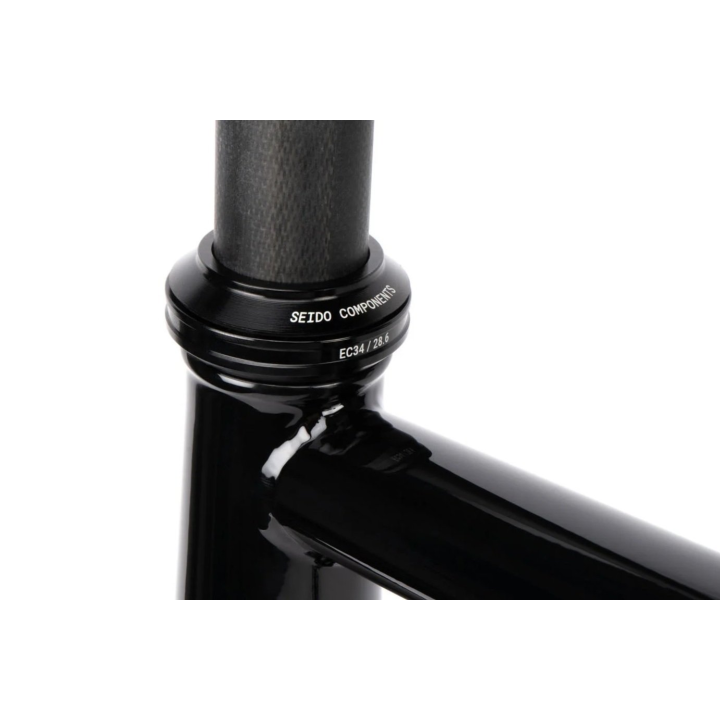

• Headset: Seido Pro EC sealed external headset, 1 1/2'' – 1 1/8''
• Thru-axles: 12 × 100 mm (front) / 12 × 142 mm (rear)

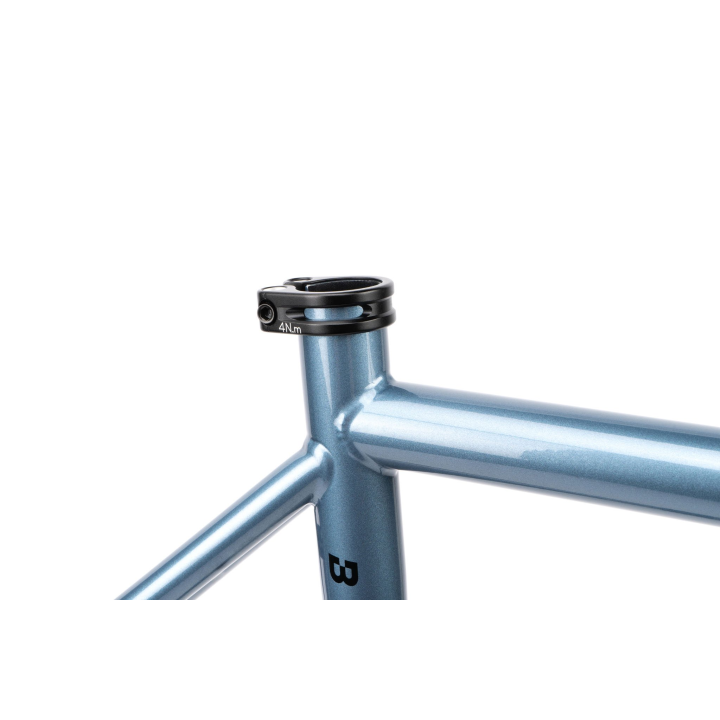

• Seat clamp: Bombtrack Prime 29.8 mm

Use cases

Road endurance with real-world comfort

Tempest is a road bike frameset at heart: responsive, efficient, and made for long days in the saddle. Steel brings smoothness and composure, while the carbon fork adds precision when the pace goes up.

All-road tolerance (within stated clearances)

With clearance for 700C × 35C tyres (frame and fork, without fenders), the Tempest can be tuned with more volume for rough tarmac, broken backroads and compact gravel—without losing its road character.

Light touring / daily practicality

Rack and fender mounts plus internal light cable routing make it a strong choice for a fast commuter or a light, minimal touring setup—still keeping the handling sharp and road-focused.

Build info

• BB standard: T47 – 85.5 mm shell width
• Headset standard (S.H.I.S.): EC34 / 28.6 | EC44 / 40
• Headset crown race angle: 45°
• Fork steerer inner diameter: 23.6 mm
• Fork max tire clearance (without fender): 700C × 35C
• Frame max tire clearance (without fender): 700C × 35C
• Maximum chainring clearance 1x: 44 T with 45 mm chainline
• Maximum chainring clearance 2x: 53 / 39 T with 43.5 mm chainline
• Seat post diameter: 27.2 mm
• Seat clamp diameter: 29.8 mm
• Front derailleur clamp diameter: 28.6 mm
• Frame front derailleur compatible: yes
• Brake mount front: FM 140 / 160
• Brake mount rear: FM 140 / 160
• Maximum rotor clearance front: 180 mm
• Maximum rotor clearance rear: 180 mm
• Front thru-axle: 12 mm × 100 mm, 1.5 thread pitch

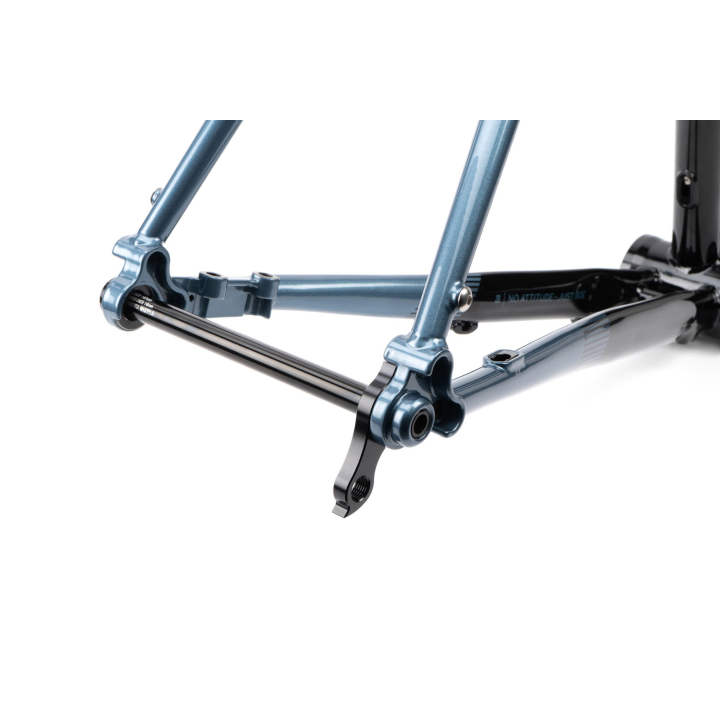

• Rear thru-axle: 12 mm × 142 mm, 1.5 thread pitch
• ISO testing standard: Road
• Bike trailer: not approved
• Seat tube mounted child seat: not approved
• Derailleur hanger: BT-DH-008
• Through axle front: BT-TA-F-601
• Through axle rear: BT-TA-R-602

Specifications

• Model: TEMPEST
• Color 1: Storm Blue
• Frame: 4130 double butted CrMo, TA, rack / fender mounts, internal light cable routing, 85.5 mm T47 BB shell
• Fork: full carbon, TA, 1 1/2'' – 1 1/8''
• Headset: Seido Pro EC sealed external headset, 1 1/2'' – 1 1/8''
• Through axle: 12 × 100 mm / 12 × 142 mm
• Seat clamp: Bombtrack Prime 29.8 mm
• Frameset weight: 2110 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA)
• Maximum rider weight: 120 kg incl. luggage
• ASTM riding condition: 1
• Final product may vary in appearance, finish and minor details.

Geometry

*Size recommendations are indicative and based on rider height only. We can help you interpret geometry and standards to choose compatible components and a coherent build plan: info@bikejamming.it.

We can help you choose compatible components and define the most suitable configuration for your build project based on this Tempest Frameset.
