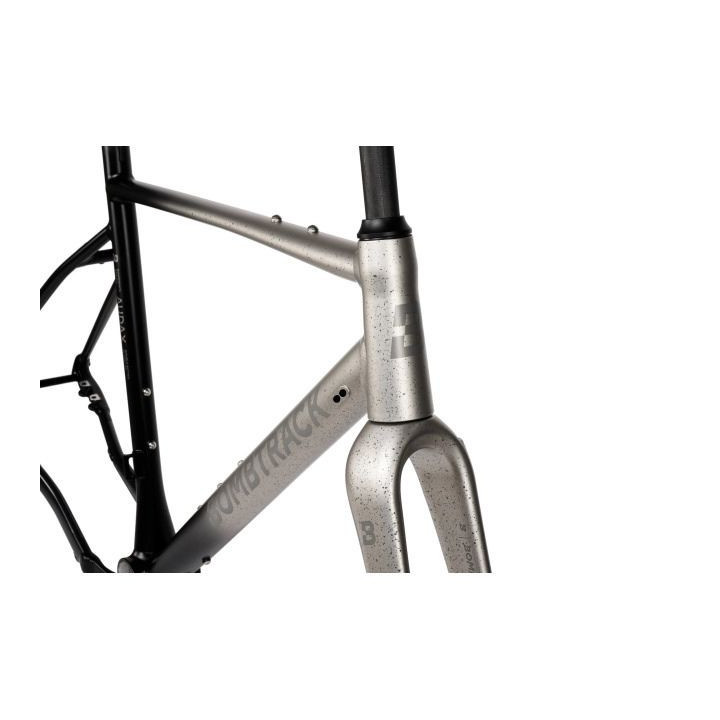

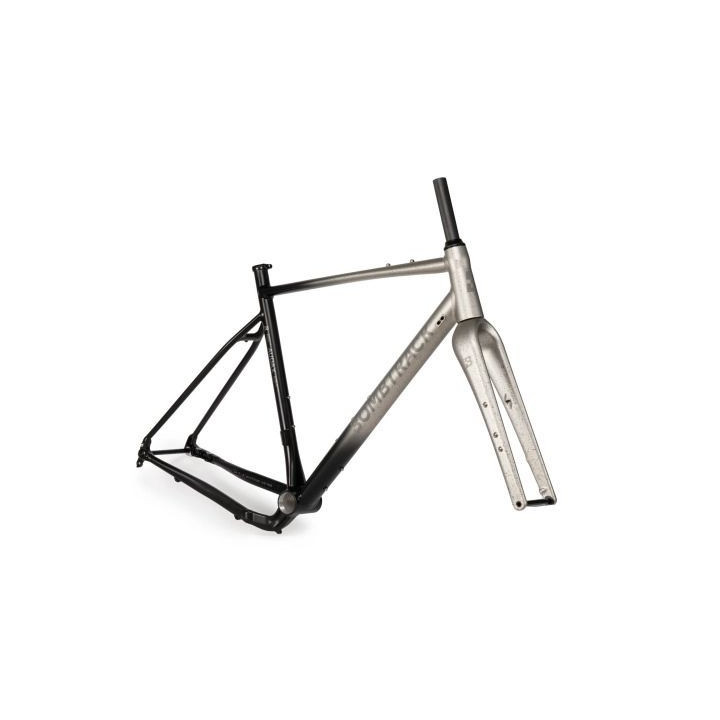

BOMBTRACK Audax AL Frameset - Splatter Silver / Black Fade

€998.00
Tax included

The Bombtrack Audax AL Frameset is an aluminium platform built for fast all-road riding, long-distance use, and light touring, with a full carbon fork, T47 bottom bracket, and modern geometry. In this Splatter Silver / Black Fade version, it keeps the same technical identity as the model: a responsive and efficient base for tarmac, white roads, and light gravel, with a character that leans more toward modern audax riding than pure gravel.

Considering a complete bike setup (cockpit, wheels and components)?

We can help you build a configuration that matches your real use.

→ See how the setup works



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

Bombtrack Audax AL Frameset

The Bombtrack Audax AL Frameset, in Splatter Silver / Black Fade finish, is designed for riders looking for a modern all-road frameset and also want an aesthetic that stands apart: an artistic, distinctive, and easy-to-read paint scheme, perfect for a bike built for real mileage. The technical base remains that of a contemporary audax bike: 6061-T6 aluminium, full carbon fork, modern standards, and a lively ride on asphalt and mixed surfaces.

Why Splatter Silver / Black Fade

  • Strong identity: a recognizable look, ideal for personal build projects.
  • Practical: the silver/fade mix tends to hide marks and dust well.

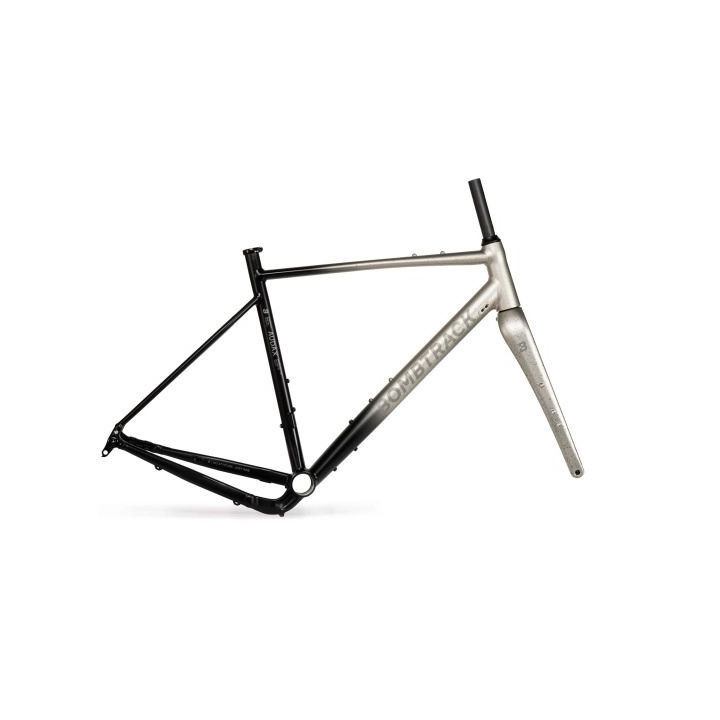

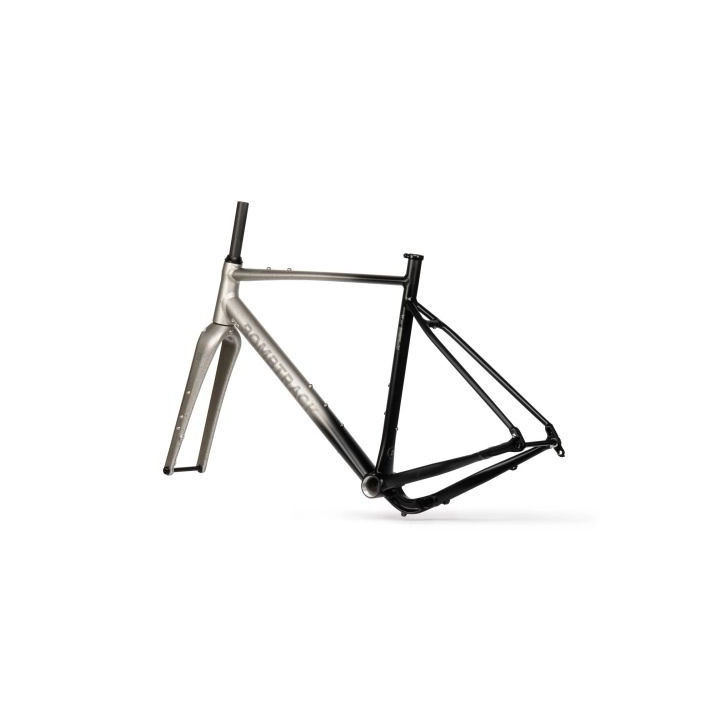

What the frameset includes

  • Frame: 6061-T6 double butted aluminium, thru-axle (TA), fender mounts, 86.5 mm T47 bottom bracket shell.
  • Fork: full carbon, TA, 1.5" – 1 1/8", fender mounts and cage mounts.
  • Headset: sealed integrated headset, 1.5" – 1 1/8".
  • Thru-axles: 12 × 100 mm (front) / 12 × 142 mm (rear).
  • Seatpost clamp: Bombtrack Prime 31.8 mm.

Where it performs best

“Fast & light” all-road

The Audax AL is designed for riders who want to maintain a high pace on imperfect roads and mixed routes: the carbon fork helps absorb road buzz, while the aluminium frame delivers a quick response, ideal for long and fast rides, randonnée, and all-day outings.

White roads, rough asphalt, light touring

The fender mounts and the mounting points on the fork make this frameset suitable for 365-day-a-year use: from fast commuting to winter rides, all the way to essential bikepacking with light bags. It is a frame that encourages you to move beyond perfect roads without turning the bike into a tank.

One project, two personalities (650B or 700C)

Within the stated clearances, you can build an Audax AL that is more wide all-road with 650B and generous tires, or faster-rolling with 700C for long distances on asphalt and compact gravel. The key is choosing wheels and tires that match the roads you actually ride.

Compatibility & build info

Item Details
BB standard T47 – 86.5 mm shell width.
Headset standard (S.H.I.S.) IS42 / 28.6 (upper) | IS52 / 40 (lower).
Headset crown race angle 36°.
Fork steerer inner diameter 23.6 mm.
Fork max tire clearance w/o fender 650B × 50C / 700C × 35C.
Frame max tire clearance w/o fender 650B × 50C / 700C × 35C.
Maximum chainring clearance 1x 42 teeth with 45 mm chainline.
Maximum chainring clearance 2x 50 / 34 teeth with 43.5 mm chainline.
Seat post diameter 27.2 mm.
Seat clamp diameter 31.8 mm.
Front derailleur integrated mount (FD hanger), compatible.
Brake mount front flat mount 140 / 160.
Brake mount rear flat mount 140 / 160.
Maximum rotor clearance front 160 mm.
Maximum rotor clearance rear 160 mm.

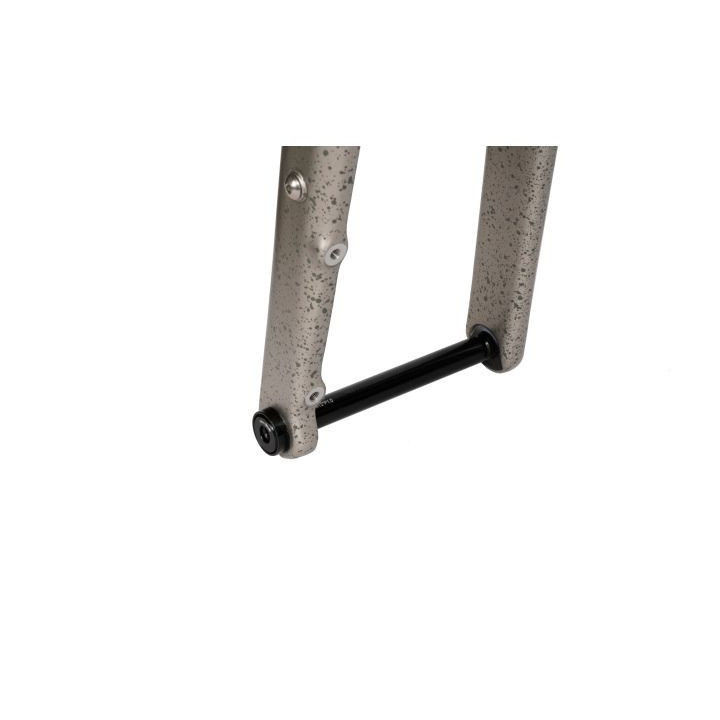

Front through axle 12 × 100 mm, 1.5 thread pitch.
Rear through axle 12 × 142 mm, 1.5 thread pitch.
ISO testing standard Road.
Bike trailer approved.
Seat tube mounted child seat not approved.
Derailleur hanger BT-DH-018.
Frame small parts BT-CR-013.
Front through axle (ref.) BT-TA-F-601.
Rear through axle (ref.) BT-TA-R-601.

Technical specifications – frame & fork

Component Details
Model Audax AL Frameset.
Colorway offered by Bikejamming Splatter Silver / Black Fade.
Frame 6061-T6 double butted aluminium, TA, fender mounts, T47 86.5 mm.
Fork full carbon, TA, 1.5" – 1 1/8", fender mounts and cage mounts.
Headset sealed integrated, 1.5" – 1 1/8".
Thru-axles 12 × 100 mm (front) / 12 × 142 mm (rear).
Seatpost clamp Bombtrack Prime 31.8 mm.
Frameset weight 1810 g frame (size M, incl. TA and hanger) / 530 g fork (300 mm steerer tube, incl. TA).
Maximum rider + luggage weight 120 kg (including load).
ASTM riding conditions 2.
Note The final product may vary in appearance, finish, and some minor details.

Geometry & size guide

Size XS S M L XL
Wheels 650B 650B 650B 650B 650B
Seat tube 470 500 530 560 590
Horizontal top tube 505 527 551 569 592
Seat angle 75.0° 74.5° 74.0° 74.0° 73.5°
Head angle 71.0° 72.0° 72.0° 72.0° 72.0°
Head tube 100 120 150 180 205
BB drop 70 68 68 65 65
Chainstay length 420 420 420 420 420
Fork offset 51 51 51 51 51
Trail 64 58 58 58 58
Wheelbase 989 998 1019 1039 1057
Standover 728 754 782 812 838
Reach 368 379 390 401 411
Stack 512 533 561 587 611
Front center 579 588 608 628 645
Axle to crown 385 385 385 385 385
Minimum rider height 150 cm 160 cm 170 cm 179 cm 188 cm
Maximum rider height 161 cm 171 cm 181 cm 190 cm 199 cm

The height guidelines are an indicative reference based on rider height only. We can help you interpret geometry and compatibility to define a configuration that matches your project: info@bikejamming.it.

Configuration & support

We can help you choose compatible components and define the most suitable configuration for your project on this Audax AL Frameset.

Frequently asked questions about the Bombtrack Audax AL Frameset

Is the Bombtrack Audax AL Frameset a gravel frame or an all-road platform?

The Bombtrack Audax AL Frameset makes more sense as a fast all-road platform and modern audax bike than as a pure gravel frame. It is designed for long rides on asphalt, white roads, and light gravel, with a quick, smooth, and continuous ride feel.

What is the difference between the Bombtrack Audax AL Frameset and the Hook Frameset?

The Audax AL is more focused on fast long-distance riding, randonnée, and medium- to long-range all-road use, with a more direct aluminium platform. The Hook remains more clearly a fast steel gravel frame, with a setup more closely tied to compact gravel and white roads.

What tires can the Bombtrack Audax AL Frameset fit?

The frame and fork state compatibility up to 650B × 50C or 700C × 35C without fenders.

Is the Bombtrack Audax AL Frameset compatible with 650B and 700C?

Yes. In this case, the stated compatibility applies to both frame and fork: up to 650B × 50C or 700C × 35C without fenders.

Can you fit fenders and bags on the Bombtrack Audax AL Frameset?

Yes. The frame has fender mounts, and the full carbon fork integrates both fender mounts and cage mounts. This makes it suitable for light touring, fast commuting, and essential bikepacking.

Is the Bombtrack Audax AL Frameset compatible with 1x and 2x drivetrains?

Yes. It supports a 1x configuration up to 42 teeth with a 45 mm chainline, or a 2x configuration up to 50 / 34 teeth with a 43.5 mm chainline.

Is the Bombtrack Audax AL Frameset suitable for randonnée and long-distance riding?

Yes. It is one of its most natural use cases: it was created specifically as a platform for fast all-road riding, long distances, and light touring, with modern geometry designed for pedaling continuity and efficiency.

What technical standards does the Bombtrack Audax AL Frameset use?

It uses an 86.5 mm T47 bottom bracket, 12 × 100 mm and 12 × 142 mm thru-axles, flat mount brakes, and a 27.2 mm seat post. These are modern and highly relevant standards for anyone who wants to build a reliable and up-to-date bike.
