Bombtrack Hook EXT Ti – Titanium Gravel Frameset

BOMBTRACK Hook EXT Ti Frameset – Titanium Adventure Off-Road Gravel

Name: BOMBTRACK Hook EXT Ti Frameset – Titanium Adventure Off-Road Gravel
Brand: Bombtrack
SKU: 30835
Price: 3196 EUR
Availability: InStock

€3,299.00 (Save €103.00)

€3,196.00

Tax included

Titanium adventure gravel frameset for demanding backroads, rough terrain, bikepacking and mixed-terrain touring. The Hook EXT Ti retains the geometry and versatility of the Hook EXT platform, while offering a lighter frame engineered for long-term durability.

Planning a complete build? We can help with cockpit, wheels and components.

→ Custom bike configuration

Looking for a different size or variant?
Contact us: info@bikejamming.it

🌍 International shipping available. If your country is not available at checkout, contact us for availability and shipping options.

Taglia: L

✅ Available — 📦 Estimated delivery in Italy: 5–10 business days

Secure payments and protected data

Secure & tracked delivery

Regulated and transparent withdrawal

Bombtrack Hook EXT Ti Frameset

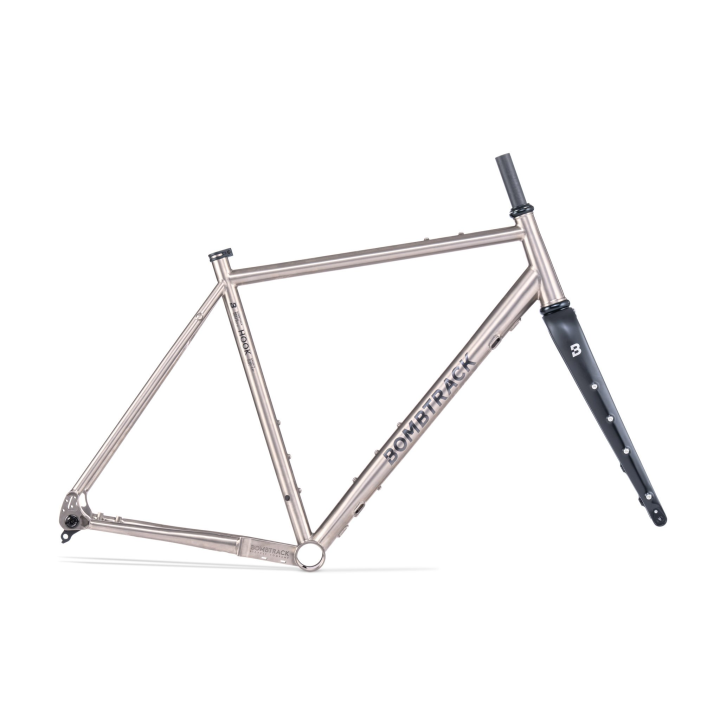

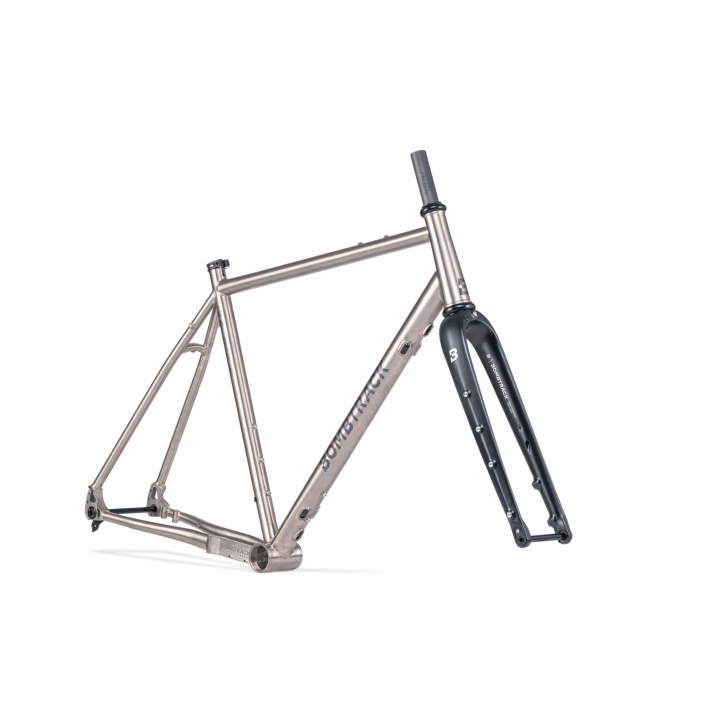

The Bombtrack Hook EXT Ti Frameset in Titanium / Black is the endpoint of the Hook platform: a 3Al-2.5V titanium frame paired with a dedicated Seido MGV full carbon fork, designed for aggressive gravel, technical riding and off-road bikepacking. Titanium offers outstanding fatigue and corrosion resistance and, together with the carbon fork, delivers a light, responsive and remarkably comfortable chassis for long days in the saddle. This frameset is meant to be the centrepiece of serious adventure builds.

What’s included in the frameset

Frame	3Al-2.5V titanium, thru-axle, rack / fender mounts, SRAM UDH derailleur hanger, compatible with multiple wheel sizes (27.5'' and 700C).
Fork	Seido MGV full carbon, TA, 1.5" – 1 1/8" tapered steerer, fender / triple cage mounts, lowrider rack compatible, 180 mm max rotor size, internal hub dynamo cable routing.
Headset	sealed external aheadset, 1.5" – 1 1/8".
Thru-axles	12 × 100 mm (front) / 12 × 142 mm (rear).
Seat clamp	Bombtrack Prime 31.8 mm.

Use cases & configuration options

Technical gravel, singletrack & light MTB

Sharing the same intent as the steel Hook EXT but in a lighter titanium package, the Hook EXT Ti is built for demanding mixed terrain. With room for wide tyres, it’s well suited to rocky doubletrack and rooty singletrack where many classic gravel bikes start to feel out of their depth. Independent reviews highlight how the EXT platform inspires confidence off-road and maintains composure even when the trail gets rough.

Off-road bikepacking & multi-day trips

Frame and fork are packed with mounts: triple cage on the fork, multiple bottle positions, rack and fender provision, and internal routing for dynamo lighting. Combined with the forgiving ride of titanium, this makes the Hook EXT Ti a highly capable choice for multi-day off-road trips and bikepacking routes where reliability, comfort and carrying capacity matter as much as speed.

One-bike solution for unknown routes

The Hook EXT Ti is often described as a “dream” adventure platform: 1x or 2x drivetrains, 27.5'' or 700C wheels and a wide range of setups are possible within the frame’s stated clearances. You can build it into a tough daily commuter, a long-distance gravel machine or a backcountry explorer, tuning wheels, tyres and gearing to your riding style while respecting the technical standards of the frameset.

Compatibility & build infos

Item	Specification
BB standard	T47 – 86.5 mm shell width.
Headset standard (S.H.I.S.)	EC34 / 28.6 (upper) \| EC44 / 40 (lower).

Fork steerer I.D.	23.6 mm.
Fork max tyre clearance (without fenders)	650B × 57C / 700C × 57C.
Frame max tyre clearance (without fenders)	650B × 52C / 700C × 40C.
Max chainring 1x	44 T with 45 mm chainline.
Max chainring 2x	50 / 36 T with 45 mm chainline.
Seatpost diameter	27.2 mm.
Seat clamp diameter	31.8 mm.
Front derailleur clamp diameter	31.8 mm.
Front derailleur compatible	yes.
Brake mount front	FM 160 / 180.
Brake mount rear	FM 140 / 160.
Max rotor front	180 mm.
Max rotor rear	160 mm.
Front thru-axle	12 × 100 mm, 1.5 thread pitch.
Rear thru-axle	12 × 142 mm, 1.0 thread pitch.
ISO testing standard	Road.
Bike trailer	approved.
Seat tube mounted child seat	not approved.
Derailleur hanger	SRAM UDH.
Frame small parts	BT-CR-016.
Front thru-axle	BT-TA-F-601.
Rear thru-axle	BT-TA-R-605.

Technical specifications – frame & fork

Specification	Details
Frame	3Al-2.5V titanium, thru-axles, rack and fender mounts
Derailleur hanger	SRAM UDH
Fork	Seido MGV full carbon, tapered 1 1/8"–1 1/2" steerer
Fork length	410 mm axle-to-crown
Fork offset	53 mm
Suspension fork compatibility	Not specified
Bottom bracket	Threaded T47, 86.5 mm shell width
Headset	Sealed, EC34/28.6 upper / EC44/40 lower
Thru-axles	12 × 100 mm front · 12 × 142 mm rear
Seatpost	27.2 mm
Seatpost clamp	Bombtrack Prime, 31.8 mm
Dropper post compatibility	Not specified
Brake mount	Flat Mount
Front rotor size	160–180 mm
Rear rotor size	140–160 mm
Drivetrain compatibility	1x or 2x
Maximum chainring (1x)	44T with 45 mm chainline
Maximum chainring (2x)	50/36T with 45 mm chainline
Front derailleur	Compatible, 31.8 mm clamp
Designed wheel size	27.5"
Frame tire clearance	650B × 52 mm · 700C × 40 mm
Fork tire clearance	650B × 57 mm · 700C × 57 mm
Frame mounts	Rack and fender mounts
Fork mounts	Three-Pack mounts, low-rider rack mounts and fender mounts
Internal dynamo cable routing	Through the fork
Frame weight	2,060 g (size L), including thru-axle and derailleur hanger
Fork weight	550 g with 300 mm steerer, including thru-axle
Maximum system weight	130 kg, including rider and luggage
Usage classification	ASTM Category 2 · ISO Road
Trailer compatibility	Approved
Seat tube child seat	Not approved
Sizes	S · M · L · XL

Geometry & size guide

Size	XS	S	M	L	XL
Wheel size	27.5''	27.5''	27.5''	27.5''	27.5''
Seat tube length	460	500	530	570	600
Horizontal TT length	520	534	558	572	597
Seat angle	73.9°	73.9°	73.5°	73.5°	73.0°
Head angle	70.9°	70.9°	71.5°	71.5°	71.5°
Headtube length	110	130	150	170	190
BB drop	71	71	66	66	66
Chainstay length	425	425	425	425	425
Fork offset	53	53	53	53	53
Trail	64	64	61	60	60
Wheelbase length	1003	1018	1034	1049	1068
Standover	753	782	805	834	857
Reach	360	369	381	390	403
Stack	558	577	593	612	631
Front center	588	603	618	633	652
Axle to crown	398	398	398	398	398
Min rider height	150 cm	160 cm	170 cm	179 cm	188 cm
Max rider height	161 cm	171 cm	181 cm	190 cm	199 cm

Size recommendations are indicative and based on rider height only. If you are planning a build around the Hook EXT Ti Frameset, we can help you interpret its geometry and technical standards to choose a configuration that fits your project: info@bikejamming.it.
