BOMBTRACK Beyond Ti Frameset - Titanium / Black

€3,328.00 (Save €330.00)
€2,998.00
Tax included



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

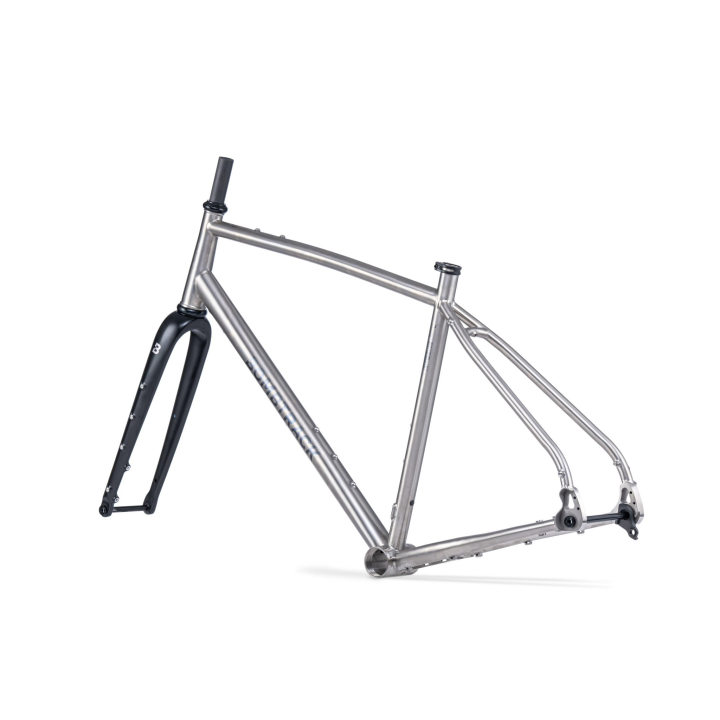

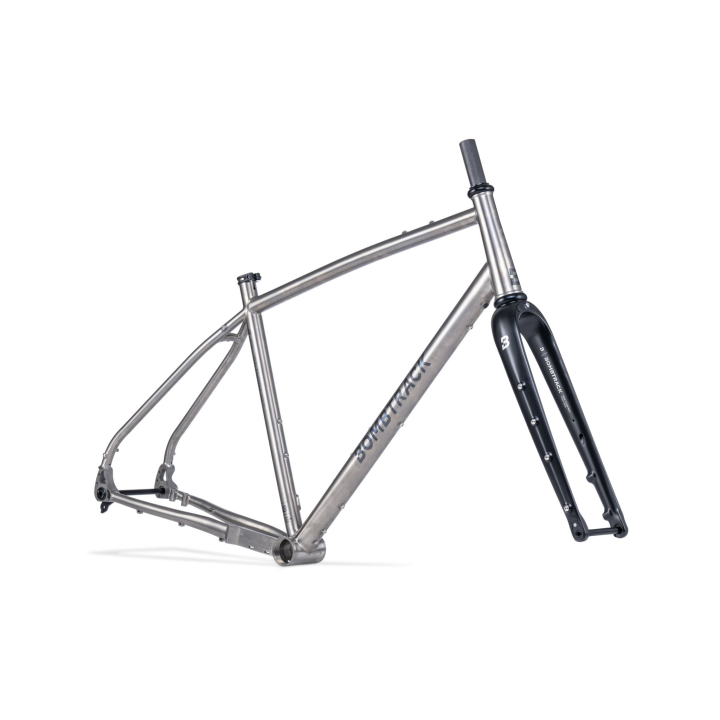

If your goal is a custom adventure touring build that will last for years and rack up miles with the same ease on pavement, gravel roads and remote tracks, the Bombtrack Beyond Ti Frameset is a truly premium foundation. At its core is a multi-butted Grade 9 titanium (3Al-2.5V) frame engineered for comfort and long-term durability, paired with the Seido MGV full-carbon fork to cut weight and boost control and vibration damping. And it’s equipped with what really matters for travel: mounts for racks and fenders, integrated hub-dynamo cable routing, plus SRAM UDH compatibility for easy derailleur-hanger availability.

Why it’s ideal for a travel-focused custom build

  • Grade 9 titanium: an excellent balance of comfort, longevity and corrosion resistance—perfect for big-mile adventures.
  • Adventure carbon fork with multiple mounts and internal dynamo routing: practical for lighting and expedition-style setups.
  • Threaded T47: simple serviceability and reliability, ideal when you’re far from workshops.
  • UDH: a modern standard that makes hanger replacement straightforward and widely compatible.

What’s included ("frameset")

  • Bombtrack Beyond Ti frame + fork set
  • Included thru-axles (front/rear)
  • Included headset
  • Included seatpost clamp

Key facts

Model BEYOND TI
Color Titanium / Black
Max system weight 130 kg (rider + luggage included)
ASTM riding condition 2

Technical specifications

Frame

Material Titanium 3Al-2.5V (Grade 9)
Axles TA (thru-axle)
Mounts Mounts for racks / fenders

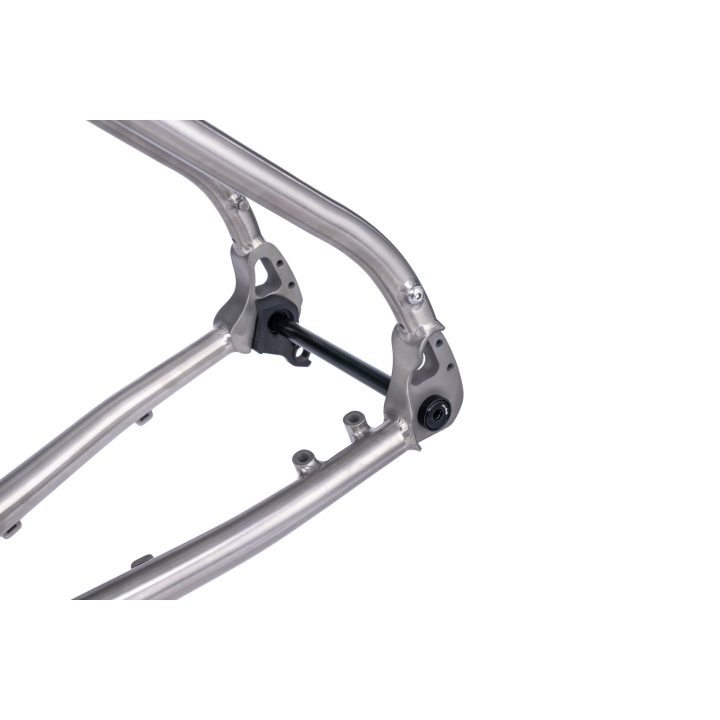

Derailleur hanger UDH (SRAM Universal Derailleur Hanger)

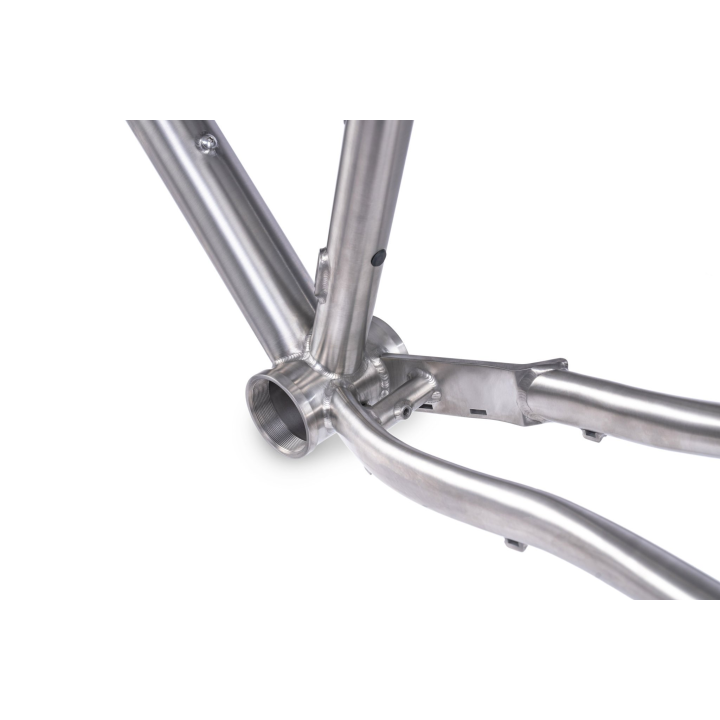

Bottom bracket T47 — 85.5 mm shell width

Headset, axles & clamp

Headset Sealed external aheadset, 1.1/2'' – 1.1/8''
Thru-axles 12×100 mm (front) / 12×142 mm (rear)
Seatpost clamp Bombtrack Prime 31.8 mm

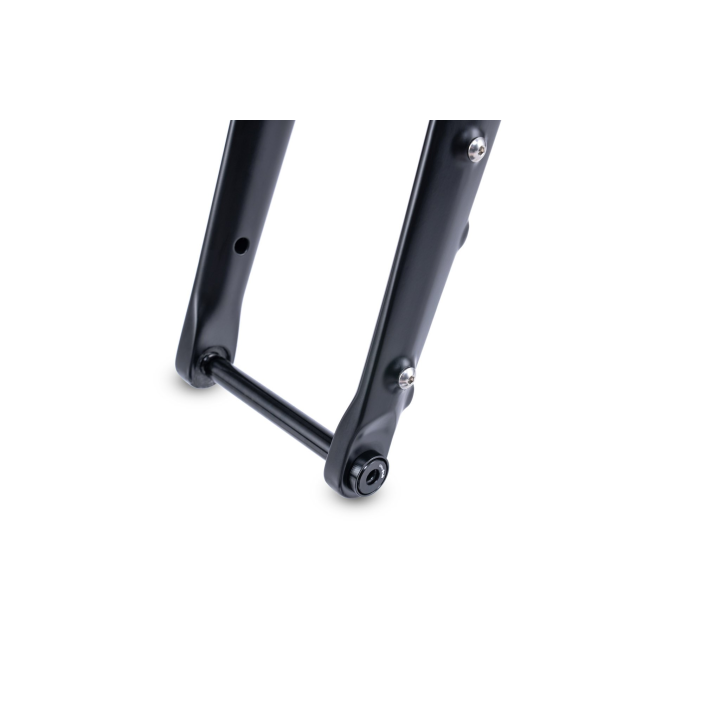

Fork

Model Seido MGV full carbon
Axle TA (thru-axle)
Steerer Tapered 1.1/2'' – 1.1/8''
Mounts Fender + triple cage mounts, lowrider rack compatible
Max rotor (fork) 180 mm
Cable routing Internal routing for hub-dynamo cable

Claimed weights

Frame 2030 g (size M, incl. TA and hanger)
Fork 550 g (300 mm steerer, incl. TA)

Build information

ItemSpecification
BB standard T47 — 85.5 mm shell width
Headset standard (S.H.I.S.) EC34 / 28.6 | EC44 / 40
Crown race angle 45°
Fork steerer inner diameter 23.6 mm
Fork max tire clearance (no fender) 27.5'' × 2.25'' / 29'' × 2.25''
Frame max tire clearance (no fender) XS–S: 27.5'' × 2.25'' — M–XL: 29'' × 2.25''
Max chainring (1x) 44T with 45 mm chainline
Max chainrings (2x) 50/36T with 45 mm chainline
Seatpost diameter 27.2 mm
Seat clamp diameter 31.8 mm
Front derailleur clamp diameter 31.8 mm
Front derailleur compatible Yes
Front brake mount FM 160 / 180
Rear brake mount FM 140 / 160
Max rotor (front) 180 mm
Max rotor (rear) 160 mm
Front thru-axle 12×100, 1.5 thread pitch
Rear thru-axle 12×142, 1.0 thread pitch
Testing standard ISO testing standard MTB
Bike trailer Approved
Seat tube mounted child seat No
Derailleur hanger SRAM UDH
Frame small parts BT-CR-007
Front TA axle (part code) BT-TA-F-601
Rear TA axle (part code) BT-TA-R-605
Tire clearance note: values are stated “without fenders”. With fenders installed, usable clearance may be reduced depending on fender choice and tire tolerances.

Geometry & size guide

MeasurementXSSMLXL
Wheel size 27.5'' 27.5'' 29'' 29'' 29''
Seat Tube Length 400 440 480 520 560
Horizontal TT length 518 546 567 598 626
Seat Angle 74° 74° 74° 74° 74°
Head Angle 70° 70° 70.5° 70.5° 70.5°
Headtube Length 100 130 150 185 220
BB Drop 60 60 74 74 74
Chainstay Length 420 420 445 445 445
Fork Offset 53 53 53 53 53
Trail 72 72 76 76 76
Wheelbase Length 1010 1040 1075 1109 1139
Standover 726 759 801 837 871
Reach 365 385 396 417 436
Stack 534 563 596 630 662
Front Center 597 627 640 674 704
Axle to Crown 410 410 410 410 410
Minimum recommended rider height* 1510 1600 1700 1790 1880
Maximum recommended rider height* 1610 1710 1810 1900 1990
Final sizing notes:
  • Height ranges (*) are indicative: inseam, torso/arm proportions and riding style make a big difference.
  • Reach and stack describe fit better than the letter size—compare them with a bike you already ride.
  • Standover: leave a safety margin, especially for travel/off-road use and when riding fully loaded.
  • Adjustments (stem, spacers, saddle setback, bar rise) fine-tune fit, but don’t replace the correct frame size.
  • If you’re between sizes: smaller = more nimble/compact; larger = more stable and roomier over long distances.

  • Brand
  • Reference
    BTBTFSTB1L
  • Condition
    New

  • Frame
    Adventure Touring / Bikepacking
  • Wheel Size
    27.5/29''
