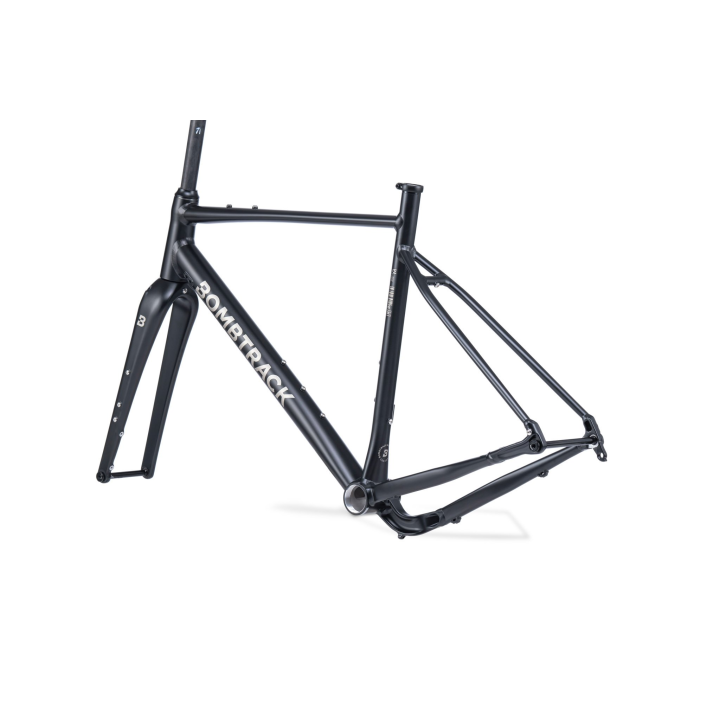

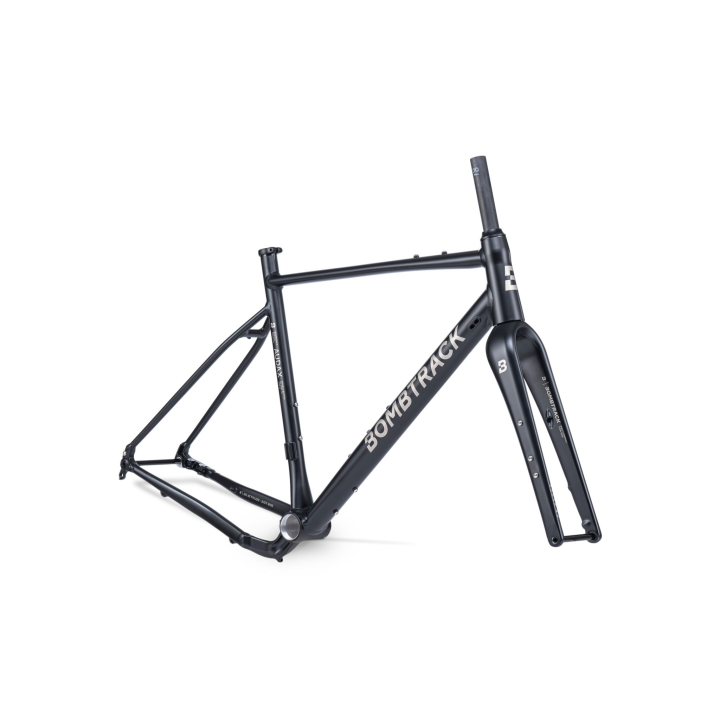

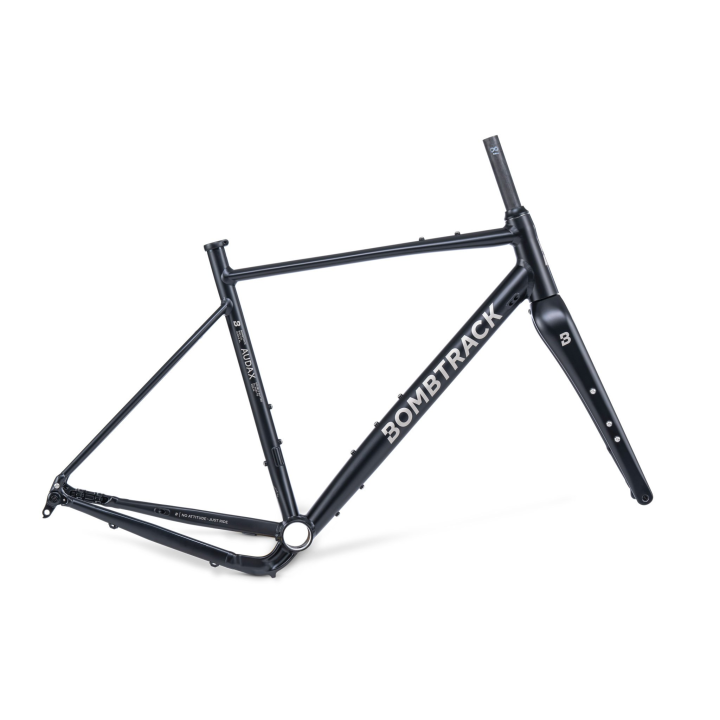

BOMBTRACK Audax AL Frameset - Matt Black

What’s included in the frameset

• Frame: 6061-T6 double-butted aluminium, TA, fender mounts, 86.5 mm T47 bottom bracket shell.

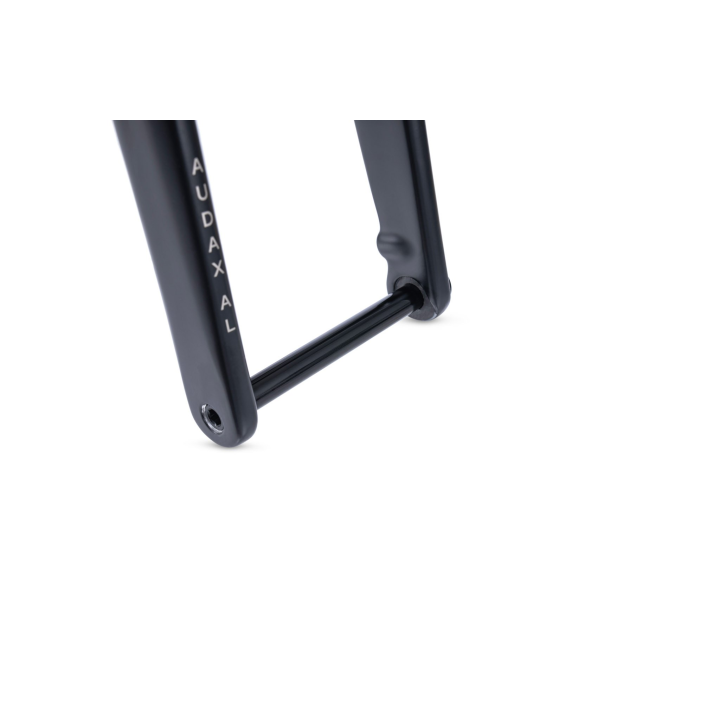

• Fork: full carbon, TA, 1.5" – 1 1/8" tapered steerer, with fender and cage mounts.
• Headset: sealed integrated aheadset, 1.5" – 1 1/8".
• Thru-axles: 12 × 100 mm (front) / 12 × 142 mm (rear).
• Seat clamp: Bombtrack Prime 31.8 mm.

Use cases & configuration options

Modern audax & fast all-road

The Audax AL is conceived as a modern audax / all-road frame, suited to the way many riders actually ride: a blend of tarmac, rough roads, gravel and light off-road. Its rapid geometry with short chainstays and an engaged front end keeps the handling lively and precise, even when you add lightweight bags.

Light touring & everyday speed

With mounts for fenders and cages on the fork, the Audax AL works very well as a light touring or fast commuting platform. Within the frame and fork clearances you can choose 650B wheels with high-volume tyres or 700C for more speed on paved and compact surfaces.

One bike for long mixed-surface rides

If you’re looking for a single bike to cover audax rides, endurance road and rough back lanes, the Audax AL offers a convincing balance between efficiency and control. By selecting wheels, drivetrain and cockpit in line with its standards, you can build a bike tailored to long mixed-surface rides and modern audax events.

Compatibility & build infos

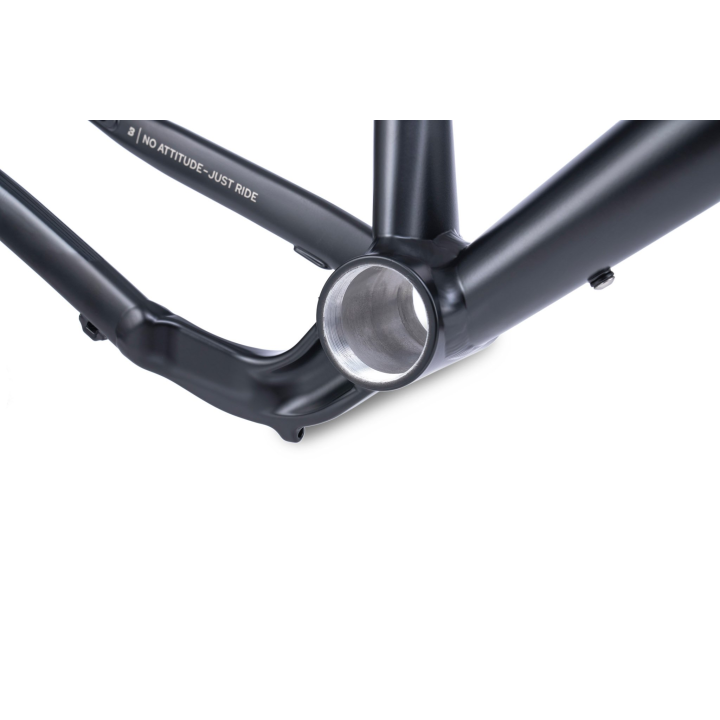

• BB standard: T47 – 86.5 mm shell width.

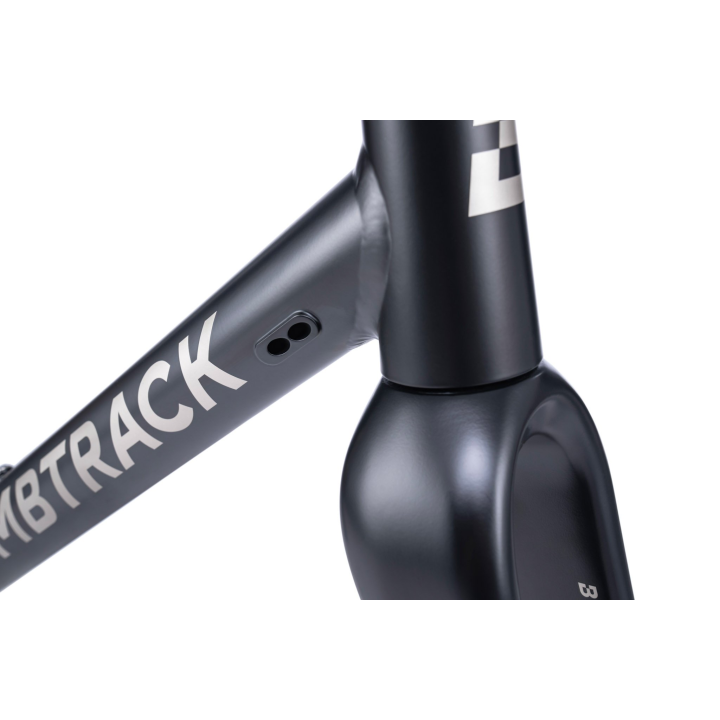

• Headset standard (S.H.I.S.): IS42 / 28.6 (upper) | IS52 / 40 (lower).
• Crown race angle: 36°.
• Fork steerer I.D.: 23.6 mm.
• Fork max tyre clearance (without fenders): 650B × 50C / 700C × 35C.
• Frame max tyre clearance (without fenders): 650B × 50C / 700C × 35C.
• Max chainring 1x: 42 T with 45 mm chainline.
• Max chainring 2x: 50 / 34 T with 43.5 mm chainline.
• Seatpost diameter: 27.2 mm.
• Seat clamp diameter: 31.8 mm.
• Front derailleur clamp diameter: integrated FD hanger.
• Front derailleur compatible: yes.
• Brake mount front: FM 140 / 160.
• Brake mount rear: FM 140 / 160.
• Max rotor front: 160 mm.
• Max rotor rear: 160 mm.
• Front thru-axle: 12 × 100 mm, 1.5 thread pitch.
• Rear thru-axle: 12 × 142 mm, 1.5 thread pitch.
• ISO testing standard: Road.
• Bike trailer: approved.
• Seat tube mounted child seat: not approved.
• Derailleur hanger: BT-DH-018.
• Frame small parts: BT-CR-013.
• Front thru-axle: BT-TA-F-601.
• Rear thru-axle: BT-TA-R-601.

Technical specifications – frame & fork

• Model: Audax AL Frameset.
• Color offered by Bikejamming: Matt Black.
• Frame: 6061-T6 double-butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell.
• Fork: full carbon, TA, 1.5" – 1 1/8" tapered steerer, with fender and cage mounts.
• Headset: sealed integrated aheadset, 1.5" – 1 1/8".
• Thru-axles: 12 × 100 mm front / 12 × 142 mm rear.
• Seat clamp: Bombtrack Prime 31.8 mm.
• Frameset weight: 1810 g frame (size M, incl. TA & hanger) / 530 g fork (300 mm steerer, incl. TA).
• Max rider + luggage weight: 120 kg.
• ASTM riding condition: 2.
• Final product appearance, finish and minor details may vary.

Geometry & size guide

Size recommendations are indicative and based on rider height only. If you are planning a build around the Audax AL Frameset, we can help you interpret its geometry and technical standards to choose a configuration that fits your project: info@bikejamming.it.

We can help you identify compatible components and define the most suitable configuration for your build project based on the Audax AL Frameset.
