New Reduced price! RITCHEY Break-Away Outback Frameset - Swell Foam

RITCHEY Break-Away Outback Frameset - Swell Foam

Condition New

Data sheet

Frame	Adventure Touring / Bikepacking
Wheel Size	700C/27.5"

More info

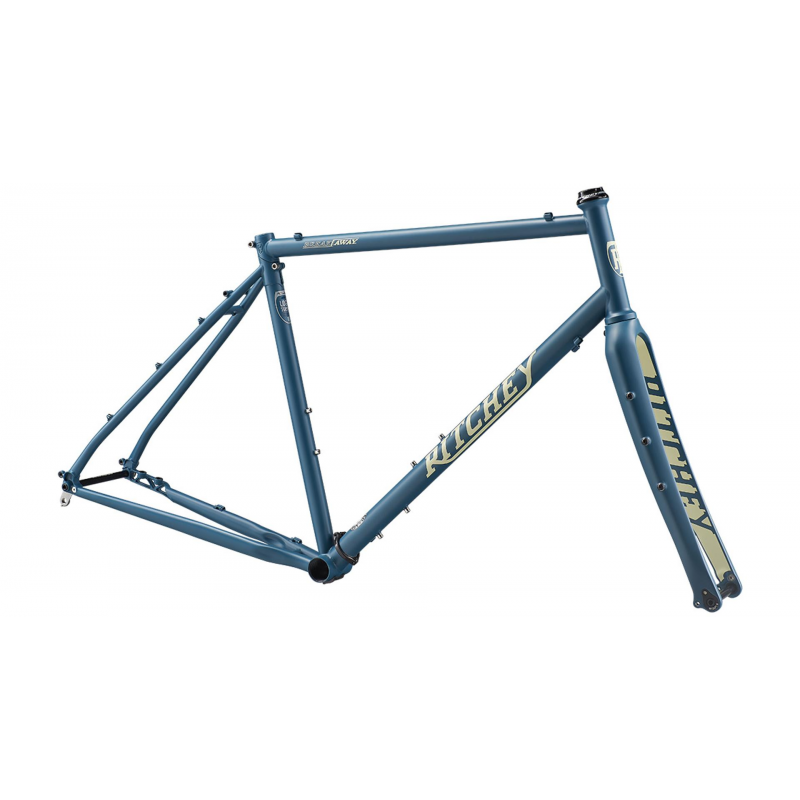

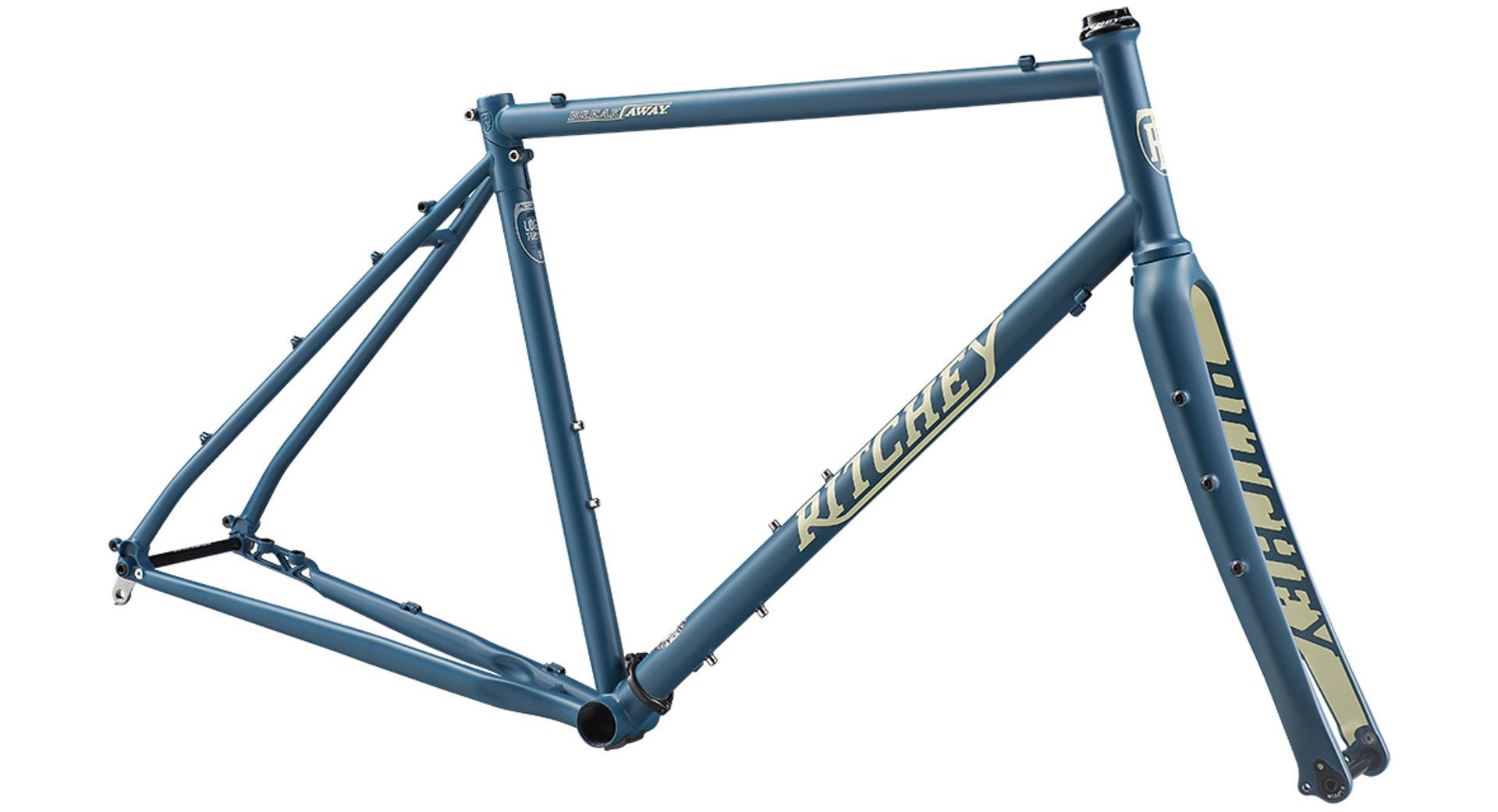

Ritchey Break-Away Outback – Frame & Fork Frameset

The Ritchey Break-Away Outback is a steel frameset designed for riders who want to travel with their own bike and then ride confidently on paved roads, dirt roads and smooth gravel, without logistical compromises. Thanks to the patented Break-Away® system, the frame can be separated and packed into the included travel case, while preserving alignment, ride quality and structural integrity once reassembled.

It is best described as a travel-ready all-road / gravel endurance platform: not an extreme gravel bike, not a pure road frame, but a balanced solution for long distances, light loads and mixed surfaces.

Who it’s for – and how it can be set up

Bike travel: frequent flights and transfers with your bike as luggage.
All-road endurance: stable, predictable handling for long days in the saddle.
Fast gravel and mixed terrain: wide tyre clearance without moving into MTB territory.

Possible setups (concise and precise):

1x drivetrain for simplicity and reliability when travelling, or 2x for a broader gear range on mixed routes.
700c wheels for speed and efficiency, or 650b for added volume and comfort on rougher surfaces.
Light touring configuration, using rack and fender mounts and the fork’s multipurpose mounts (up to 3 kg per side).

Key construction features

WCS Logic Tubing
The frame is built from Ritchey’s proprietary WCS Logic steel tubing, triple-butted and heat-treated, developed specifically for the TIG welding process to Tom Ritchey’s specifications. This ensures strength, durability and a consistent, predictable ride feel over time.

Integrated Seat Collar
The distinctive fastback seat stay / seat tube junction integrates the seat collar, reducing separate components while ensuring secure and reliable seatpost clamping.

Multipurpose Mounts
The new Ritchey Carbon Adventure Fork features triple mounts on each fork leg, allowing the use of cargo cages or accessories, in addition to rack and fender mounts.

Integrated Carbon Crown
The fork’s integrated carbon crown provides clean integration with Ritchey headsets and helps reduce stress at the steerer–crown interface.

Technical specifications

FRAME

Item	Specification
Material	Heat-treated, triple-butted Ritchey Logic steel
Construction	TIG welded
Head tube	Straight 1-1/8", forged and machined
Finish	ED Coat (Electrophoretic Deposition) corrosion resistance
Seat clamp diameter	28.6 mm (2.5 Nm max for derailleur clamps and chain guides)
Seatpost diameter	27.2 mm with integrated seat collar (max torque 6 Nm)
Bottom bracket	BSA 68 mm – English threaded
Rear spacing	142 mm
Rear axle	12 mm alloy thru-axle included
Drivetrain	1x or 2x compatible
Chainring sizes	1x: 36–46T / 2x: 46/30T to 50/34T
Chainline	49 mm
Direct Mount compatibility	Not compatible (including T-Type derailleurs and cassettes)
Bottle cage mounts	3
Break-Away design	Patented Ritchey Break-Away®
Cable routing	External
Rack & fender mounts	Yes
Derailleur hanger	Replaceable stainless steel
Headset	Ritchey WCS included (upper IS42/28.6 – 16 mm stack

FORK

Item	Specification
Model	Ritchey Carbon Adventure Fork
Mounts	Multipurpose, rack and fender mounts
Steerer	Straight 1-1/8" with integrated 45° crown race
Steerer length	300 mm
Fork length	380 mm
Axle-to-crown	393 mm
Rake / Offset	50 mm
Max payload	3 kg per side
Spacing	100 mm
Axle	12 mm alloy thru-axle included
Max spacers below stem	30 mm

WHEEL & TIRE COMPATIBILITY

Item	Specification
Wheel sizes	700c or 650b
Tyre clearance	700 × 48 mm or 650 × 2.0"
Note	Actual tyre size varies by rim and tyre manufacturer
Frame clearance	58 mm
Fork clearance	60 mm

BRAKE COMPATIBILITY

Item	Specification
Standard	Flat-mount front and rear
Rotor size	140 mm
Max rotor	160 mm with adaptor (sold separately)
Frame flat-mount height	10 mm
Cable stops	On downtube, optimised for mechanical brakes
Hydraulic compatibility	Yes (follow brake manufacturer guidance when travelling)

DETAILS

Item	Specification
Sizes	XS / S / M / L / XL
Frame weight	2,280 g (size L, without thru-axle)
Fork weight	450 g (uncut, without thru-axle)
Colours	Queso y Crema / Swell & Foam
Break-Away downtube coupler torque	5 Nm (do not lubricate clamp or clamping area)
Torque key	Not included
Included hardware	Downtube hinge clamp, rear brake cable connector, derailleur cable connectors
Travel case	Included
Case dimensions	21.6 cm (W) × 67.3 cm (H) × 78.8 cm (L), with wheels

Size guide (general reference)

XS: 154–160 cm
S: 157–170 cm
M: 168–178 cm
L: 175–186 cm
XL: 183–191 cm

Sizing guidelines are indicative. At Bikejamming we provide dedicated size and setup consultation (height + inseam, reply within 24 hours).

Compatible parts and support

With the frameset order we provide access to compatible Ritchey components and headsets, along with support for drivetrain choice, wheel selection and travel-oriented setup.

Why buy from Bikejamming

Tracked shipping
Bilingual Italian / English support
Fast, knowledgeable responses
Real pre-purchase consultation on size, setup and compatibility

The Ritchey Break-Away Outback is built for riders who want to travel light, ride far and stay versatile—without giving up the feel of a well-designed steel frame.
