Versatile steel all-road frameset for commuting, light touring, urban riding and light gravel use. The 4130 CrMo frame, rack and mudguard mounts, thru-axles and compatibility with 1x or 2x drivetrains make the Arise a practical and adaptable platform for very different real-world uses.
Planning a complete build? We can help with cockpit, wheels and components.
🌍 International shipping available. If your country is not available at checkout, contact us for availability and shipping options.
Secure payments and protected data
Secure & tracked delivery
Regulated and transparent withdrawal

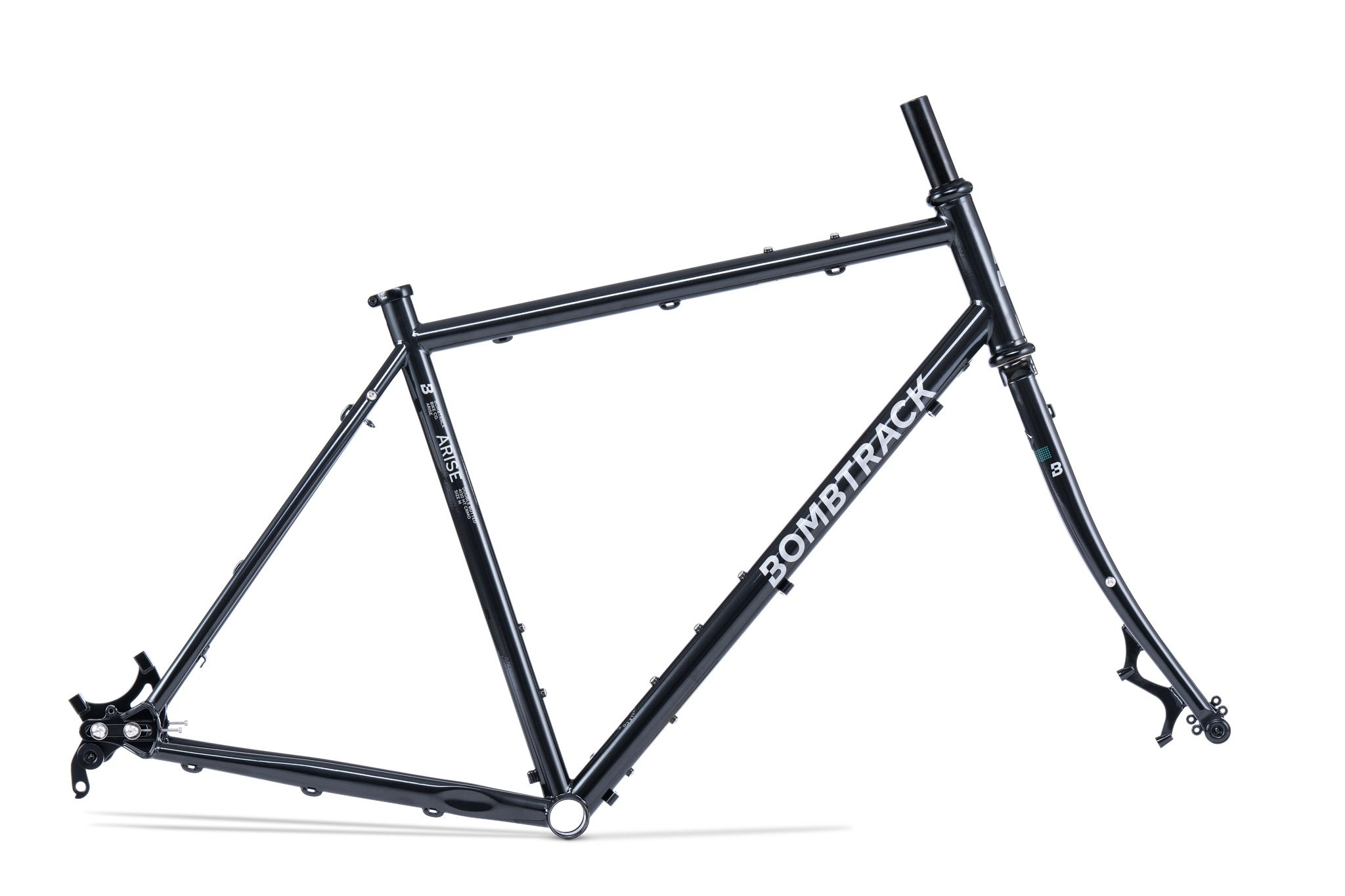

Bombtrack Arise Frameset

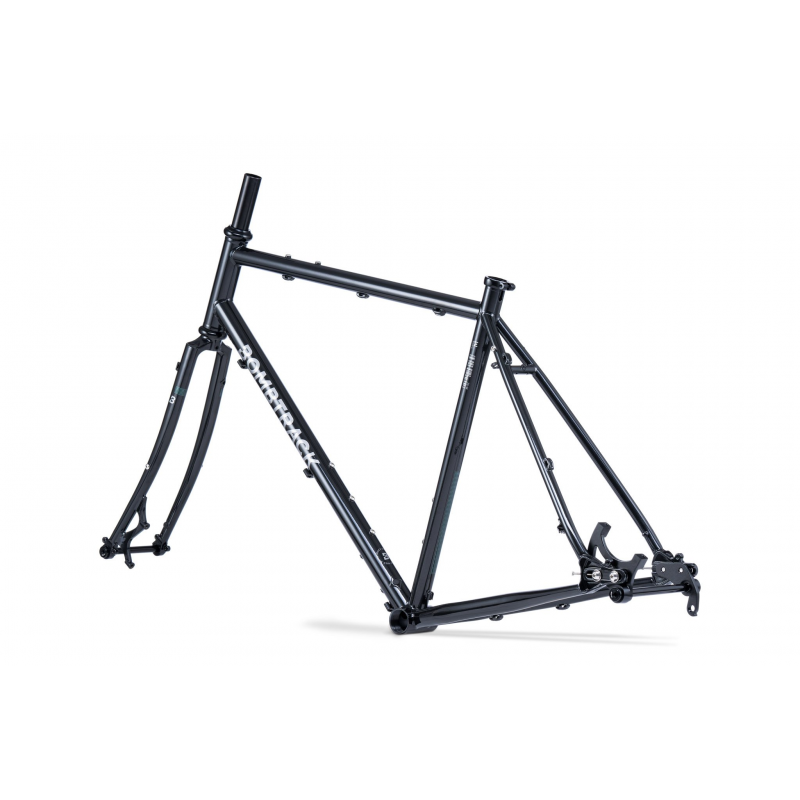

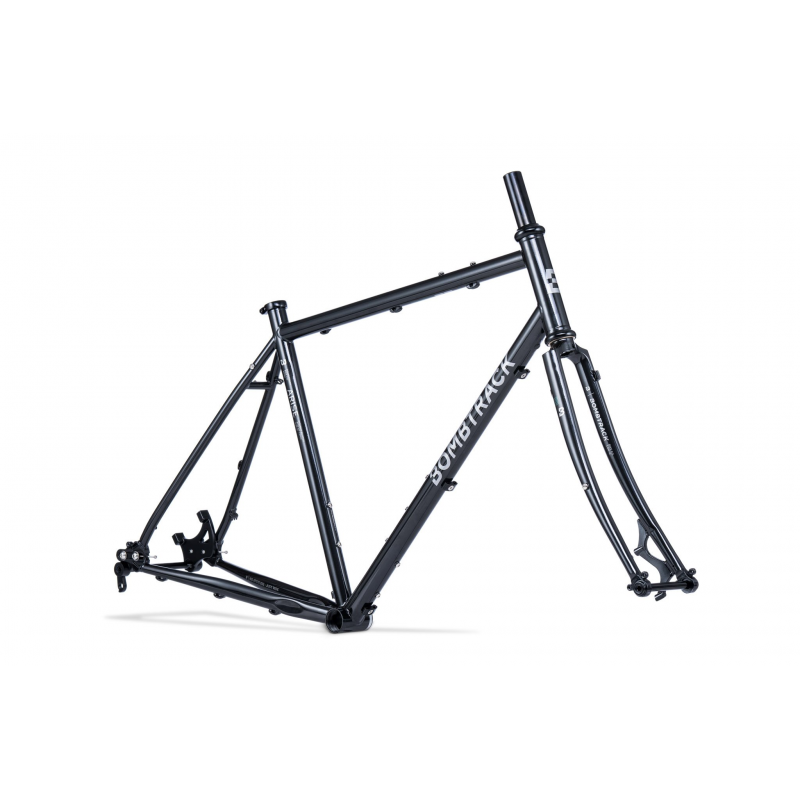

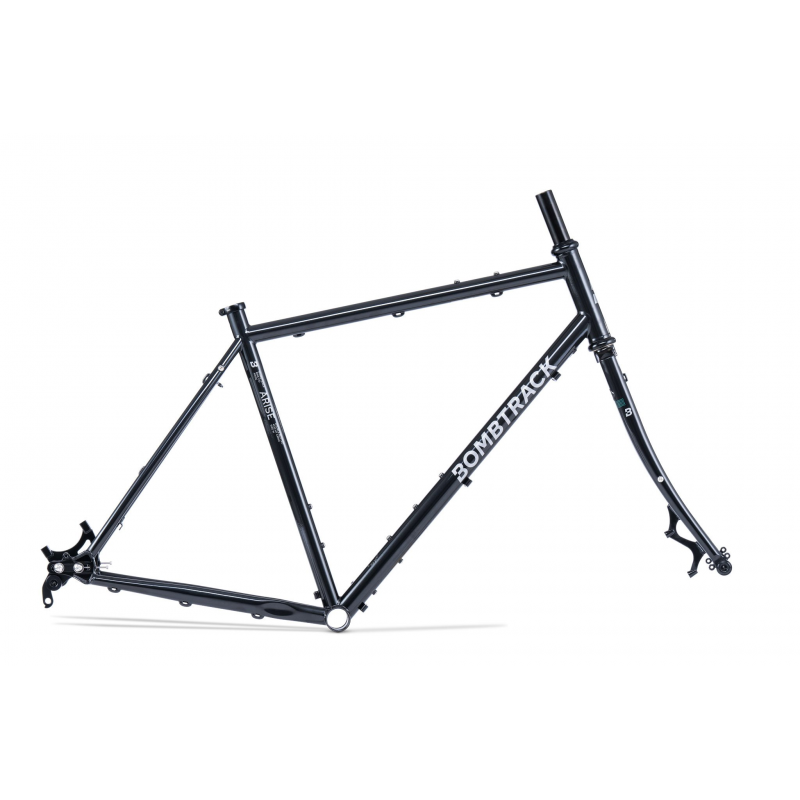

The Bombtrack Arise Frameset in Metallic Black is a versatile 4130 CrMo steel platform designed to handle multiple types of use: from daily commuting to gravel, from light touring to cyclocross. With rack and fender mounts, thru-axles and compatibility with different drivetrain setups, the Arise is an excellent base for building a custom bike to match your route, your expectations and your preferred urban or all-road riding style.
What the frameset includes

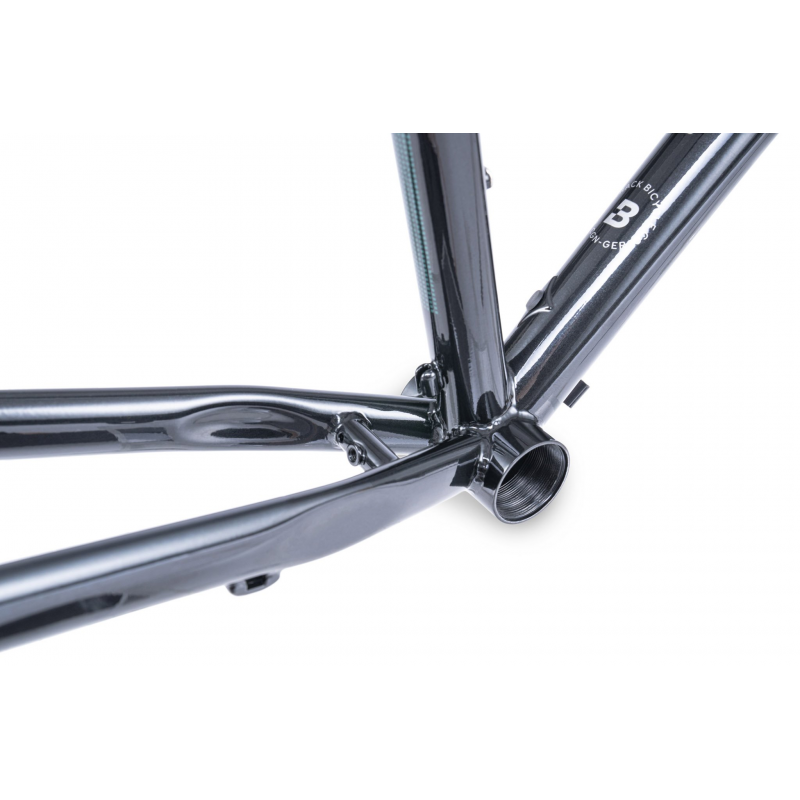

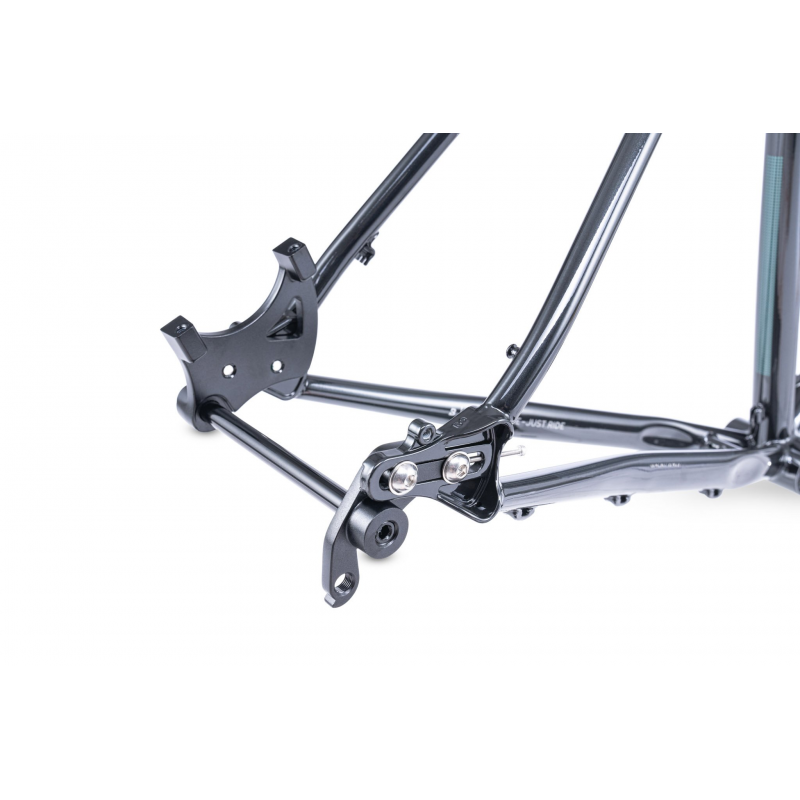

Frame: 4130 double-butted CrMo with heat-treated front triangle, rack/fender mounts, TA sliding dropouts and 68 mm BSA bottom bracket shell.
Fork: CrMo steel fork with TA dropouts, fender/rack mounts and internal routing for hub dynamo wiring.

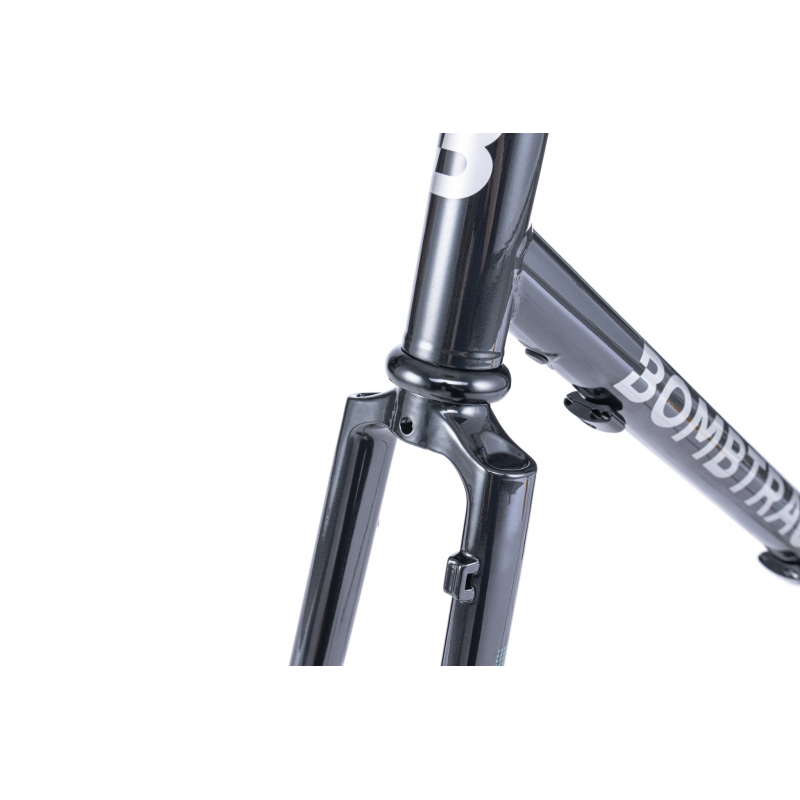

Headset: Neco H282 sealed external, 1 1/8".
Thru-axles: 12 × 100 mm front, 12 × 142 mm rear (included).

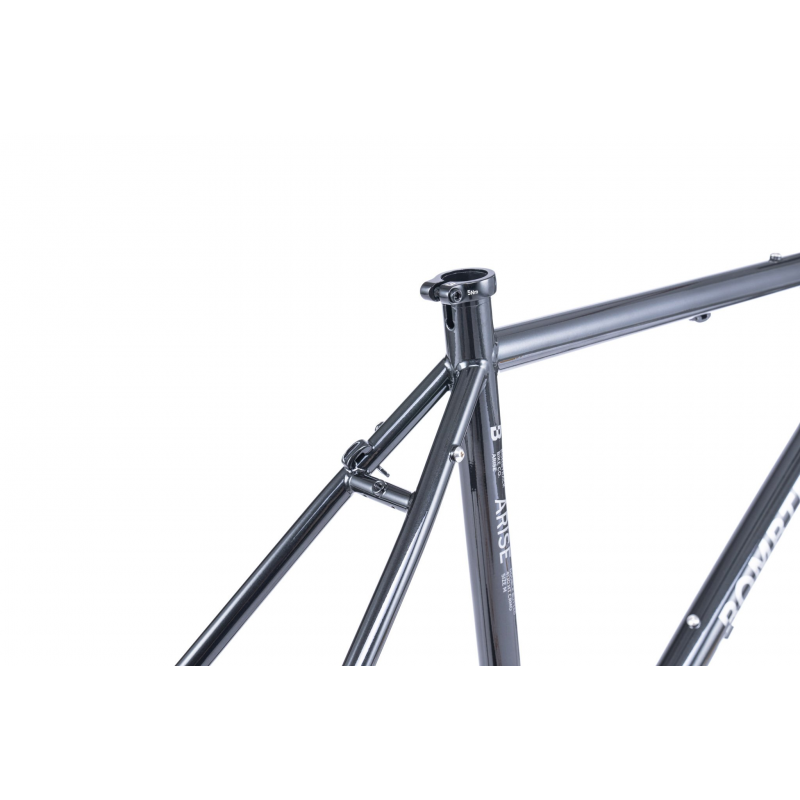

Seatpost clamp: Bombtrack Prime 29.8 mm (included).
Intended use & possible builds
All-road / Gravel
The Arise frameset suits gravel or all-road builds with tyres up to 700C × 42C (M, L, XL) or 650B × 42C (sizes XS and S): it offers comfort on light gravel, stability on tarmac and the versatility for rides beyond the city.
Touring & Commuting
Thanks to its rack and fender mounts, you can build it with 1x or 2x drivetrains for long-distance riding or daily commuting with light loads. The option to use either an internal gear hub or a traditional derailleur makes the frameset compatible with a wide range of setups for road and mixed-terrain riding.
Urban
The Arise also supports more aggressive urban builds: the balanced geometry and multiple mounting points make it possible to fit disc brakes, durable wheels and components suited to variable surfaces.
Compatibility & build info
Item
Details
Bottom bracket
BSA – 68 mm shell width.
Headset standard (S.H.I.S.)
EC34 / 28.6 | EC34 / 30.
Fork steerer inner diameter
25.4 mm.
Tyre clearance (without fenders)
XS–S: 650B × 42C / M–XL: 700C × 42C.
Drivetrain compatibility
1x up to 44 T (45 mm chainline) or 2x 52/36 T (45 mm chainline).
Seatpost diameter
27.2 mm.
Seat clamp diameter
29.8 mm.
Front derailleur clamp diameter
28.6 mm (compatible).
Brake mounts
Post Mount 6″ front and rear.
Maximum rotor size
180 mm front / 160 mm rear.
Thru-axles
12 mm front / rear, 1.5 pitch.
Testing standard
Road.
Bike trailer compatibility
yes.
Seat tube-mounted child seat compatibility
yes.
Frame & fork technical specifications
Component
Details
Model
Arise.
Colour
Metallic Black.
Frame
4130 double-butted CrMo with rack/fender mounts, TA sliding dropouts, 68 mm BSA BB shell.
Fork
4130 CrMo, TA, fender/rack mounts, internal routing for light cables.
Frameset weight
2480 g frame (M, incl. axles, hanger) / 1370 g fork.
Maximum rider + luggage weight
120 kg.
ASTM use condition
2.
Note
The final product may vary in appearance, finish and some minor details.
Geometry & size guide
Size
XS
S
M
L
XL
Wheel size
650B
650B
700C
700C
700C
Seat tube
460
490
520
550
580
Horizontal top tube
506
529
554
578
602
Seat angle
73.5°
73.5°
73°
73°
73°
Head angle
70°
70.5°
70.5°
71°
71°
BB Drop
55
55
70
70
70
Chainstay
420
420
435
435
435
Wheelbase
995
1016
1045
1065
1090
Reach
351
370
379
394
409
Stack
508
538
572
602
631
Standover
733
762
799
828
857
Min rider height
150 cm
160 cm
170 cm
179 cm
188 cm
Max rider height
161 cm
171 cm
181 cm
190 cm
199 cm
Height recommendations should be considered as general guidance to help orient your size choice. If you want to check compatibility with your chosen components in more detail, contact us for technical support: info@bikejamming.it.
Configuration & support
We can help you choose compatible components and define the build that best suits your project on this frameset.
Frequently asked questions about the Bombtrack Arise Frameset
Is the Bombtrack Arise Frameset a gravel frame or a commuting frame?
The Bombtrack Arise Frameset is a highly versatile platform that can be built as a gravel/all-road bike, a commuter or a light touring bike. Its strength is not being extreme in one single direction, but adapting well to different projects.
What tyres can the Bombtrack Arise Frameset take?
Stated compatibility without fenders is XS–S with 650B × 42C and M–XL with 700C × 42C.
Is the Bombtrack Arise Frameset compatible with both 700C and 650B wheels?
Compatibility depends on size. In sizes XS and S, the stated reference is 650B × 42C, while in sizes M to XL it is 700C × 42C. It should therefore not be understood as a dual stock wheel option on the same frame size, but as a size-specific solution.
Can you fit racks and fenders to the Bombtrack Arise Frameset?
Yes. Both frame and fork have dedicated mounts for racks and fenders, so the frameset works well for utility builds, commuting and light touring.
Is the Bombtrack Arise Frameset compatible with 1x or 2x drivetrains?
Yes. It supports 1x setups up to 44 teeth with a 45 mm chainline or 2x setups up to 52/36 teeth with a 45 mm chainline.
Is the Bombtrack Arise Frameset suitable for a light touring project?
Yes. Rack and fender mounts, CrMo steel construction and compatibility with different setups make it suitable for a light touring build on road and mixed routes.
Is the Bombtrack Arise Frameset also suitable for a more aggressive urban build?
Yes. The frame also suits more aggressive urban configurations, with balanced geometry and the option to fit robust components for variable surfaces.
What is included with the Bombtrack Arise Frameset?
It includes frame, fork, headset, front and rear thru-axles, and seatpost clamp.
Brand
Reference
BTAFSMBXS
Condition
New
Frame
Gravel / Bikepacking Ready
Wheel Size
27.5/29''
