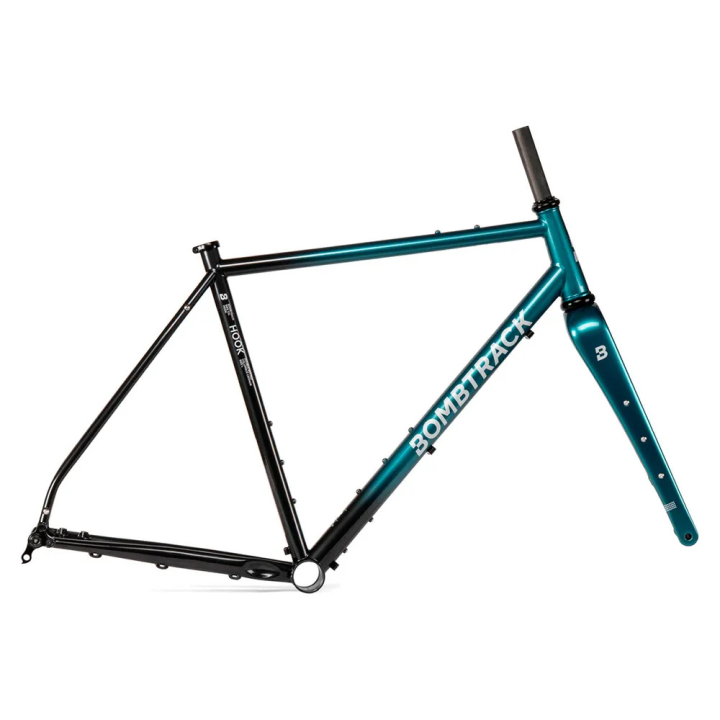

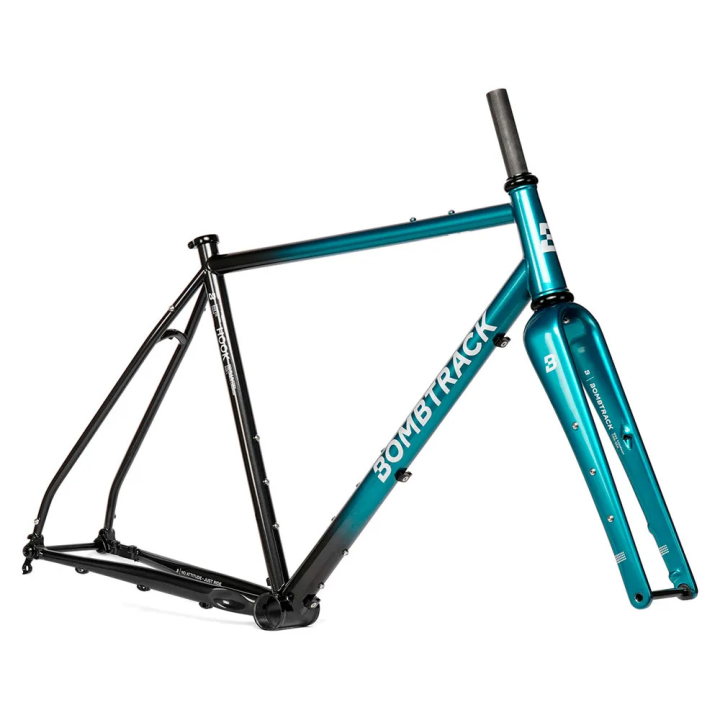

BOMBTRACK Hook Frameset - Metallic Teal / Black Fade

€1,278.00
Tax included

The Bombtrack Hook Frameset is a Columbus Cromor steel platform built for fast gravel and sporty all-road riding, with a full carbon fork, T47 bottom bracket, and modern build standards. In this Metallic Teal / Black Fade version, it keeps the same technical identity as the Hook: a responsive and efficient base for white roads, hardpack gravel, and rough tarmac, while still allowing setups for performance-oriented commuting and light bikepacking.

Considering a complete bike setup (cockpit, wheels and components)?

We can help you build a configuration that matches your real use.

→ See how the setup works



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

Bombtrack Hook Frameset

The Bombtrack Hook Frameset in Metallic Teal / Black Fade finish is a frame-and-fork set designed for fast gravel and modern all-road riding: Columbus Cromor double butted steel, full carbon fork with thru-axle, T47 bottom bracket, and multiple mounting points for bags, racks, and fenders. A solid foundation for builds that aim to combine performance and durability, with a distinctive look.

What the frameset includes

  • Frame: Columbus Cromor double butted steel, thru-axle (TA) dropouts, rack/fender mounts, 86.5 mm T47 bottom bracket shell.
  • Fork: full carbon, TA, tapered 1.5"–1 1/8", triple cage mounts (also usable as fender mounts), internal hub dynamo cable routing.
  • Headset: sealed external headset, 1.5"–1 1/8".
  • Thru-axles: 12 × 100 mm front / 12 × 142 mm rear (included).
  • Seatpost clamp: Bombtrack Prime 29.8 mm (included).

Intended use & possible configurations

Fast gravel & all-road

The combination of a Columbus steel frame and a full carbon fork makes the Hook an excellent starting point for fast, responsive gravel bikes. Clearance up to 700C × 45 mm or 650B × 52 mm (fork), depending on size, makes it possible to choose either faster-rolling or more aggressively treaded tires, while always maintaining a good balance of comfort, grip, and performance on compact gravel and white roads.

Sporty commuting & light bikepacking

Mounts for racks, fenders, a top tube bag, and triple cage mounts on the fork allow the Hook to be configured for fast year-round commuting or for light bikepacking rides. Minimalist 1x drivetrains or 2x setups with closer gear spacing both fall within the possibilities offered by this frameset.

One unique project, mixed use

This frameset works well for riders who want one bike that can do it all: gravel, all-road, day rides, and everyday riding. By working with wheels, tires, and drivetrain choice, you can steer the project toward a more comfortable bike, a snappier bike, or something perfectly balanced between the two, always within the frame’s standards and clearances.

Compatibility & build info

Item Details
BB standard T47, 86.5 mm shell width.
Headset standard (S.H.I.S.) EC34 / 28.6 (upper) | EC44 / 40 (lower).
Headset crown race angle 36°.
Fork steerer inner diameter 23.6 mm.
Fork max tire clearance w/o fender 650B × 52C / 700C × 45C.
Frame max tire clearance w/o fender XS–S: 650B × 42C / M–XL: 700C × 42C.
Maximum chainring clearance 1x 40 teeth with 45 mm chainline.
Maximum chainring clearance 2x 48 / 32 teeth with 46.9 mm chainline.
Seat post diameter 27.2 mm.
Seat clamp diameter 29.8 mm.
Front derailleur clamp diameter 28.6 mm.
Frame front derailleur compatible yes.
Brake mount front flat mount 140 / 160.
Brake mount rear flat mount 140 / 160.
Maximum rotor clearance front 160 mm.
Maximum rotor clearance rear 160 mm.
Front through axle 12 × 100 mm, 1.5 thread pitch.
Rear through axle 12 × 142 mm, 1.5 thread pitch.
ISO testing standard Road.
Bike trailer approved.
Seat tube mounted child seat approved.
Derailleur hanger BT-DH-008.
Frame small parts BT-CR-007.
Front through axle (ref.) BT-TA-F-601.
Rear through axle (ref.) BT-TA-R-602.

Technical specifications – frame & fork

Component Details
Model Hook Frameset.
Colorway offered by Bikejamming Metallic Teal / Black Fade.
Frame Columbus Cromor double butted steel, TA dropouts, rack/fender mounts, 86.5 mm T47 bottom bracket shell.
Fork full carbon, TA, tapered 1.5"–1 1/8", triple cage mounts (also usable as fender mounts), internal cable routing for hub dynamo.
Headset sealed external headset, 1.5"–1 1/8".
Thru-axles 12 × 100 mm (front) / 12 × 142 mm (rear).
Seatpost clamp Bombtrack Prime 29.8 mm.
Frameset weight 2420 g frame (size M, including TA and hanger) / 600 g fork (300 mm steerer tube, including TA).
Maximum rider + luggage weight 120 kg.
ASTM riding conditions 2.
Note The final product may vary in appearance, finish, and some minor details.

Geometry & size guide

Size XS S M L XL
Wheels 650B 650B 700C 700C 700C
Seat tube 460 490 525 545 565
Horizontal top tube 509 523 541 563 580
Seat angle 73.6° 73.6° 73.6° 73.1° 73.1°
Head angle 70.6° 71.1° 71.6° 71.6° 71.6°
Head tube 100 110 130 150 170
BB drop 54 54 64 64 64
Chainstay length 410 410 425 425 425
Fork offset 50 50 50 50 50
Trail 65 62 65 65 65
Wheelbase 979 989 1014 1031 1049
Standover 732 752 803 821 841
Reach 355 366 375 386 397
Stack 522 534 565 584 603
Front center 576 586 597 615 632
Axle to crown 400 400 400 400 400
Minimum rider height 150 cm 160 cm 170 cm 179 cm 188 cm
Maximum rider height 161 cm 171 cm 181 cm 190 cm 199 cm

The height guidelines are an indicative reference based on rider height only. We can help you interpret the Hook’s geometry and technical standards to choose a configuration that matches the bike project you have in mind: info@bikejamming.it.

Configuration & support

We can help you choose compatible components and define the most suitable configuration for your build project on this Hook Frameset.

Frequently asked questions about the Bombtrack Hook Frameset

Is the Bombtrack Hook Frameset a gravel or all-road frame?

The Bombtrack Hook Frameset was created as a fast gravel platform with an all-road focus. It is designed for compact gravel, white roads, and rough asphalt, with a sportier and more responsive ride feel than a frame more oriented toward pure commuting.

What is the difference between the Bombtrack Hook Frameset and the Arise Frameset?

The Hook is more focused on fast gravel and sporty riding, while the Arise is more versatile and easier to interpret as a base for commuting, light touring, and broad all-road use.

What tires can the Bombtrack Hook Frameset fit?

The fork accepts up to 650B × 52C or 700C × 45C without fenders. The frame, however, is rated for XS–S with 650B × 42C and for M–XL with 700C × 42C without fenders.

Is the Bombtrack Hook Frameset compatible with both 700C and 650B wheels?

Yes, but it depends on the part of the frameset and the size. The fork offers more clearance, while the frame is size-specific: XS–S with 650B × 42C and M–XL with 700C × 42C. It should therefore not be presented as the same dual configuration across all sizes.

Can you fit fenders, racks, and bags on the Bombtrack Hook Frameset?

Yes. The frame includes mounts for racks and fenders, while the full carbon fork adds triple cage mounts and internal hub dynamo cable routing. This also makes it suitable for sporty commuting and light bikepacking.

Is the Bombtrack Hook Frameset compatible with 1x and 2x drivetrains?

Yes. It supports 1x configurations up to 40 teeth with a 45 mm chainline, or 2x setups up to 48 / 32 teeth with a 46.9 mm chainline.

What technical standards does the Bombtrack Hook Frameset use?

It uses an 86.5 mm T47 bottom bracket, 12 × 100 mm and 12 × 142 mm thru-axles, flat mount brakes, and a 27.2 mm seat post. These are important standards for anyone planning a modern custom build from scratch.

Is the Bombtrack Hook Frameset good for light bikepacking?

Yes. The mounts on the frame and fork make it a good base for light bikepacking rides, as long as the project stays consistent with the frame’s nature: fast, sporty, and more gravel/all-road than heavy touring.

  • Brand
  • Reference
    BTHFSMTBFS
  • Condition
    New

  • Frame
    Gravel / Bikepacking Ready
  • Wheel Size
    27.5/29''
