BOMBTRACK Beyond AL Frameset - Matt Metallic Red

€928.00
Tax included



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

The Beyond AL frameset is built for riders who want a practical, do-it-all adventure platform: efficient on pavement, composed on broken surfaces, and ready to carry real luggage thanks to extensive mounts on both frame and fork. Wide tire clearance, dropper compatibility and internal hub-dynamo cable routing make it a solid base for rugged commuting, fast-and-light touring or long-haul travel builds—choose your bags, bolt them on, and go.

Selected color

Matt Metallic Red

This sheet is specific to the Matt Metallic Red paint scheme.

What’s included ("frameset")

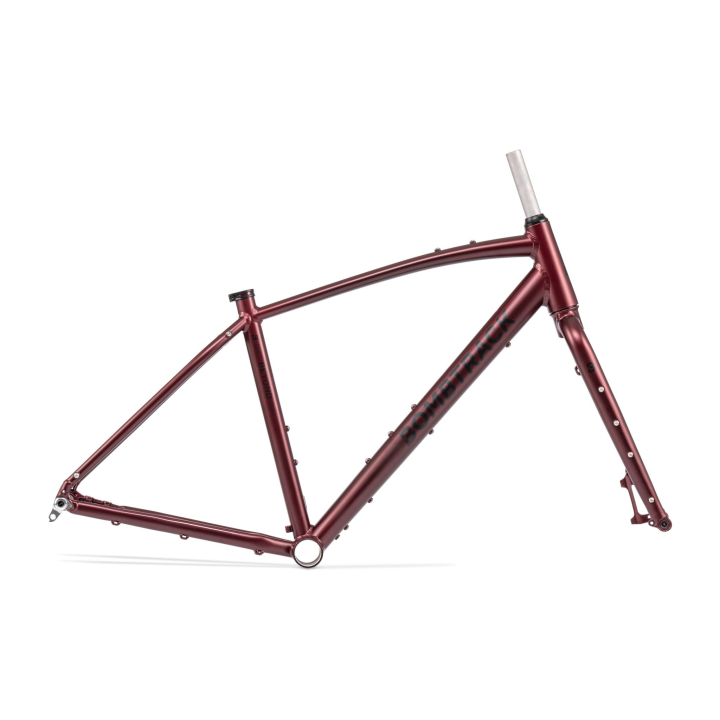

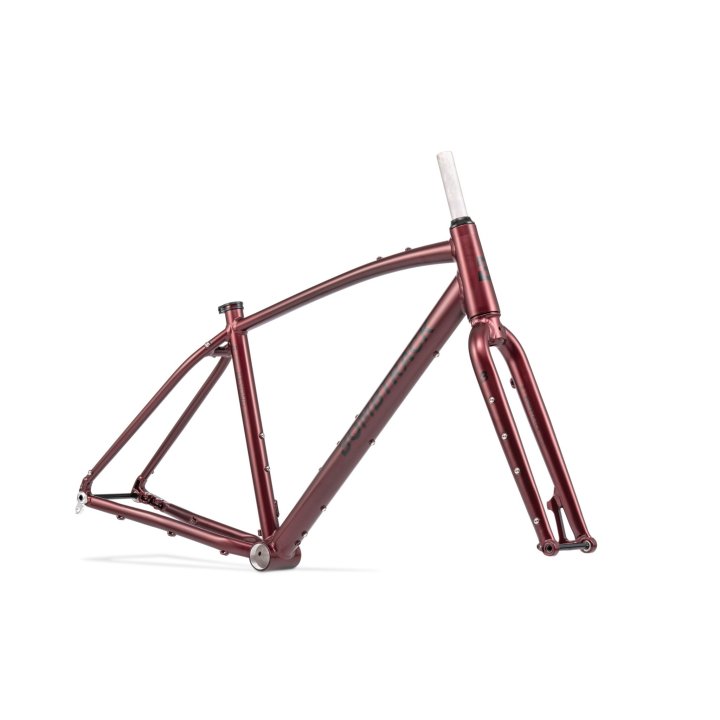

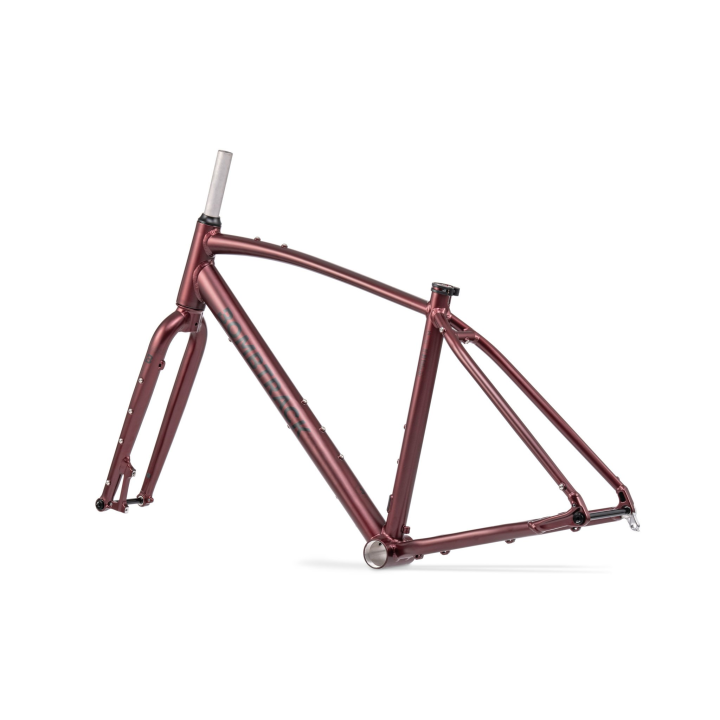

  • Bombtrack Beyond AL frame + fork
  • Headset included
  • Thru-axles included
  • Seatpost clamp included

Key facts

Model BEYOND AL
Max system weight 140 kg (rider + luggage included)
ASTM riding condition 2
Testing standard ISO testing standard MTB

Technical specifications

Frame

Material Hydroformed 6061-T6 aluminium
Axles TA (thru-axle)
Mounts Rack / fender mounts, stealth dropper ready

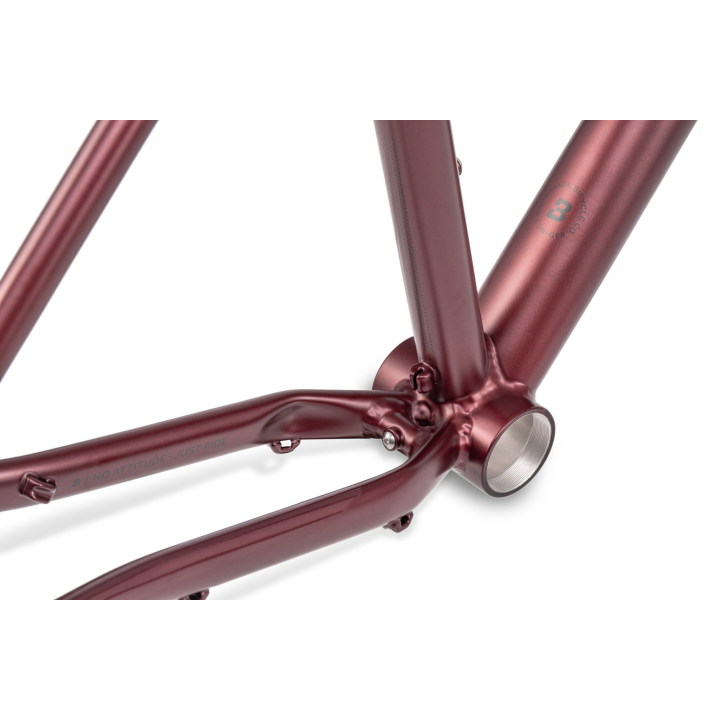

Bottom bracket shell T47 — 86.5 mm shell width

Headset & included hardware

Headset Sealed integrated aheadset, 1.1/2'' – 1.1/8''

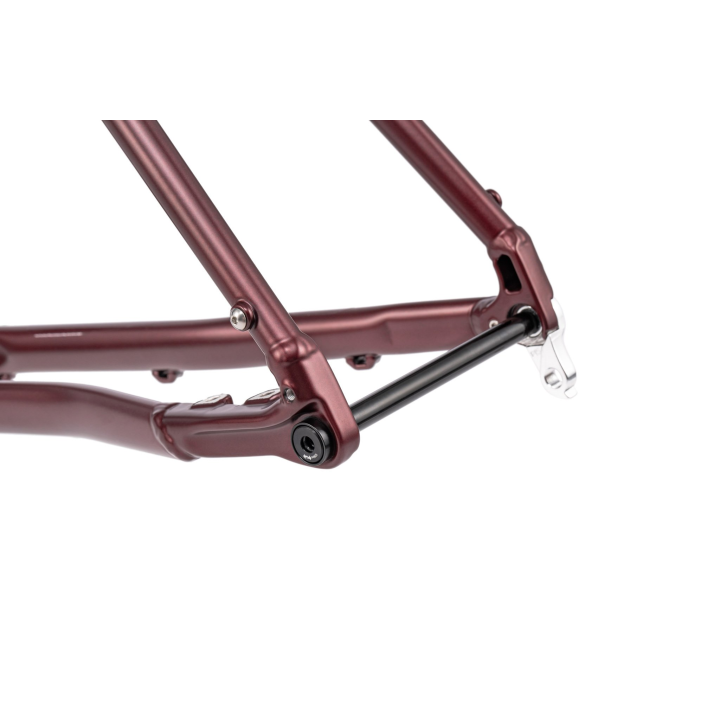

Included thru-axles 12×100 mm (front) / 12×142 mm (rear)

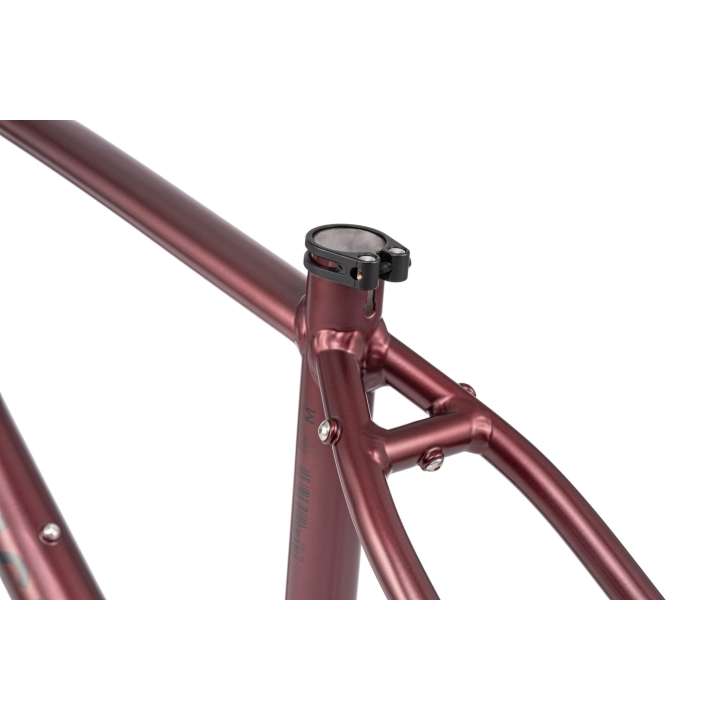

Included seat clamp Bombtrack Prime 34.9 mm
Rack —

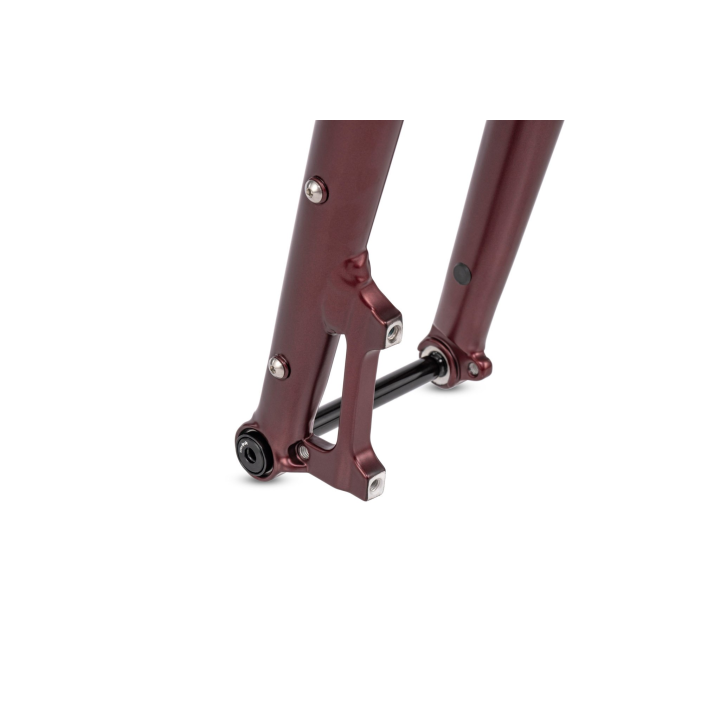

Fork

Material 6061 aluminium
Axle TA (thru-axle)
Steerer Tapered 1.1/2'' – 1.1/8''
Mounts Fender / rack mounts + triple cage mounts
Cable routing Internal routing for hub dynamo cable

Claimed weights

Frame 2145 g (size M, incl. TA, bolts, seat clamp, hanger)
Fork 1000 g (300 mm steerer, incl. TA)

Build information

ItemSpecification
BB standard T47 — 86.5 mm shell width
Headset standard (S.H.I.S.) IS42 / 28.6 | IS52 / 40
Headset crown race angle 45°
Fork steerer inner diameter 24.6 mm
Fork max tire clearance (no fender) 27.5'' × 2.25'' / 29'' × 2.1''
Frame max tire clearance (no fender) S: 27.5'' × 2.25'' — M–L: 29'' × 2.25''
Max chainring clearance (1x) 36T with 50 mm chainline
Max chainring clearance (2x) 40/28T with 50 mm chainline
Seatpost diameter 31.8 mm
Seat clamp diameter 34.9 mm
Front derailleur clamp diameter 34.9 mm
Front derailleur compatible Yes
Front brake mount PM 6''
Rear brake mount FM 140 / 160
Max rotor (front) 203 mm
Max rotor (rear) 160 mm
Front thru-axle 12×100, 1.5 thread pitch
Rear thru-axle 12×142, 1.5 thread pitch
Bike trailer approved Approved
Seat tube mounted child seat Not approved

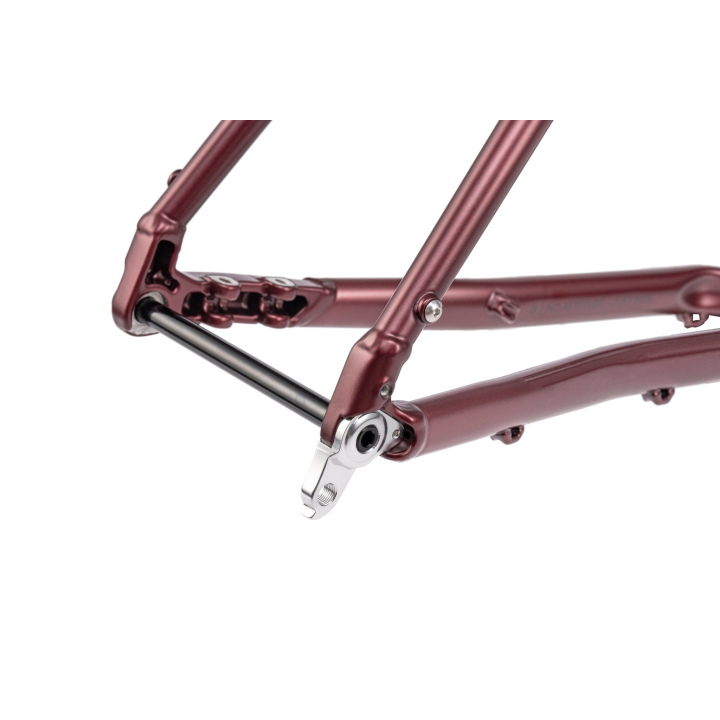

Derailleur hanger BT-DH-018
Frame small parts BT-CR-007
Front thru-axle (part code) BT-TA-F-603
Rear thru-axle (part code) BT-TA-R-601
Tire clearance note: clearances are stated “without fenders”. With fenders fitted, usable space may be reduced.

Geometry & size guide

MeasurementSMLXL
Wheel size 27.5'' 29'' 29'' 29''
Seat Tube Length 440 480 520 560
Horizontal TT length 546 567 597 626
Seat Angle 74° 74° 74° 74°
Head Angle 70° 70.5° 70.5° 70.5°
Headtube Length 140 160 200 230
BB Drop 60 74 74 74
Chainstay Length 420 445 445 445
Fork Offset 53 53 53 53
Trail 70 75 75 75
Wheelbase Length 1040 1077 1109 1140
Standover 775 821 859 893
Reach 382 394 413 434
Stack 569 604 642 670
Front Center 627 642 674 705
Axle to Crown 420 420 420 420
Minimum rider height* 1600 1700 1790 1880
Maximum rider height* 1710 1810 1900 1990
Final sizing notes:
  • Height ranges (*) are indicative: inseam, proportions, flexibility and riding style matter.
  • Reach + stack describe fit better than the letter size—compare them to a bike you already know.
  • Standover: keep a safety margin, especially for travel/off-road use.
  • Adjustments (stem/spacers/saddle setback/bar rise) fine-tune fit, but don’t replace the correct size.
  • Between sizes: smaller = more nimble; larger = more stable and roomier over long distances.

  • Brand
  • Reference
    BTBALFSMMRS
  • Condition
    New

  • Frame
    Adventure Touring / Bikepacking
  • Wheel Size
    27.5/29''
