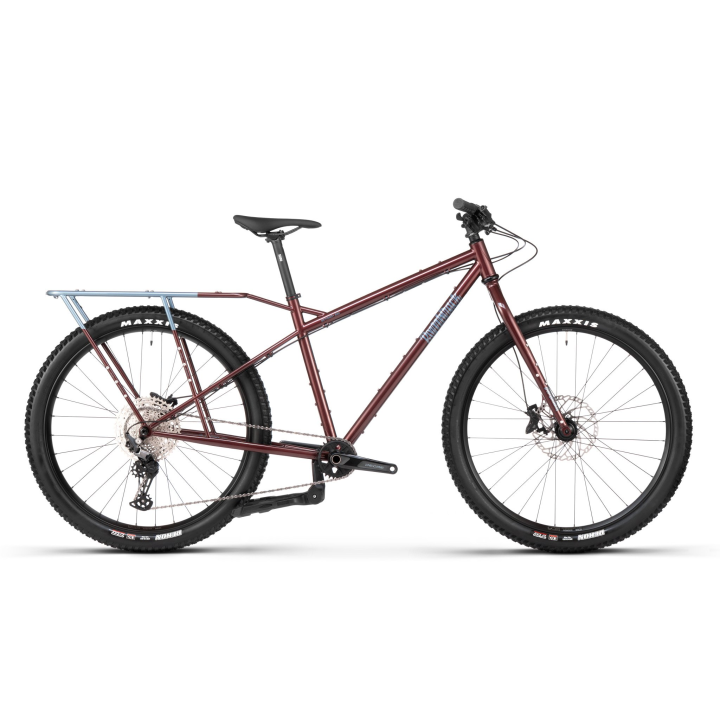

BOMBTRACK Beyond+ Midtail Frame - Matt Metallic Burgundy

• CrMo frame: tough and ready for demanding routes and heavy loads.
• Integrated rear rack: a solid base for panniers/bags and “heavy hauling”.
• Tire clearance: up to 29" × 3.0" (frame, without fenders).
• Modern standards: Boost, 30.9 seatpost, stealth dropper ready.
• Hanger: Sram UDH (compatibility and easier spare availability).

• Preorder: available on request (we’ll update you on timing and process).
• Contact: info@bikejamming.it

• Beyond+ Midtail frame: frame only in Matt Metallic Burgundy.
• Seat clamp
• Rear thru-axle
• Not included: fork, headset and components (frame-only).

• Model: BEYOND+ MIDTAIL
• BB standard: BSA – 73 mm shell width
• Headset standard (S.H.I.S.): ZS44 / 28.6 | EC44 / 40
• Fork max tire clearance (without fenders): 29" × 3.0"
• Frame max tire clearance (without fenders): 29" × 3.0"
• Maximum chainring clearance 1x: 48T with 52 mm chainline
• 2x drivetrain: not supported
• Seatpost diameter: 30.9 mm
• Seat clamp diameter: 34.9 mm
• Front derailleur compatible: yes
• Rear brake mount: IS
• Maximum rear rotor size: 180 mm
• Rear thru-axle (standard): 12 mm × 148 mm, 1.0 thread pitch
• ISO testing standard: MTB
• Bike trailer: approved
• Seat tube mounted child seat: approved
• Derailleur hanger: Sram UDH
• Rear thru-axle: included

• Product: Bombtrack Beyond+ Midtail – Frame
• Color: Matt Metallic Burgundy
• Frame: 4130 double butted CrMo, TA, integrated rear rack, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
• Frame weight: TBA
• Maximum rider + luggage weight: TBA
• ASTM riding condition: 3 (as listed on the Bombtrack page)
• Final product may vary in appearance, finish and minor details.

Note: Height recommendations are indicative and based on rider height only. Proper bike fitting involves additional measurements and factors: we can help you interpret geometry and compatibility, and professionally verify the build plan on the actual frame when available.
