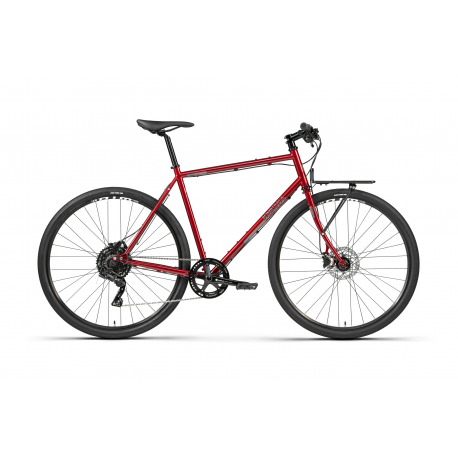

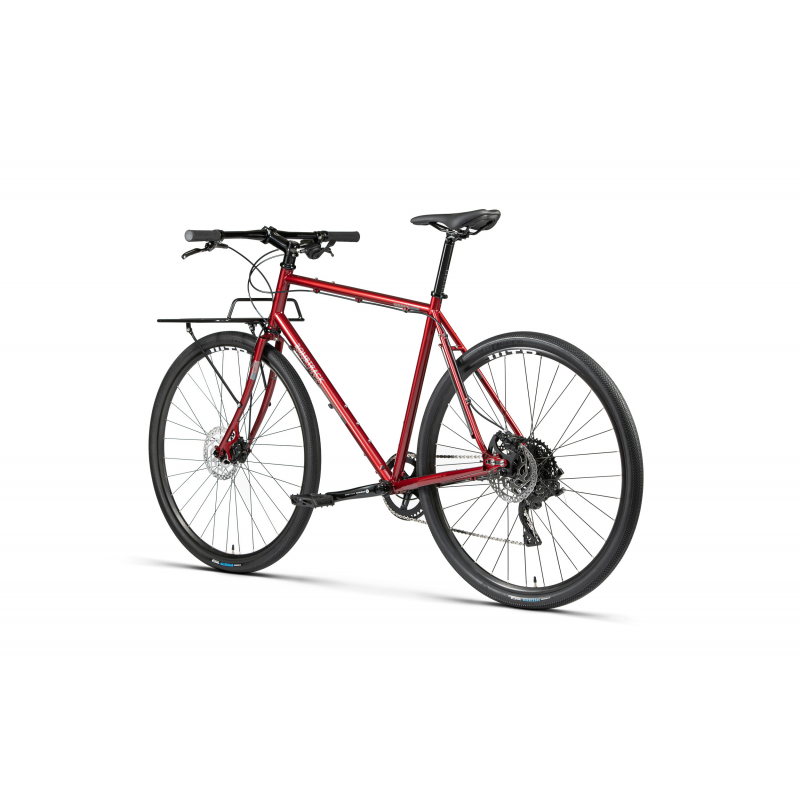

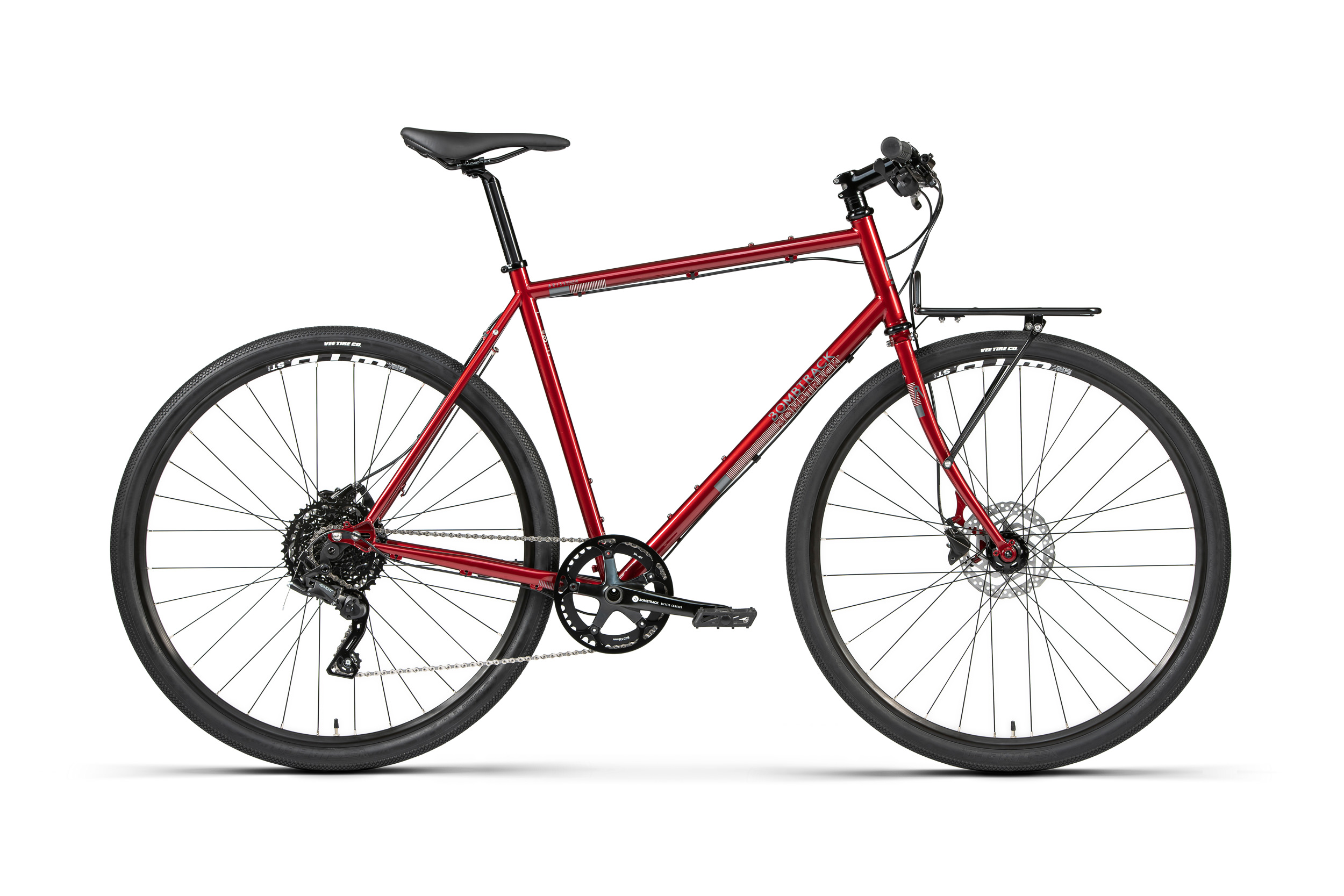

BOMBTRACK 2021 Arise Geared - glossy dark cherry
Previous Next

BOMBTRACK Arise Geared - glossy dark cherry


New

M AVAILABLE NOW: info@bikejamming.it

More details

1 499,00 €

Free Shipping in Italy!

Add to wishlist

More info

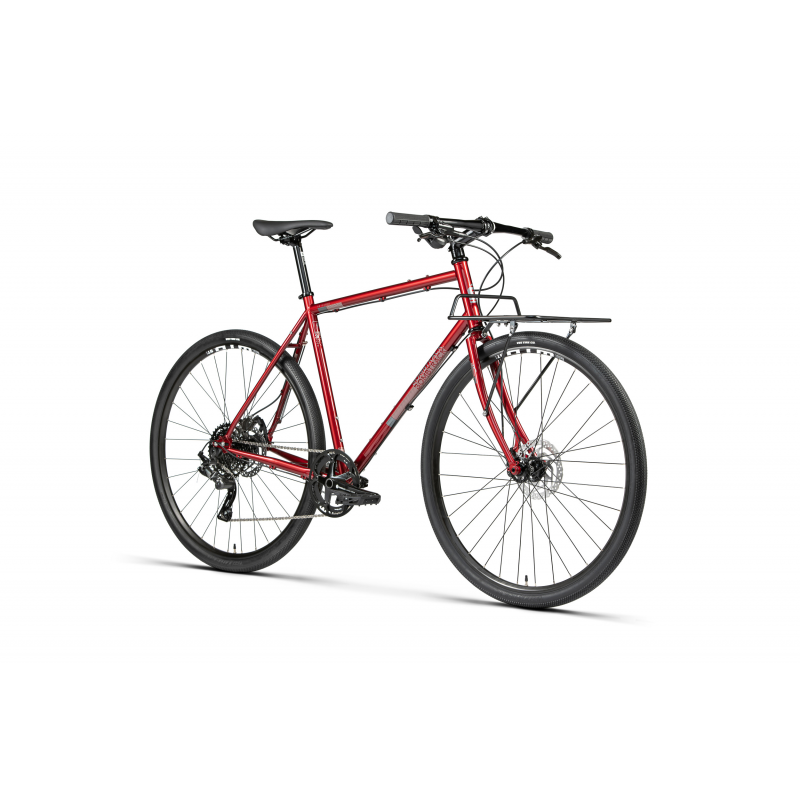

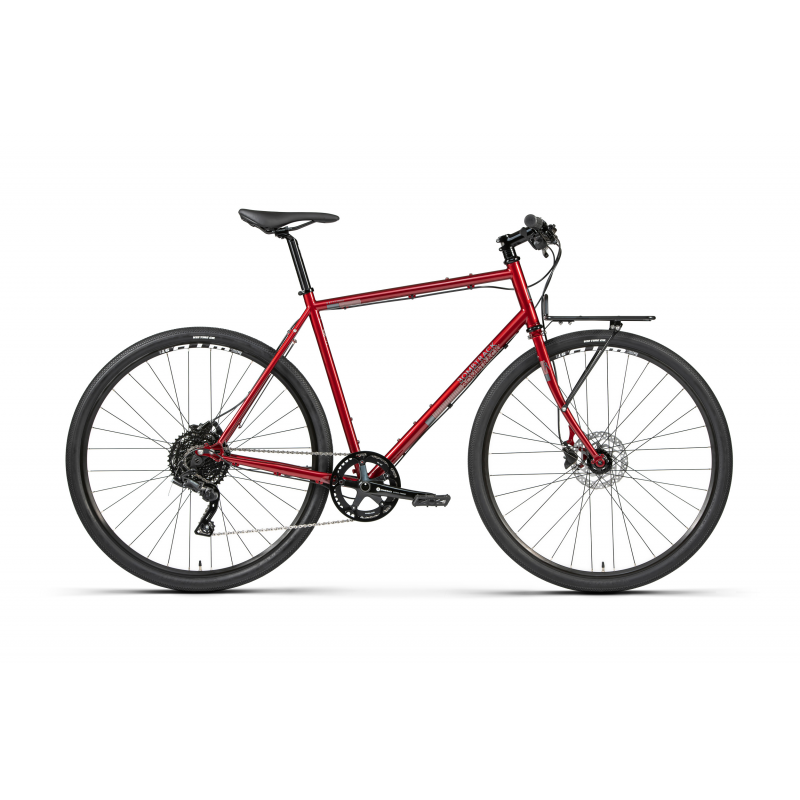

Versatile urban-gravel, made so you can spend more time riding, less time wrenching. The sturdy steel frame, ready for whatever future redo, makes a ride for life. Looking for your off-road commuter, urban hauler, once in a while gravel, beer & café bike? Here you go.

If you want reliable 1x shifting that rivals more expensive configurations, the Arise Geared is the bike for you. Fitted with a Microshift Advent 9-speed drivetrain and generous 11 - 42T cassette on a sturdy steel frame, you have a ride for life. Shimano hydraulic disc brakes provide reliable stopping power in the wet, while flat bars keep you comfortable and secure. A deck-style front rack, pannier and mudguard mounts give you plenty of options for trips further afield.

SPECS:

Color 1Glossy Metallic Green
Color 2Glossy Dark Cherry

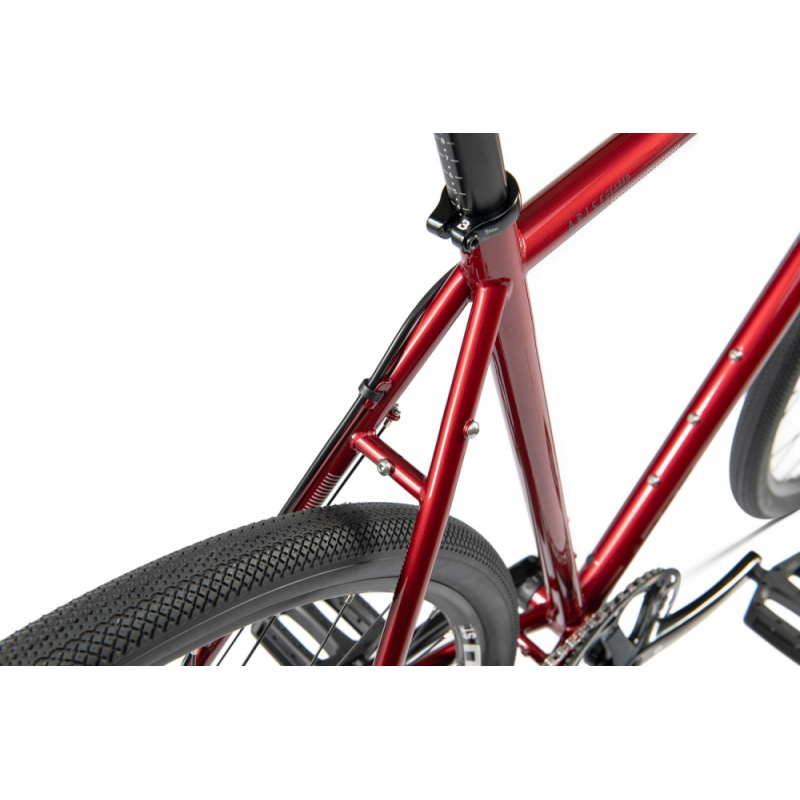

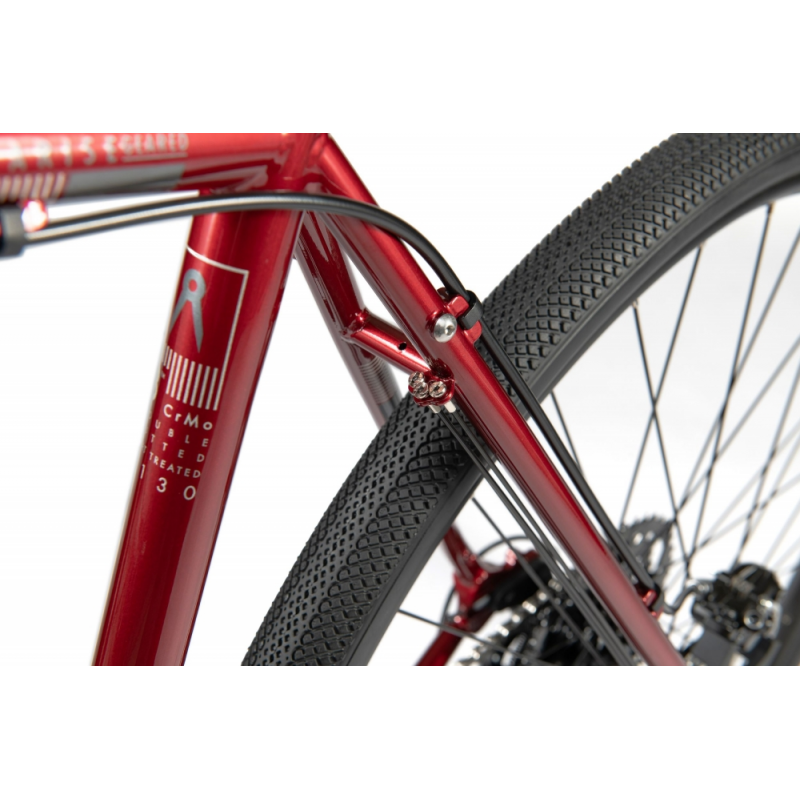

Frame4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell
Fork4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing

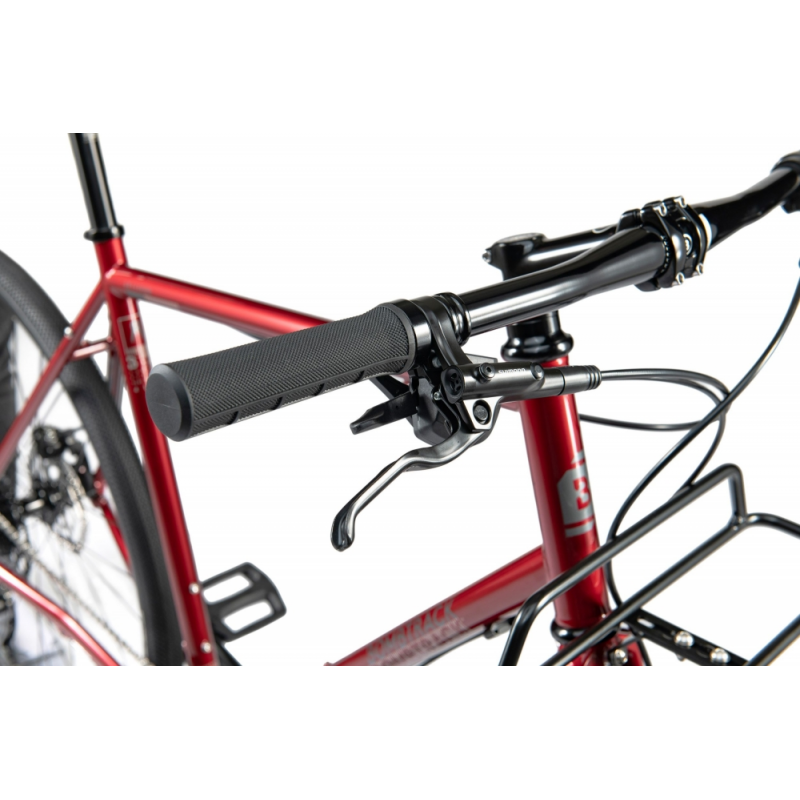

HandlebarBOMBTRACK ORIGIN flat bar, 31.8 mm, 8° backsweep
GripsBOMBTRACK SCROLL grips

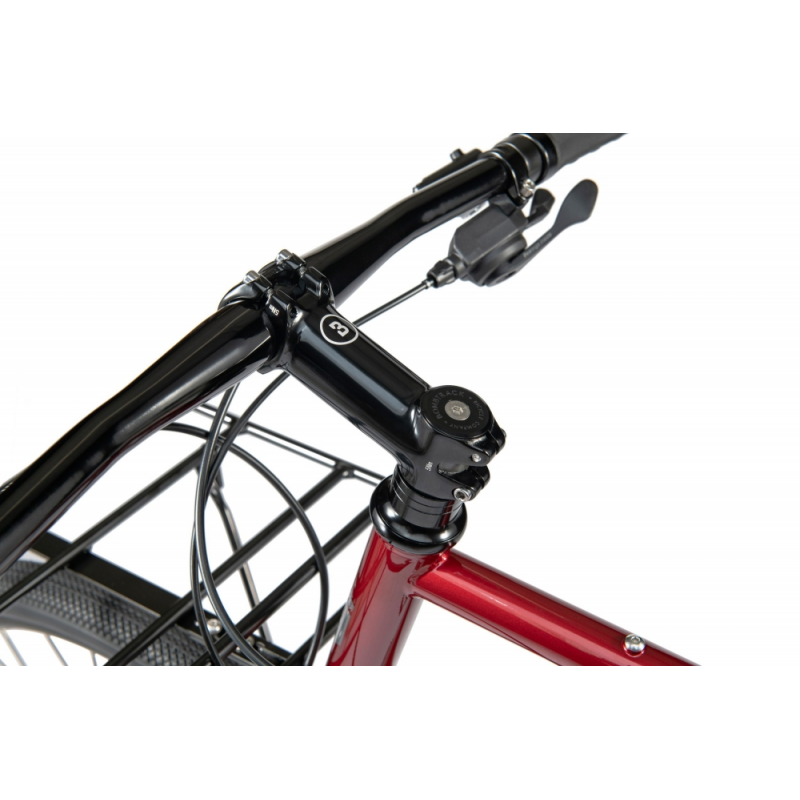

StemBOMBTRACK ROAM forged aluminium stem, -7°
HeadsetNECO H282 sealed external aheadset, 1.1/8''
LeversSHIMANO BL-M200 hydraulic brake levers
ShifterMICROSHIFT ADVENT SL-M819-R Shifter 1 x 9

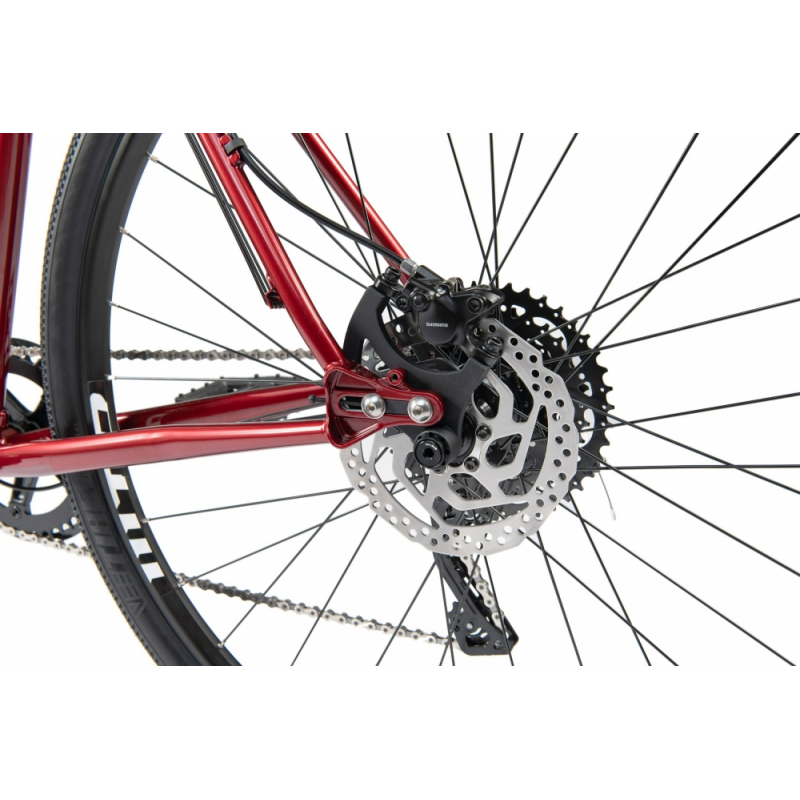

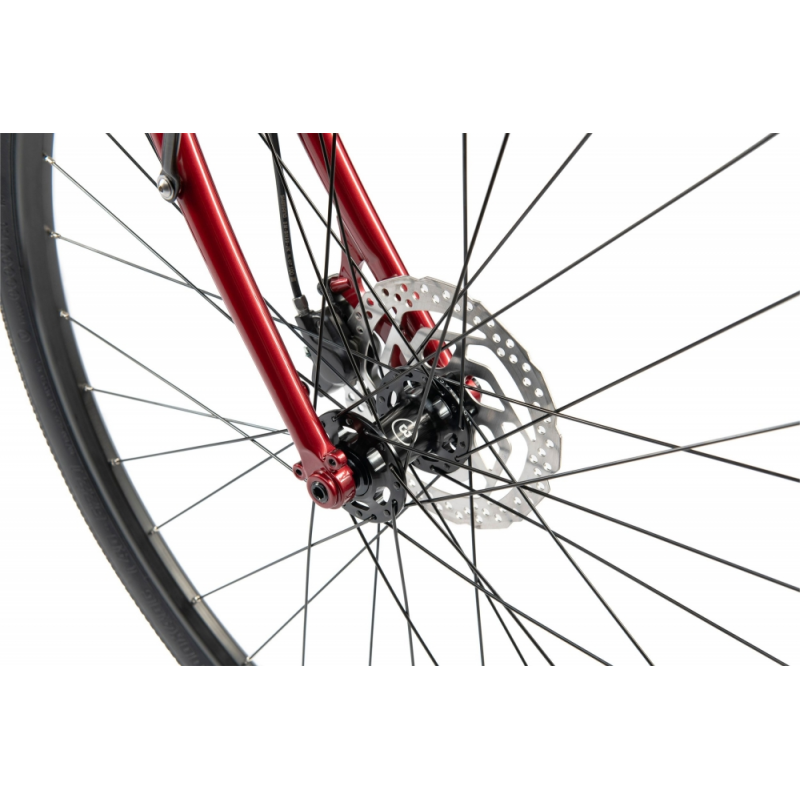

BrakesSHIMANO BR-MT200 post mount hydraulic disc brake with 160 mm rotors

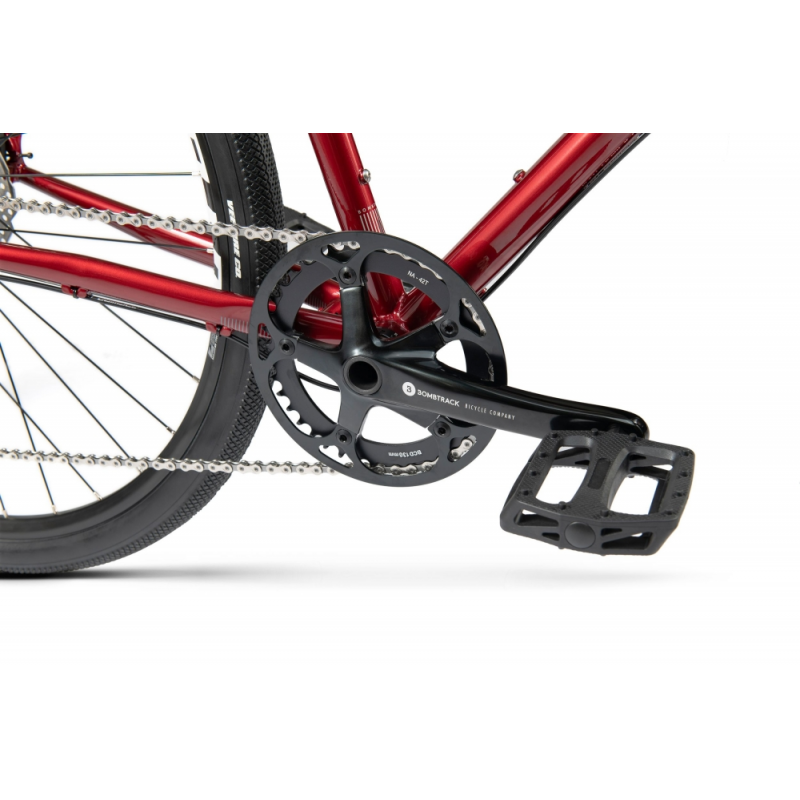

CranksetBOMBTRACK TAF19 aluminium crank, 24 mm spindle
BBBSA sealed BB, external cups
PedalsWELLGO B109N flat pedal
ChainKMC X9 chain, 1/2'' x 11/128'', 114L
ChainringBOMBTRACK RIDGE aluminium chainring, narrow-wide,
42 T, incl. chainguard
CassetteMICROSHIFT ADVENT CS-H093 9-speed, 11 - 42 T
Front derailleur-
Rear derailleurMicroshift ADVENT RD-M6195M wide range, clutch
Front hubBOMBTRACK ARC sealed hub, 6-bolt disc
Rear hubBOMBTRACK ARC sealed hub, 11-speed, 6-bolt disc
Through axle12 x 100 mm / 12 x 142 mm
Front rimWTB ST i19 double wall, TCS 2.0, 32h
Rear rimWTB ST i19 double wall, TCS 2.0, 32h

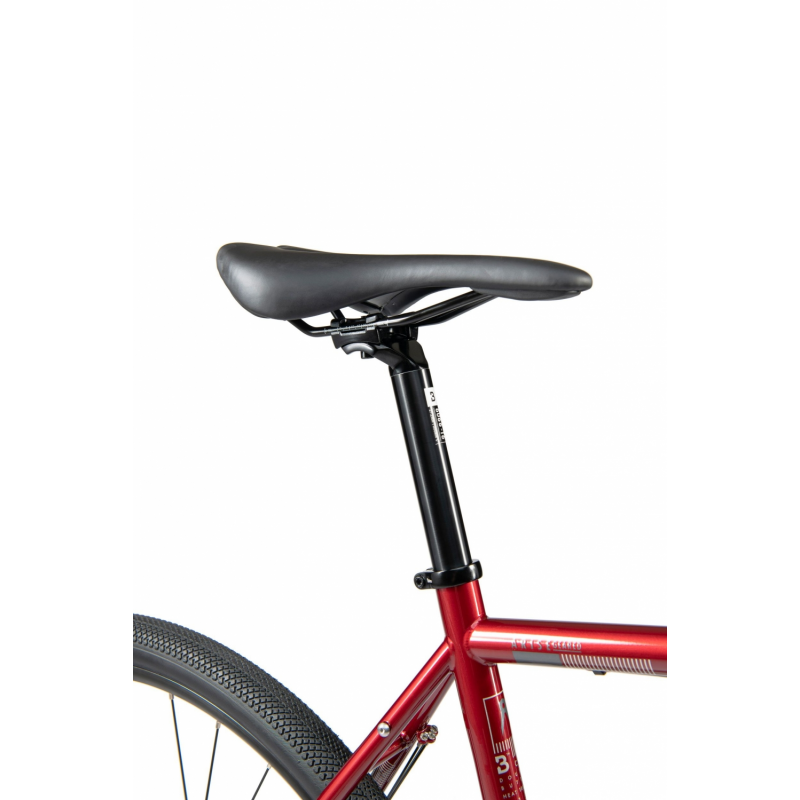

SaddleBOMBTRACK FUZZ
Seat postBOMBTRACK BEECH aluminium seatpost, 27.2 mm x 300 mm
Seat clampBOMBTRACK ORIGIN forged aluminium seat clamp, 29.8 mm
Front tireXS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Rear tireXS - S VEE TIRE SPEEDSTER 38-584 /
M - XL VEE TIRE SPEEDSTER 40-622
Fender-

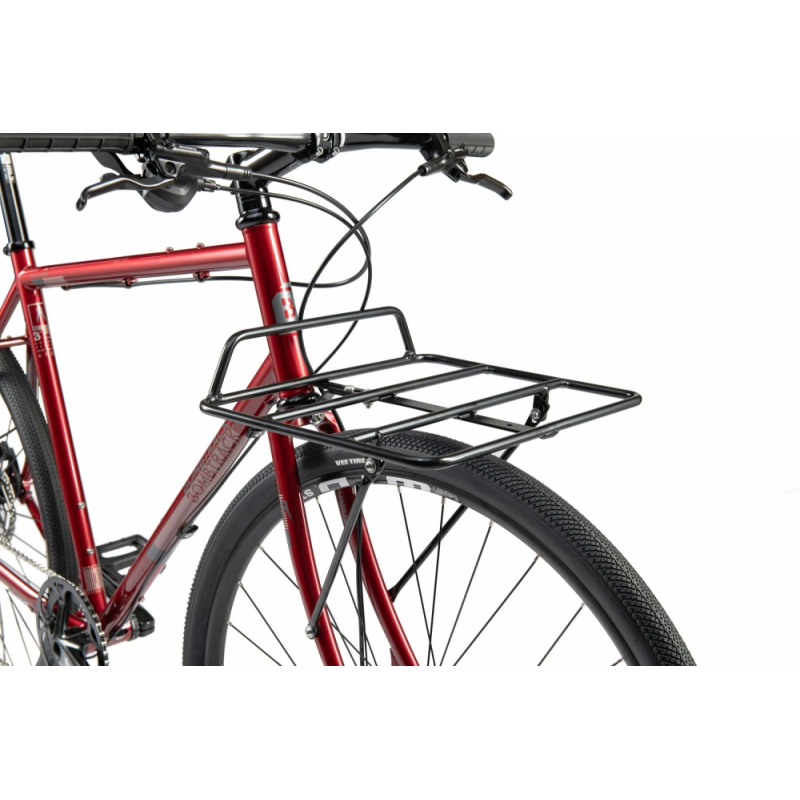

RackBOMBTRACK DECK frontrack, aluminium
Kickstand-
Light-
Weight12.6 kg (size M)
Weight frameset2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA)
Maximum rider weight120 kg incl. luggage
ASTM riding condition2

Final product may vary in appearance, finish and minor details.

BUILD INFOS:

BB standardBSA - 68 mm shell width
Headset standard (S.H.I.S.)EC34 / 28.6 | EC34 / 30
Headset crown race angle45°
Fork max tire clearance w/o fenderXS - S 650B x 42C / M - XL 700C x 42C
Frame max tire clearance w/o fenderXS - S 650B x 42C / M - XL 700C x 42C ¹
Maximum chainring clearance 1x44 T with 45 mm chainline
Maximum chainring clearance 2x52 / 36 T with 45 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter29.8 mm
Front derailleur clamp diameter28.6 mm
Brake mount frontPM
Brake mount rearPM
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardRoad
CrankarmXS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor170 mm
BCD crank130 mm, 5 bolts
Chainline45 mm
Chainring offset0 mm
Spoke length front wheelXS - S 273 mm, 275 mm / M - XL 292 mm, 293 mm
Spoke length rear wheelXS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm
Spoke count (front / rear)32 / 32
ERDXS - S 570 mm / M - XL 604 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem length90 mm
Stem angle-7°
Headset spacers1 x 10 mm, 2 x 5 mm
Seat post offset24 mm
Seat post length315 mm
Derailleur hangerBT-DH-022
Frame small partsBT-CR-007
Hub end caps frontBT-HC-012
Hub end caps rearBT-HC-017
Cassette bodyBT-CB-006
Crankarm boltBT-CRP-001
Through axle frontBT-TA-F-603
Through axle rearBT-TA-R-603

Max tire clearance of 650B x 47C is possible, but depending on the tire and rim combination it might be necessary to move the sliding dropout to a rearwards position or accept tire clearance of less than 6 mm between tire and frame.

FRAME GEOMETRY

Bike SizeXSSMLXL
Wheel size650B650B700C700C700C
Seat Tube Length460490520550580
Horizontal TT length506529554578602
Seat Angle73.5°73.5°73°73°73°
Seat Angle effective73.5°73.5°73°73°73°
Head Angle70°70.5°70.5°71°71°
Headtube Length100130150180210
BB Drop5555707070
Chainstay Length420420435435435
Fork Offset5555555555
Trail6460686565
Wheelbase Length9951016104510651090
Standover733762799828857
Reach351370379394409
Stack508538572602631
Front Center582602619639664
Axle to Crown390390390390390
Minimum rider height ¹15001600170017901880
Maximum rider height ¹16101710181019001990

HANDLEBAR GEOMETRY

Bike SizeXSSMLXL
Handlebar typeFlatbarFlatbarFlatbarFlatbarFlatbar
Width (drops)-----
Width (barends)680680680680680
Reach-----
Flare-----
Backsweep8°8°8°8°8°
Drop-----
Upsweep-----
Rise-----
