GENESIS Flyer

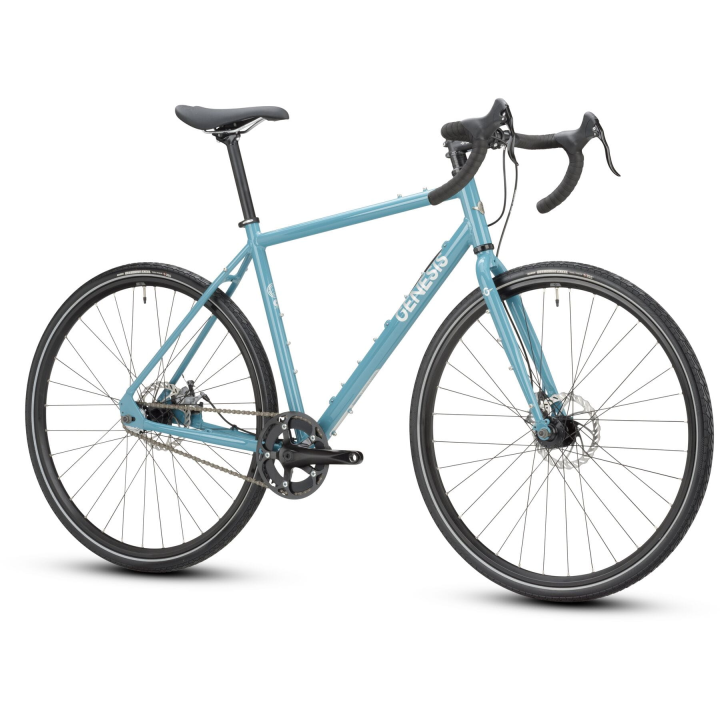

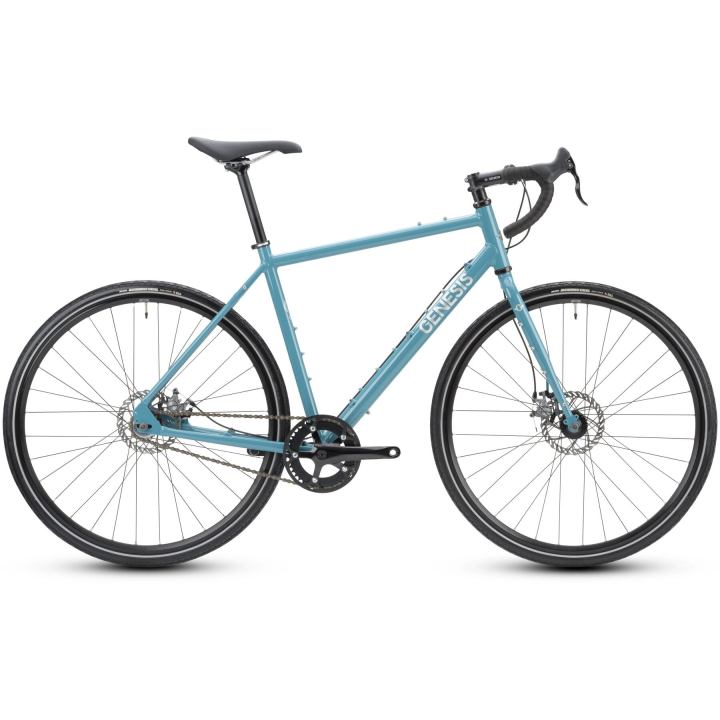

Genesis Flyer – low-maintenance urban singlespeed with disc brakes

The Flyer is designed for daily urban riding and all-weather commuting, developed by Genesis Bikes as a simple, dependable and easy-to-live-with platform.

Built around the proven CDA aluminium frameset, the Flyer combines a singlespeed drivetrain, disc brakes and wide tyres, with the aim of keeping maintenance, cleaning and adjustments to a minimum, while remaining practical and consistent in everyday use.

Key features

• Double-butted aluminium CDA frame

• Genesis Chromoly Disc fork

• Singlespeed drivetrain

• Mechanical disc brakes

• 700c wheels

• Maxxis Overdrive Excel 700×35 mm tyres

• External cable routing

• Rigid setup, no suspension

Model positioning

The Genesis Flyer is intended for:

• everyday urban commuting

• riding in poor weather conditions

• riders looking for a simple, robust bike with minimal upkeep

The combination of a single-gear transmission, disc braking and higher-volume tyres results in a bike focused on practicality, durability and ease of use.

Technical specifications

Frame & fork

• Frame: Aluminium

• Fork: Genesis Chromoly Disc

• Headset: Prestine PT-1606 EC34 Upper / EC34 Lower

• Bottom bracket: Cartridge 68 × 127.5 mm

Drivetrain

• Configuration: Singlespeed

• Sprocket: 17T

• Chain: KMC Z1

Brakes

• Brakes: Promax DSK-300 Road mechanical disc

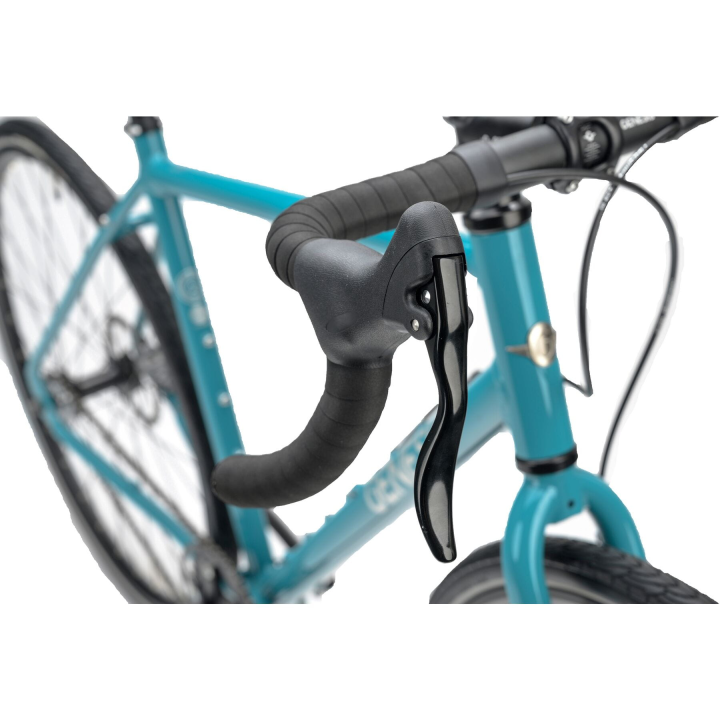

• Brake levers: Promax BL-253

Wheels & tyres

• Rims: Shining DB-31, 32H

• Hubs: KT-K88F (front) / KT-T58R (rear)

• Tyres: Maxxis Overdrive Excel 700×35 mm

Components

• Handlebar: Genesis Alloy, 16° flare

  • XS: 400 mm

  • S / M: 420 mm

  • L / XL: 440 mm

• Stem: Genesis Alloy, −7°

  • 90 mm: XS / S / M

  • 100 mm: L / XL

• Seatpost: Genesis Alloy 27.2×350 mm

• Saddle: Genesis

Standards

• Wheel size: 700c

• Frame: rigid

• Fork: rigid

• Seatpost diameter: 27.2 mm

Sizing guide (indicative)

• XS: 156–164 cm

• S: 164–172 cm

• M: 172–180 cm

• L: 178–186 cm

• XL: 186–194 cm

Sizing indications are general and should be considered alongside riding style and intended use. Size consultation is available.

Frame geometry (mm)
