GENESIS Fugio 30 - SRAM Apex

Genesis Fugio 30 – aluminium gravel bike with SRAM Apex

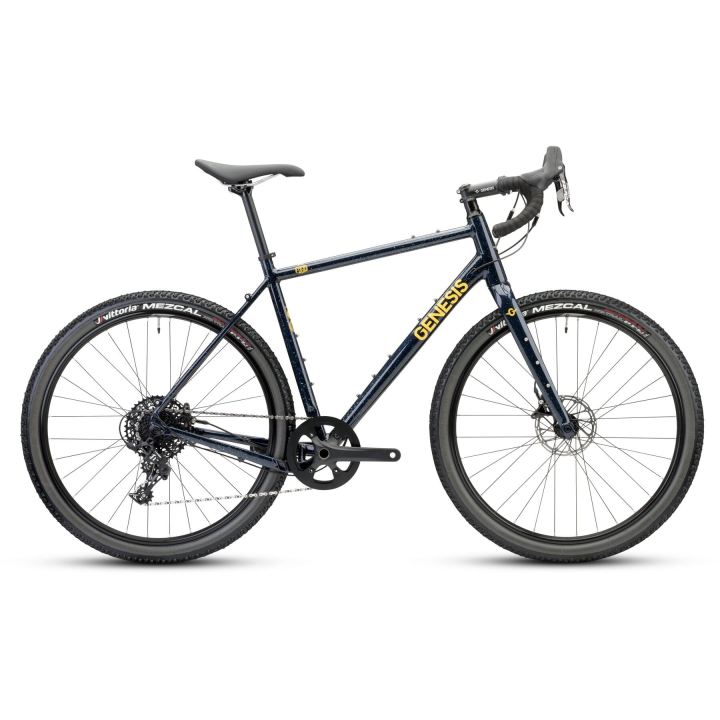

The Genesis Fugio 30 in SRAM Apex specification is a gravel bike built around a heat-treated 6061 aluminium Fugio frame, paired with a full carbon gravel fork.
This model is distinct from the steel Fugio versions in frame material, specification and positioning.

The bike is supplied with 650B wheels as standard, with tubeless-ready rims and tyres, and is also compatible with 700C wheels, allowing alternative configurations.

Key features

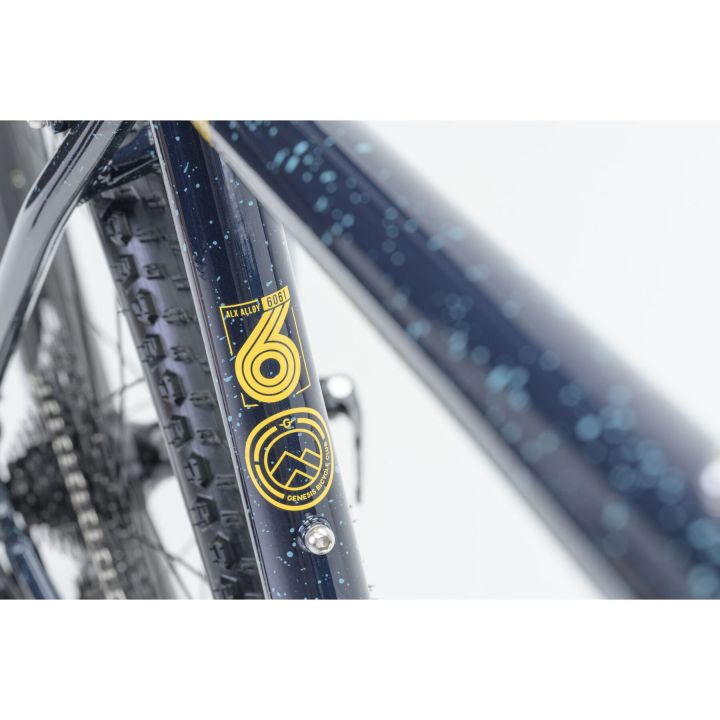

• 6061 heat-treated aluminium frame

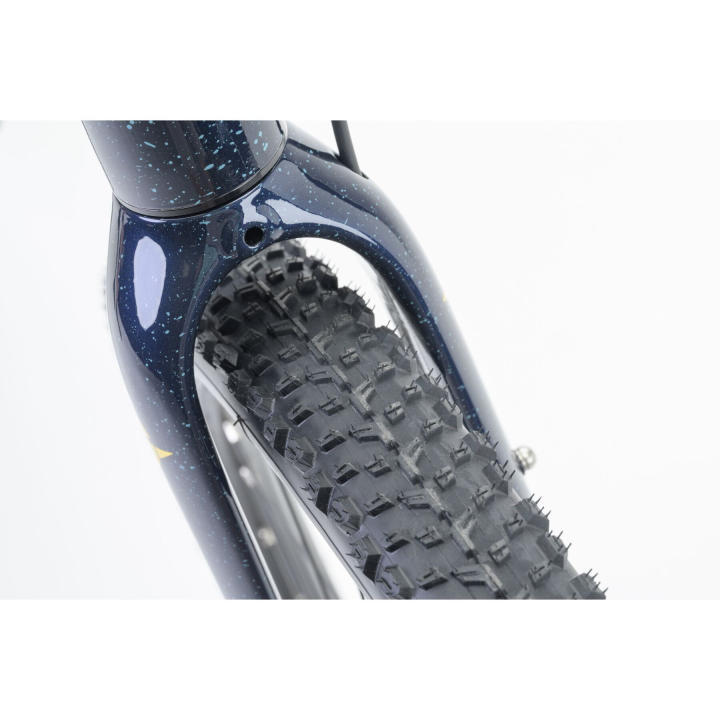

• Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts

• SRAM Apex 1x11 drivetrain

• SRAM Apex hydraulic disc brakes

• 650B wheelset

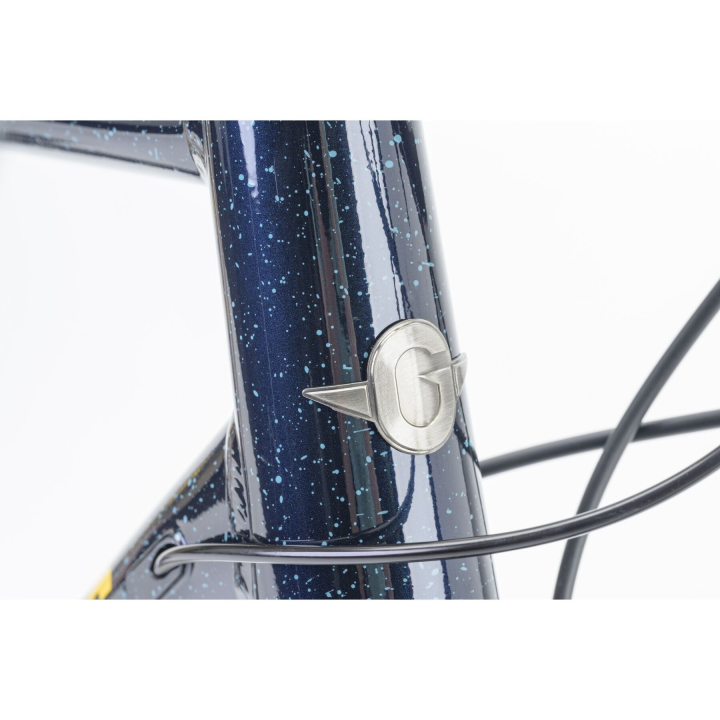

• Internal cable routing

• Wide tyre compatibility

• Lifetime warranty on frame and fork

Stock configuration

The Genesis Fugio 30 Apex is equipped with:

• 1x drivetrain with 11–42T cassette

• Vittoria Mezcal 27.5×2.1 tyres

• Tubeless-ready rims and tyres

Wheel and tyre compatibility

• 650B: up to 52 mm

• 700C: up to 40 mm

Pre-order support

Frame size and wheel/tyre configuration directly affect the final setup.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications

Frame & fork

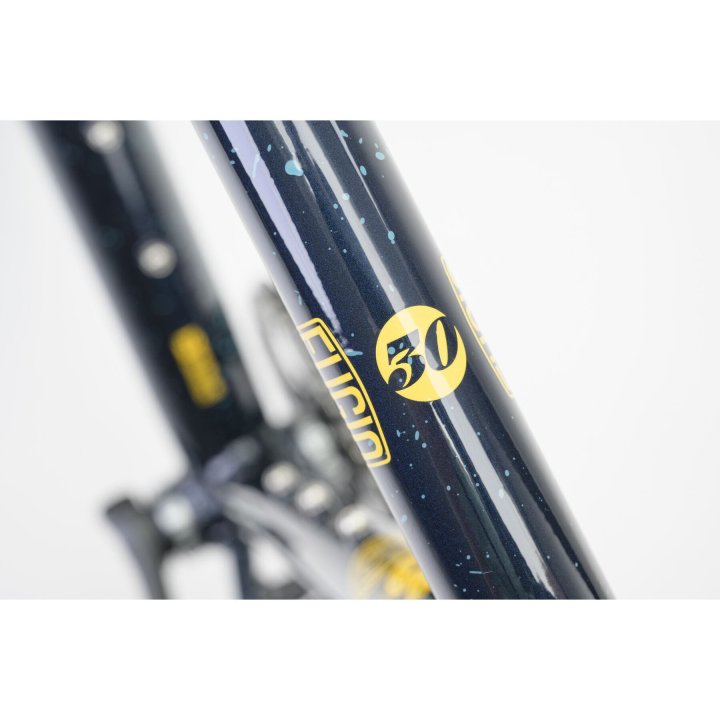

• Frame: 6061 Aluminium

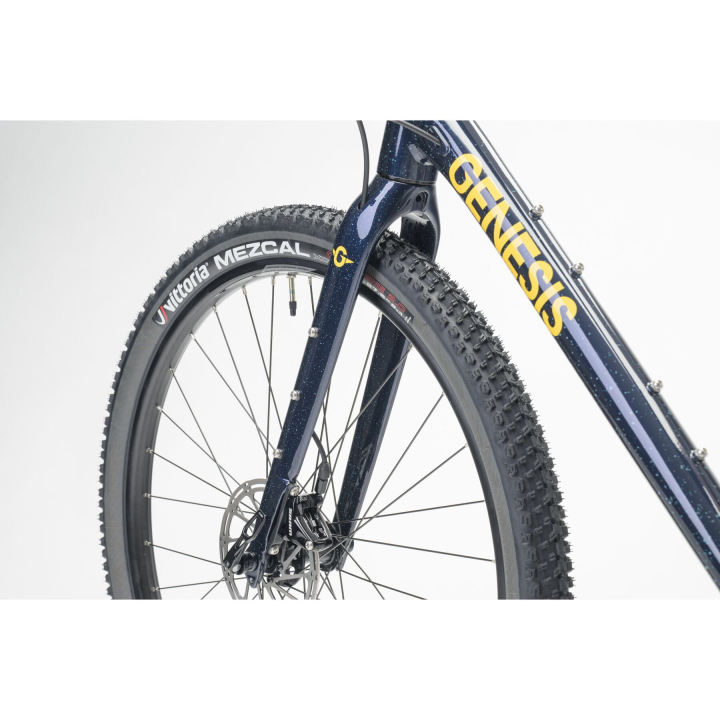

• Fork: Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts

• Headset: Prestine F23A-2

• Warranty: Lifetime on frame and fork

Drivetrain

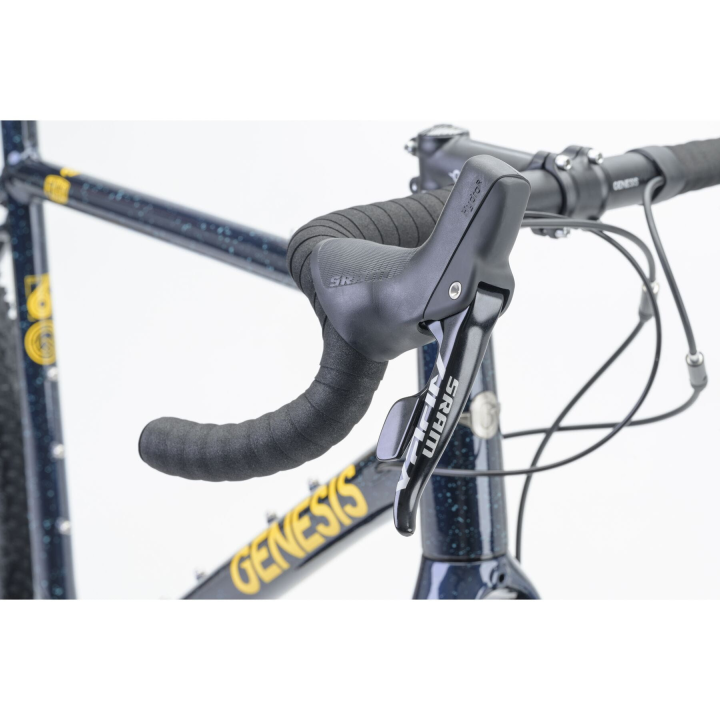

• Shifters: SRAM Apex hydraulic, 11-speed

• Rear derailleur: SRAM Apex 1 Long Cage, 11-speed

• Crankset: Prowheel RPL-FD16AG, 42T

  • XS / S: 170 mm

  • M / L: 172.5 mm

  • XL: 175 mm

• Cassette: SRAM PG-1130, 11–42T

Brakes

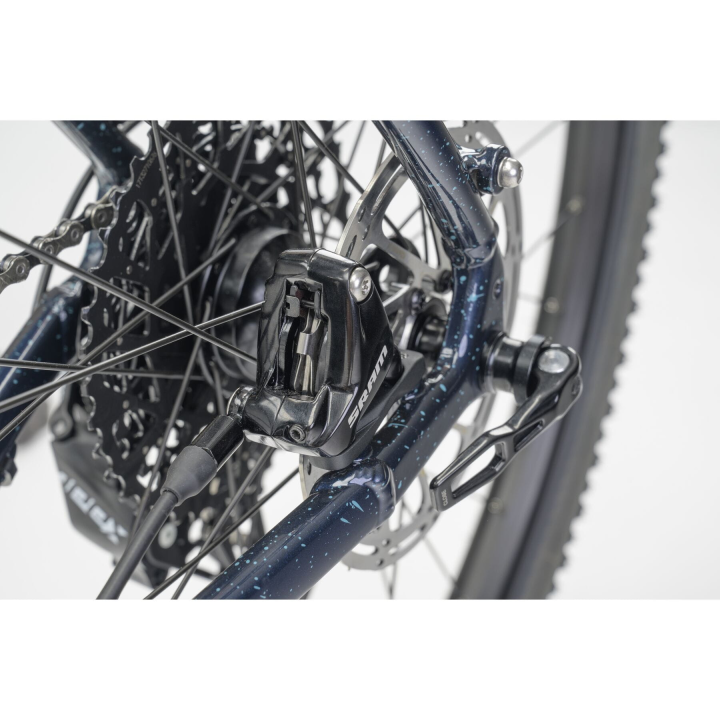

• Brakes: SRAM Apex hydraulic disc

Wheels & tyres

• Wheel size: 650B

• Rims: Shining DB-X25

• Hubs: KT QL-SL2F (front) / KT QL-XD2R (rear)

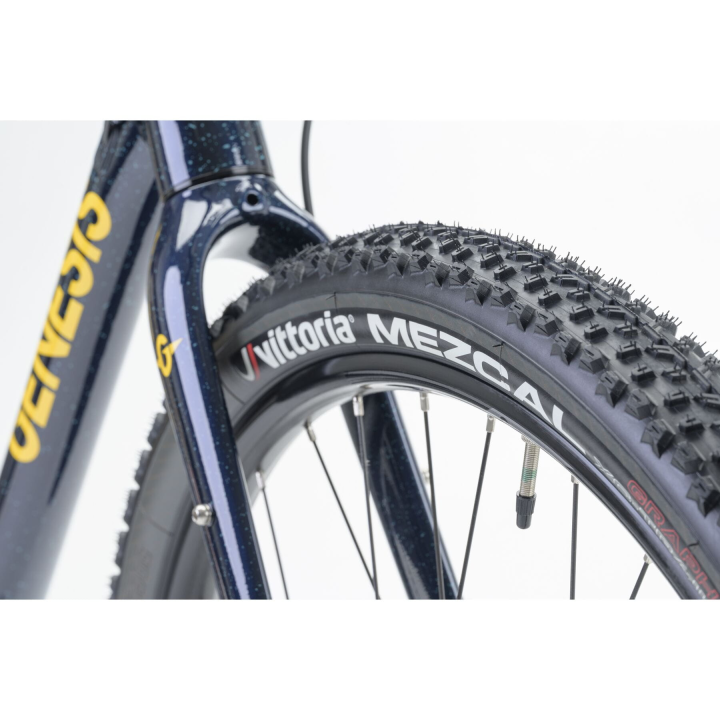

• Tyres: Vittoria Mezcal 27.5×2.1

Components

• Handlebar: Genesis AL6061 T6, 31.8 mm, 20° flare

  • XS: 420 mm

  • S / M: 440 mm

  • L: 460 mm

  • XL: 480 mm

• Stem: Genesis Alloy, 100 mm, 31.8 mm, −7°

• Seatpost: Genesis Alloy 27.2×350 mm

• Saddle: Genesis Adventure

General

• Sizes: XS, S, M, L, XL

• Discipline: Gravel

• Geometry: supplied as a separate attached file
