GENESIS Fugio 20

Genesis Fugio 20 – gravel adventure bike

The Genesis Fugio 20 is a drop-bar bicycle designed for gravel and adventure riding, intended for mixed surfaces, rough tracks and off-road routes.

It is built around the Genesis Mjolnir seamless double-butted chromoly steel frame, paired with a Carbon Road Plus fork. The stock configuration uses 650B wheels with high-volume tyres, while the frame is also compatible with 700C wheels, allowing alternative setups.

Key features (manufacturer stated)

• Genesis Mjolnir Seamless Double-Butted Chromoly frame

• Carbon Road Plus fork with tapered steerer 1 1/8” – 1 1/2”

• SRAM Apex 1x11 drivetrain

• SRAM Apex hydraulic disc brakes, 160 mm rotors

• 650B wheelset with high-volume gravel tyres

• Mounts for mudguards, rear rack and bottle cages

• Additional Anything Cage mounts

• Internal routing with dynamo compatibility

• 12 mm thru-axles, front and rear

Wheel and tyre compatibility

• 650B: up to 60 mm

• 700C: up to 40 mm

Intended use

The Fugio 20 is configured for gravel and adventure riding on mixed terrain.
The 1x drivetrain with an 11–42T cassette provides a wide gear range for off-road climbs and road transitions.

Pre-order support

Frame size, wheel choice and tyre selection directly affect the final setup.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications (manufacturer translation)

Frame & fork

• Frame: Genesis Mjolnir Seamless Double-Butted Chromoly

• Fork: Carbon Road Plus, tapered alloy steerer 1 1/8” – 1 1/2”

• Headset: Genesis tapered 1 1/8” – 1 1/2”, EC34 / EC44

• Rear derailleur hanger: Replaceable – GNSPR40002

• Warranty: Lifetime on frame and fork

Drivetrain

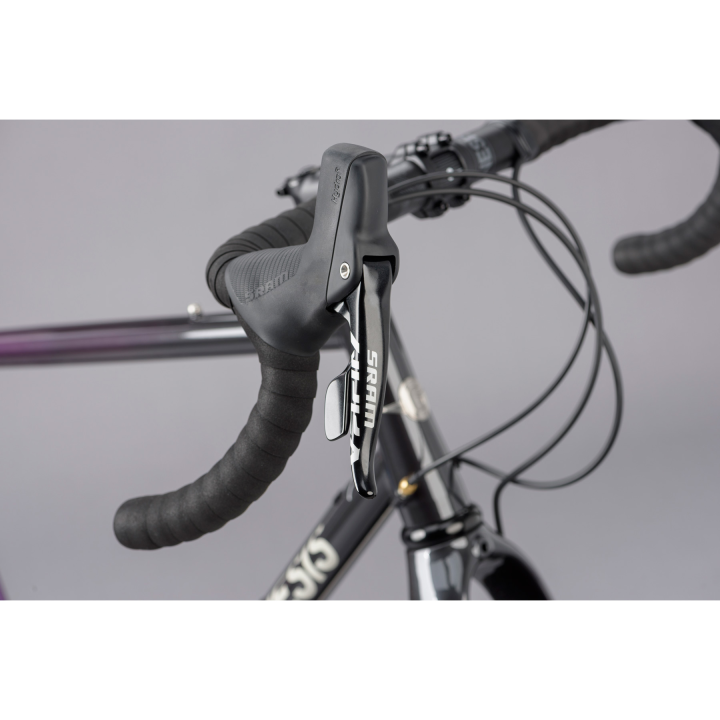

• Shifters: SRAM Apex 1x, 11-speed

• Rear derailleur: SRAM Apex 1x, long cage

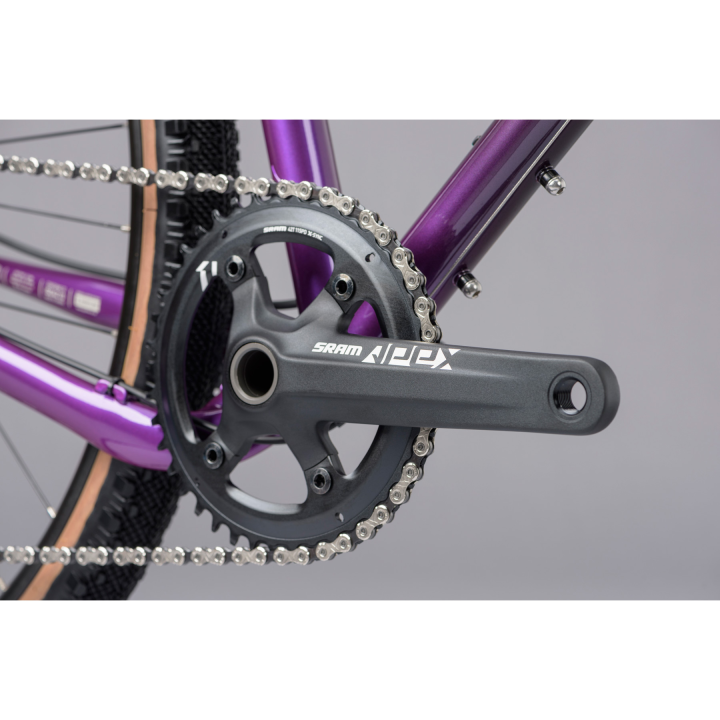

• Crankset: SRAM Apex 1 X-SYNC, 42T

  • XS: 170 mm

  • S–M: 172.5 mm

  • L–XL: 175 mm

• Bottom bracket: SRAM DUB 68 mm

• Cassette: SRAM PG1130, 11–42T

• Chain: KMC X11

Brakes

• Brakes: SRAM Apex hydraulic disc

• Rotors: 160 mm

• Brake mount: Flat Mount 140

Wheels & tyres

• Rims: Jalco XM490, 32H

• Hubs: Formula RX812F (front) / RX-300R (rear), 6-bolt, 12 mm axles

• Spokes: Stainless steel 14G

• Tyres: WTB Venture TCS, 650×47c

Components

• Handlebar: Genesis Alloy, 16° flare

  • XS: 420 mm

  • S/M: 440 mm

  • L: 460 mm

  • XL: 480 mm

• Stem: Genesis AS-007, ±7°, 100 mm

• Bar tape: Velo Black Cork with Vexgel

• Seatpost: Genesis Alloy 27.2×350 mm

• Saddle: Genesis Road Comfort

Standards & compatibility

• Hub spacing: 100 mm front / 142 mm rear

• Seatpost diameter: 27.2 mm

• Seat clamp diameter: 31.8 mm

• Front derailleur mount: Band-on 28.6 mm

• Max chainring size: 50/34, 42T

Mounts

• Mudguard mounts: Yes

• Rack mounts: Yes

• Bottle cage mounts: Yes

• Additional mounts: Anything Cage

Geometry (mm)

General

• Claimed weight: 10.81 kg

• Sizes: XS, S, M, L, XL

• Colour: Stone Temple Violets

• Colour codes: Pantone 268 C / RAL 9005
