BOMBTRACK Beyond AL Frameset - Metallic Black / Turquoise

€928.00
Tax included



Secure payments and protected data



Secure & tracked delivery



Regulated and transparent withdrawal

The Beyond AL Frameset is the “travel-ready” aluminium version of the Beyond platform: quick on pavement, smooth on rough surfaces, with generous tire clearance and plenty of mounts for panniers or bikepacking setups. Designed for adventure touring, tough commuting, and long-distance trips.

Available colors

Metallic Black / Turquoise Matt Metallic Red

Same technical specifications; only the paint scheme changes.

What’s included (frameset)

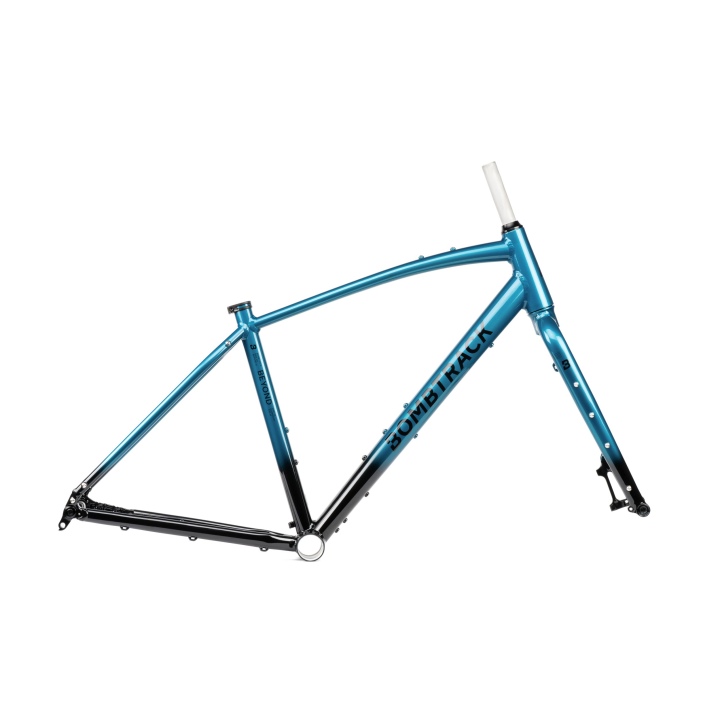

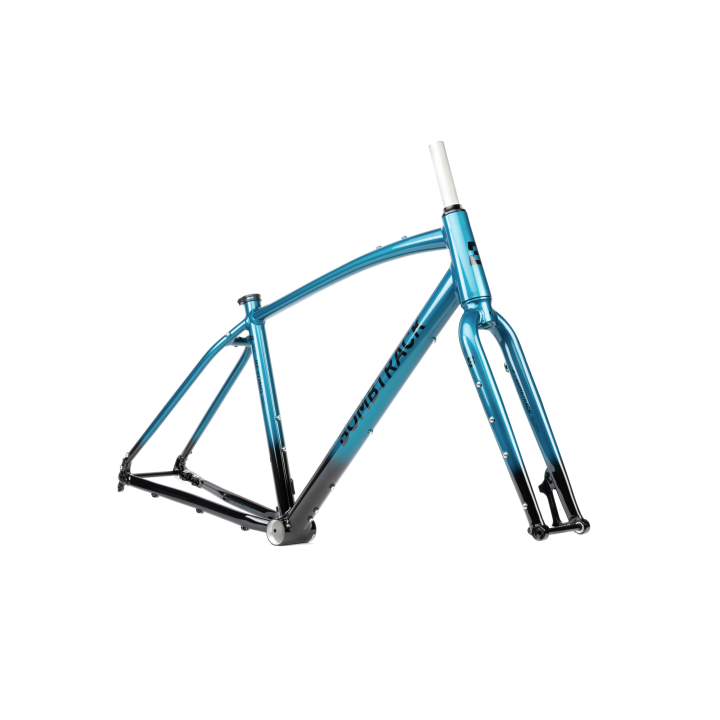

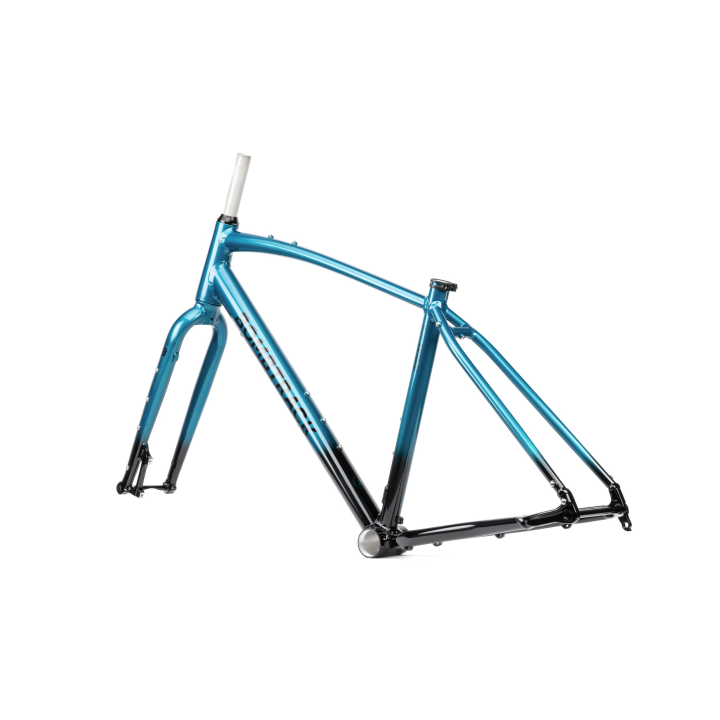

  • Frame + fork set: Bombtrack Beyond AL
  • Headset included (see “Frame specs”)
  • Thru-axles included (see “Frame specs”)
  • Seatpost clamp included (see “Frame specs”)
Note: the items listed above are those included in delivery.

Model ID

Model BEYOND AL
Use category (ASTM) Riding condition 2
Max system weight 140 kg (rider + luggage included)
Testing standard ISO testing standard MTB

Technical specifications

Frame

Material Hydroformed 6061-T6 aluminium
Axles TA (thru-axle)
Mounts Rack / fender mounts, stealth dropper ready

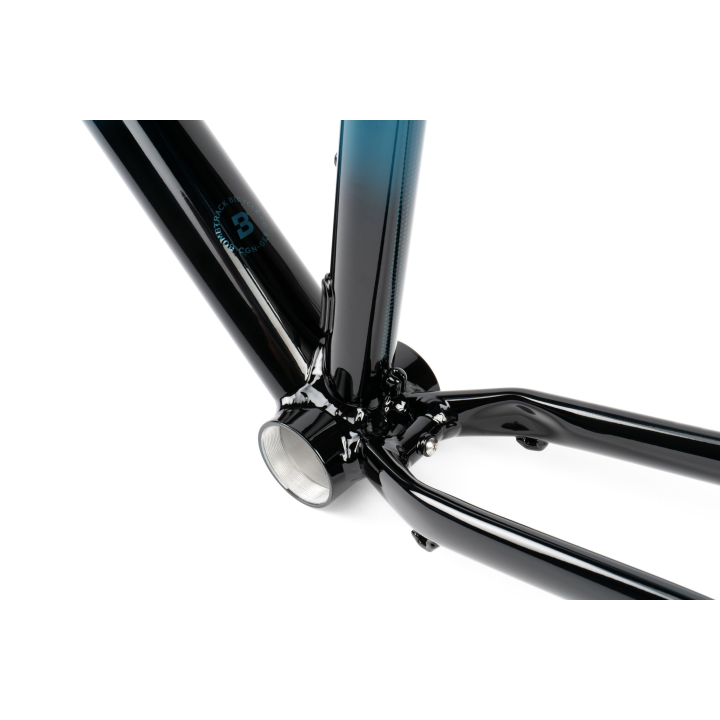

Bottom bracket shell T47 — 86.5 mm shell width

Headset & included hardware

Headset Sealed integrated aheadset, 1.1/2'' – 1.1/8''
Included thru-axles 12×100 mm (front) / 12×142 mm (rear)

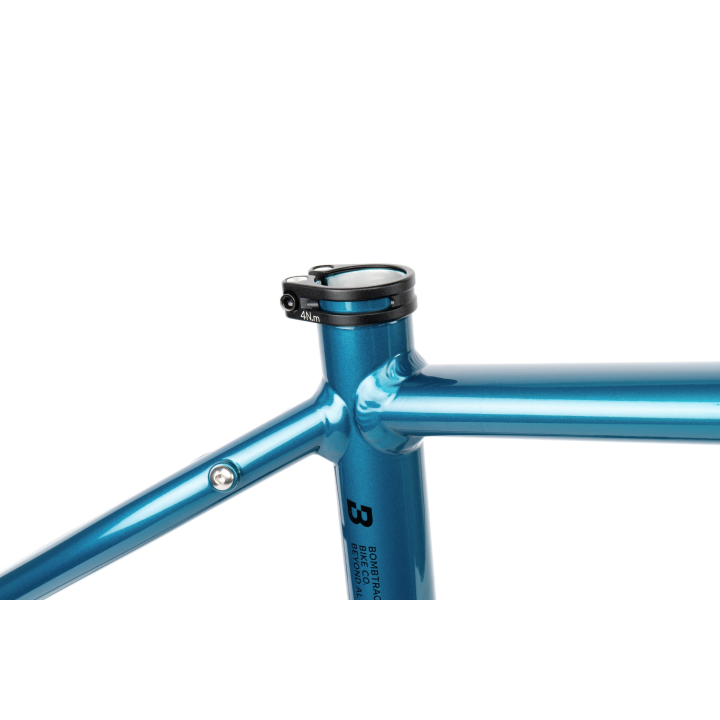

Included seat clamp Bombtrack Prime 34.9 mm
Rack —

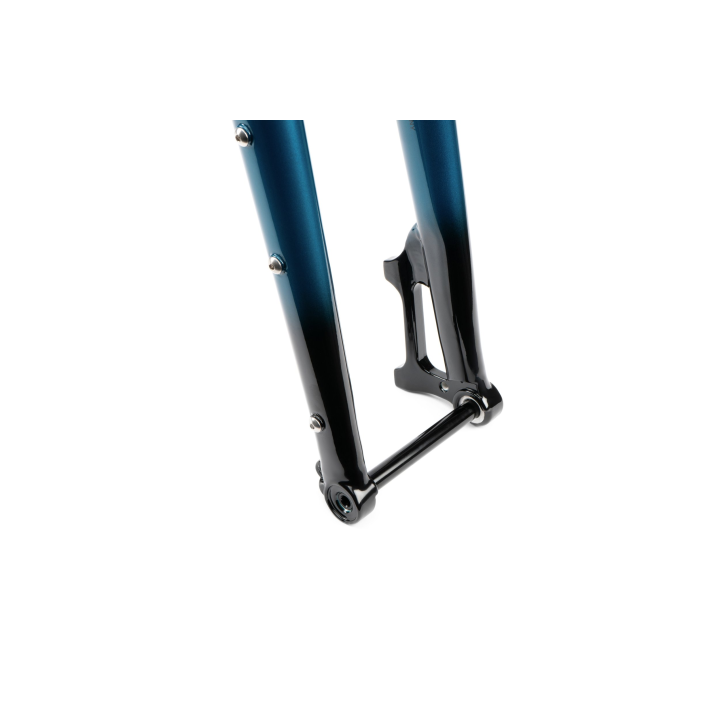

Fork

Material 6061 aluminium
Axle TA (thru-axle)
Steerer Tapered 1.1/2'' – 1.1/8''
Mounts Fender / rack mounts + triple cage mounts
Cable routing Internal routing for hub dynamo cable

Claimed weights

Frame 2145 g (size M, incl. TA, bolts, seat clamp, hanger)
Fork 1000 g (300 mm steerer, incl. TA)

Build information

ItemSpecification
BB standard T47 — 86.5 mm shell width
Headset standard (S.H.I.S.) IS42 / 28.6 | IS52 / 40
Headset crown race angle 45°
Fork steerer inner diameter 24.6 mm
Fork max tire clearance (no fender) 27.5'' × 2.25'' or 29'' × 2.1''
Frame max tire clearance (no fender) Size S: 27.5'' × 2.25'' — Sizes M–L: 29'' × 2.25''
Max chainring clearance (1x) 36T with 50 mm chainline
Max chainring clearance (2x) 40/28T with 50 mm chainline
Seatpost diameter 31.8 mm
Seat clamp diameter 34.9 mm
Front derailleur clamp diameter 34.9 mm
Front derailleur compatible Yes
Front brake mount PM 6'' (Post Mount)
Rear brake mount FM 140 / 160 (Flat Mount)
Max rotor (front) 203 mm
Max rotor (rear) 160 mm
Front thru-axle 12×100 mm, 1.5 thread pitch
Rear thru-axle 12×142 mm, 1.5 thread pitch
Bike trailer approved Approved
Seat tube mounted child seat No

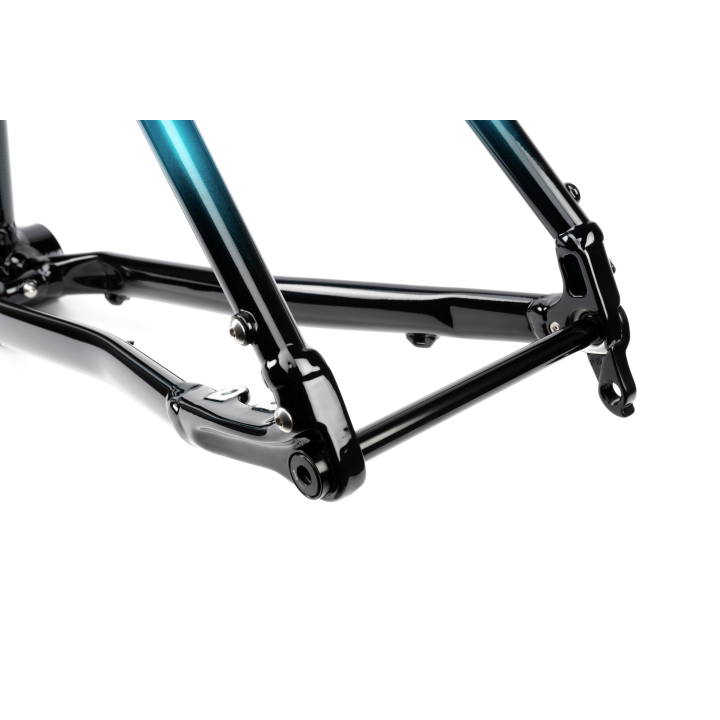

Derailleur hanger BT-DH-018
Frame small parts BT-CR-007
Front thru-axle (part code) BT-TA-F-603
Rear thru-axle (part code) BT-TA-R-601
Tire clearance note: values are stated “without fenders”. With fenders installed, usable clearance can be smaller depending on the fender model and tire tolerances.

Geometry & size guide

MeasurementSMLXL
Wheel size 27.5'' 29'' 29'' 29''
Seat Tube Length 440 480 520 560
Horizontal TT length 546 567 597 626
Seat Angle 74° 74° 74° 74°
Head Angle 70° 70.5° 70.5° 70.5°
Headtube Length 140 160 200 230
BB Drop 60 74 74 74
Chainstay Length 420 445 445 445
Fork Offset 53 53 53 53
Trail 70 75 75 75
Wheelbase Length 1040 1077 1109 1140
Standover 775 821 859 893
Reach 382 394 413 434
Stack 569 604 642 670
Front Center 627 642 674 705
Axle to Crown 420 420 420 420
Minimum rider height* 1600 1700 1790 1880
Maximum rider height* 1710 1810 1900 1990
Final sizing notes (the “usual” ones):
  • Height ranges (*) are indicative: inseam, torso/arm proportions, flexibility, and riding style matter a lot.
  • Reach + stack define your position: a more “racy” setup often prefers longer reach / lower stack; a comfort/travel setup often prefers higher stack and a shorter cockpit.
  • Standover: keep a safety margin—especially for travel/off-road use and stop-start handling.
  • Fit adjustments (stem length/angle, spacers, saddle setback, bar rise) help fine-tune but don’t replace the correct frame size.
  • If you’re between sizes: smaller = more nimble/compact; bigger = more stable and roomier for long rides.

Size advice: info@bikejamming.it.

  • Brand
  • Reference
    BTBALFSMBTS
  • Condition
    New

  • Frame
    Adventure Touring / Bikepacking
  • Wheel Size
    27.5/29''
