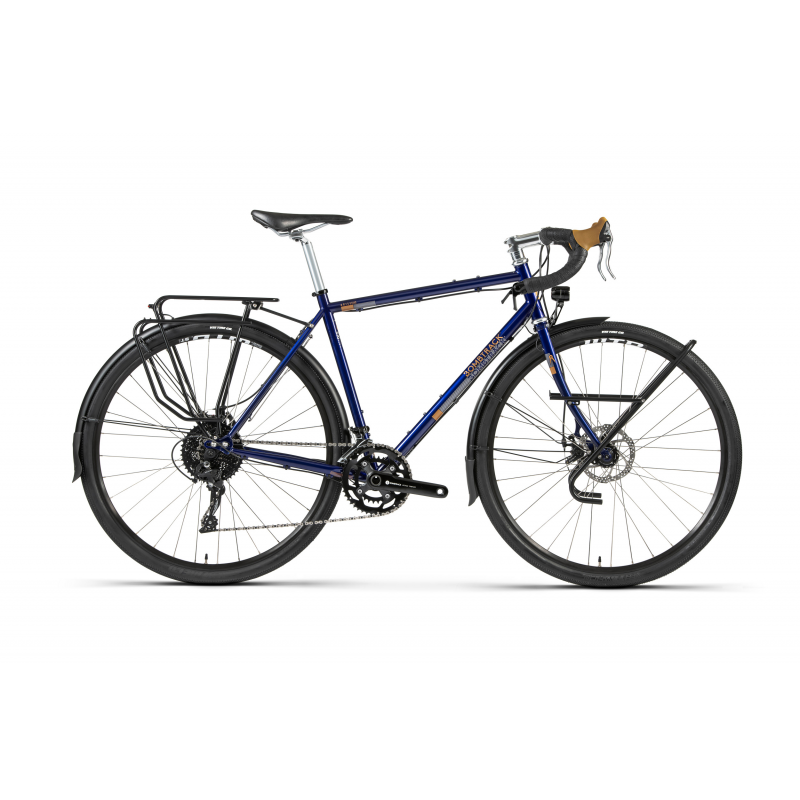

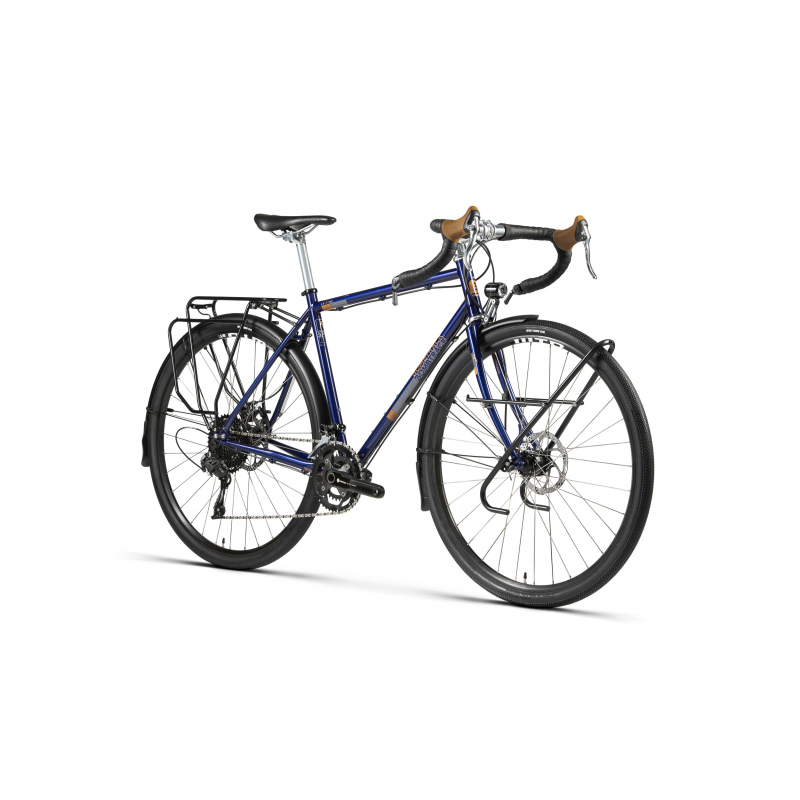

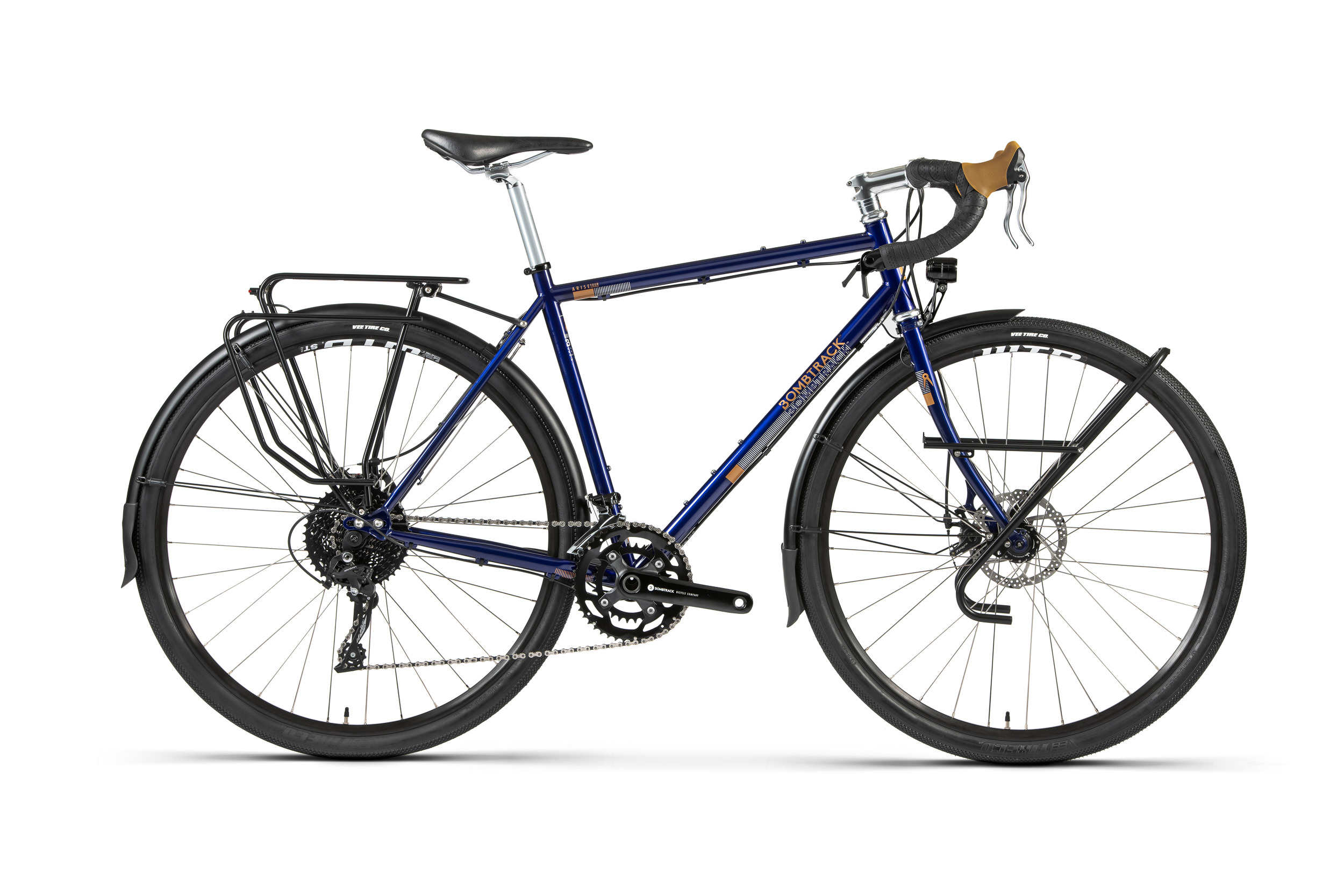

BOMBTRACK 2022 Arise Tour


New

XS / S 650B - M / L / XL 700

L AVAILABLE NOW: info@bikejamming.it

More details

2 299,00 €

Free Shipping in Italy!

Add to wishlist

More info

Color 1Glossy  Navy Blue
Color 2-

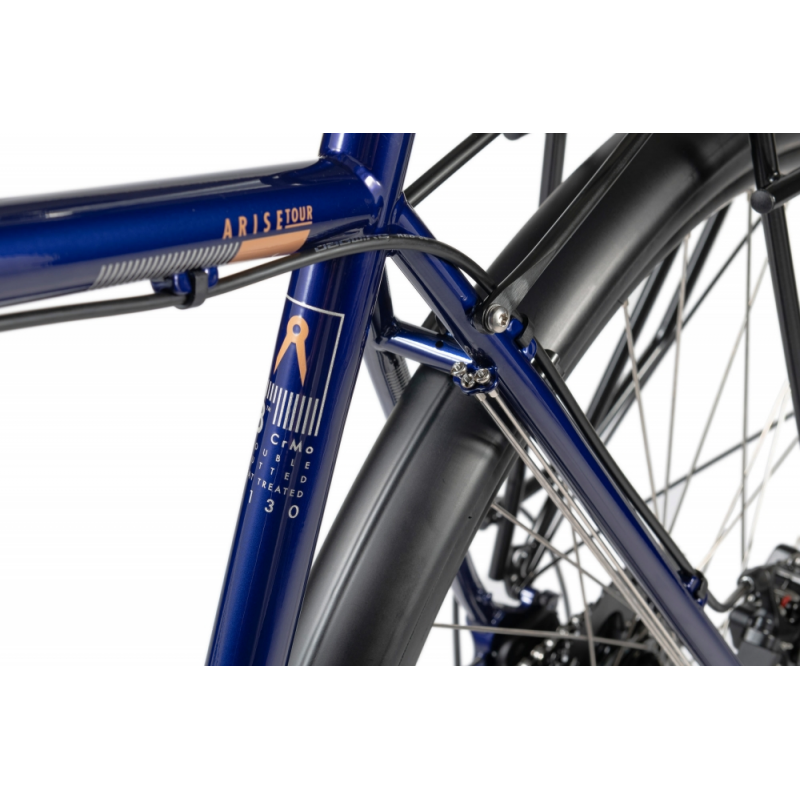

Frame4130 double butted crmo, heat treated front triangle,TA sliding dropouts, rack / fender mounts,68 mm BSA BB shell

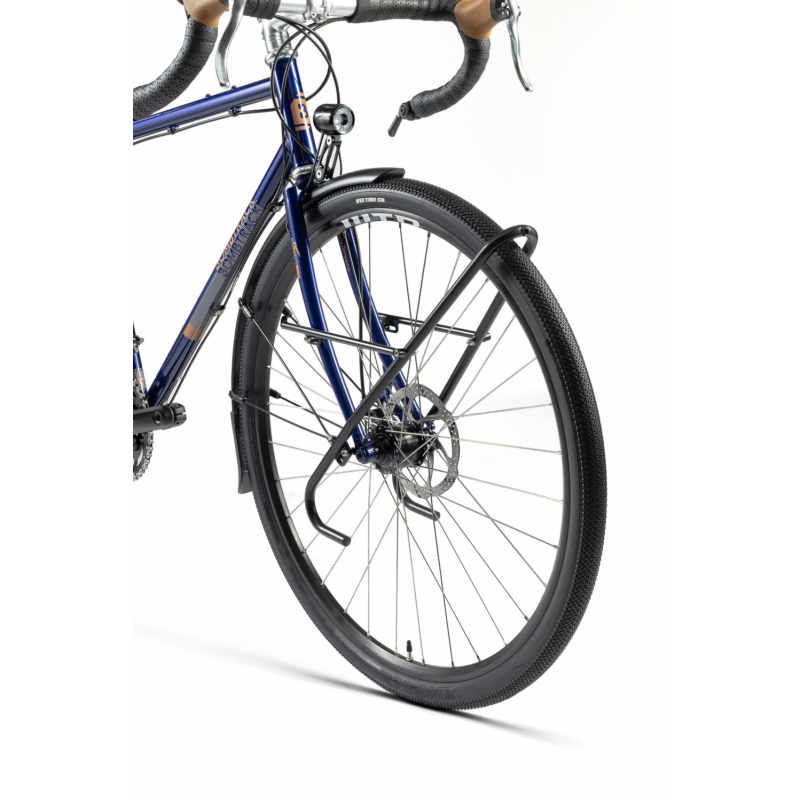

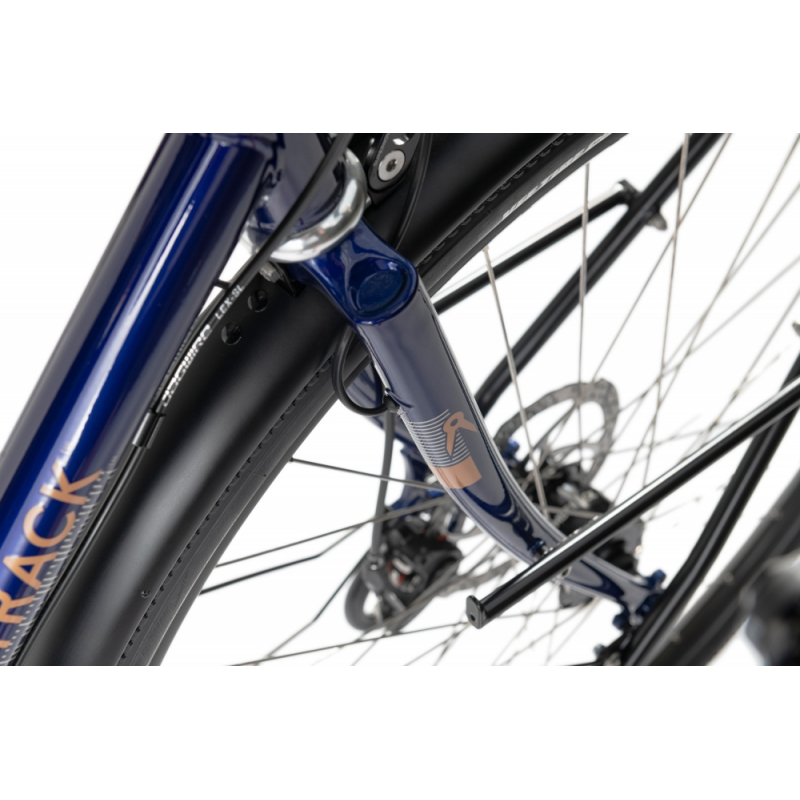

Fork4130 crmo, TA, rack / fender mounts, internal hubdynamo cable routing

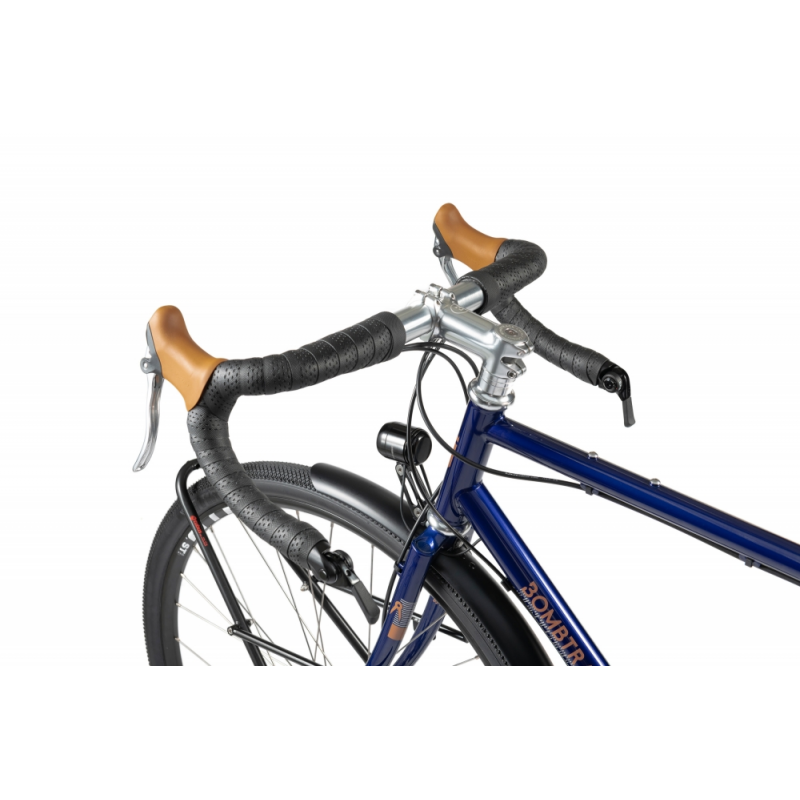

HandlebarBOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
GripsBOMBTRACK ESCAPE bar tape
StemBOMBTRACK ROAM forged aluminium stem, -7°
HeadsetNECO H282 sealed external aheadset, 1.1/8''
LeversTEKTRO RL-340 brake levers
ShifterMICROSHIFT BS-M10 bar end shifter 2 x 10
BrakesTRP SPYRE C post mount mechanic disc brakes with 160 mm rotors

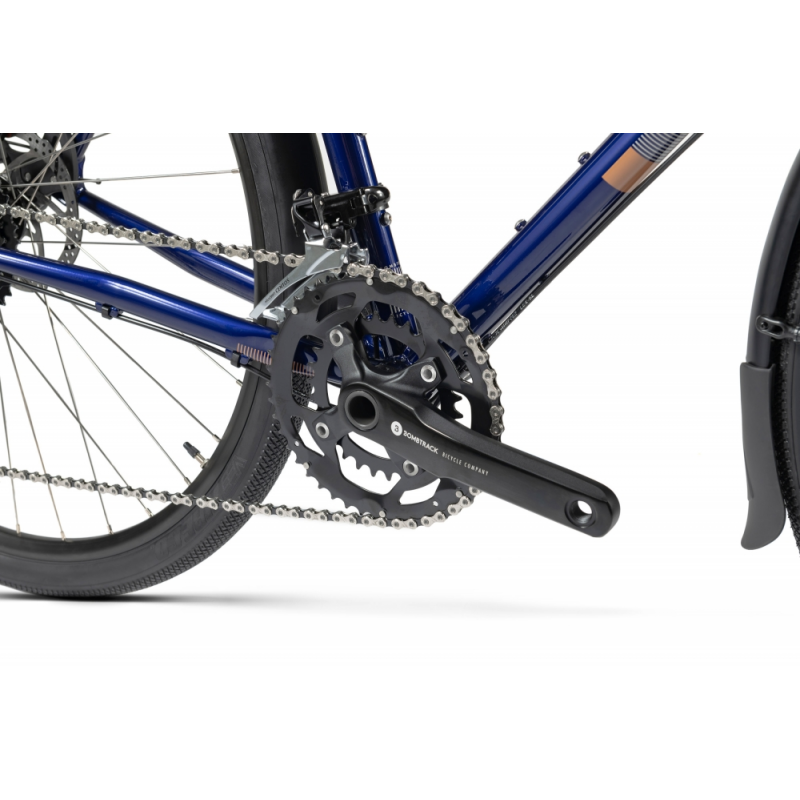

CranksetBOMBTRACK AMES forged aluminium crank, 24 mm spindle
BBBSA sealed BB, external cups
Pedals-
ChainKMC X10 chain, 1/2'' x 11/128'', 114L
Chainringsteel, subcompact, 46 / 30 T

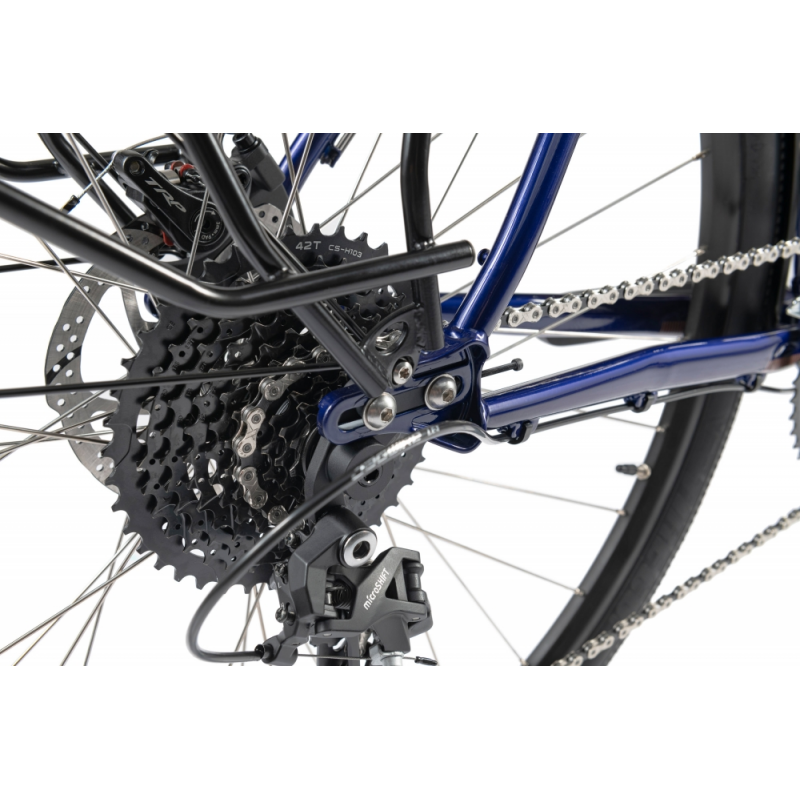

CassetteMICROSHIFT CS-H103 10-speed, 11 - 42 T
Front derailleurMICROSHIFT FD-R552-B
Rear derailleurMICROSHIFT RD-M62L, long cage

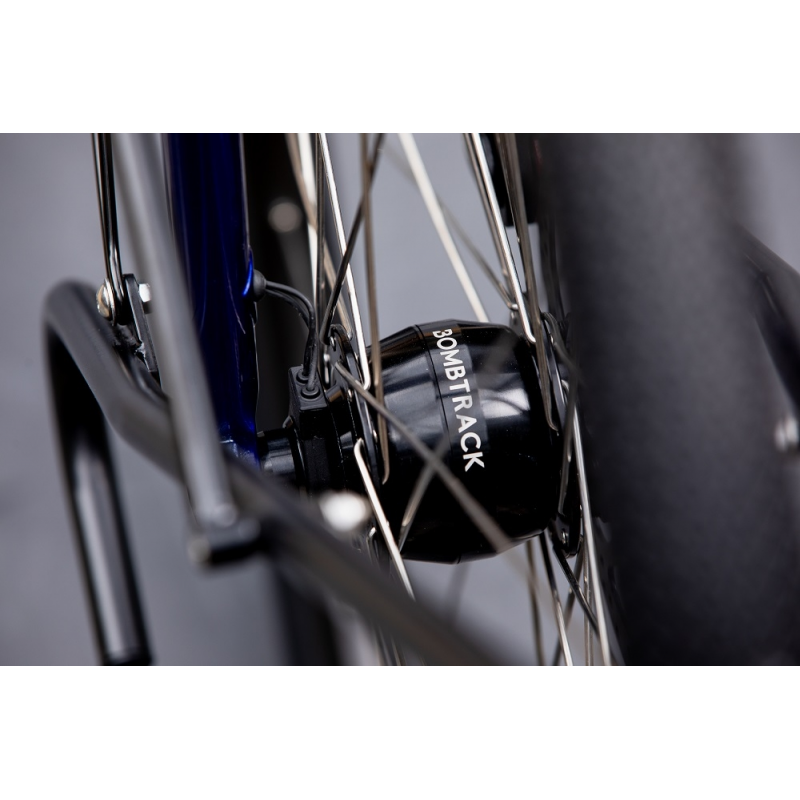

Front hubKT dynamo hub, 6-bolt disc, 12 x 100 mm thru-axle
Rear hubBOMBTRACK ARC sealed disc hub, 11-speed, 12 x 142 mm thru-axle
Front rimWTB ST i19 double wall, TCS 2.0, 32h
Rear rimWTB ST i19 double wall, TCS 2.0, 32h

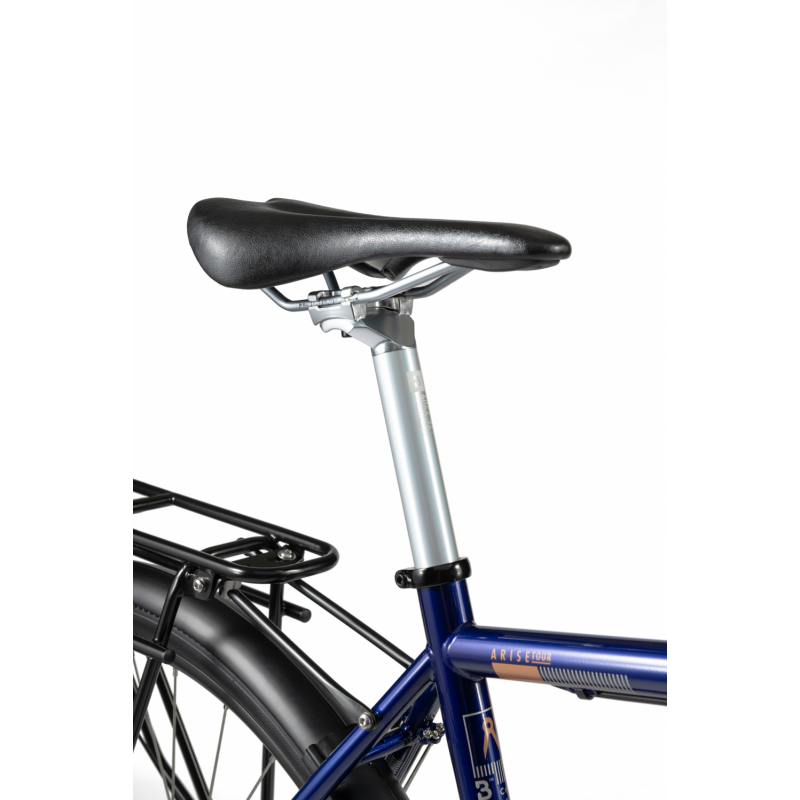

SaddleBOMBTRACK ORIGIN saddle
Seat postBOMBTRACK BEECH  27.2 mm x 300 mm
Seat clampBOMBTRACK ORIGIN 29.8 mm
Front tireXS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622
Rear tireXS - S 650B VEE TIRE SPEEDSTER 38-584 / M - XL 700C VEE TIRE SPEEDSTER 40-622
FenderBOMBTRACK PIPE plastic fenders, 50 mm

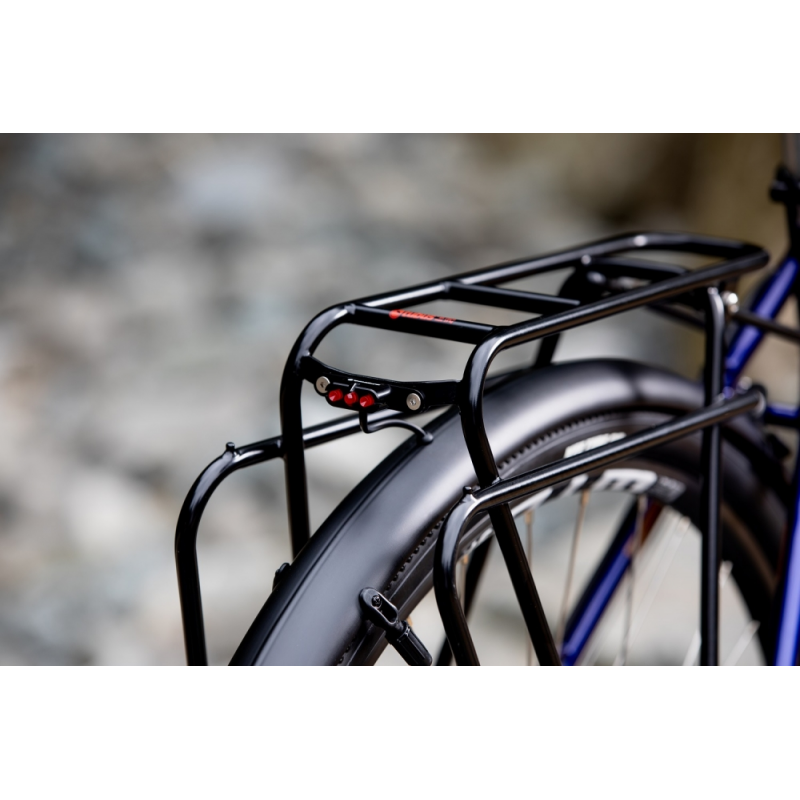

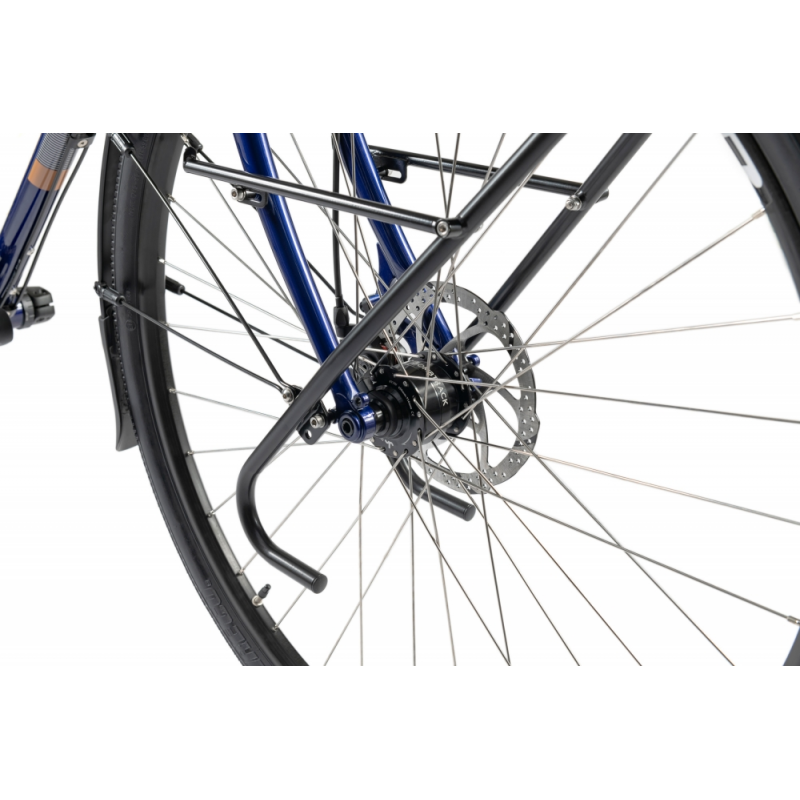

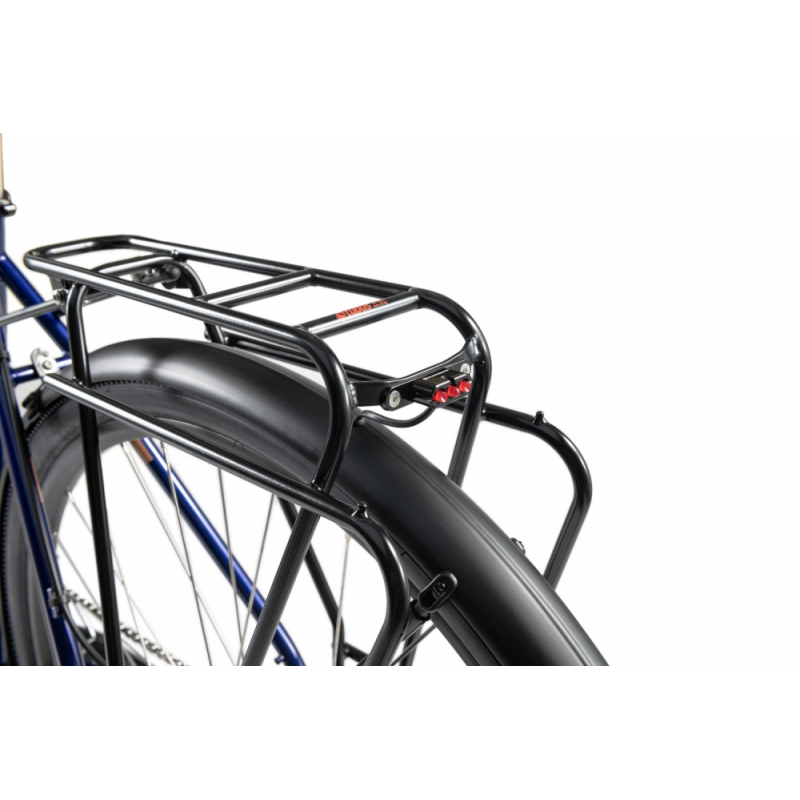

RackTUBUS TARA front,  LOGO EVO rear
LightSUPERNOVA E3 PURE 3 front, E3 TAIL LIGHT 2 rear
Weight (size M)14.7 kg (size M)
Weight frameset (size M)tba (size M, including TA, bolts, seatclamp, hanger)
Maximum rider weight130 kg incl. luggage
ASTM riding condition2

BUILD INFO:

BB StandardBSA - 68 mm shell width
Headset Standard (S.H.I.S.)EC34 / 28.6 | EC34 / 30
Fork Max Tire Clearance w/o fenderXS - S 650B x 42C / M - XL 700C x 42C
Frame Max Tire Clearance w/o fenderXS - S 650B x 42C / M - XL 700C x 42C
Maximum chainring clearance 1x44 T with 45 mm chainline
Maximum chainring clearance 2x52 / 36 T with 45 mm chainline
Seat Post Diameter27.2 mm
Seat clamp diameter29.8 mm
Brake mount frontPM
Brake mount rearPM
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 TPI
Rear through axle12 mm x 142 mm,  1.5 TPI
Derailleur hangerBT-DH-022
ISO testing standardRoad
CrankarmXS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor170 mm
BCD crank104 mm / 64 mm, 4 bolts
Chainline45 mm
Spoke length front wheeltba
Spoke length rear wheelXS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm
Spoke count (front / rear)32 / 32
ERDXS - S 570 mm / M - XL 604 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Stem LengthXS - S 80 mm / M 90 mm / L - XL 100 mm
Stem angle-7°
Headset Spacers1 x 10 mm, 2 x 5 mm
Seat post offset24 mm
Seat post length300 mm

GEOMETRY:

Bike SizeXSSMLXL
Wheel size650B650B700C700C700C
Seat Tube Length460490520550580
Horizontal TT length506529554578602
Seat Angle73.5°73.5°73°73°73°
Head Angle70°70.5°70.5°71°71°
Headtube Length100130150180210
BB Drop5555707070
Chainstay Length420420435435435
Fork Offset5555555555
Trail6460686565
Wheelbase Length9951016104510651090
Standover733762799828857
Reach351370379394409
Stack508538572602631
Front Center582602619639664
Axle to Crown (parallel to steerer)390390390390390
Recommended inseamtbatbatbatbatba
Recommended rider heighttbatbatbatbatba
