GENESIS Equilibrium Disc

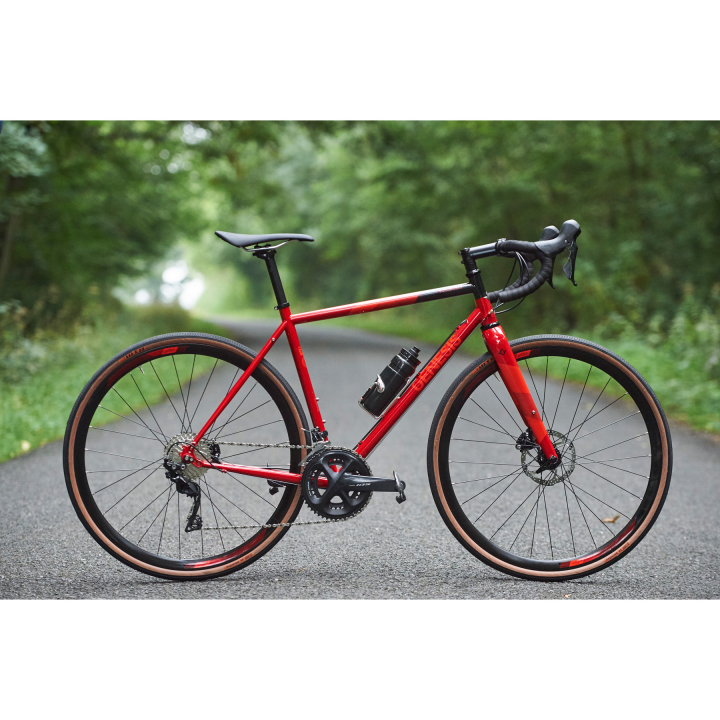

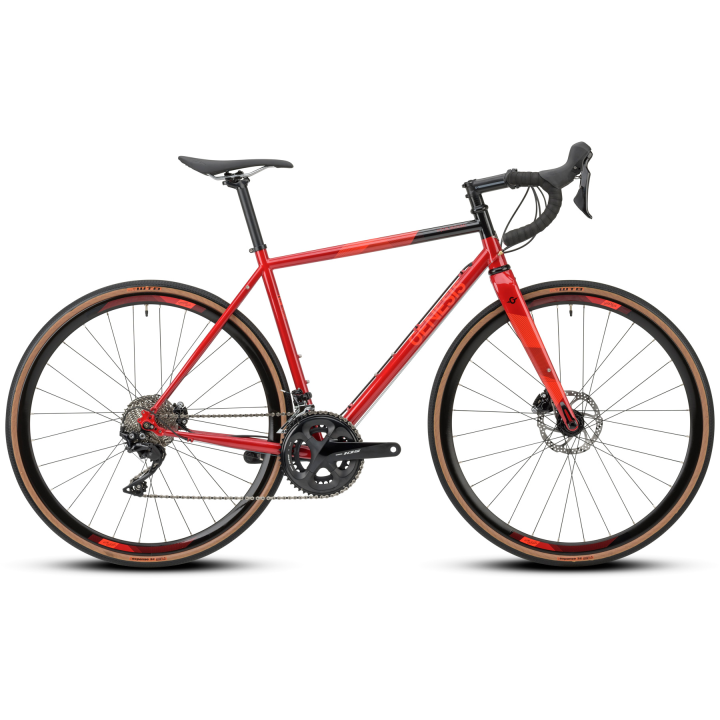

Genesis Equilibrium – steel road disc all-rounder

The Equilibrium has been a cornerstone of the Genesis Bikes range since 2008, developed as a steel road bike focused on real-world versatility.

Built around a Reynolds 725 heat-treated chromoly frameset, the Equilibrium is designed to remain composed on broken tarmac, rough roads and mixed surfaces. The full carbon fork contributes to steering precision and braking control, while rack and mudguard mounts allow the bike to be used year-round.

Model positioning

The Genesis Equilibrium is intended for:

• endurance road riding

• poor road surfaces, cobbles and secondary roads

• four-season use with mudguards

• riders looking for a traditional steel road bike with disc brakes

The long-proven Equilibrium geometry prioritises stability, comfort and predictability, making it suitable for long and consistent rides rather than aggressive race positioning.

Ride setup

The Equilibrium is supplied with 700×32 mm tyres, increasing comfort compared to traditional narrow-tyre road bikes and extending usability to green lanes, light gravel and rough surfaces.

The Shimano 105 11-speed drivetrain provides a wide and practical gear range, while Shimano 105 hydraulic disc brakes deliver consistent braking performance in all weather conditions.

Technical specifications

Frame & fork

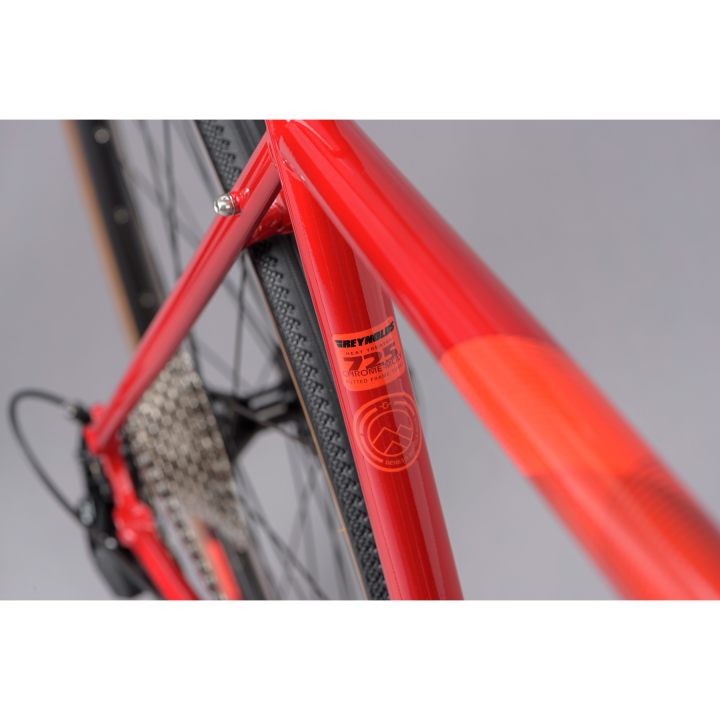

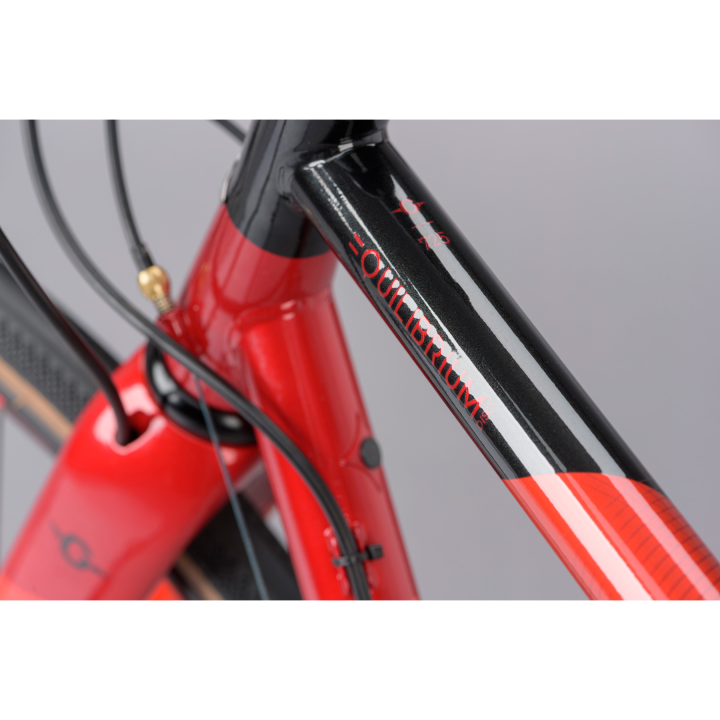

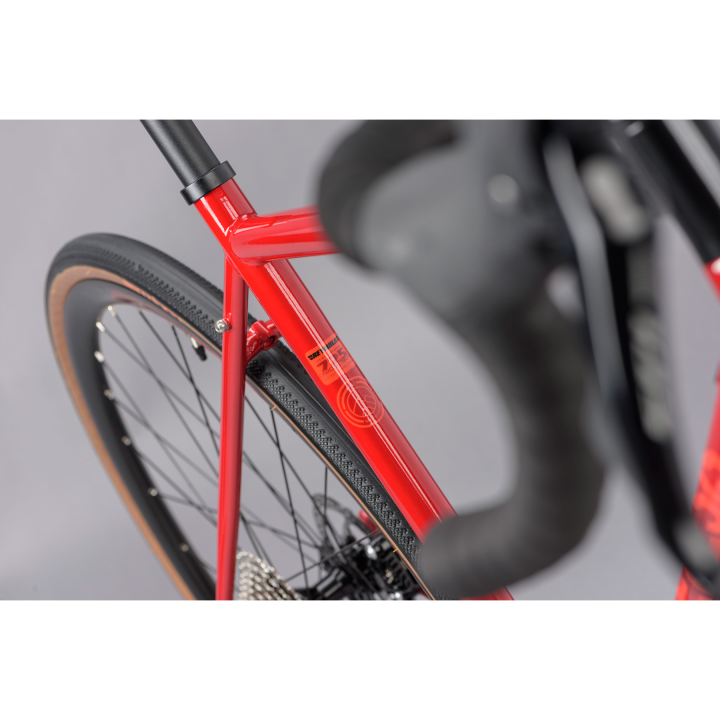

• Frame: Reynolds 725 Heat-Treated Chromoly

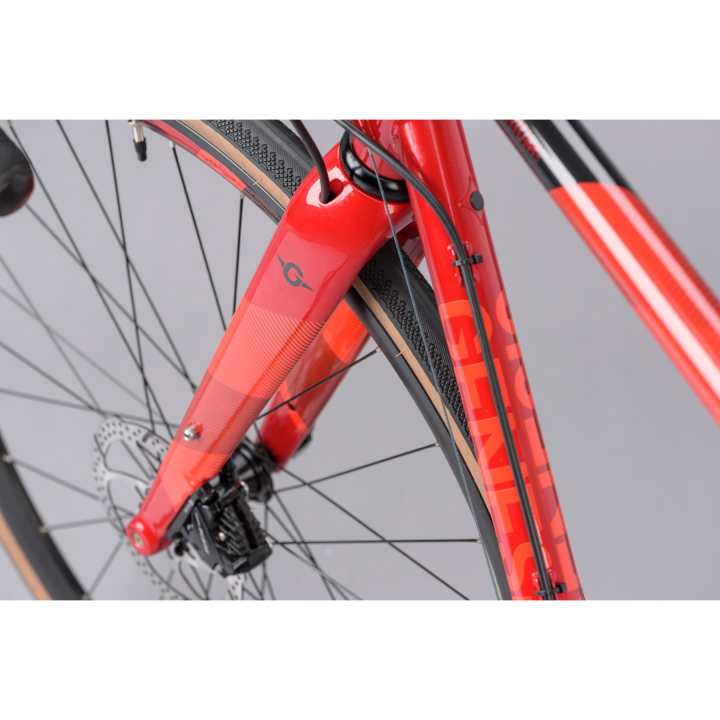

• Fork: Genesis Carbon Road Disc

• Headset: F17A Tapered 1 1/8” – 1 1/5”

• Warranty: Lifetime on frame and fork

Drivetrain

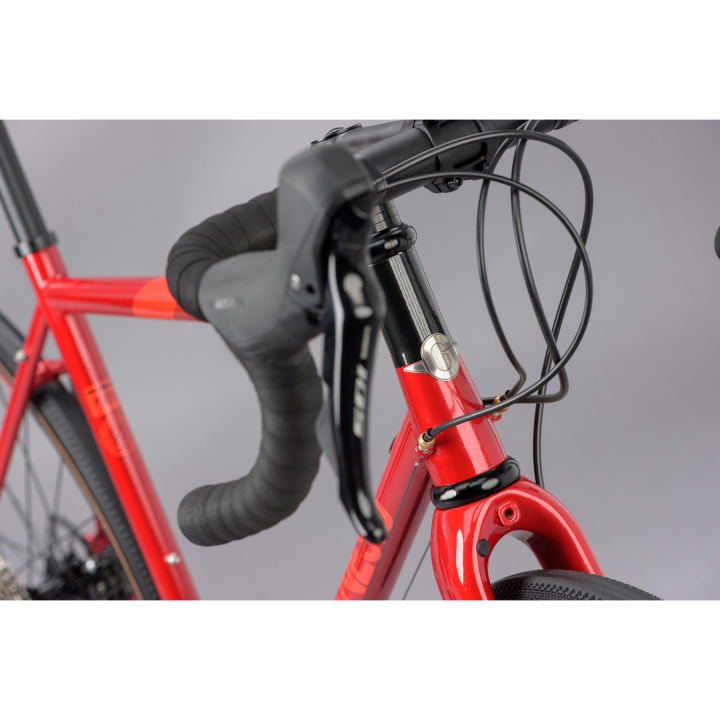

• Shifters: Shimano 105 ST-R7020, 11-speed

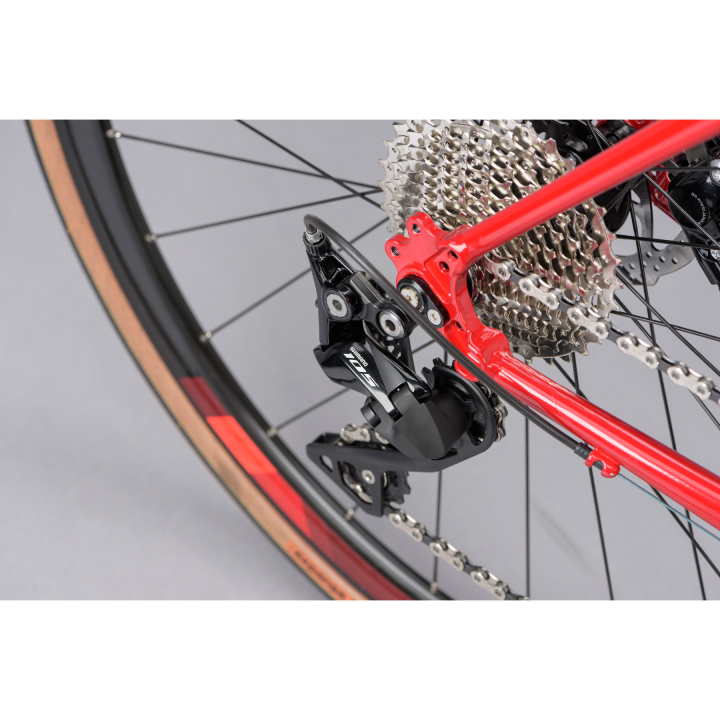

• Rear derailleur: Shimano 105 RD-R7000

• Front derailleur: Shimano 105 FD-R7000L

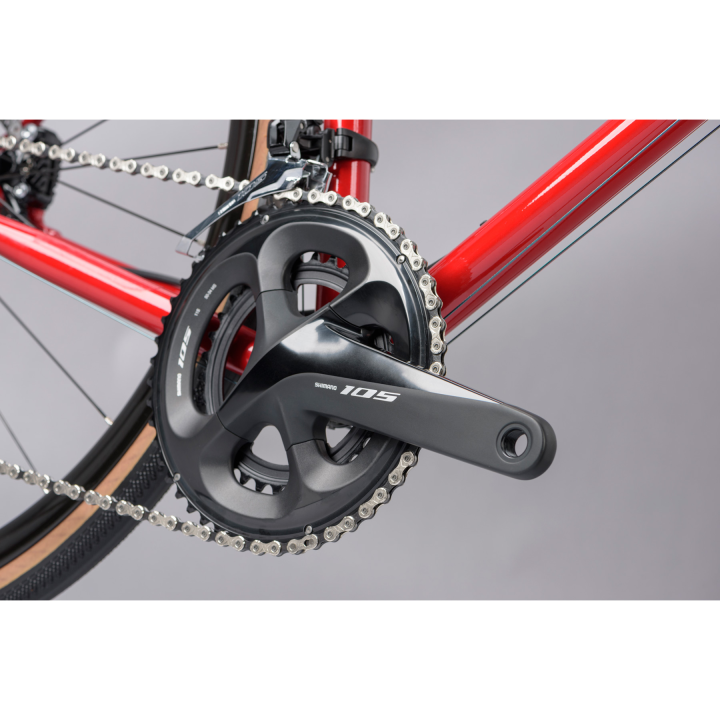

• Crankset: Shimano 105 FC-RC7000 50/34T

  • XS: 170 mm

  • S / M: 172.5 mm

  • L / XL: 175 mm

• Bottom bracket: Shimano SM-BBR60

• Cassette: Shimano CS-HG700-11, 11–34T

• Chain: KMC X11

Brakes

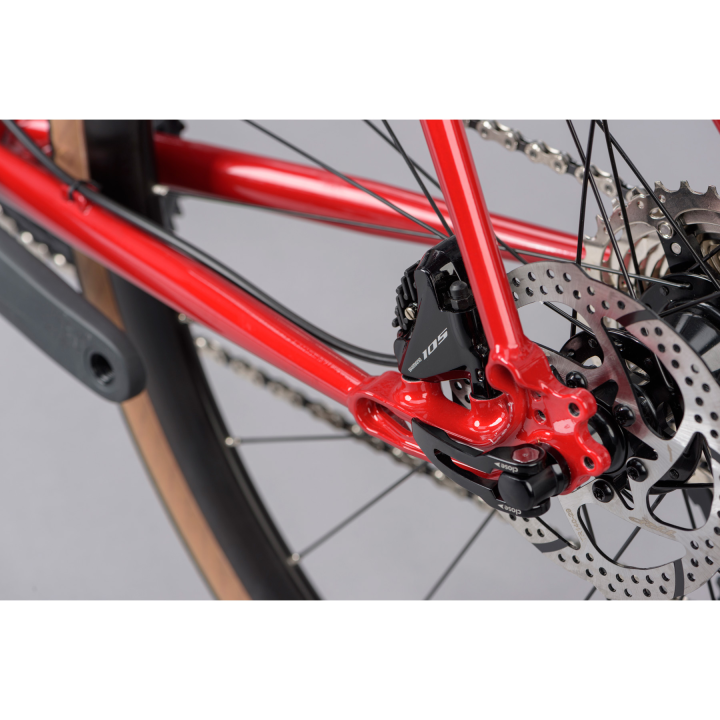

• Brakes: Shimano 105 BR-R7070 hydraulic disc

• Rotors: TRP TR160 / TR140, 160 / 140 mm, 6-bolt

Wheels & tyres

• Rims: Jalco SR500

• Hubs: Formula RX812 (front) / RX300 (rear)

• Spokes: Steel 14g

• Tyres: WTB Exposure 700×32c

Components

• Handlebar: Genesis Alloy

  • XS: 400 mm

  • S / M: 420 mm

  • L / XL: 440 mm

• Stem: Genesis Alloy −7°

  • XS: 90 mm

  • S / M: 100 mm

  • L / XL: 110 mm

• Seatpost: Genesis Alloy 27.2×350 mm

• Saddle: Genesis Road

• Bar tape: Genesis Vexgel

Standards & compatibility

• Wheel size: 700c

• Thru-axles: 12 mm front / rear

• Maximum tyre size: 700×32 mm

• Brake mount: Flat Mount 140

• Seatpost diameter: 27.2 mm

• Seat clamp diameter: 29.8 mm

• Derailleur hanger: replaceable GNSPR40002

General

• Claimed weight: 10.31 kg

• Frame weight limit: not specified

• Colour: Red Sheeran

• Colour code: RAL 440-M / RAL 9005

Sizing guide (indicative)

• XS: approx. 156–164 cm

• S: approx. 164–172 cm

• M: approx. 172–180 cm

• L: approx. 178–186 cm

• XL: approx. 186–194 cm

These indications are general estimates. Final sizing should be evaluated based on geometry, riding style and intended use. Personal size consultation is available.
