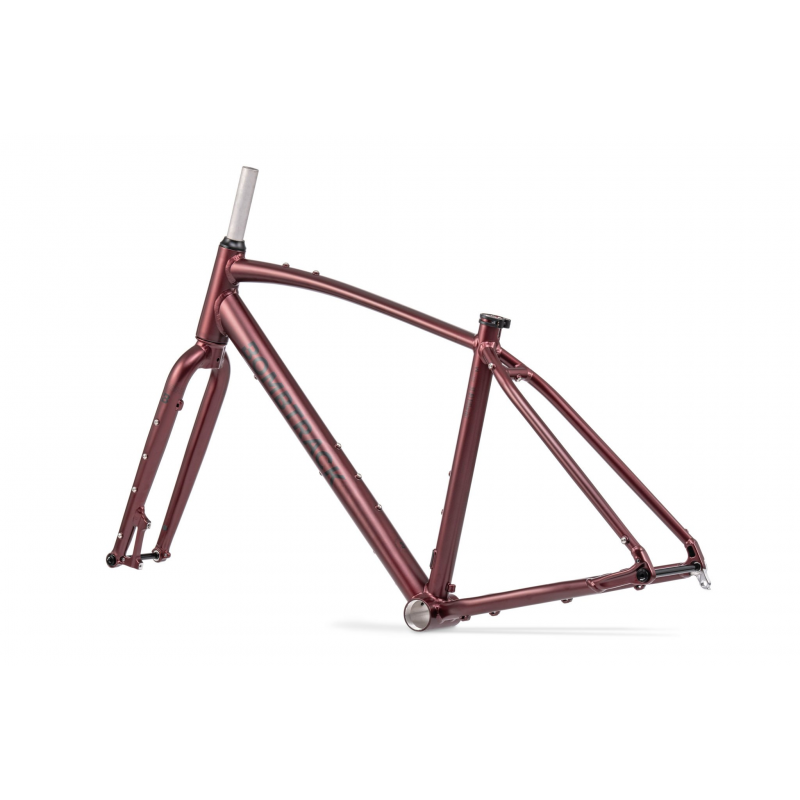

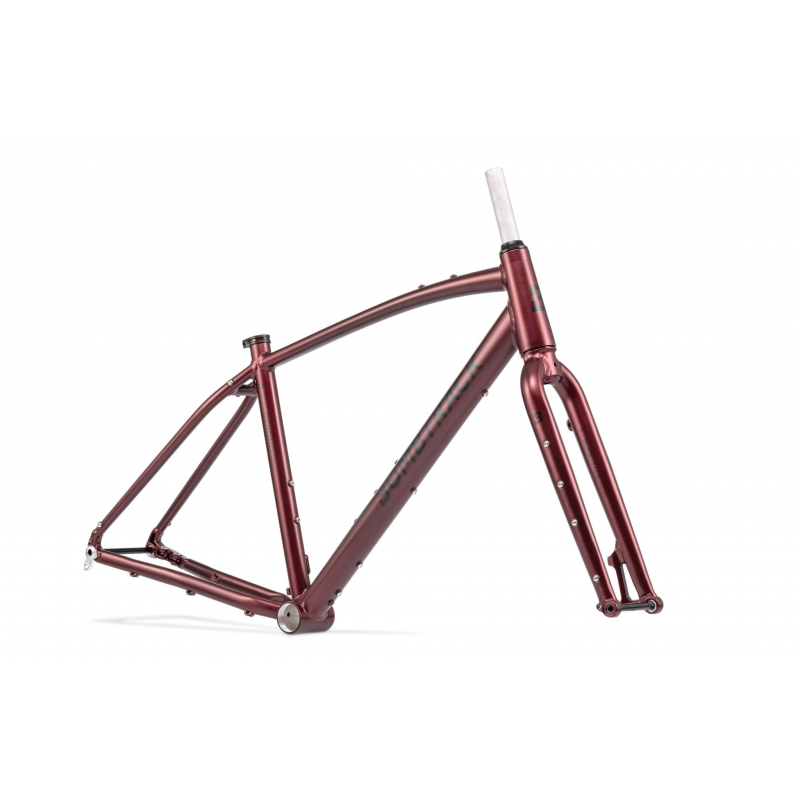

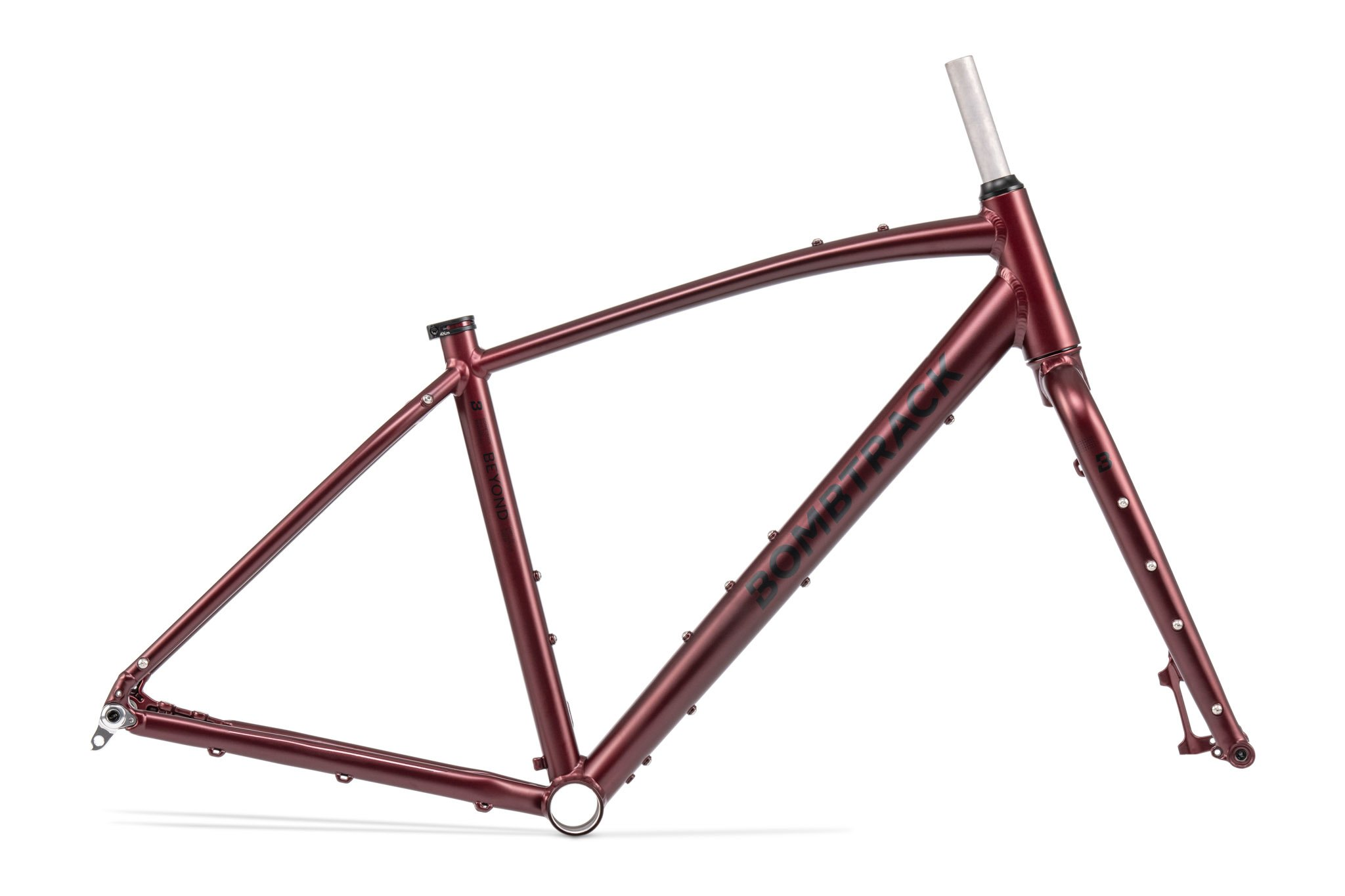

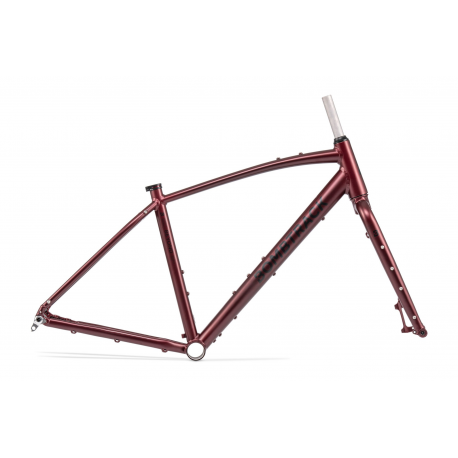

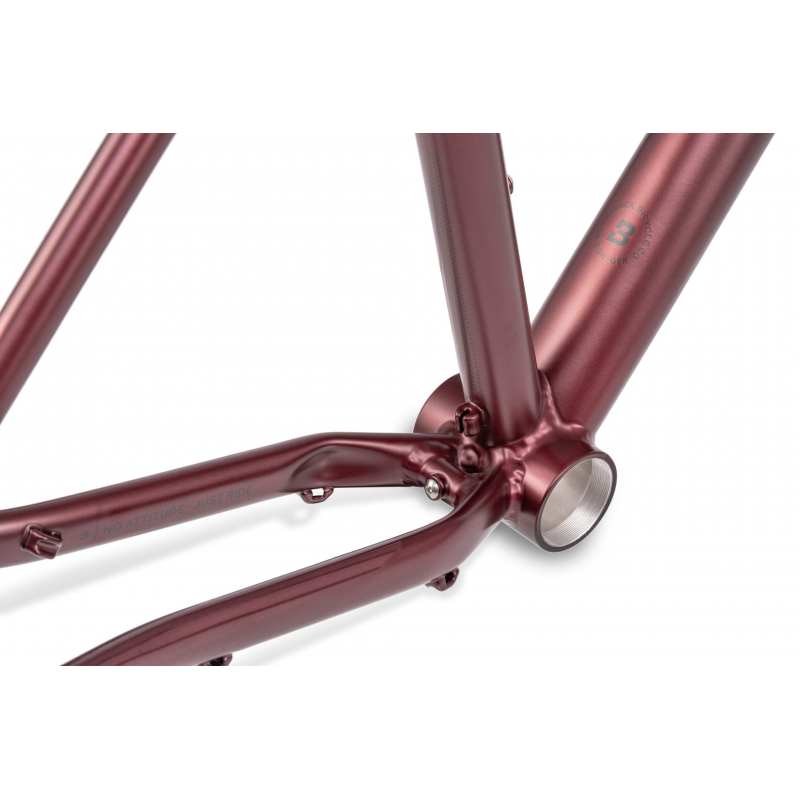

BOMBTRACK Beyond AL Frameset - Matt Metallic Red

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

Data sheet

Frame	Adventure Touring / Bikepacking
Wheel Size	27.5/29''

More info

The Beyond AL frameset is built for riders who want a practical, do-it-all adventure platform: efficient on pavement, composed on broken surfaces, and ready to carry real luggage thanks to extensive mounts on both frame and fork. Wide tire clearance, dropper compatibility and internal hub-dynamo cable routing make it a solid base for rugged commuting, fast-and-light touring or long-haul travel builds—choose your bags, bolt them on, and go.

Selected color

Matt Metallic Red

This sheet is specific to the Matt Metallic Red paint scheme.

What’s included ("frameset")

Bombtrack Beyond AL frame + fork
Headset included
Thru-axles included
Seatpost clamp included

Key facts

Model	BEYOND AL
Max system weight	140 kg (rider + luggage included)
ASTM riding condition	2
Testing standard	ISO testing standard MTB

Technical specifications

Frame

Material	Hydroformed 6061-T6 aluminium
Axles	TA (thru-axle)
Mounts	Rack / fender mounts, stealth dropper ready
Bottom bracket shell	T47 — 86.5 mm shell width

Headset & included hardware

Headset	Sealed integrated aheadset, 1.1/2'' – 1.1/8''
Included thru-axles	12×100 mm (front) / 12×142 mm (rear)

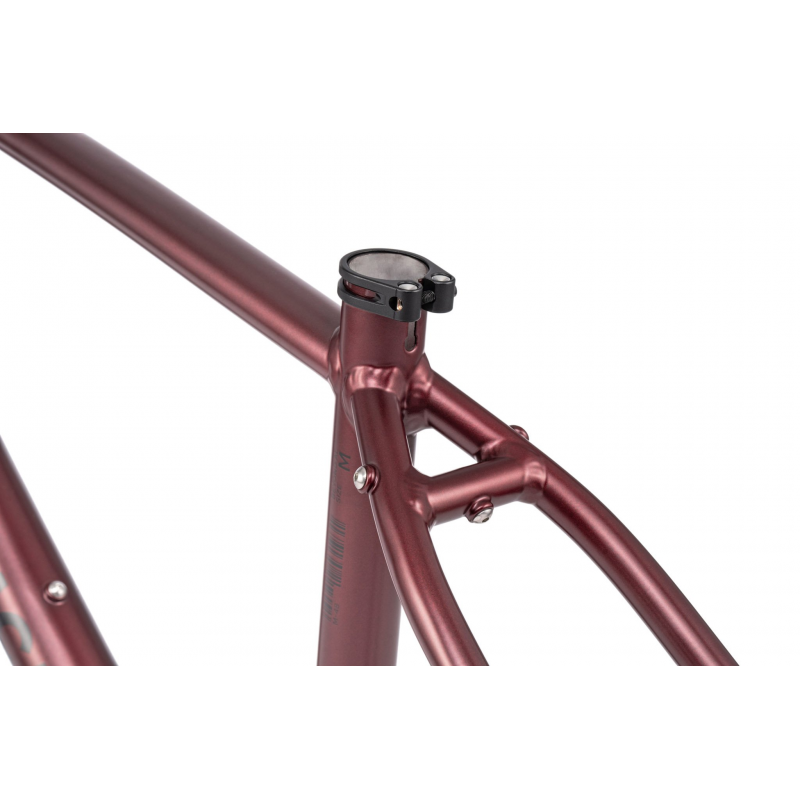

Included seat clamp	Bombtrack Prime 34.9 mm
Rack	—

Fork

Material	6061 aluminium
Axle	TA (thru-axle)
Steerer	Tapered 1.1/2'' – 1.1/8''
Mounts	Fender / rack mounts + triple cage mounts
Cable routing	Internal routing for hub dynamo cable

Claimed weights

Frame	2145 g (size M, incl. TA, bolts, seat clamp, hanger)
Fork	1000 g (300 mm steerer, incl. TA)

Build information

Item	Specification
BB standard	`T47` — 86.5 mm shell width
Headset standard (S.H.I.S.)	`IS42 / 28.6` \| `IS52 / 40`
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance (no fender)	27.5'' × 2.25'' / 29'' × 2.1''
Frame max tire clearance (no fender)	S: 27.5'' × 2.25'' — M–L: 29'' × 2.25''
Max chainring clearance (1x)	36T with 50 mm chainline
Max chainring clearance (2x)	40/28T with 50 mm chainline
Seatpost diameter	31.8 mm
Seat clamp diameter	34.9 mm
Front derailleur clamp diameter	34.9 mm
Front derailleur compatible	Yes
Front brake mount	`PM` 6''
Rear brake mount	`FM` 140 / 160
Max rotor (front)	203 mm
Max rotor (rear)	160 mm

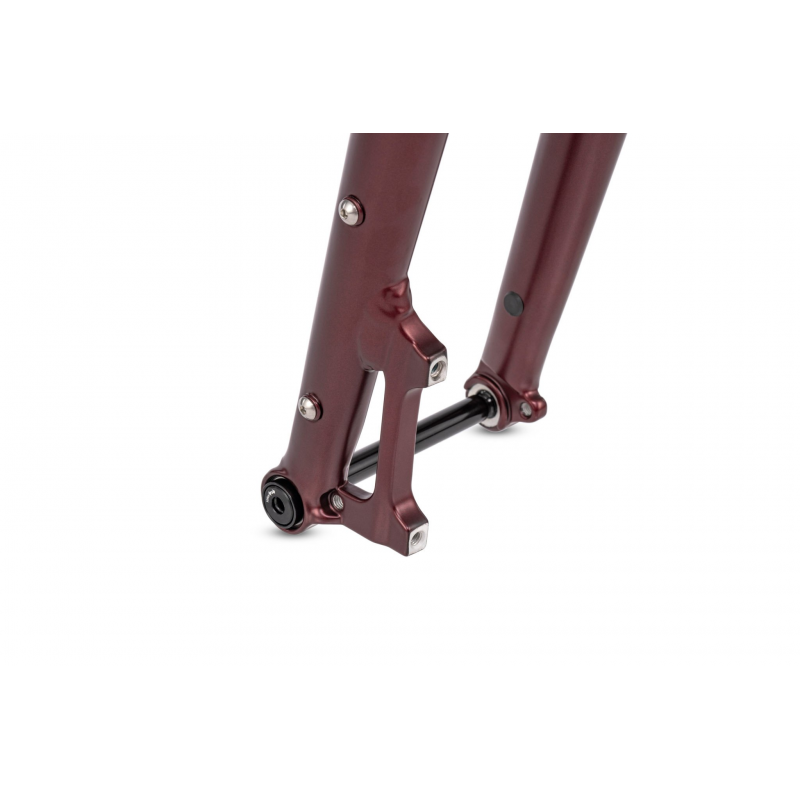

Front thru-axle	12×100, 1.5 thread pitch

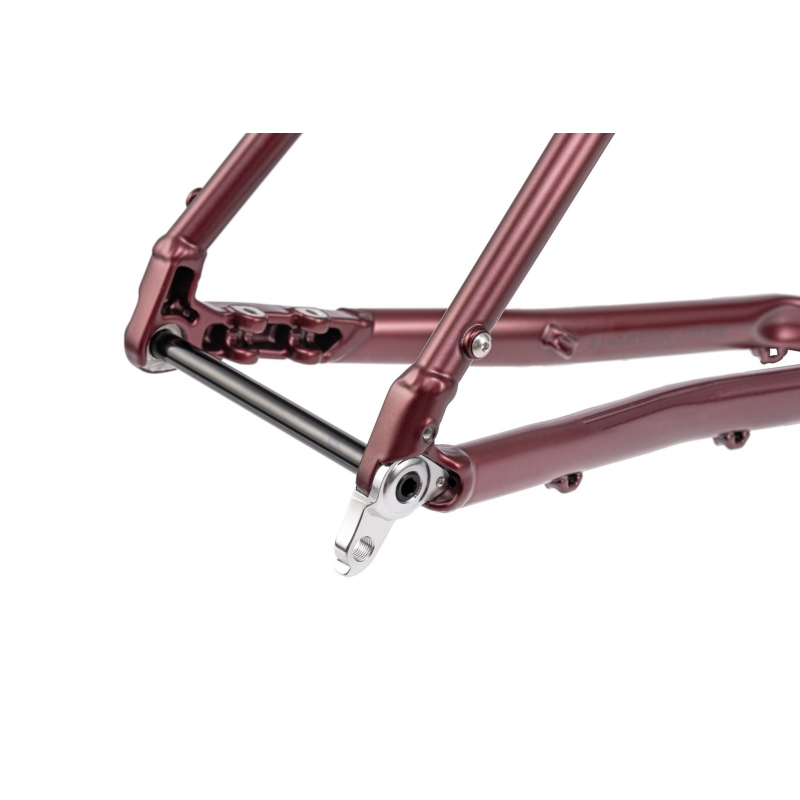

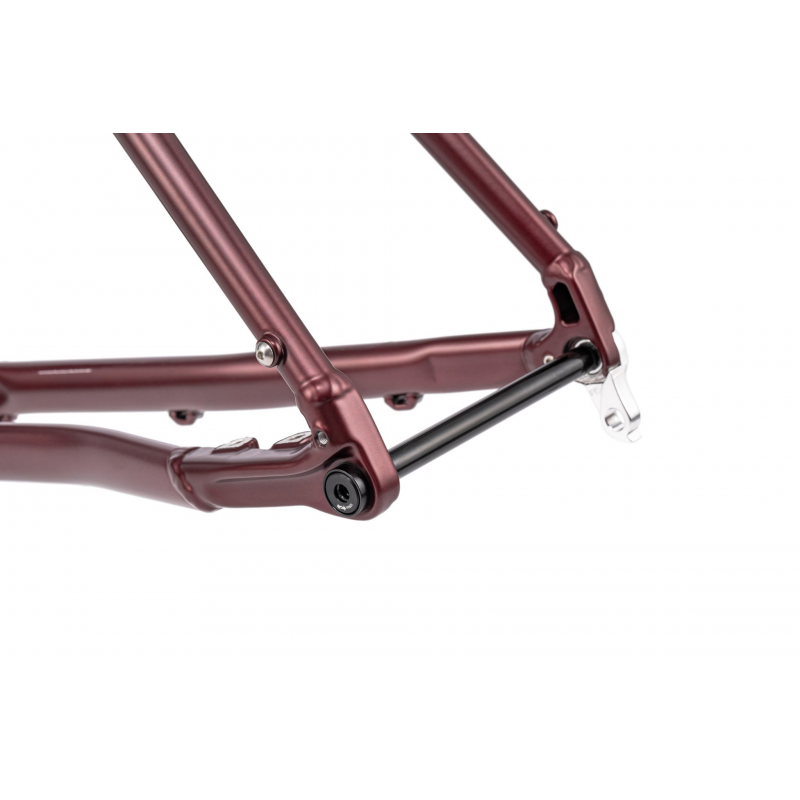

Rear thru-axle	12×142, 1.5 thread pitch
Bike trailer approved	Approved
Seat tube mounted child seat	Not approved
Derailleur hanger	`BT-DH-018`
Frame small parts	`BT-CR-007`
Front thru-axle (part code)	`BT-TA-F-603`
Rear thru-axle (part code)	`BT-TA-R-601`

Tire clearance note: clearances are stated “without fenders”. With fenders fitted, usable space may be reduced.

Geometry & size guide

Measurement	S	M	L	XL
Wheel size	27.5''	29''	29''	29''
Seat Tube Length	440	480	520	560
Horizontal TT length	546	567	597	626
Seat Angle	74°	74°	74°	74°
Head Angle	70°	70.5°	70.5°	70.5°
Headtube Length	140	160	200	230
BB Drop	60	74	74	74
Chainstay Length	420	445	445	445
Fork Offset	53	53	53	53
Trail	70	75	75	75
Wheelbase Length	1040	1077	1109	1140
Standover	775	821	859	893
Reach	382	394	413	434
Stack	569	604	642	670
Front Center	627	642	674	705
Axle to Crown	420	420	420	420
Minimum rider height*	1600	1700	1790	1880
Maximum rider height*	1710	1810	1900	1990

Final sizing notes:

Height ranges (*) are indicative: inseam, proportions, flexibility and riding style matter.
Reach + stack describe fit better than the letter size—compare them to a bike you already know.
Standover: keep a safety margin, especially for travel/off-road use.
Adjustments (stem/spacers/saddle setback/bar rise) fine-tune fit, but don’t replace the correct size.
Between sizes: smaller = more nimble; larger = more stable and roomier over long distances.
