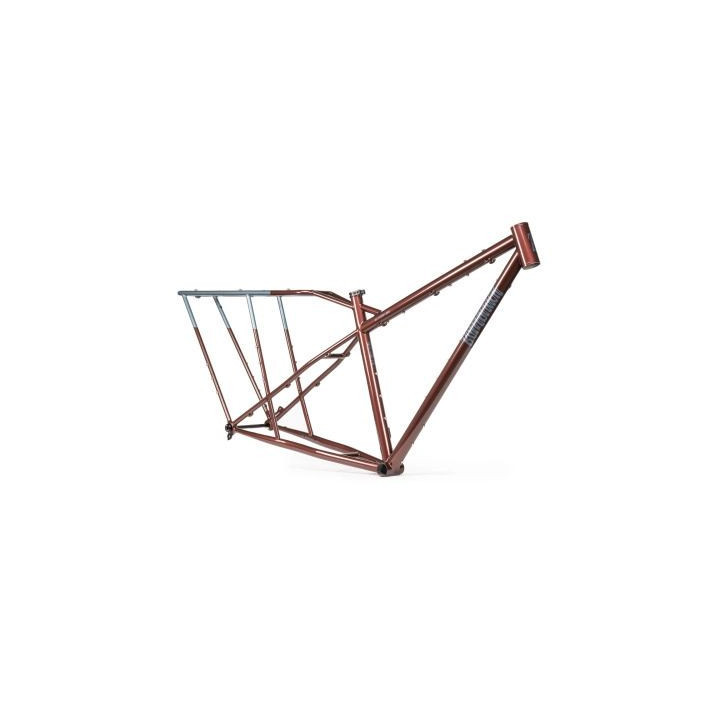

BOMBTRACK Beyond+ Midtail Frame - Matt Metallic Burgundy

The Beyond+ Midtail is a “cargo-adventure” frame designed for off-road bikepacking and serious hauling: a midtail with an integrated rear rack, very stable geometry and travel-ready provisions, for riders who want to carry (a lot) without giving up off-road and trail handling.

Key highlights

• CrMo frame: tough and ready for demanding routes and heavy loads.

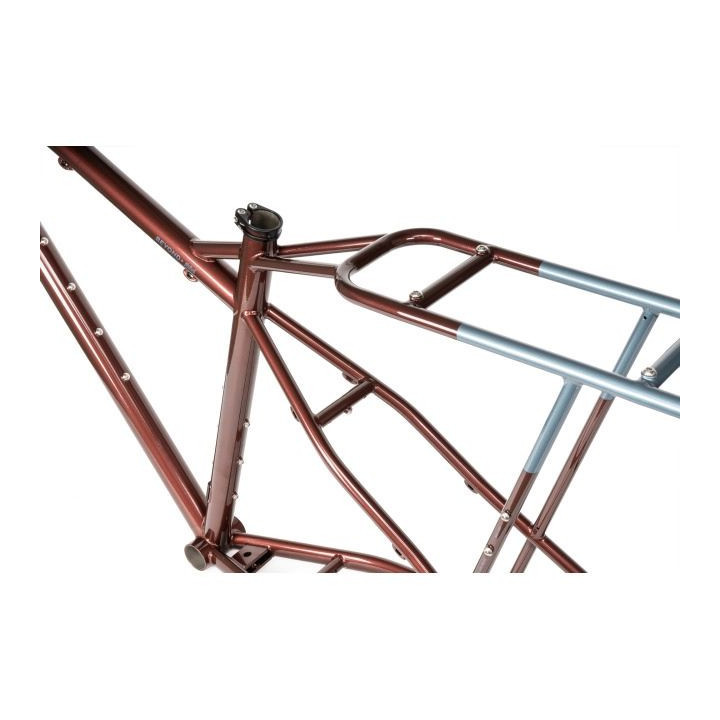

• Integrated rear rack: a solid base for panniers/bags and “heavy hauling”.
• Tire clearance: up to 29" × 3.0" (frame, without fenders).
• Modern standards: Boost, 30.9 seatpost, stealth dropper ready.
• Hanger: Sram UDH (compatibility and easier spare availability).

Availability & preorder

• Preorder: available on request (we’ll update you on timing and process).
• Contact: info@bikejamming.it

What’s included

• Beyond+ Midtail frame: frame only in Matt Metallic Burgundy.
• Seat clamp

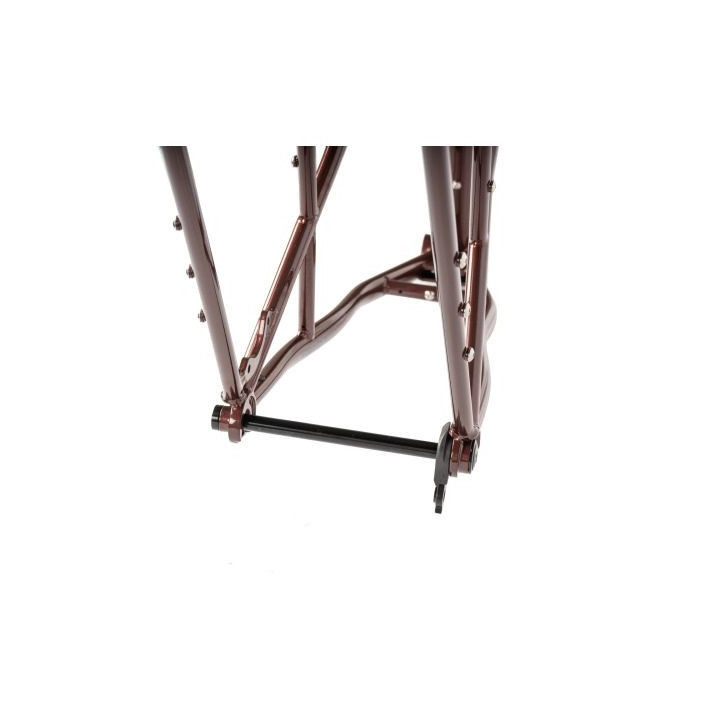

• Rear thru-axle
• Not included: fork, headset and components (frame-only).

Compatibility & build info

Frame standards

• Model: BEYOND+ MIDTAIL
• BB standard: BSA – 73 mm shell width
• Headset standard (S.H.I.S.): ZS44 / 28.6 | EC44 / 40
• Fork max tire clearance (without fenders): 29" × 3.0"
• Frame max tire clearance (without fenders): 29" × 3.0"
• Maximum chainring clearance 1x: 48T with 52 mm chainline
• 2x drivetrain: not supported
• Seatpost diameter: 30.9 mm
• Seat clamp diameter: 34.9 mm
• Front derailleur compatible: yes
• Rear brake mount: IS
• Maximum rear rotor size: 180 mm
• Rear thru-axle (standard): 12 mm × 148 mm, 1.0 thread pitch
• ISO testing standard: MTB
• Bike trailer: approved
• Seat tube mounted child seat: approved
• Derailleur hanger: Sram UDH
• Rear thru-axle: TBA

Technical specifications (frame-only)

• Product: Bombtrack Beyond+ Midtail – Frame
• Color: Matt Metallic Burgundy
• Frame: 4130 double butted CrMo, TA, integrated rear rack, Boost spacing, stealth dropper ready, 73 mm BSA BB shell
• Frame weight: TBA
• Maximum rider + luggage weight: TBA
• ASTM riding condition: 3 (as listed on the Bombtrack page)
• Final product may vary in appearance, finish and minor details.

Geometry & size guide

*Height recommendations are indicative and based on rider height only. Proper bike fitting involves additional measurements and factors: we can help you interpret geometry and compatibility, and professionally verify the build plan on the actual frame when available.

Want to be among the first? Contact us for availability updates and preorder options for the Beyond+ Midtail frame.
