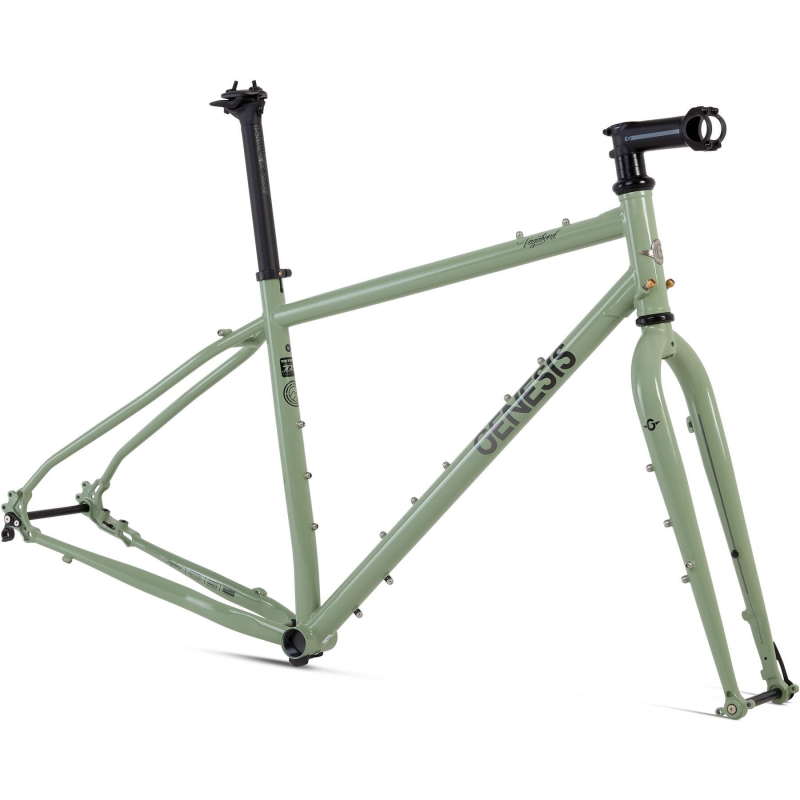

GENESIS 2021 Vagabond Frameset

FEATURES

- Reynolds 725 CrMo tubeset.

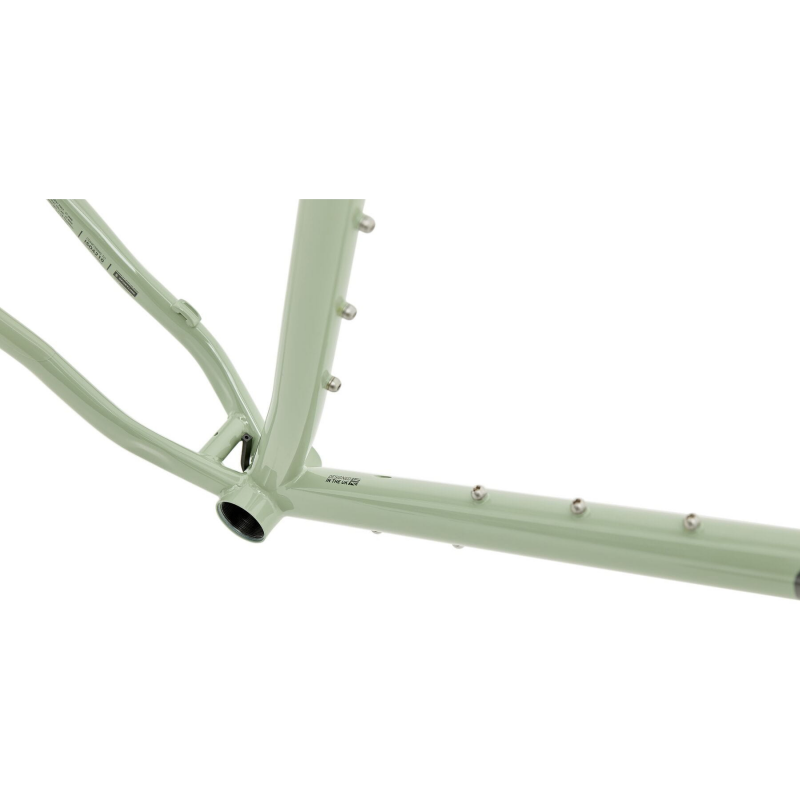

- Multiple luggage mouting points.

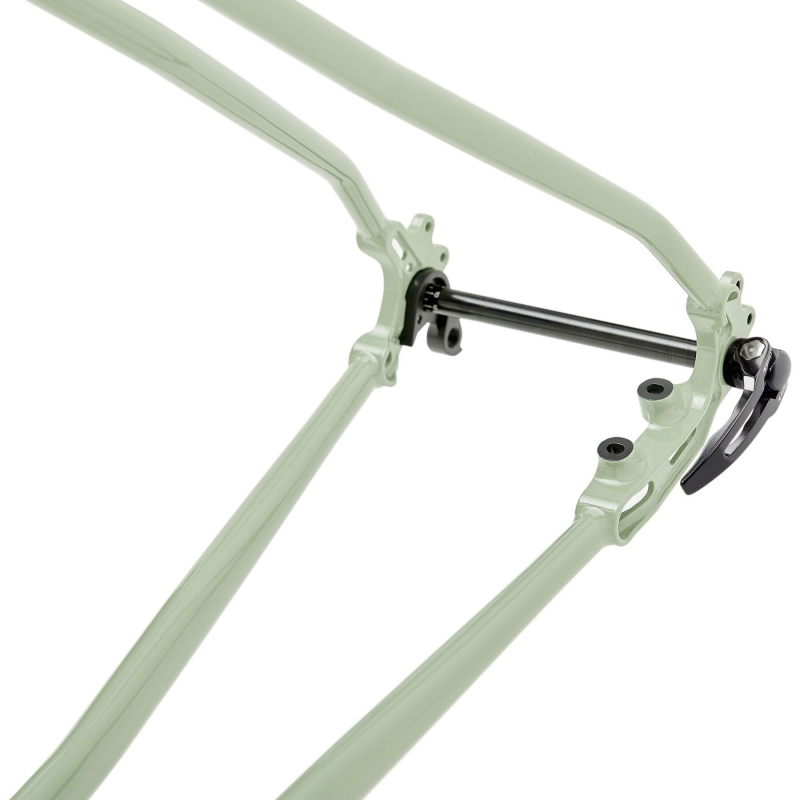

- 12mm thru axle frame and fork.

- Headset, seat collar and axles included.

SPECS

Frame Reynolds 725 Heat-Treated Chromoly 12mm Ta

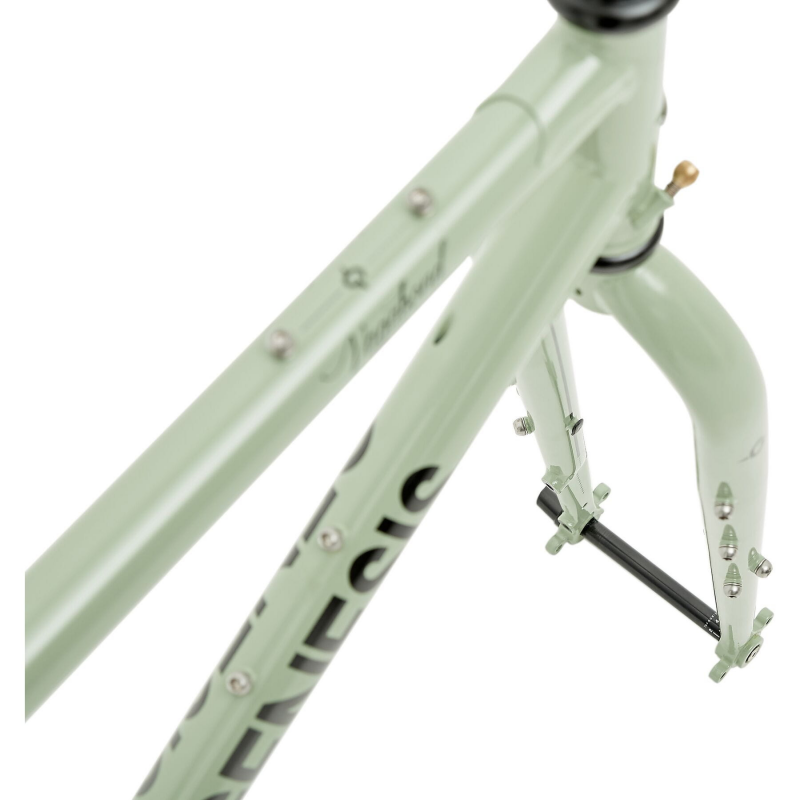

Fork Chromoly Disc Fork With Anything Cage Mounts 12mm Ta

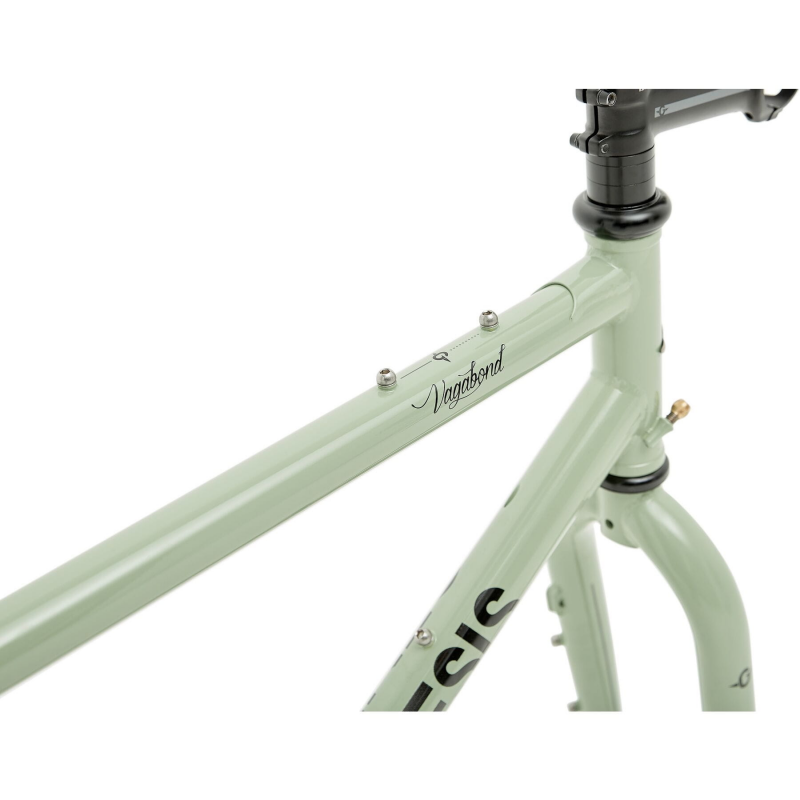

Headset PT-1770 EC34 Upper / EC34 Lower

Hanger N/A

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 4.03kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8”

Fork Spec

XS A-C = 431 Offset = 55 Rake/ Trail = 68

SM A-C = 431 Offset = 55 Rake/ Trail = 68

MD A-C = 431 Offset = 55 Rake/ Trail = 68

LG A-C = 431 Offset = 55 Rake/ Trail = 68

XL A-C = 431 Offset = 55 Rake/ Trail = 68

Wheel Size Options n/a

Max Tyre Clearance 29 x 2.2

Hub Size/ Spacing Front 100mm, Rear 142mm

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility n/a

Max Chainring Size 48/31

Seat Tube/Clamp Size 27.2mm/29.8mm

Mech Hanger Type & Part Code Intergrated

Colour Plum 41

Colour Code Pantone 518 C

MOUNTS

Mudguard Mounts Yes

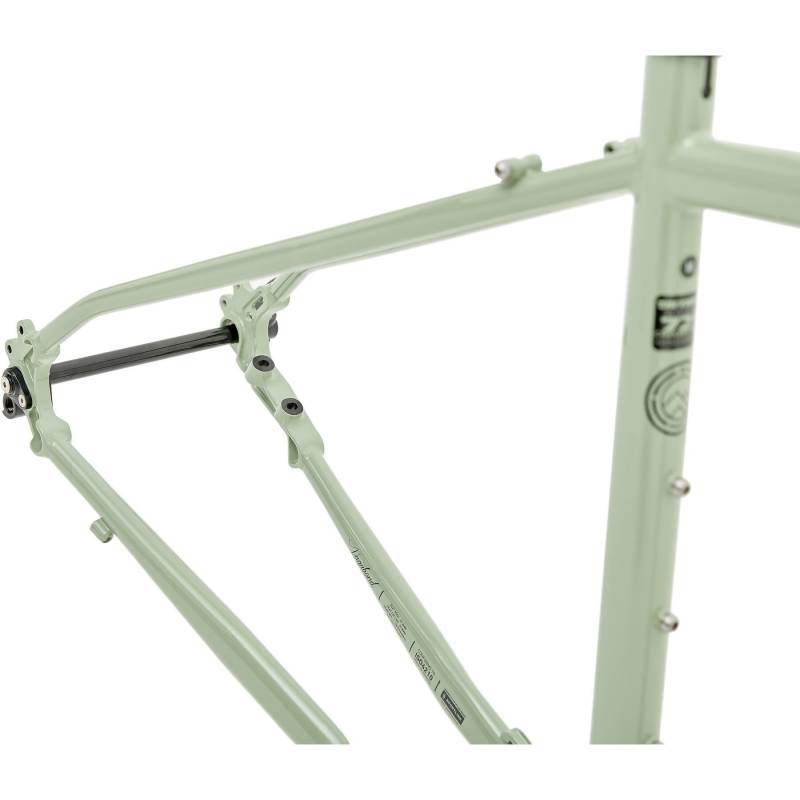

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts Anything Cage Mounts

GEOMETRY S M L XL

Seat Tube 430 460 490 520

Top Tube 541 566 593 614

Frame Reach 355 375 395 410

Frame Stack 589 608 627 646

Head Tube 120 140 160 180

Head Angle 71 71 71 71

Seat Angle 72.5 72.5 72.5 72.5

Chainstay 445 445 445 445

BB Drop 73 73 73 73

Wheelbase 1030 1056 1083 1104

Fork Offset 55 55 55 55

Standover 775 796 830 839
