The Bombtrack Beyond+ is a frame designed for off-road bikepacking, adventure touring and long-distance travel with luggage on variable terrain. It is an “expedition-ready” platform for riders who prioritize traction, comfort and load capacity, with geometry and standards focused on stability and control even far from workshops and spare parts.

Key highlights

• 4130 double-butted CrMo steel: durability and reliability for intensive use.
• Frame tire clearance: up to 29" × 3.0" (without fenders).
• Dedicated 1x drivetrain: maximum 32T with 52 mm chainline.
• High frame load capacity: up to 165 kg (rider + luggage).
• MTB standard: a platform designed for real off-road riding.

What’s included

• Beyond+ frame: frame only (fork and headset not included), made from steel with rack / fender mounts, Boost spacing and stealth dropper compatibility.
• Rear thru-axle: 12 × 148 mm.
• Seat clamp: Bombtrack Origin 34.9 mm.

Compatibility & build info

Frame standards

• Model: BEYOND+

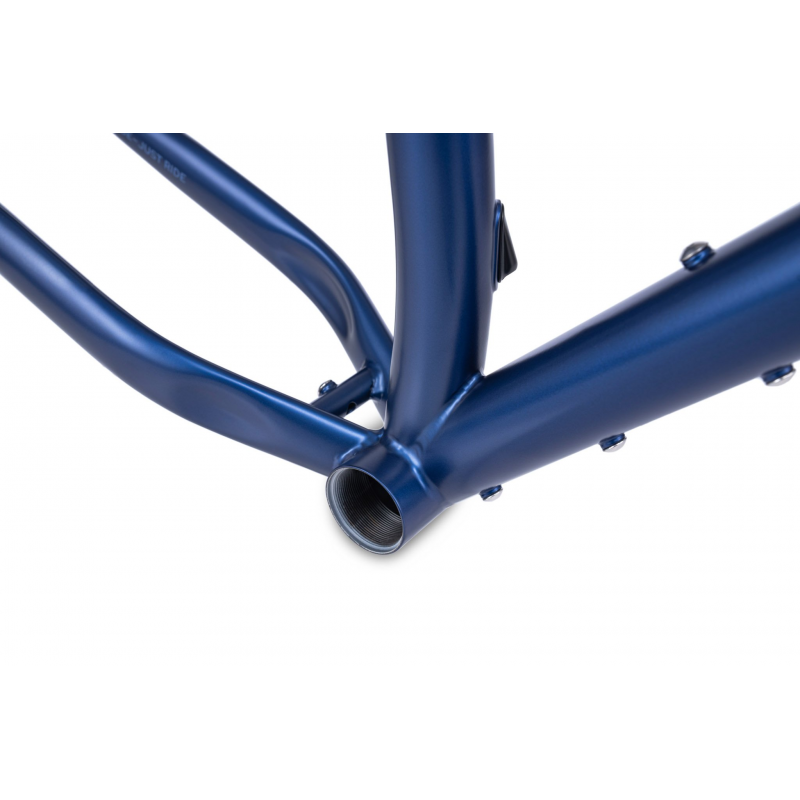

• Bottom bracket standard: BSA – 73 mm shell width

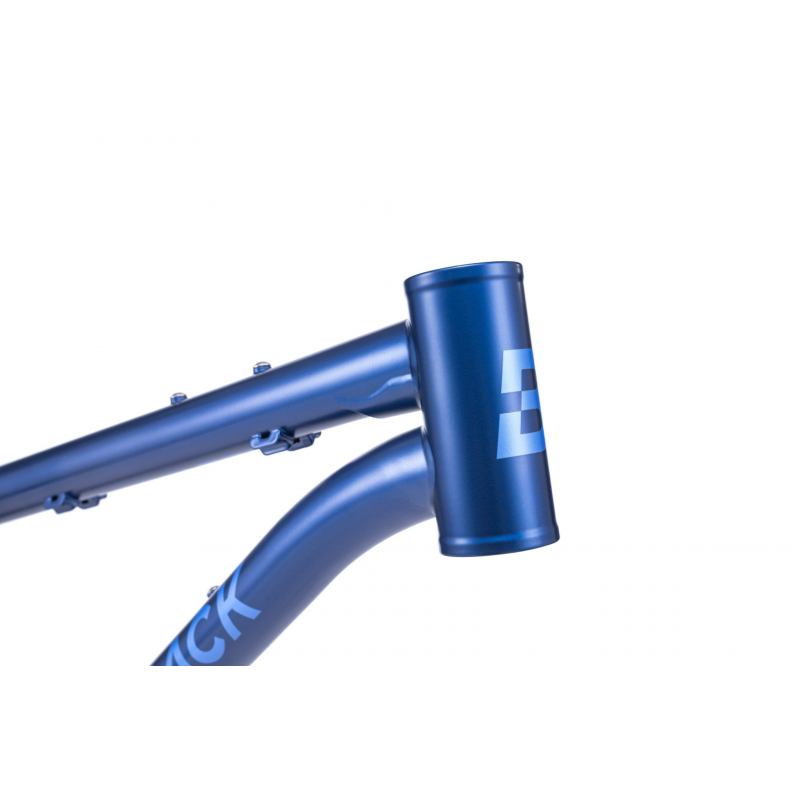

• Headset standard (S.H.I.S.): ZS44 / 28.6 | EC44 / 40
• Frame tire clearance (without fenders): 29" × 3.0"
• Maximum chainring clearance 1x: 32T with 52 mm chainline*
  *Bombtrack note: with 29" × 3.0" tyres it may be necessary to limit the chainring to 30T; with 29" × 2.8" or smaller tyres, 32T may be possible. Always verify with actual wheel/tyre size and crank offset.
• 2x drivetrain: not supported
• Seatpost diameter: 30.9 mm

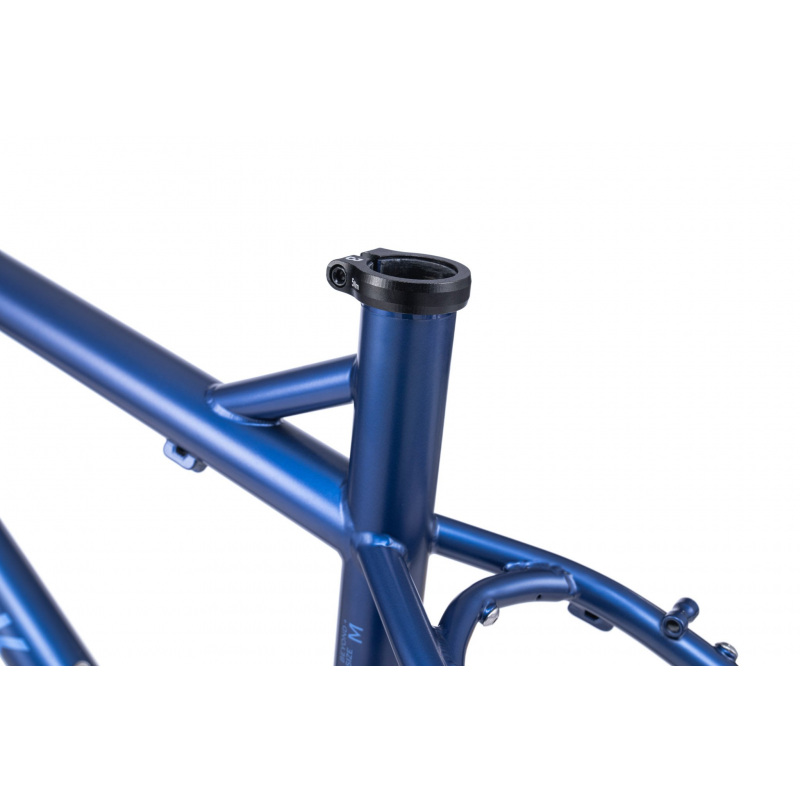

• Seat clamp diameter: 34.9 mm
• Front derailleur clamp diameter: 34.9 mm
• Front derailleur compatible: no
• Rear brake mount: IS
• Maximum rear rotor size: 180 mm

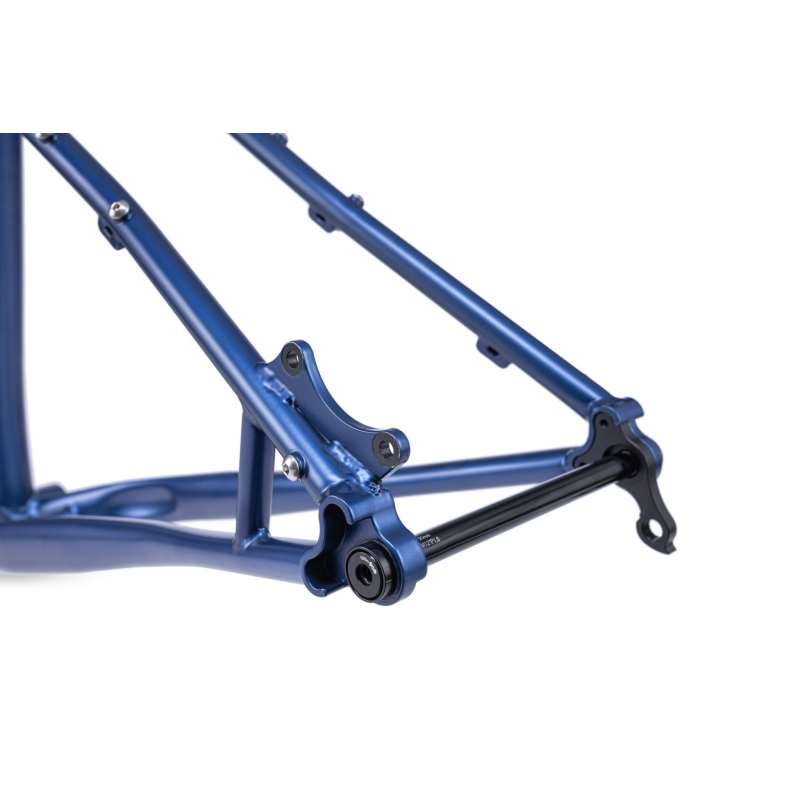

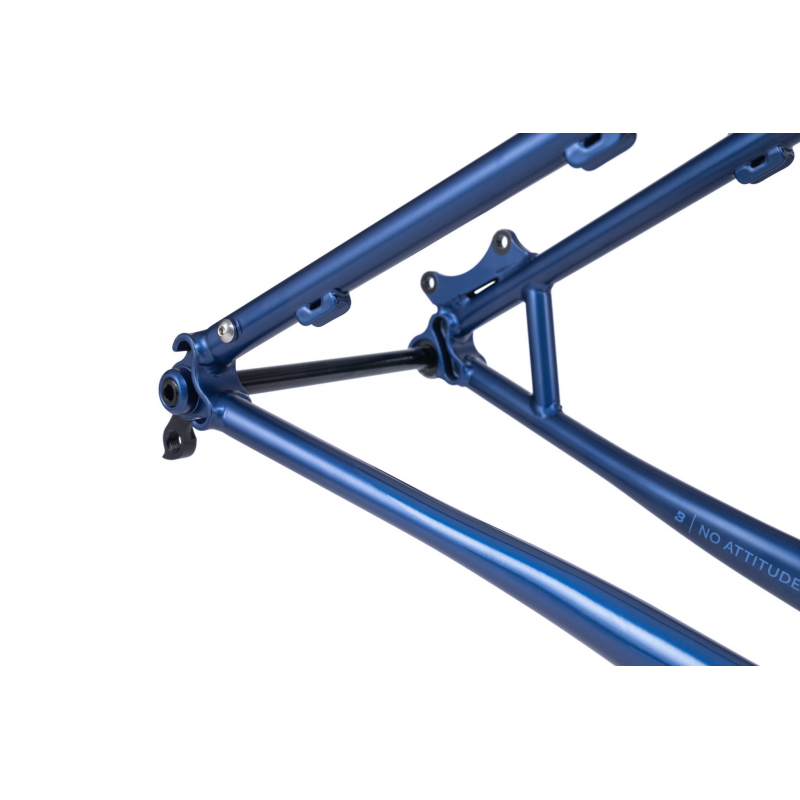

• Rear thru-axle (standard): 12 mm × 148 mm, 1.5 thread pitch
• ISO testing standard: MTB
• Bike trailer: approved
• Seat tube mounted child seat: approved
• Compatible derailleur hanger: BT-DH-008
• Frame small parts: BT-CR-006 / BT-CR-008
• Rear thru-axle (replacement part number): BT-TA-R-603

Technical specifications (frame-only)

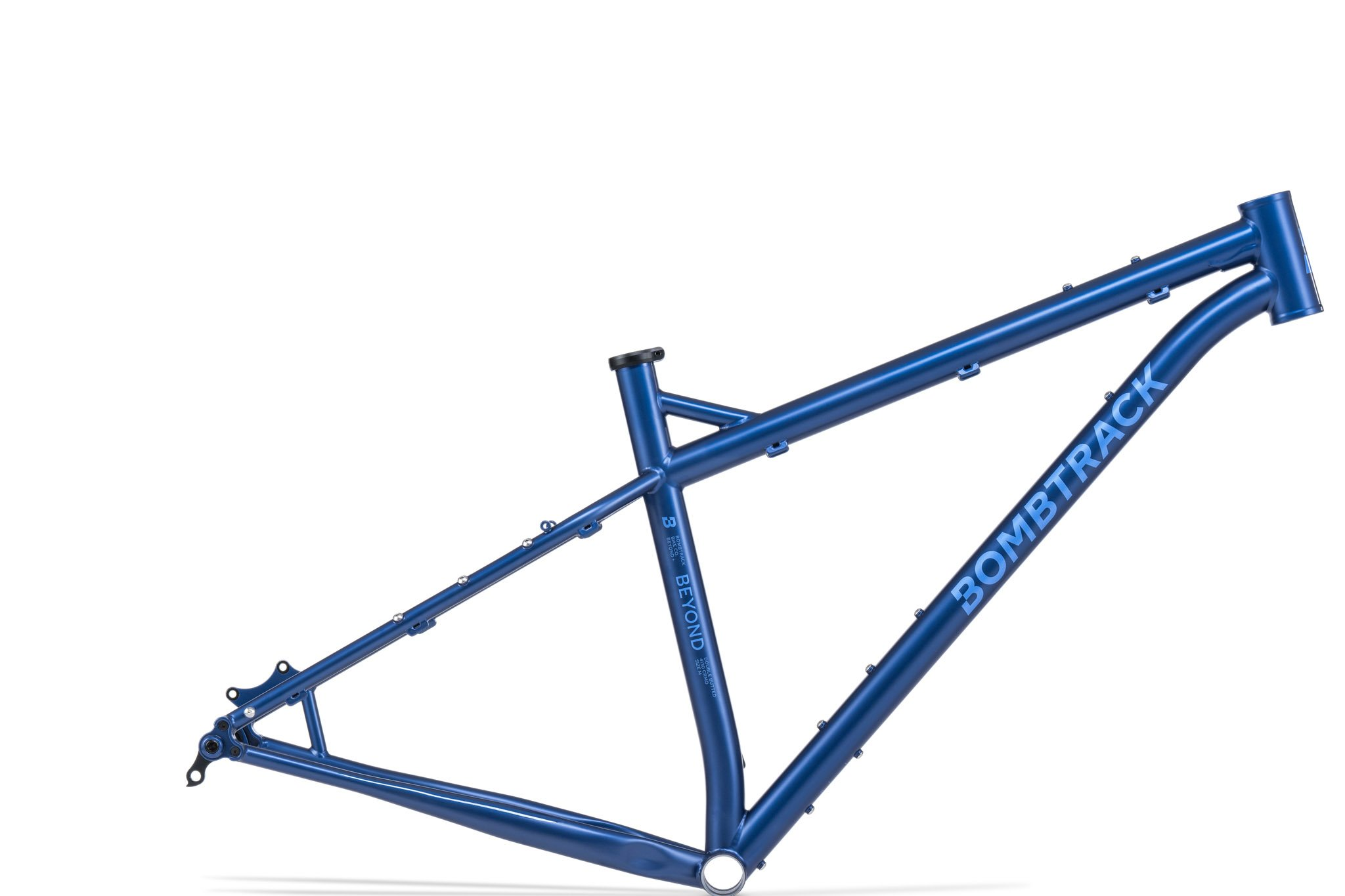

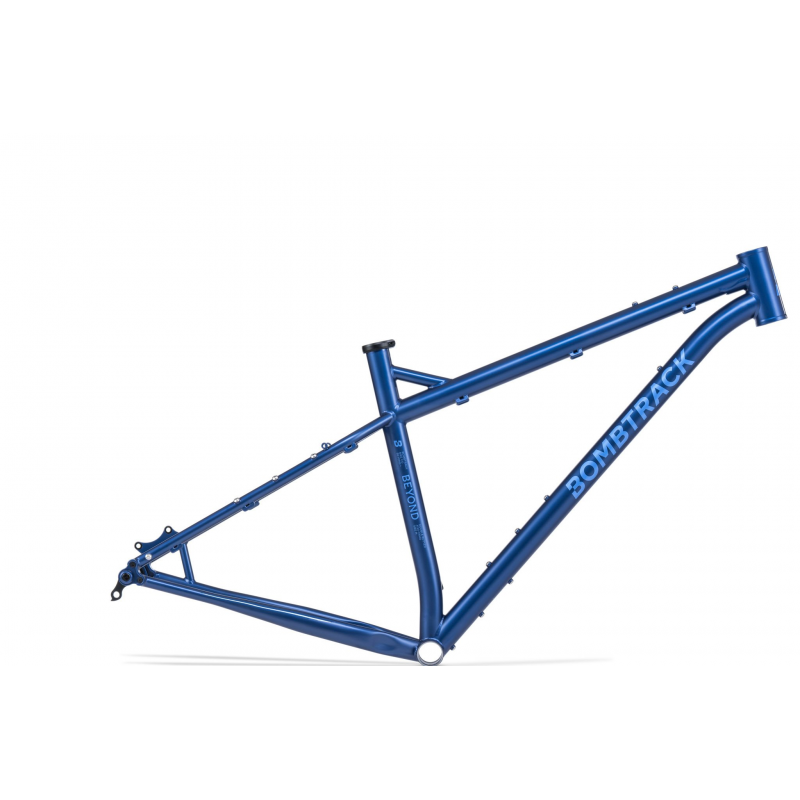

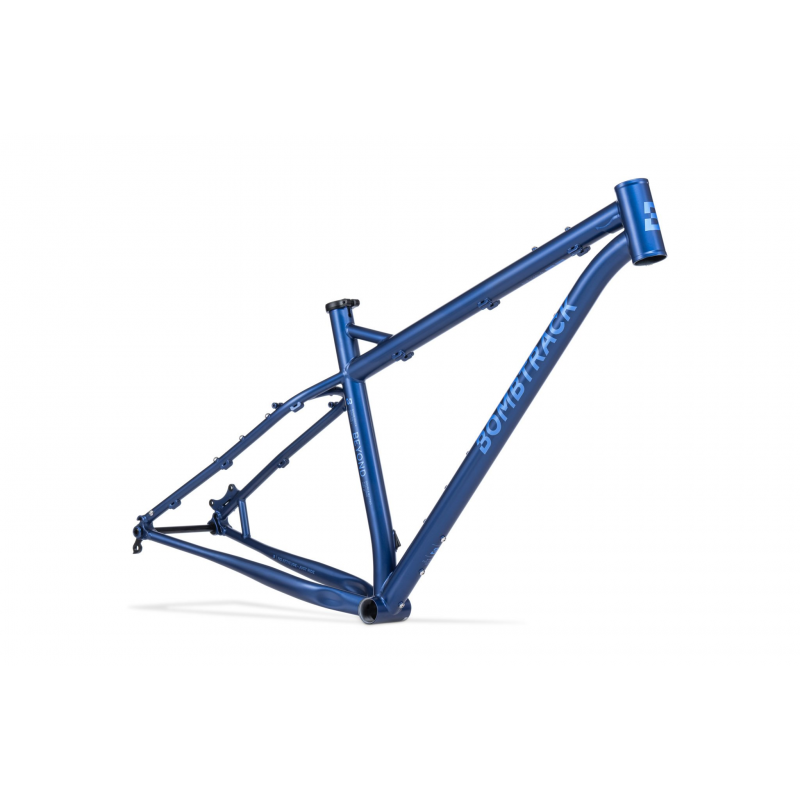

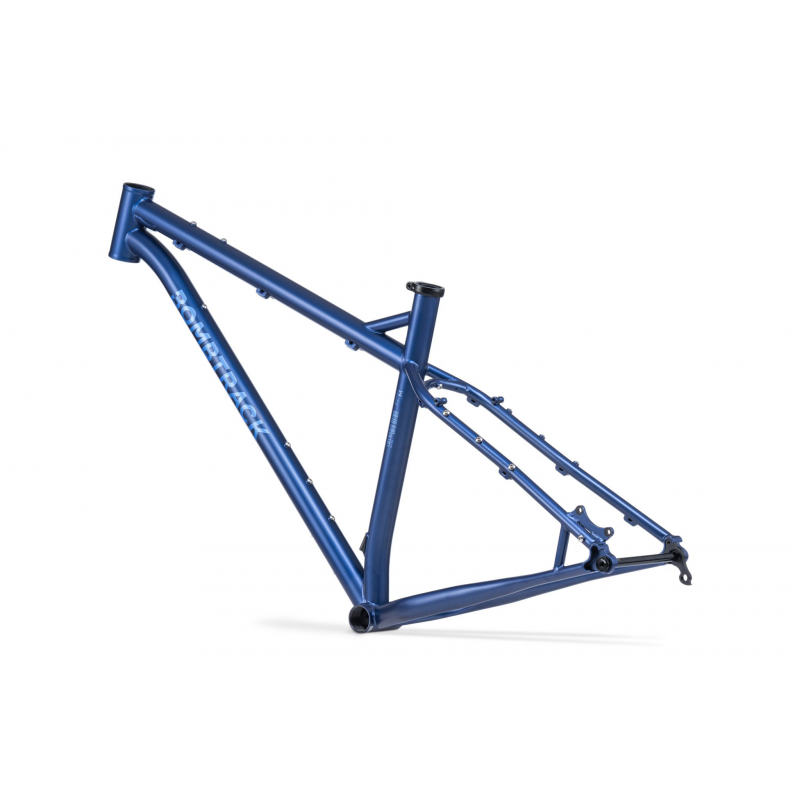

• Product: Bombtrack Beyond+ – Frame
• Color: Matt Blue
• Frame material: 4130 double-butted CrMo
• Frame weight: 2910 g (size M, as specified by Bombtrack)
• Maximum supported rider + luggage weight: 165 kg
• ASTM riding condition: 3
• Final product may vary in appearance, finish and minor details.

We can help you choose compatible components and validate your project (wheels, tyres, fork, brakes and drivetrain) for a safe and reliable configuration, suitable for long journeys and remote environments.
