New Reduced price! RITCHEY Septimer Break-Away Carbon Frameset

RITCHEY Septimer Break-Away Carbon Frameset

Condition New

Data sheet

Frame	Allroad Endurance
Wheel Size	700c

More info

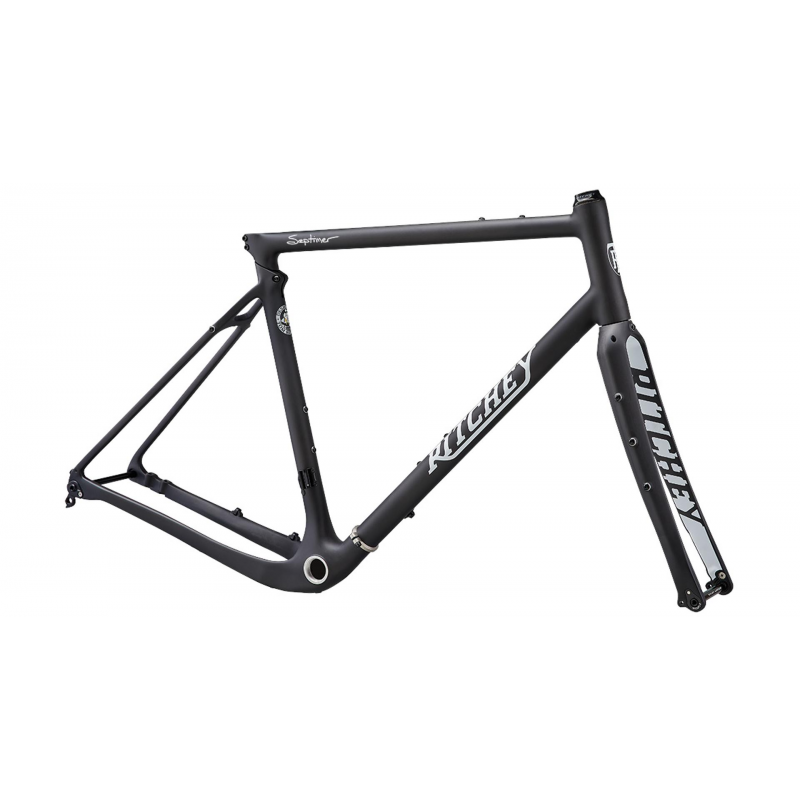

Ritchey Break-Away Septimer – Frame & Fork Frameset

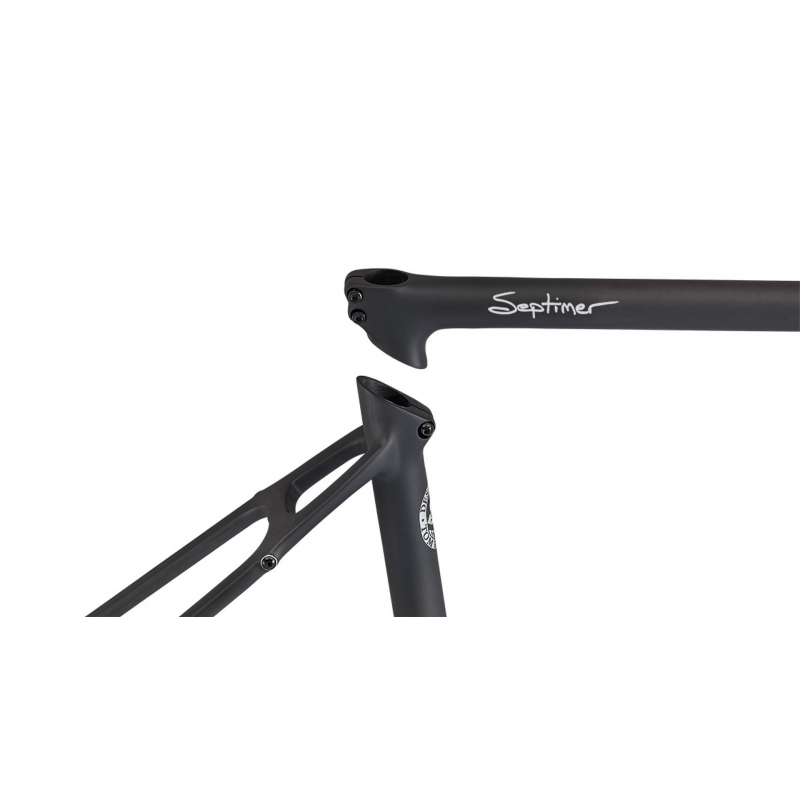

The Ritchey Break-Away Septimer is a carbon frameset engineered for road travel and gravel expeditions, featuring the patented Break-Away® system that allows the frame to split into two sections for convenient transport, while retaining ride characteristics once reassembled. It’s a functional platform designed for 1x or 2x drivetrains, wide tyre clearance, mounts for bags, racks and fenders, and a purpose-built carbon fork with load-ready features.

What independent reviews highlight

Independent reviews consistently describe the Ritchey Break-Away Septimer as a frameset designed specifically for travel, rather than a gravel bike adapted after the fact.

Reviewers particularly highlight:

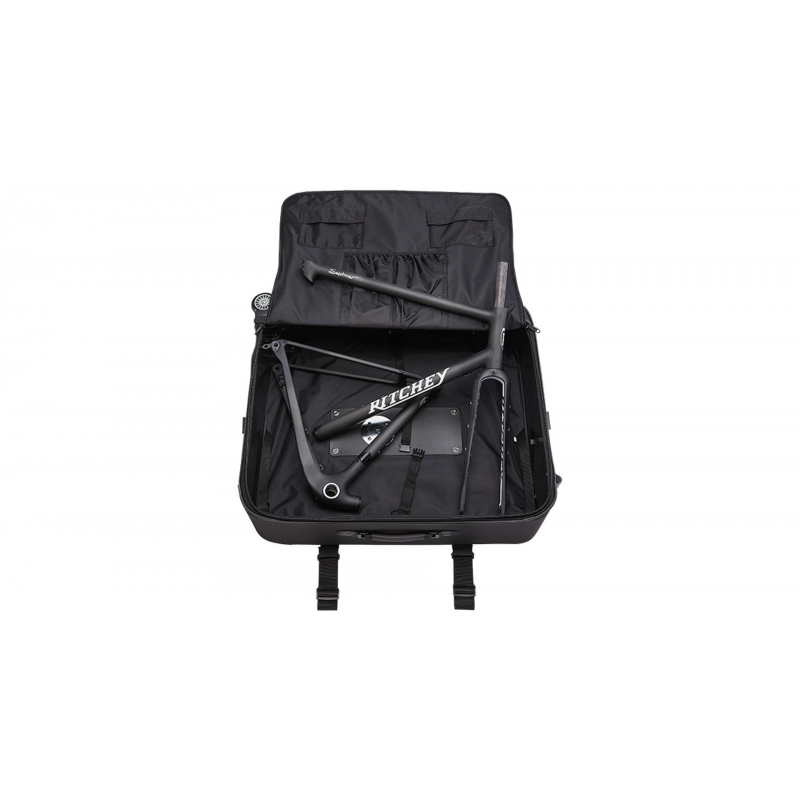

the Break-Away system, which allows the bike to be packed into a compact, included travel case, making air travel and transfers significantly easier;
the balanced ride quality, comparable to that of a modern gravel/all-road bike once reassembled, without noticeable structural compromise;
the versatility of use, thanks to clearance for tyres up to 700×48c and the presence of multiple mounts for bags, racks and fenders;
a design approach focused on reliability and coherence, rather than chasing the latest standards, prioritising simplicity and long-term durability.

Overall, the Septimer is viewed as a well-executed solution for riders who want to travel with their own bike and then ride confidently on both paved roads and mixed surfaces.

Key Features

Multipurpose Mounts
Each fork leg is equipped with triple mounts that allow riders to carry bottles, cargo cages or other accessories—practical support for travel without impacting ride feel.

Integrated Carbon Crown
The fork’s integrated carbon crown works seamlessly with Ritchey headsets, reducing interface stress at the steerer crown and contributing to a more even load distribution.

Technical Specifications

FRAME

Item	Specification
Design	Patented Ritchey Break-Away® system
Material	Carbon fiber with stainless steel joints

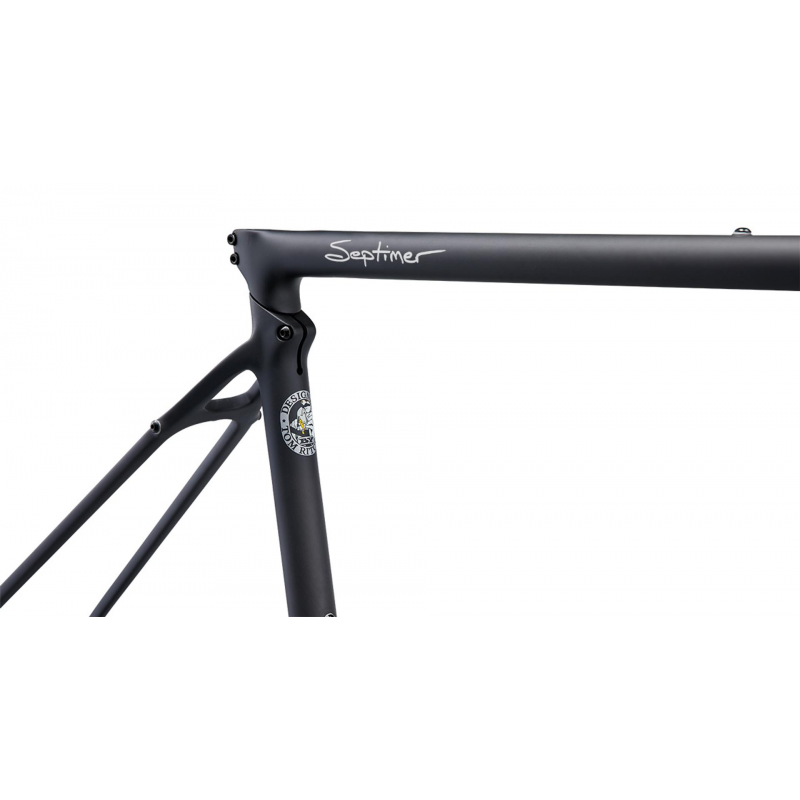

Seat tube	27.2 mm with integrated seat collar (max torque: 5 Nm)
Minimum seatpost insertion	110 mm
Bottom bracket	English threaded BSA 68 mm
Rear spacing	142 mm

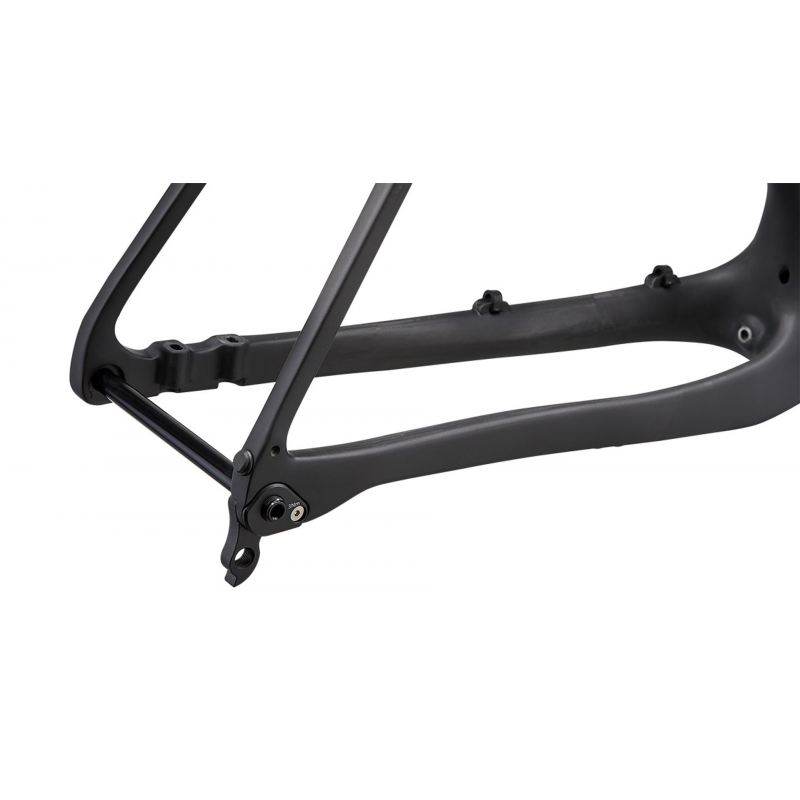

Rear axle	12 mm alloy thru-axle included
Drivetrain	1x or 2x compatible
Crankset min/max	1x: 36–46T (chainline 49.7 mm) / 2x: 46/30T – 50/34T (chainline 47 mm)
Direct Mount compatibility	Not compatible (including T-Type derailleurs and cassettes)
Bottle cage mounts	2
Top tube bag mounts	Yes
Rack & fender mounts	Yes
Cable routing	External
Semi-wireless Di2 routing	Stealth routing for Shimano Di2 EW-SD300 (12-speed)
Derailleur hanger	Replaceable
Front derailleur mount	Removable

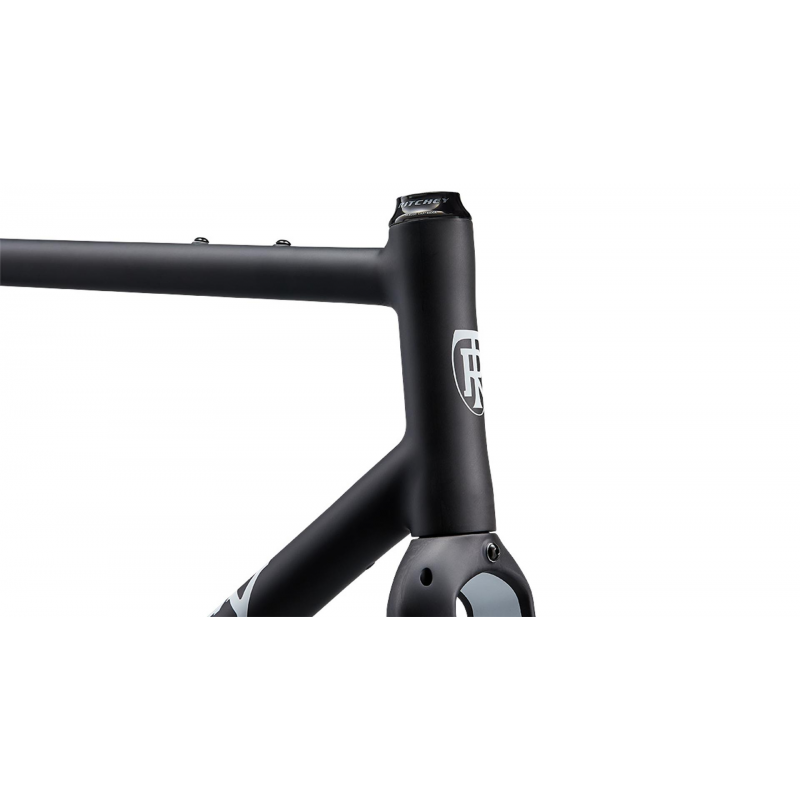

Headset	WCS headset included (upper IS42/28.6 – 16 mm stack

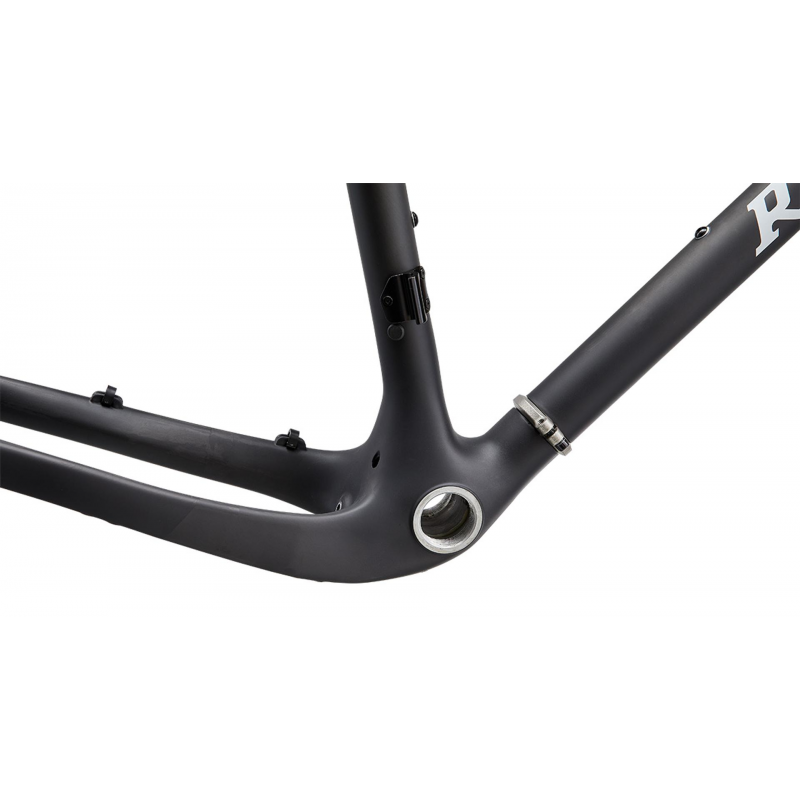

Downtube hinge clamp	Included
Mechanical groupset note	Stops/guides kit for mechanical groupsets available separately (IMD 15000007129)

FORK

Item	Specification
Model	Ritchey Carbon Adventure Fork
Mounts	Multipurpose, rack & fender mounts
Steerer	1-1/8" straight with integrated 45-degree crown race
Steerer length	300 mm
Axle-to-crown	393 mm
Rake/Offset	50 mm
Spacing	100 mm
Axle	12 mm alloy thru-axle included
Max spacer height under stem	30 mm
Max payload	3 kg per side

TIRE COMPATIBILITY

Item	Specification
Wheels	700c
Max tyre size	700 x 48c
Note	Actual clearance varies by rim and tyre manufacturer
Frame spacing	60 mm
Fork spacing	60 mm

BRAKE COMPATIBILITY

Item	Specification
Standard	Front and rear flat-mount
Rotor size	140 mm
Max rotor	160 mm with adaptor (sold separately)
Frame flat-mount height	20 mm
Rear brake hose	Full external routing
Hydraulic compatibility	Compatible (consult brake manufacturer for travel guidelines)

DETAILS

Item	Specification
Sizes	S / M / L / XL
Frame weight	1,360 g (size L without thru-axle)
Fork weight	440 g (uncut, without thru-axle)
Colour	Black & White

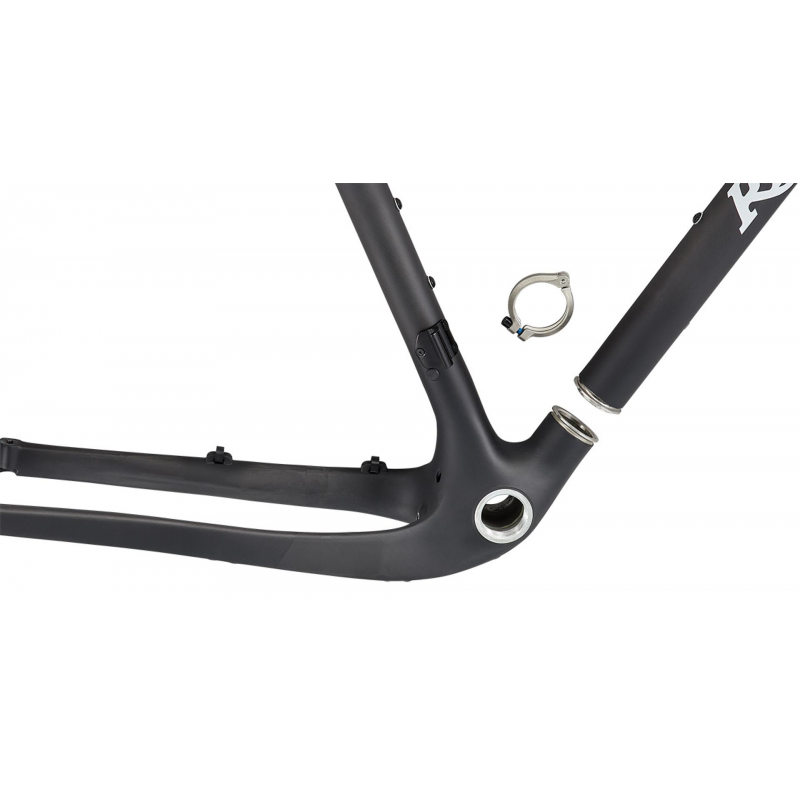

Break-Away downtube clamp torque	5 Nm (do not lubricate clamp or clamping area)
Torque key	Not included
Travel case included	Yes

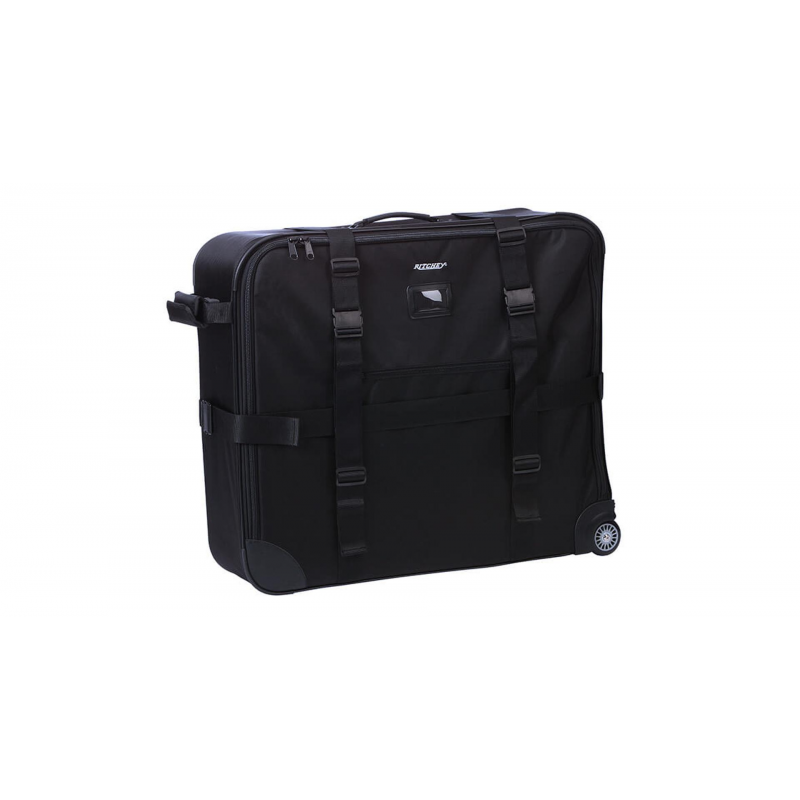

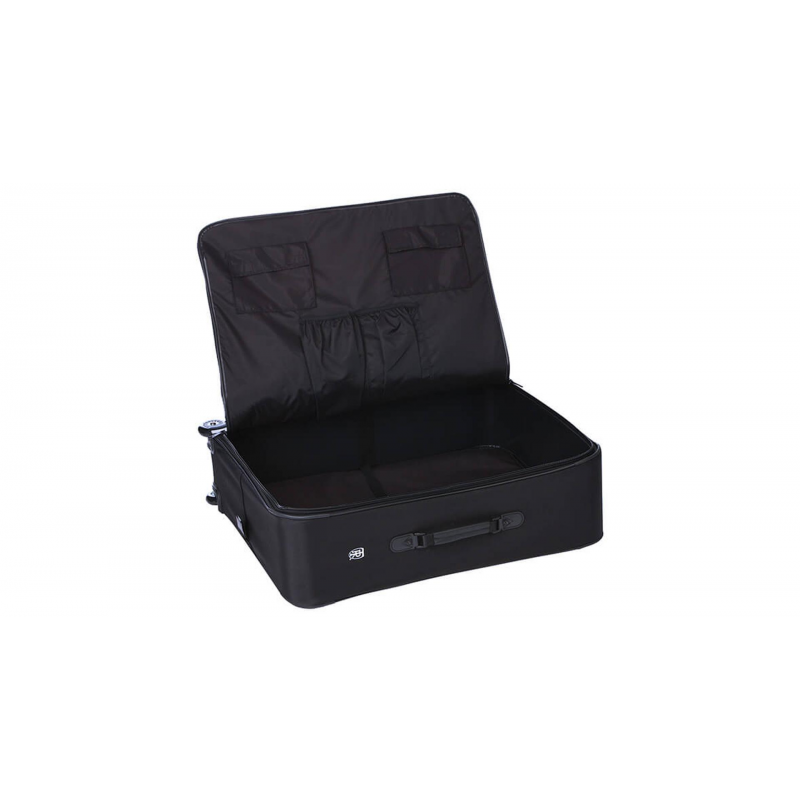

Travel case dimensions	21.6 cm W x 67.3 cm H x 78.8 cm L (with wheels)

Size Guide (Manufacturer Reference)

The following sizing is provided by Ritchey as a general guideline. Final size choice depends on rider proportions and intended use.

S: 157–170 cm
M: 168–178 cm
L: 175–186 cm
XL: 183–191 cm

At Bikejamming we offer dedicated sizing and build consultation—send your height and inseam and we’ll reply within 24 hours.

Components and Support

With frameset purchase we provide access to:

compatible Ritchey components and headsets
Mechanical Cable Routing Kit for Septimer
support for drivetrain, brakes and full travel build planning

Why Buy from Bikejamming

Tracked shipping
Bilingual support (Italian / English)
Fast, clear responses
Real pre-purchase consultation on sizing, setup and compatibility

If you have technical questions or want help planning a build that suits your travel style, we are here to assist.

Download

Reviews (0)

Only registered users can post a new review.

No reviews at that time.
