| Telaio MTB | Gravel / Bikepacking Ready |
| Ruota | 27.5'' |

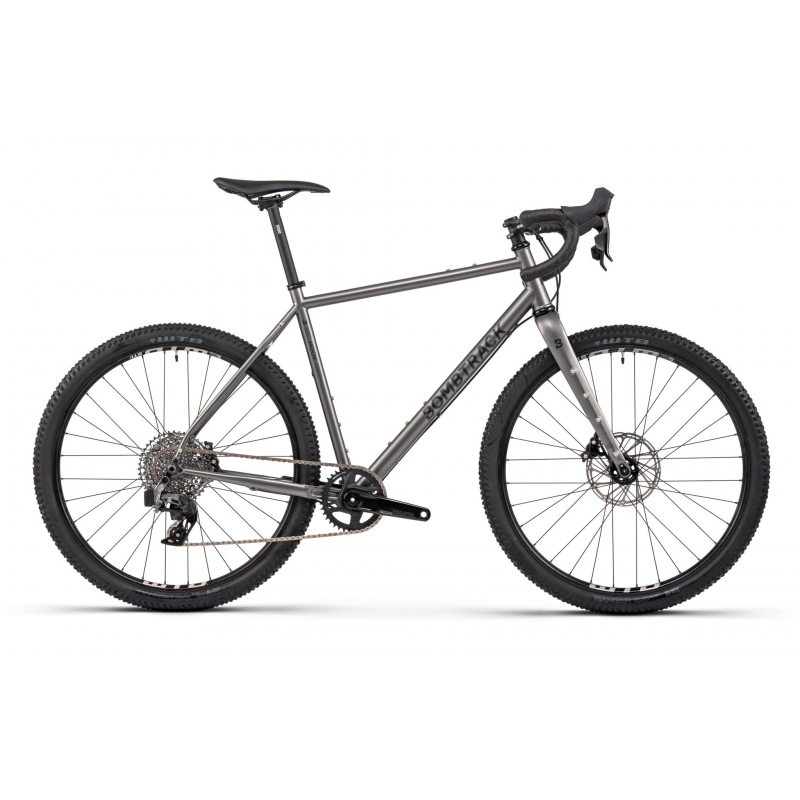

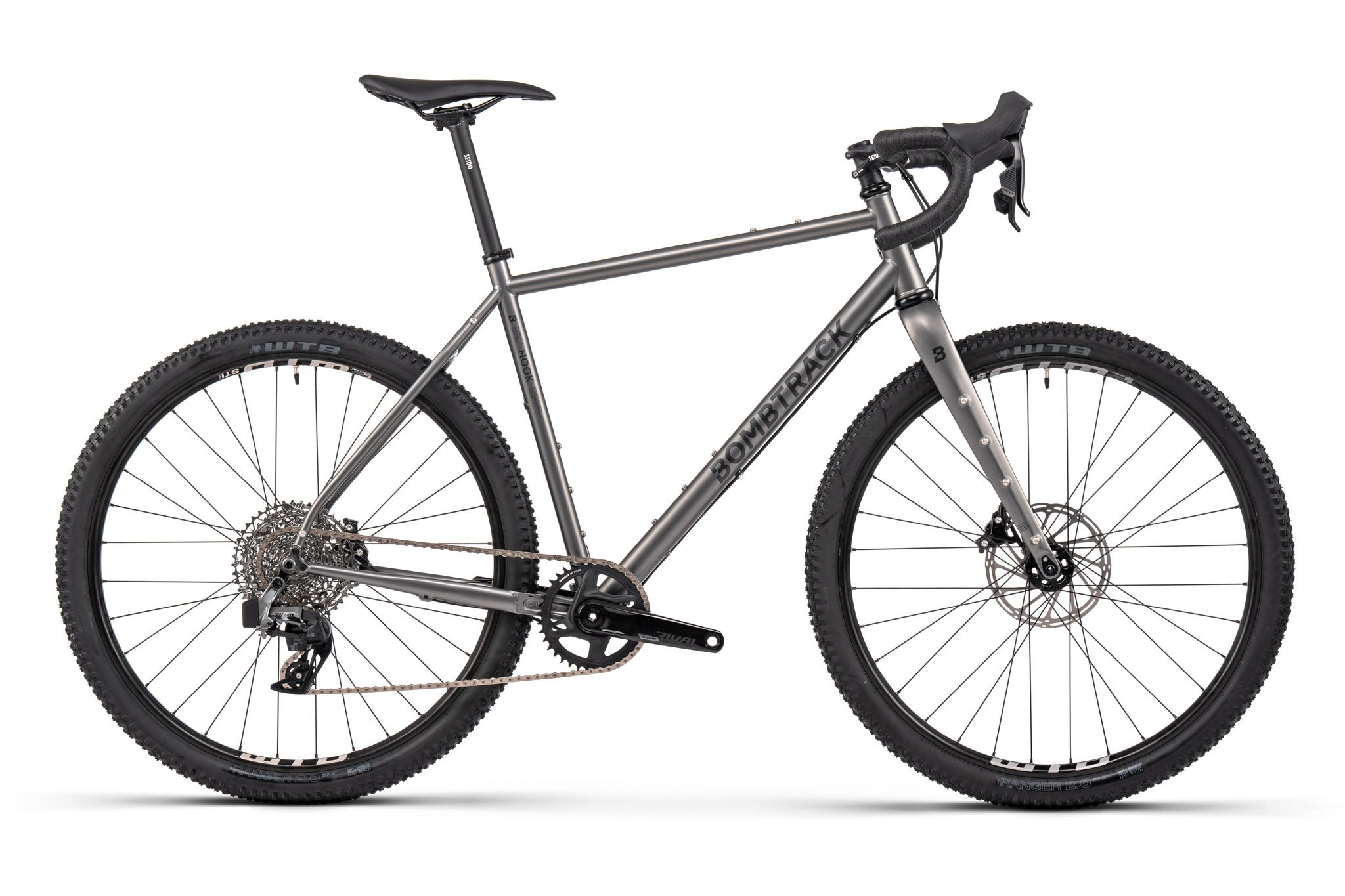

The Hook EXT Rival AXS in Matt Charcoal Grey combines elegance, performance and versatility. The matte grey finish gives the bike a refined, understated presence – modern, minimalist and perfectly suited to riders who prefer a clean aesthetic without sacrificing capability.
This is one of the most sophisticated interpretations of the Hook EXT platform: electronic shifting, wide-tyre geometry, strong off-road character and the dependable ride feel of a Columbus steel frame. Whether used for gravel, mixed-surface adventures or bikepacking, the Hook EXT Rival AXS delivers confident handling and a smooth, composed ride. It is a gravel bike designed for riders who want both performance and style in equal measure.
The Hook EXT Rival AXS is a modern, high-performance gravel-adventure bike offering stability off-road, comfort over long distances and the precision of electronic shifting.
– Frame: Columbus Cromor double-butted steel, T47 BB, rack/fender mounts, internal routing.
– Fork: Full-carbon adventure fork, through-axle, rack/fender/bag mounts.
– Drivetrain: SRAM Rival AXS wireless, 1×12.
– Brakes: Hydraulic disc brakes.
– Wheels: Tubeless-ready compatible.
– Mounts: Ready for racks, bags and accessories for travel or commuting.
Frame – maximum, without fenders:
650B × 52C
700C × 40C
Fork – maximum, without fenders:
650B × 57C
700C × 57C
The Hook EXT Rival AXS provides valuable flexibility thanks to the difference between frame and fork clearances:
This allows highly effective setups:
This adjustability is one of the Hook EXT’s strongest advantages in real-world use.
XS: 150–161 cm
S: 160–171 cm
M: 170–181 cm
L: 179–190 cm
XL: 188–199 cm
We can confirm your size with height and inseam.
Ready for a modern, versatile and elegant gravel bike?
Add the Hook EXT Rival AXS – Matt Charcoal Grey to your cart.
Prefer to talk before ordering?
info@bikejamming.it
| Item | Detail |
|---|---|
| Color 1 | Matt charcoal grey |
| Color 2 | - |
| Color 3 | - |
| Frame | Columbus Cromor double butted, TA, rack / fender mounts, internal light cable routing, rear light mount, ED coated, 85.5 mm T47 BB shell |

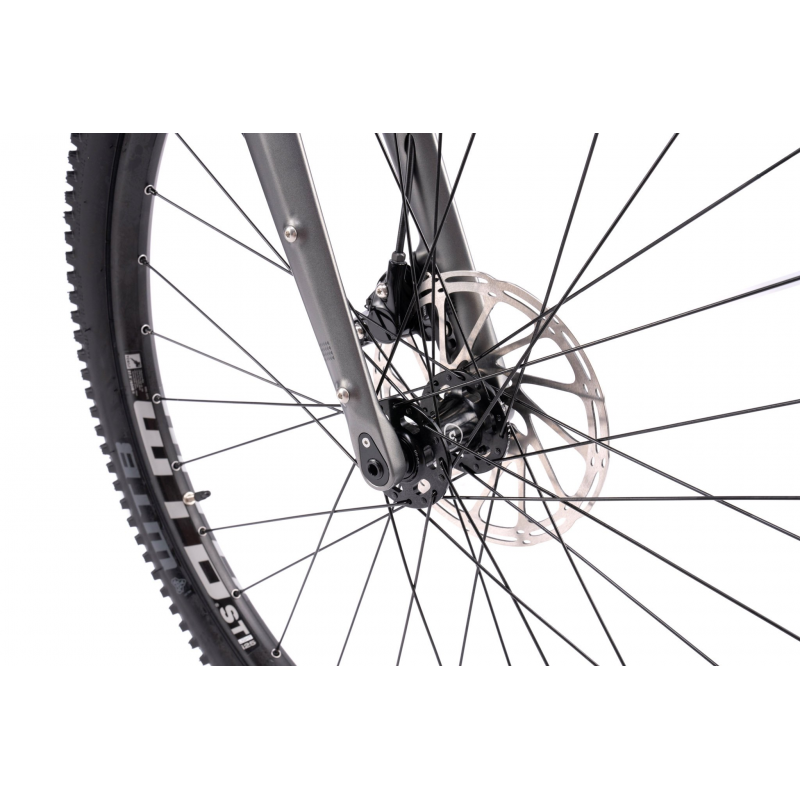

| Fork | Seido MGV full carbon, TA, 1.1/2'' - 1.1/8'', fender / triple cage mounts, 180 mm max rotor size, lowrider rack compatible, internal hub dynamo cable routing |

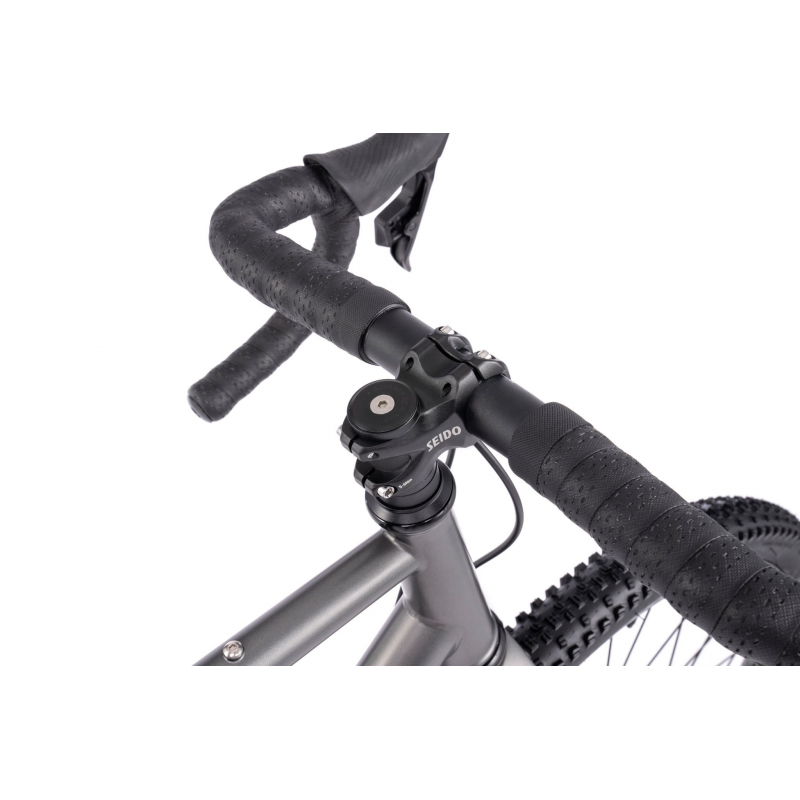

| Handlebar | Bombtrack Beaufort drop bar, 31.8 mm, 16° flare |
| Grips | Bombtrack Escape bar tape |
| Stem | Seido Chase forged aluminium stem, 0° |
| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Sram Rival eTap AXS double tap hydraulic |
| Shifter | Sram Rival eTap AXS double tap 1 × 12 |
| Brakes | Sram Rival flat mount hydraulic disc brakes |
| Rotor | Sram Centerline 180 mm front / 160 mm rear |

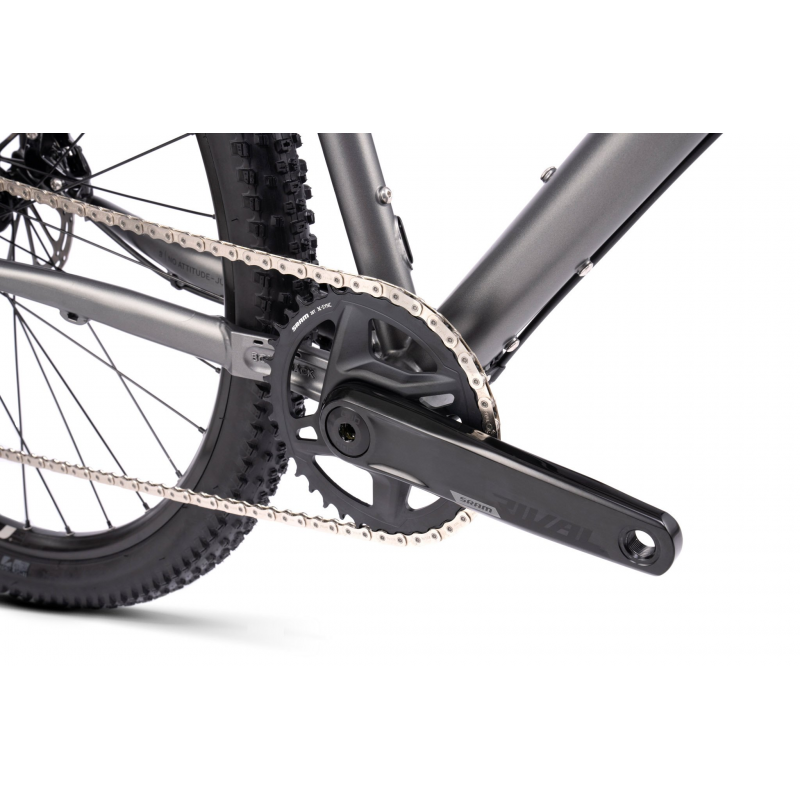

| Crankset | Sram Rival Wide, DUB spindle |
| BB | Sram DUB T47 85.5 mm |
| Pedals | - |
| Chain | Sram Rival, flattop, 1/2'' x 11/128'', 112L |
| Chainring | Sram Rival, 12-speed, 38 T |
| Cassette | Sram XPLR XG-1251 12-speed, 10–44 T |
| Front derailleur | - |
| Rear derailleur | Sram Rival XPLR eTap AXS, clutch, medium cage |
| Front hub | Bombtrack Tau sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Tau sealed hub, XD driver, 6-bolt disc |
| Through axle | 12 × 100 mm / 12 × 142 mm |
| Front rim | WTB ST Light i25 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST Light i23 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Dart saddle |
| Seat post | Bombtrack Yew aluminium seatpost, 27.2 mm × 300 mm |
| Seat clamp | Bombtrack Prime 29.8 mm |
| Front tire | WTB Ranger TCS Light / Fast Rolling 27.5'' × 2.0'', tubeless ready |
| Rear tire | WTB Ranger TCS Light / Fast Rolling 27.5'' × 2.0'', tubeless ready |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Charger | Sram EP-EAC-BC-A1 |
| Weight | 12.1 kg (size M) |
| Weight frameset | 2710 g frame (size L, incl. TA, hanger) / 550 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 130 kg incl. luggage |
| ASTM riding condition | 2 |
| Note | Final product may vary in appearance, finish and minor details. |
| Item | Detail |
|---|---|
| BB standard | T47 – 85.5 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC44 / 40 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 23.6 mm |
| Fork max tire clearance w/o fender | 650B × 57C / 700C × 57C |
| Frame max tire clearance w/o fender | 650B × 52C / 700C × 40C |
| Maximum chainring clearance 1x | 44 T with 45 mm chainline |
| Maximum chainring clearance 2x | 50 / 36 T with 45 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 29.8 mm |
| Front derailleur clamp diameter | 28.6 mm |
| Frame front derailleur compatible | Yes |
| Brake mount front | FM 160 / 180 |
| Brake mount rear | FM 140 / 160 |
| Frame thickness rear brake mount | 10 mm |
| Maximum rotor clearance front | 180 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm × 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm × 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Crankarm | XS 165 mm / S–M 170 mm / L–XL 175 mm |
| Q Factor | 150 mm |
| BCD crank | Direct mount (Sram compatible) |
| Chainring offset | 6 mm |
| Chainline | 47.5 mm |
| Spoke length front wheel | 274 mm, 275 mm |
| Spoke length rear wheel | 273 mm, 275 mm |
| Spoke count (front / rear) | 32 / 32 |
| ERD | 570 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
| Stem length | XS–M 45 mm / L–XL 60 mm |
| Stem angle | 0° |
| Headset spacers | 1 × 10 mm, 2 × 5 mm |
| Seat post offset | 0 mm |
| Seat post length | 300 mm |
| Bike trailer | Approved |
| Seat tube mounted child seat | Approved |
| Derailleur hanger | BT-DH-008 |
| Frame small parts | BT-CR-007 / BT-CR-006 |
| Hub end caps front | BT-HC-014 |
| Hub end caps rear | BT-HC-020 |
| Cassette body | BT-CB-013 |
| Crankarm bolt | - |
| Through axle front | BT-TA-F-601 |
| Through axle rear | BT-TA-R-602 |
| Bike Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Wheel size | 27.5'' | 27.5'' | 27.5'' | 27.5'' | 27.5'' |
| Seat Tube Length | 460 | 500 | 530 | 570 | 600 |
| Horizontal TT length | 520 | 534 | 558 | 572 | 597 |
| Seat Angle | 73.9° | 73.9° | 73.5° | 73.5° | 73.0° |
| Head Angle | 70.9° | 70.9° | 71.5° | 71.5° | 71.5° |
| Headtube Length | 110 | 130 | 150 | 170 | 190 |
| BB Drop | 71 | 71 | 66 | 66 | 66 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| Fork Offset | 53 | 53 | 53 | 53 | 53 |
| Trail | 64 | 64 | 61 | 60 | 60 |
| Wheelbase Length | 1003 | 1018 | 1034 | 1049 | 1068 |
| Standover | 753 | 782 | 805 | 834 | 857 |
| Reach | 360 | 369 | 381 | 390 | 403 |
| Stack | 558 | 577 | 593 | 612 | 631 |
| Front Center | 588 | 603 | 618 | 632 | 652 |
| Axle to Crown | 410 | 410 | 410 | 410 | 410 |
| Minimum rider height¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
¹ The bike size recommendation is intended as a general guideline to quickly narrow down options based on rider height. Proper bike fitting is a complex topic and should also consider other body measurements and factors. Since no two riders are identical, it is not possible to guarantee that these recommendations will be correct for everyone. The best way to determine your ideal size is to consult your Bombtrack dealer (info@bikejamming.it) or a professional bike fitter.
