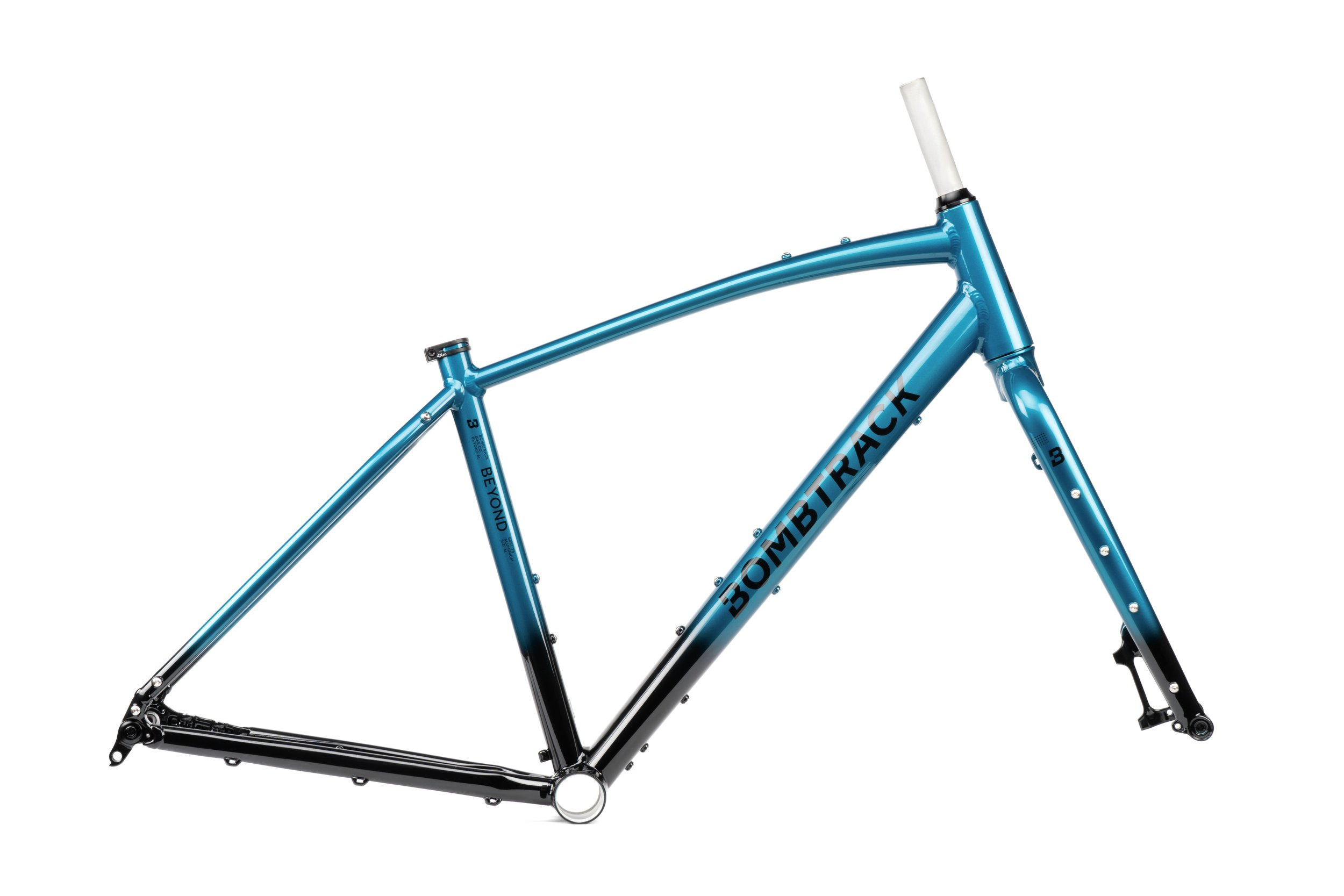

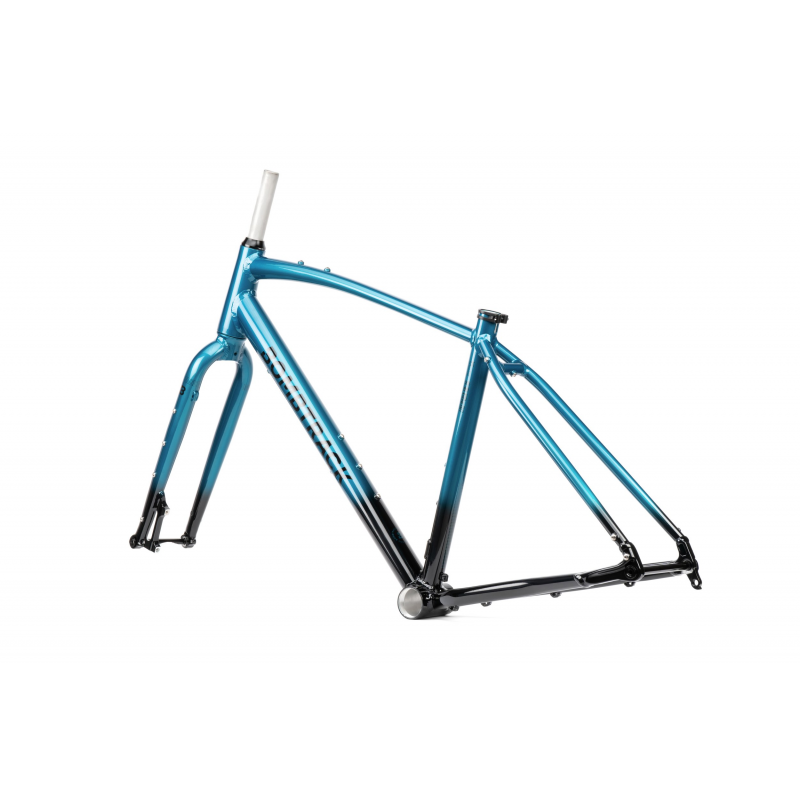

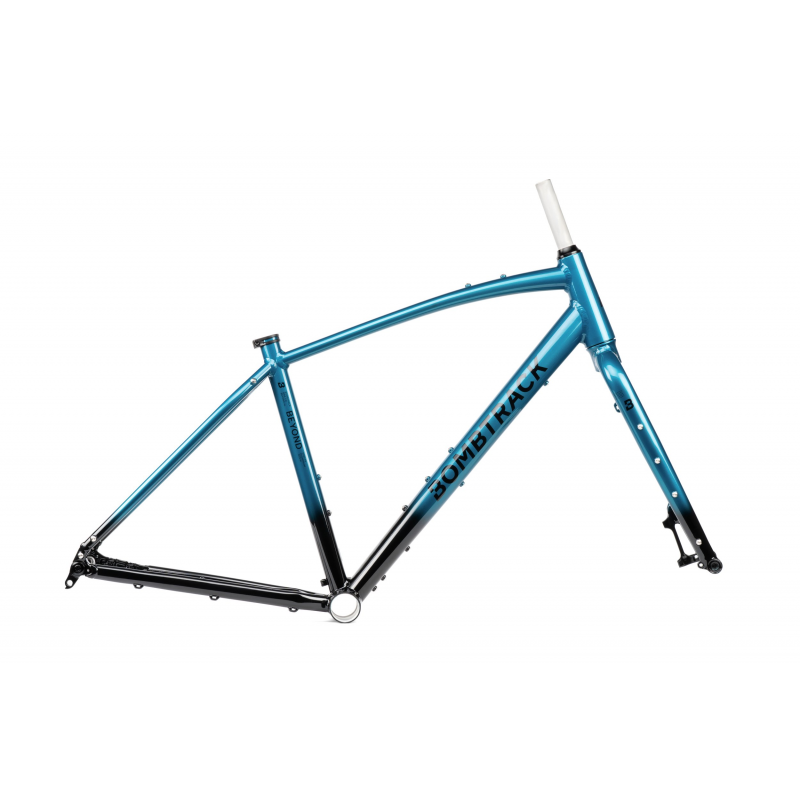

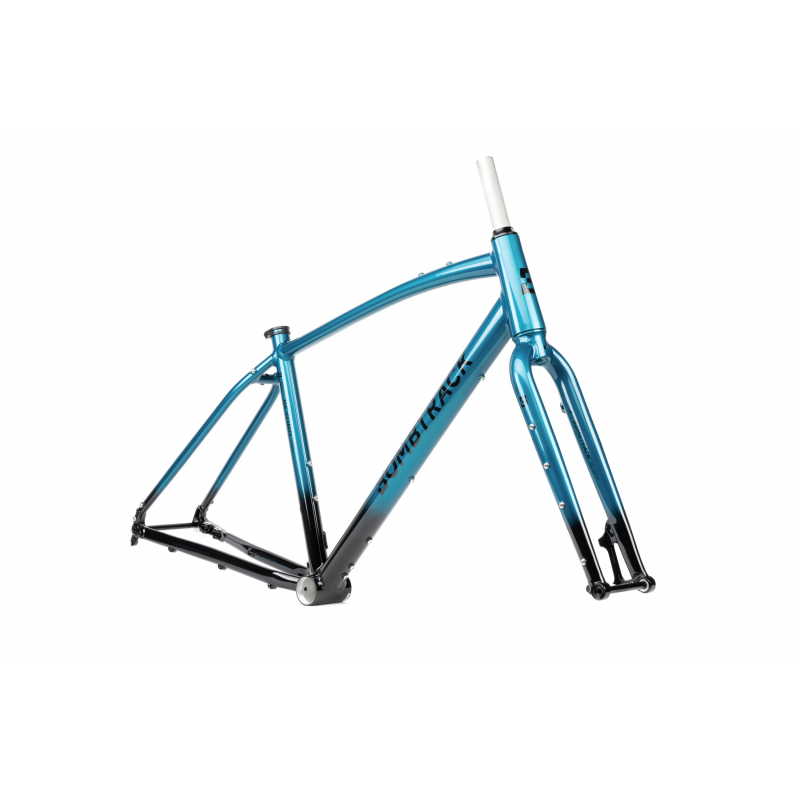

BOMBTRACK Beyond AL Frameset - Metallic Black / Turquoise

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

Data sheet

Frame	Adventure Touring / Bikepacking
Wheel Size	27.5/29''

More info

The Beyond AL Frameset is the “travel-ready” aluminium version of the Beyond platform: quick on pavement, smooth on rough surfaces, with generous tire clearance and plenty of mounts for panniers or bikepacking setups. Designed for adventure touring, tough commuting, and long-distance trips.

Available colors

Metallic Black / Turquoise Matt Metallic Red

Same technical specifications; only the paint scheme changes.

What’s included (frameset)

Frame + fork set: Bombtrack Beyond AL
Headset included (see “Frame specs”)
Thru-axles included (see “Frame specs”)
Seatpost clamp included (see “Frame specs”)

Note: the items listed above are those included in delivery.

Model ID

Model	BEYOND AL
Use category (ASTM)	Riding condition 2
Max system weight	140 kg (rider + luggage included)
Testing standard	ISO testing standard MTB

Technical specifications

Frame

Material	Hydroformed 6061-T6 aluminium
Axles	TA (thru-axle)
Mounts	Rack / fender mounts, stealth dropper ready

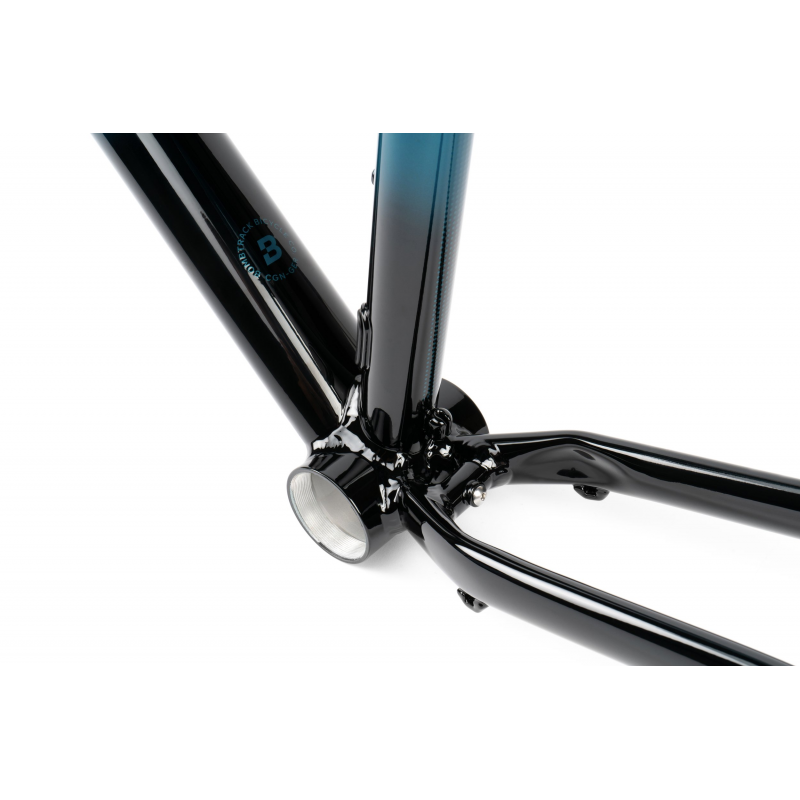

Bottom bracket shell	T47 — 86.5 mm shell width

Headset & included hardware

Headset	Sealed integrated aheadset, 1.1/2'' – 1.1/8''
Included thru-axles	12×100 mm (front) / 12×142 mm (rear)
Included seat clamp	Bombtrack Prime 34.9 mm
Rack	—

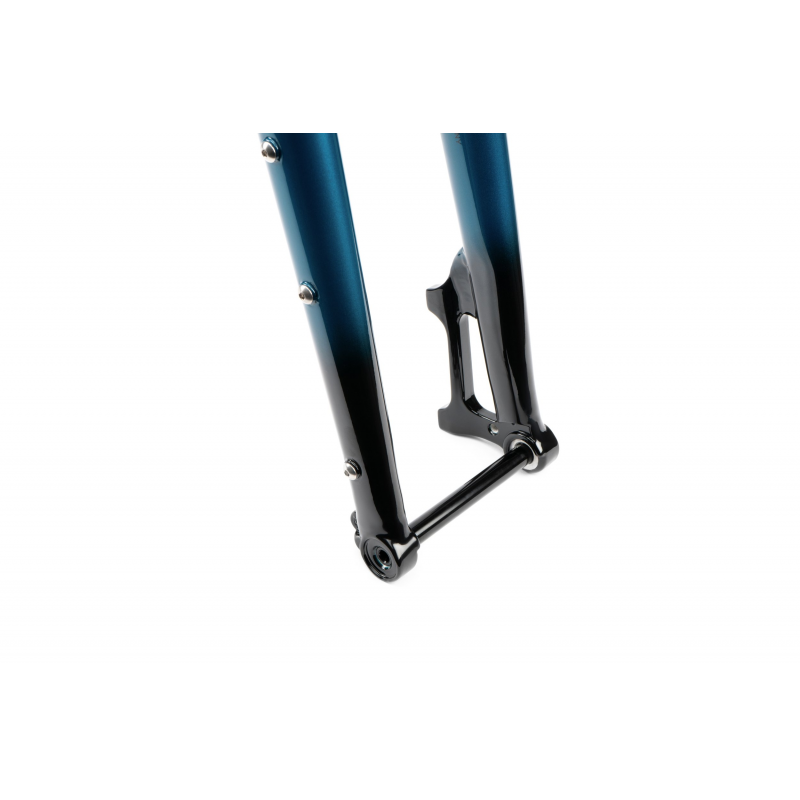

Fork

Material	6061 aluminium
Axle	TA (thru-axle)
Steerer	Tapered 1.1/2'' – 1.1/8''
Mounts	Fender / rack mounts + triple cage mounts
Cable routing	Internal routing for hub dynamo cable

Claimed weights

Frame	2145 g (size M, incl. TA, bolts, seat clamp, hanger)
Fork	1000 g (300 mm steerer, incl. TA)

Build information

Item	Specification
BB standard	`T47` — 86.5 mm shell width
Headset standard (S.H.I.S.)	`IS42 / 28.6` \| `IS52 / 40`
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance (no fender)	27.5'' × 2.25'' or 29'' × 2.1''
Frame max tire clearance (no fender)	Size S: 27.5'' × 2.25'' — Sizes M–L: 29'' × 2.25''
Max chainring clearance (1x)	36T with 50 mm chainline
Max chainring clearance (2x)	40/28T with 50 mm chainline
Seatpost diameter	31.8 mm
Seat clamp diameter	34.9 mm
Front derailleur clamp diameter	34.9 mm
Front derailleur compatible	Yes
Front brake mount	`PM` 6'' (Post Mount)
Rear brake mount	`FM` 140 / 160 (Flat Mount)
Max rotor (front)	203 mm
Max rotor (rear)	160 mm
Front thru-axle	12×100 mm, 1.5 thread pitch
Rear thru-axle	12×142 mm, 1.5 thread pitch
Bike trailer approved	Approved
Seat tube mounted child seat	No
Derailleur hanger	`BT-DH-018`
Frame small parts	`BT-CR-007`
Front thru-axle (part code)	`BT-TA-F-603`
Rear thru-axle (part code)	`BT-TA-R-601`

Tire clearance note: values are stated “without fenders”. With fenders installed, usable clearance can be smaller depending on the fender model and tire tolerances.

Geometry & size guide

Measurement	S	M	L	XL
Wheel size	27.5''	29''	29''	29''
Seat Tube Length	440	480	520	560
Horizontal TT length	546	567	597	626
Seat Angle	74°	74°	74°	74°
Head Angle	70°	70.5°	70.5°	70.5°
Headtube Length	140	160	200	230
BB Drop	60	74	74	74
Chainstay Length	420	445	445	445
Fork Offset	53	53	53	53
Trail	70	75	75	75
Wheelbase Length	1040	1077	1109	1140
Standover	775	821	859	893
Reach	382	394	413	434
Stack	569	604	642	670
Front Center	627	642	674	705
Axle to Crown	420	420	420	420
Minimum rider height*	1600	1700	1790	1880
Maximum rider height*	1710	1810	1900	1990

Final sizing notes (the “usual” ones):

Height ranges (*) are indicative: inseam, torso/arm proportions, flexibility, and riding style matter a lot.
Reach + stack define your position: a more “racy” setup often prefers longer reach / lower stack; a comfort/travel setup often prefers higher stack and a shorter cockpit.
Standover: keep a safety margin—especially for travel/off-road use and stop-start handling.
Fit adjustments (stem length/angle, spacers, saddle setback, bar rise) help fine-tune but don’t replace the correct frame size.
If you’re between sizes: smaller = more nimble/compact; bigger = more stable and roomier for long rides.

Size advice: info@bikejamming.it.
