Data sheet
| Frame | Corsa |
| Wheel Size | 700c |
More info

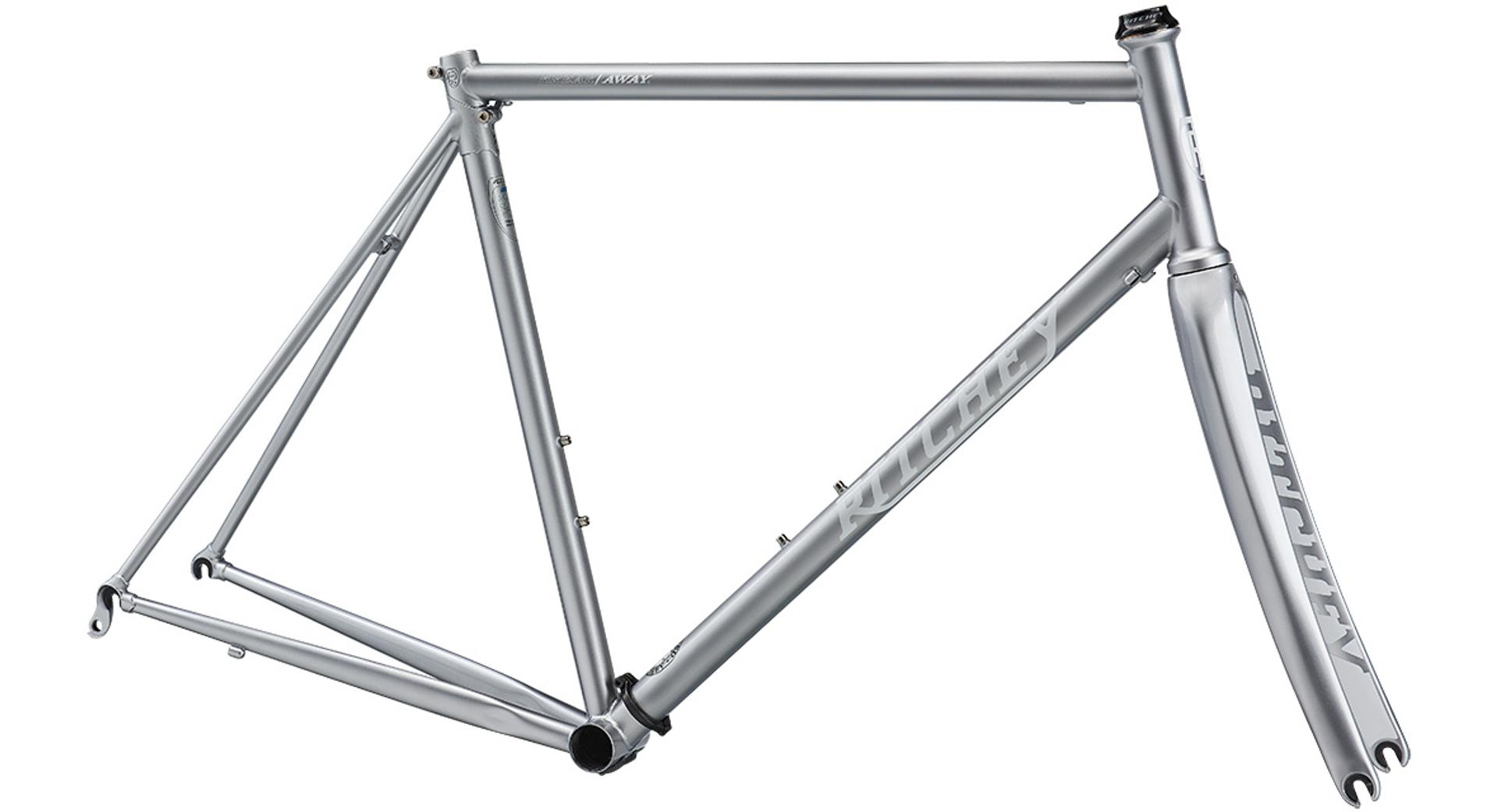

Ritchey Break-Away Road Logic – Frameset
The Ritchey Break-Away Road Logic is a steel road frameset with included carbon fork and travel system, designed for riders who want to take their own road bike anywhere in the world without compromise. It combines the classic ride quality and durability of Ritchey Logic steel with the patented Break-Away® travel design, allowing the frame to split into sections that fit into the included travel case—without sacrificing geometry, alignment or on-road performance.
This isn’t a gravel or adventure bike adapted to travel; it’s a true road-oriented frameset conceived from the outset to be both pedaled on real roads and transported with confidence.
Why Break-Away Road Logic Matters
For many riders, the biggest barrier to flying with a road bike is logistics: awkward boxes, high fees, damage risk. The Break-Away Road Logic solves that with a purpose-designed frameset and case that make travel straightforward while preserving the ride feel and handling expectations of a road bike.
Steel remains a favourite for endurance and long-distance road use thanks to its predictable, forgiving ride and resilience over time. By pairing this with the Break-Away system, Ritchey gives riders a package that performs like a traditional road frame but travels like a purpose-built travel solution.
Technical Specifications
FRAME
| Item | Specification |
|---|---|
| Material | Heat-treated, triple-butted Ritchey Logic steel |
| Construction | TIG welded |
| Head tube | Straight 1-1/8", forged and machined |
| Finish | ED Coat (Electrophoretic Deposition) corrosion resistance |
| Seat clamp diameter | 28.6 mm (2.5 Nm max for derailleur clamps and chain guides) |
| Seatpost diameter | 27.2 mm with integrated seat collar (max torque 6 Nm) |
| Bottom bracket | BSA 68 mm – English threaded |
| Drivetrain | Road crank compatibility |
| Crankset min/max | 46/30T to 53/39T |
| Bottle cage mounts | 2 |
| Wheel attachment | Quick Release front and rear |
| Cable routing | External |
| Headset | WCS included (upper IS42/28.6 – 16 mm stack |

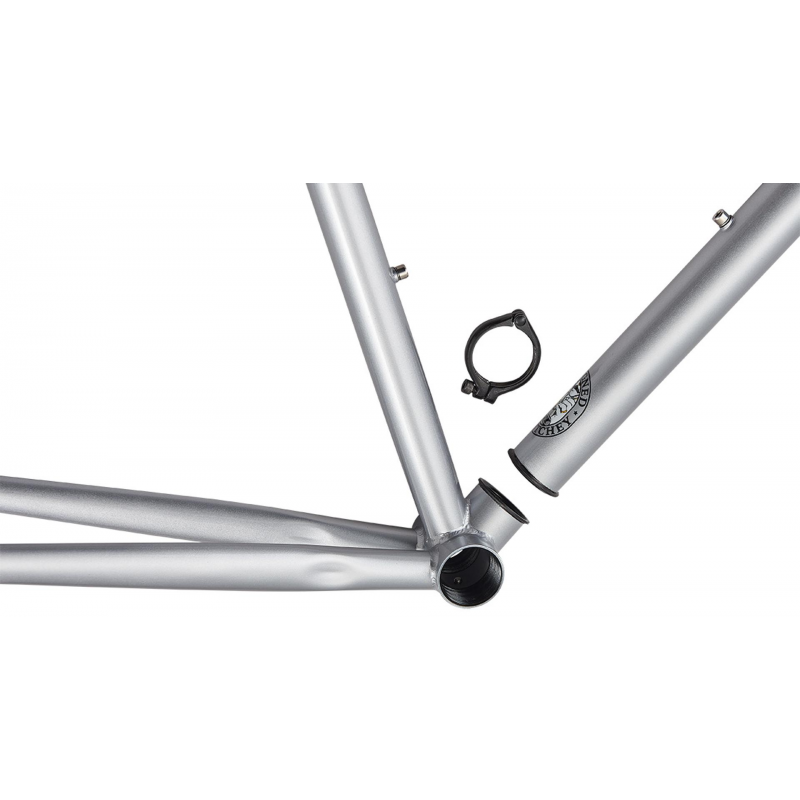

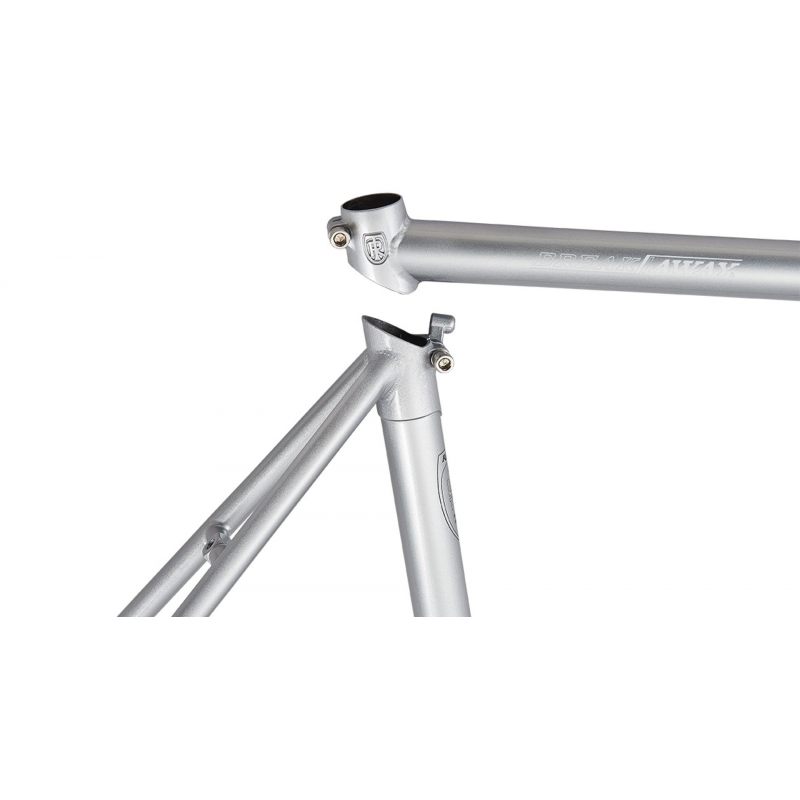

| Break-Away | Patented Ritchey Break-Away® design |
FORK
| Item | Specification |
|---|---|
| Model | Ritchey WCS Carbon Road Fork (included) |
| Steerer | Straight 1-1/8" with integrated 45° crown race |
| Steerer length | 300 mm |
| Axle-to-crown | 371 mm |
| Max spacers below stem | 30 mm |
WHEEL & TIRE COMPATIBILITY
| Item | Specification |
|---|---|
| Wheel size | 700c |
| Tyre clearance | Up to 700 × 30c (varies by tyre/rim manufacturer) |
| Frame spacing | 38 mm |
| Fork spacing | 40 mm |
DETAILS
| Item | Specification |
|---|---|
| Sizes | S / M / L / XL |
| Frame weight | 1,950 g (size L) |
| Fork weight | 380 g (uncut steerer) |
| Colour | Tule Fog |
| Break-Away downtube coupler torque | 5 Nm (do not lubricate clamp area) |

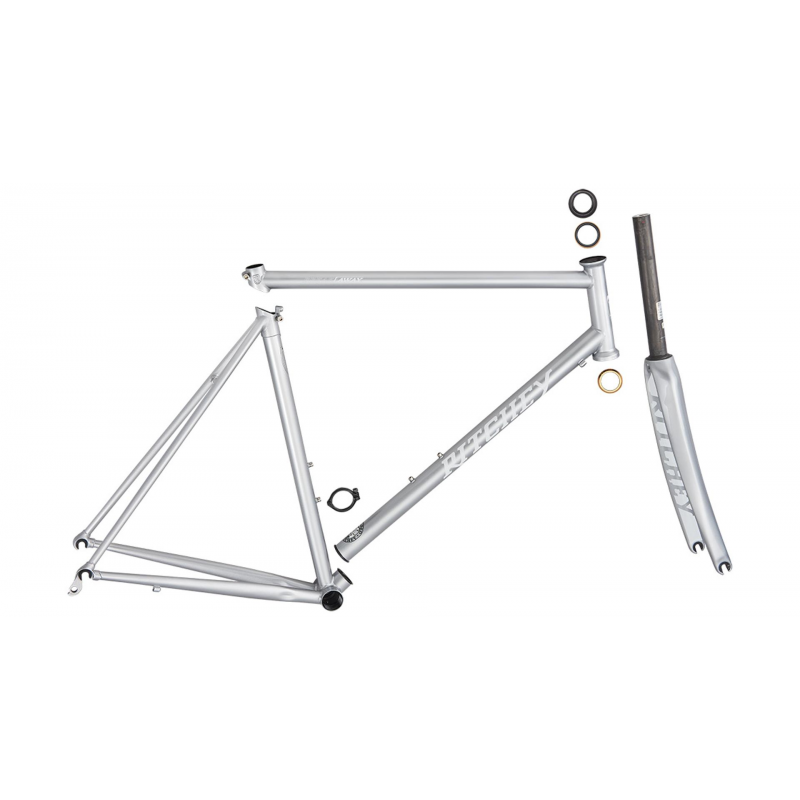

| Included hardware | Hinge clamp, rear brake cable connector, derailleur cable connectors |
| Travel case | Included |
| Travel case dimensions | 21.6 cm W × 67.3 cm H × 78.8 cm L (with wheels) |
Size Guide (general reference)
The following sizing is provided by Ritchey as a general guideline:
S: 157–170 cm
M: 168–178 cm
L: 175–186 cm
XL: 183–191 cm
At Bikejamming we offer tailored size and setup consultation based on height, inseam and riding preferences.
Parts, Headsets and Build Support
With the frameset purchase we can assist with:
compatible Ritchey components and headsets
full build guidance for groupset, wheels, brakes and travel setup
parts and spares selection based on your project
Why Buy From Bikejamming
Tracked shipping
Bilingual (Italian / English) support
Swift, knowledgeable responses
Real pre-purchase consultation on size, setup and compatibility
The Ritchey Break-Away Road Logic frameset is the choice for riders who want to take their road bike farther, travelling efficiently and riding with the performance and feel you expect from a classic steel road platform.
