Genesis Tarn Ti Frameset 2019


New

Genesis Tarn Ti Frameset 2018

More details

2 239,00 €

Free Shipping in Italy!

Add to wishlist

More info

Since size advice is free, why not tell us your height and inner leg length? Contact us at info@bikejamming.it.

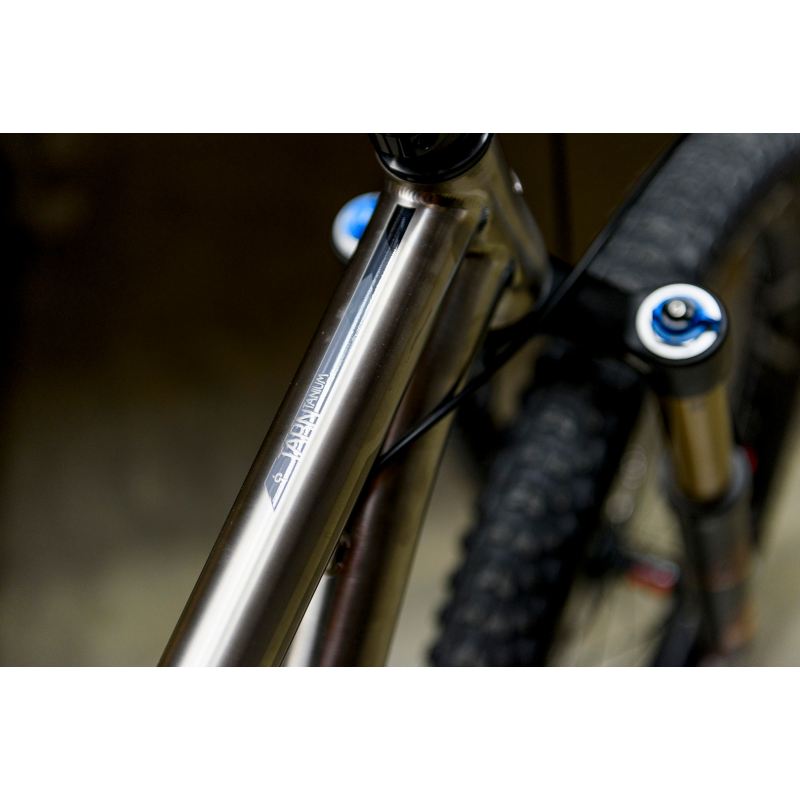

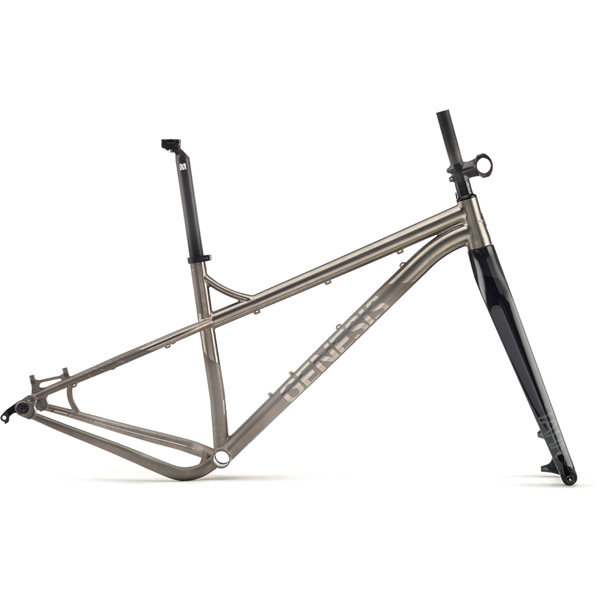

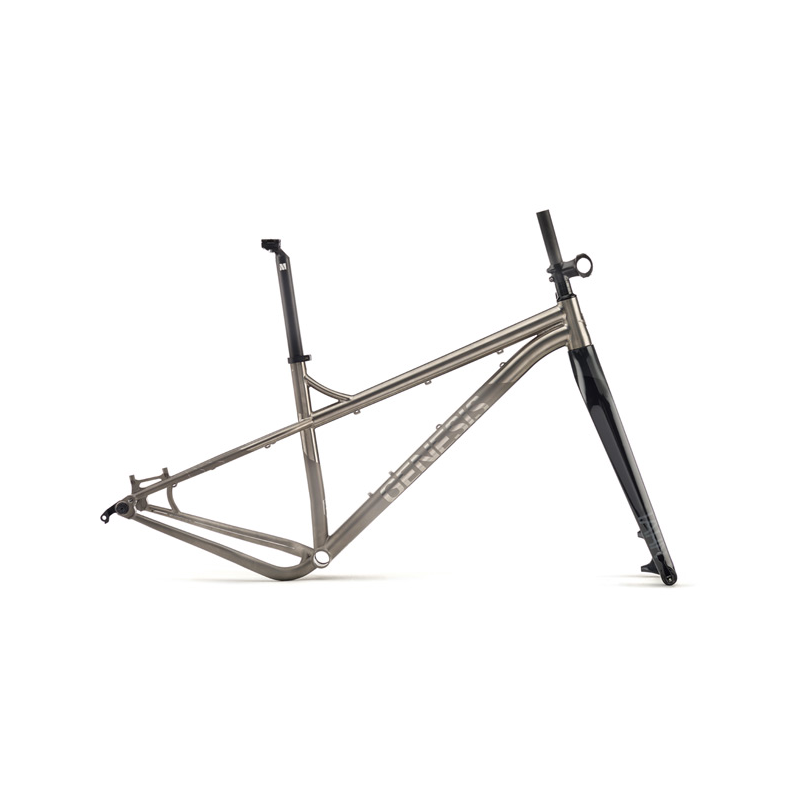

Genesis long 'n' low Tarn frameset in a super-sweet 3AL-2.5V titanium!

This beautiful example of a titanium Tarn code name: "Tarntanium" comes into the line-up for 2018. After many requests over the past two years Genesis now has the daddy of all 27.5+ frames. Spec it with either 27.5+ or standard 29" wheel/tyre combo for ultimate trail versatility. It'll happily take a top swing or side swing FD, comes with a shim for either a comfy 27.2mm rigid post or new-fangled 31.6mm dropper along with a port for stealth dropper routing. A new 120mm suspension corrected, full carbon fork. It has boost spacing front and rear (110x15/148x12mm) and a lightweight bolt up type rear axle. Both Shimano direct and old type hangers are included along with a sealed bearing headset to round up the carefully considered details.

TECH SPEC

Frame

3AL-2.5V Double-Butted Titanium

Fork

Full Carbon 27.5+ Fork, Tapered Steerer, 110mm x 15mm

Headset

PRESTINE PT-1860

Shifters

N/A

Rear Derailleur

N/A

Front Derailleur

34.9mm Band-on (not incl.)

Chainset

N/A

Bottom Bracket

BSA 73mm Boost (not incl.)

Chain

N/A

Cassette

N/A

Rims

N/A

Hubs

N/A

Spokes

N/A

Tyres

N/A

Brakes

N/A

Levers

N/A

Handlebars

N/A

Grips

N/A

Stem

N/A (not incl.)

Saddle

N/A

Seatpost

31.6mm (not incl.)

Pedals

N/A

Weight (Kg)

3.04 incl Collar/Headset/Front Axle/Rrear Axle

Extras

27.2mm seat post shim included / Spare Standard dropout Included / Rear Shimano Axle Included

GEOMETRY

FRAME SIZES

S

M

L

XL

1. Seat Tube Length

383

433

483

533

2. Horizontal Toptube Length

592

618

643

669

3. Reach

415

440

465

490

4. Stack

616

622

622

626

5. Headtube Length

100

105

105

110

6. Head Angle

67°

67°

67°

67°

7. Seat Angle

74°

74°

74°

74°

8. Chanstay Length

432

432

432

432

9. BB Drop

55

55

55

55

10. Wheelbase Length

1137

1164

1190

1216

11. Fork_offset

101

101

101

101

12. Fork_trail

52

52

52

52

13. Standover

758

755

779

801

14. Stem

-

-

-

-

15. Handlebar

-

-

-

-

16. Crankarm

-

-

-

-

*All length measurements are in mm
