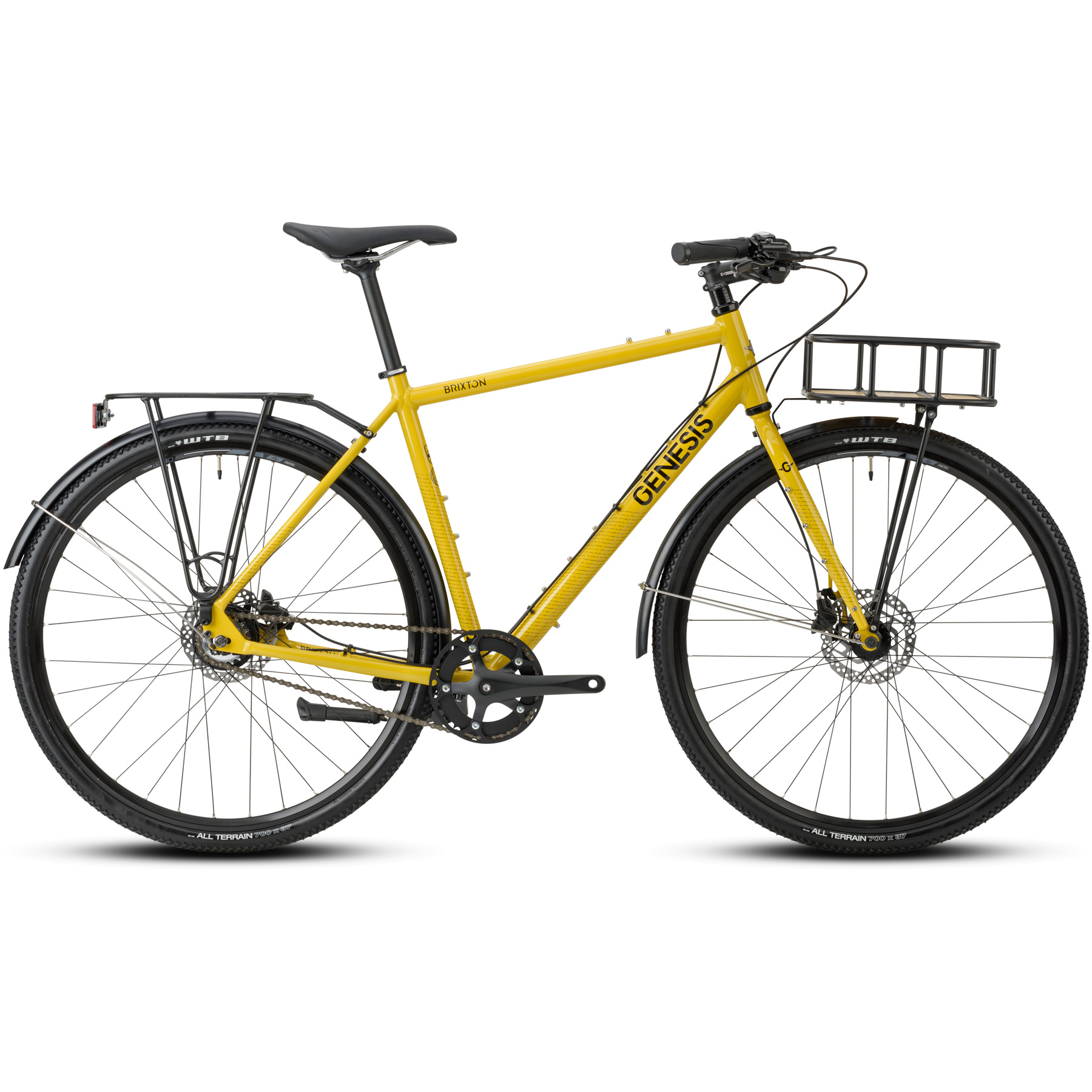

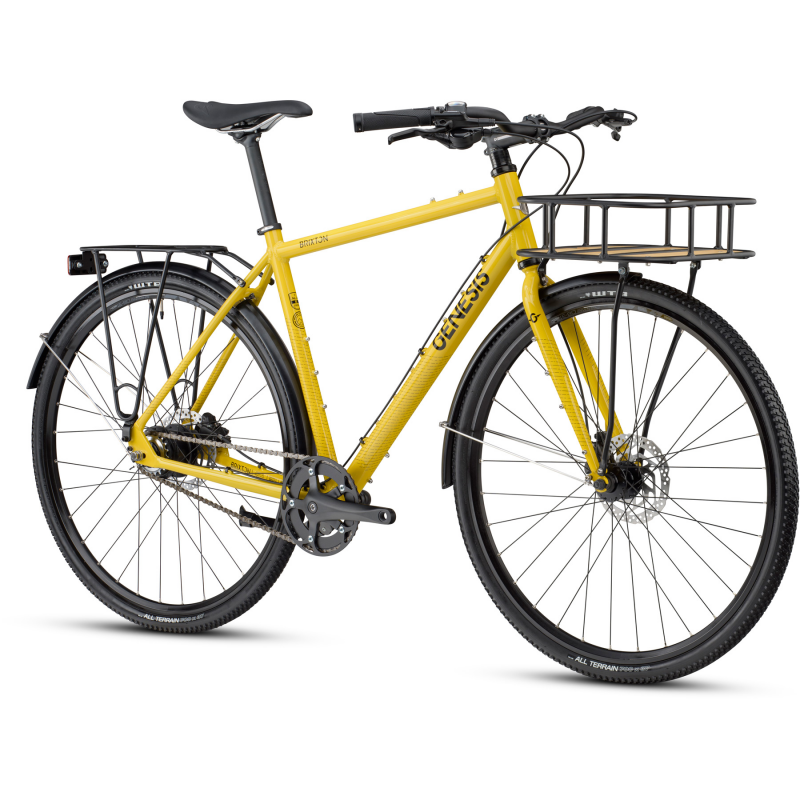

GENESIS 2022 Brixton

FEATURES

- New urban range based on the CDA frame.

- Multiple luggage mounting points.

- Shimano Nexus 8 speed hub gear.

- Shimano hydraulic disc brakes.

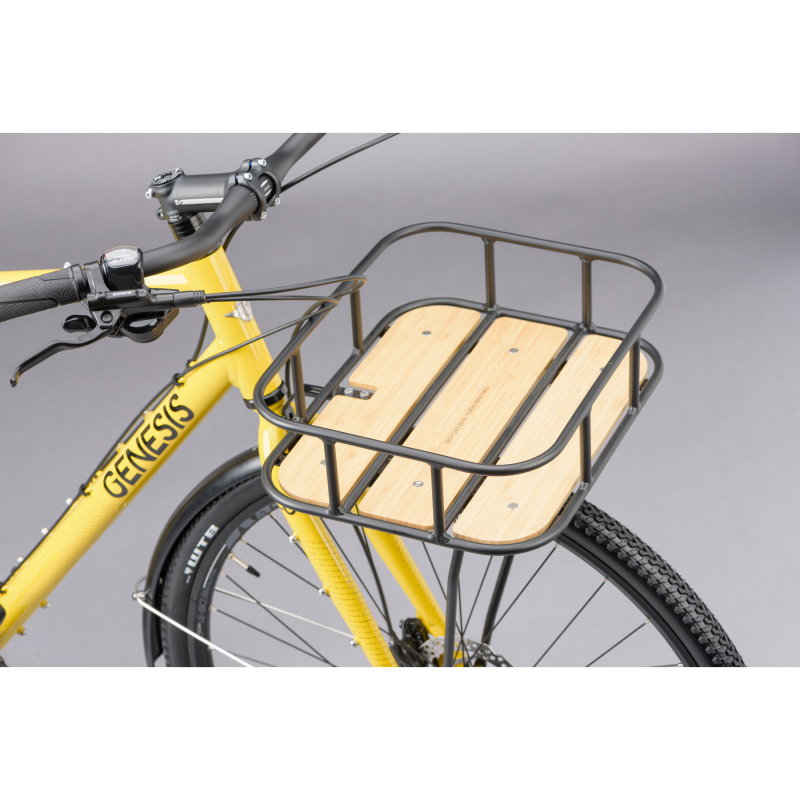

- Front and rear racks inclued.

- Robust aluminium mudguards.

SPECS

Frame ALX8 6066/6061-T6 Double-Butted Aluminium

Fork Genesis Chromoly Disc

Headset PT-1606 Upper EC34 / Lower EC34

Hanger N/A

Handlebars Genesis Alloy 46 Deg Backsweep, 32mm Rise, 630mm

Stem Genesis Alloy -7 Deg, 90mm

Grips/ Tape Genesis Lock On

Saddle Genesis Adventure

Seatpost Genesis Alloy 27.5mm x 350mm

Pedals NW-303

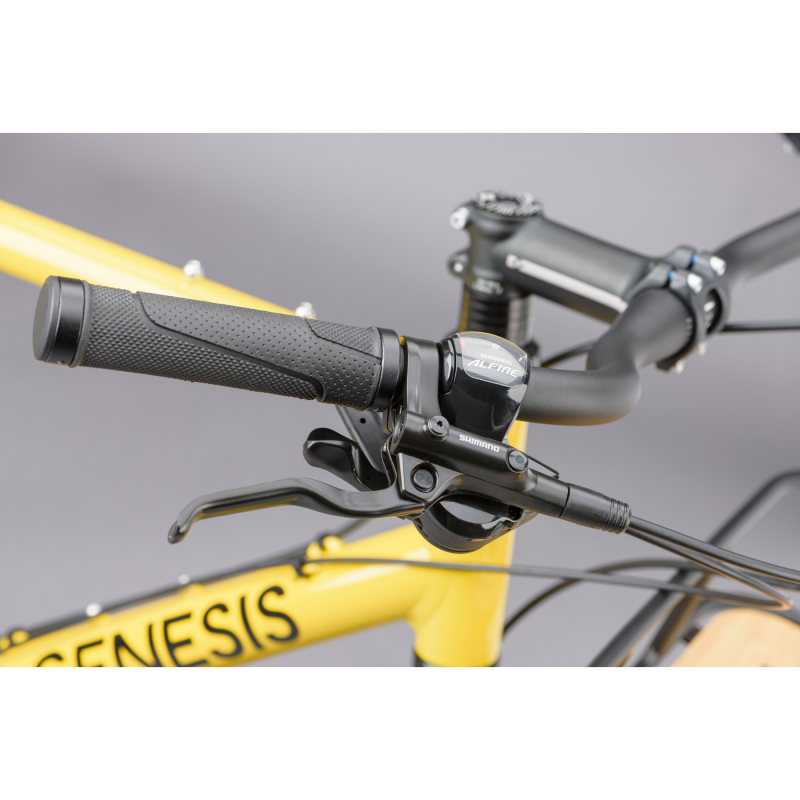

Shifters Shimano Nexus SL-7S50

Rear Derailluer N/A

Front Derailluer N/A

Chainset Samox AF13, 42t, XS = 165mm, S/M/L/XL = 170mm

BB Cartridge, 68x127.5mm

Chain KMC Z1

Cassette Shimano SM-Gear 20t

Brakes Shimano BR-MT200

Brake Levers Shimano BL-MT200

Rotors Shimano SM-RT26, 160mm, 6 Bolt

Rims Shining DB-31 32h

Hubs Front KT-K88F / Rear Shimano Nexus SG-C6001-8D 8spd

Spokes Steel 14g

Tyres WTB All Terrain 700x37c

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 14.9kg

Frame Weight Limit: No Weight Limit

Fork Steerer Size 1 1/8”

Wheel Size Options 650b x 47

Max Tyre Clearance 700 x 37

Hub Size/ Spacing Front 100mm, Rear 135mm

Brake Mount Type IS160

Front Mech Size/ Compatibility n/a

Max Chainring Size 42t

Seat Tube/Clamp Size 27.2mm/31.8mm

Mech Hanger Type & Part Code n/a

Colour Elvis Costyellow

Colour Code RAL 085 70 75

MOUNTS

Mudguard Mounts: Yes

Rack Mounts: Yes

Bottle Cage Mounts: Yes

Additonal Mounts: Anything Cage Mounts

GEOMETRY XS S M L XL

Seat Tube 470 500 530 550 580

Top Tube 524 544 561 582 605

Frame Reach 365 375 385 395 405

Frame Stack 553 572 593 612 633

Head Tube 115 135 155 175 195

Head Angle 71 71 71.5 71.5 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 430 430 430 430 430

BB Drop 73 73 73 73 73

Wheelbase 1007 1023 1035 1052 1063

Fork Offset 50 50 50 50 50

Standover 761 784 808 826 850

Stem 90 90 90 90 90

Handlebar 630 630 630 630 630

Crankarm 165 170 170 170 170
