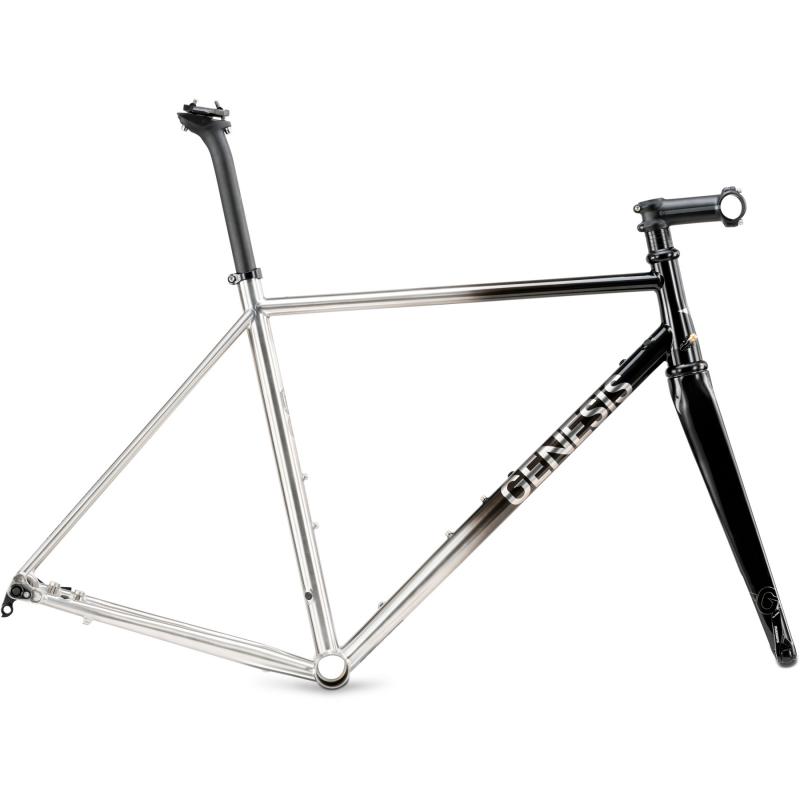

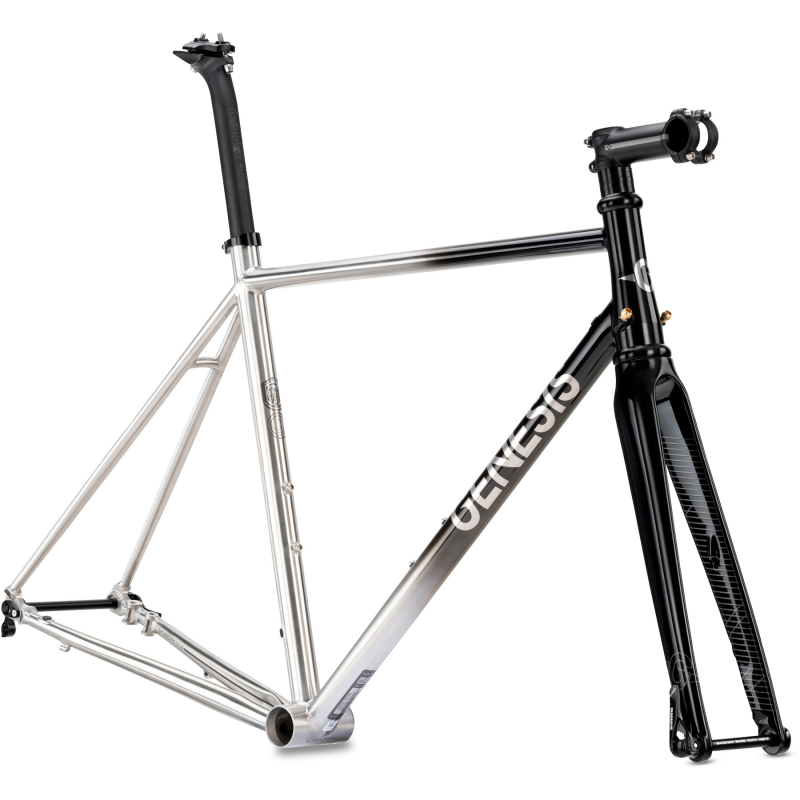

GENESIS 2022 Volare 931 Disc Telaio + Forcella

FEATURES

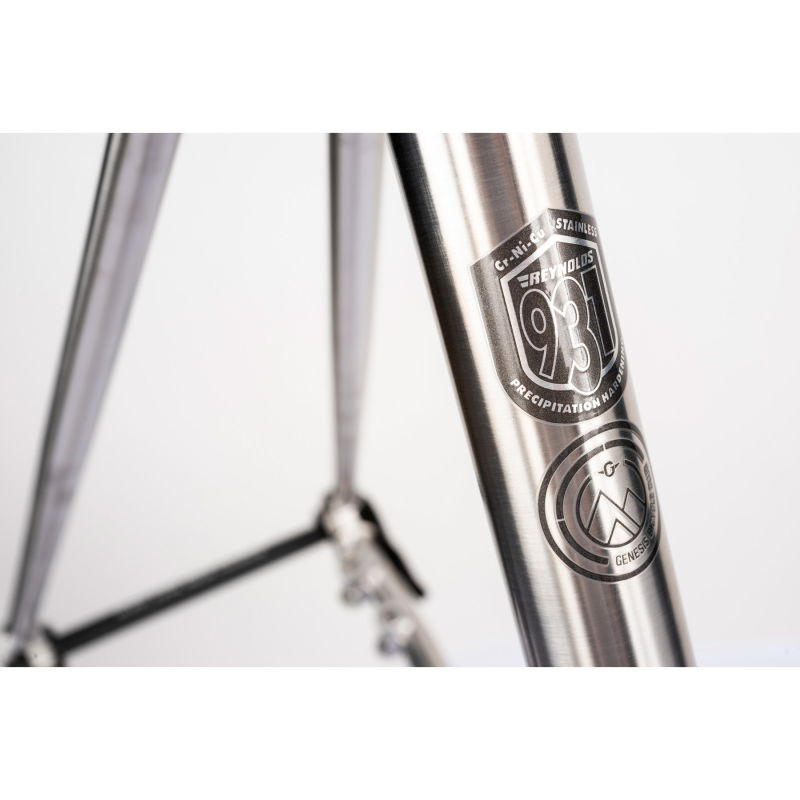

- Reynolds 931 stainless tubeset.

- Full carbon fork.

- 12mm axle standard.

- Di2 compatible.

- Headset, seat collar and axles included.

SPECS

Frame Reynolds 931 Steel

Fork Genesis Carbon Road Disc

Headset F17A 1 1/8" - 1 1/5"

Hanger GNSPR40002

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 2.41kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8” - 1 1/5”

Wheel Size Options n/a

Max Tyre Clearance 700 x 28

Hub Size/ Spacing n/a

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility Band On 31.8mm

Max Chainring Size 53/39

Seat Tube/Clamp Size 27.2mm/29.8mm

Mech Hanger Type & Part Code Replaceable - GNSPR40002

Colour Raw Sauce

Colour Code Polished Steel / RAL 9017

MOUNTS

Mudguard Mounts: Yes

Rack Mounts: n/a

Bottle Cage Mounts: Yes

Additonal Mounts: n/a

GEOMETRY XS S M L XL

Seat Tube 470 490 520 540 560

Top Tube 516 536 554 572 592

Frame Reach 365 375 385 395 405

Frame Stack 525 542 560 578 593

Head Tube 115 130 145 165 180

Head Angle 71.5 72 73 73.3 73.3

Seat Angle 74 735 73.5 73.25 72.5

Chainstay 405 407 407 410 410

BB Drop 72 72 70 68 68

Wheelbase 970 983 983 996 1011

Fork Offset 52 52 45 45 45

Standover 753 769 796 804 825
