Data sheet
| Frame | Road Endurance |
| Wheel Size | 700c |
More info
Timeless steel road design with a distinctive identity

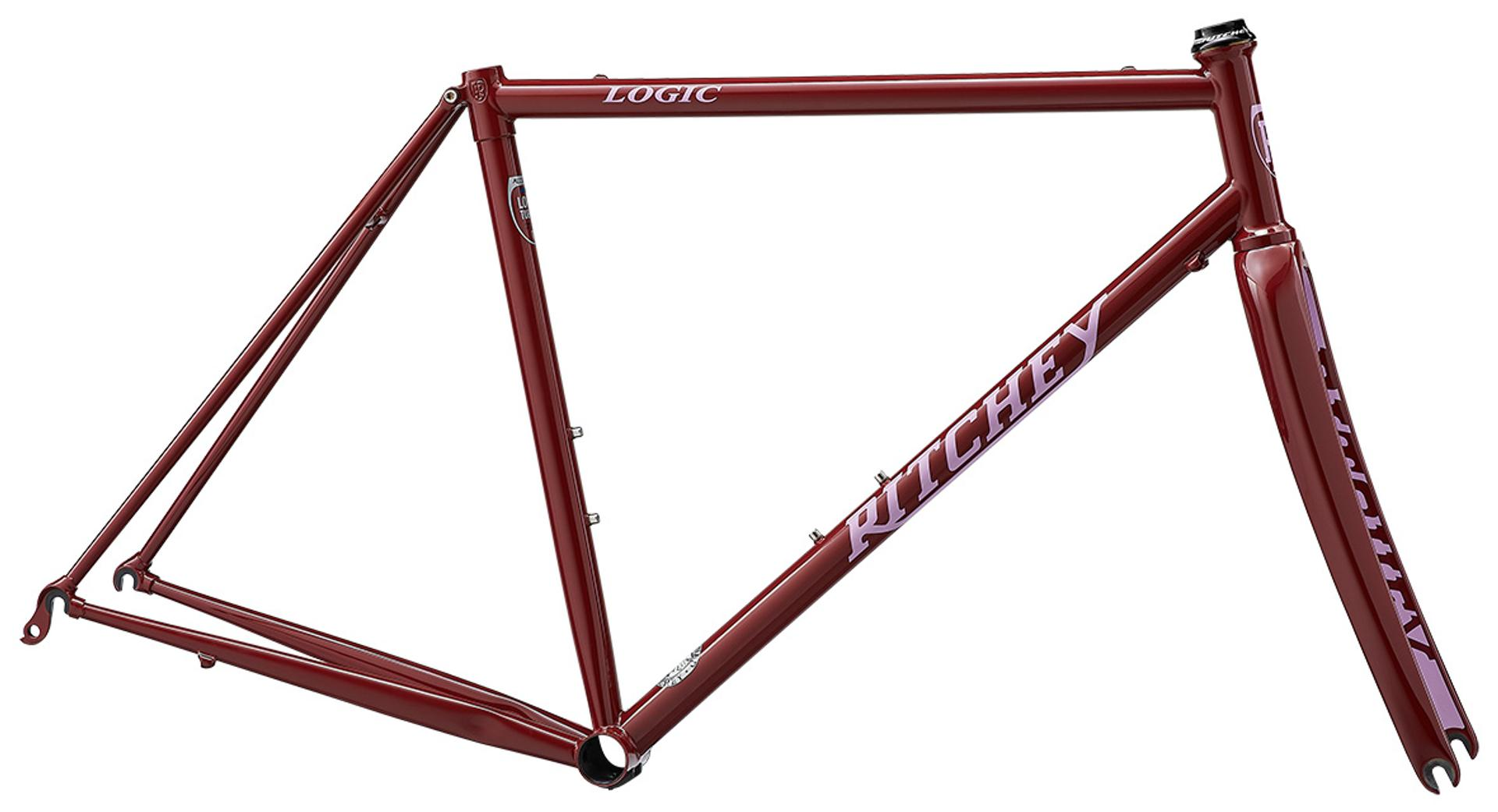

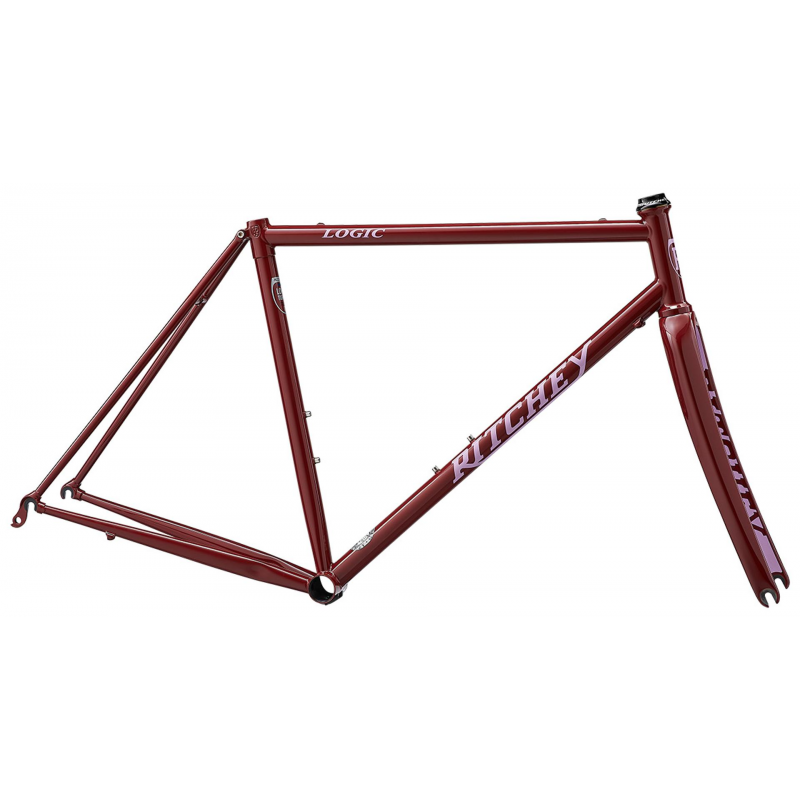

The Ritchey Road Logic in the Sally’s Macarons colorway represents the most iconic and expressive version of one of Ritchey’s longest-running steel road frames. While technically identical to the Anthracite version, this color option highlights the heritage and character of the Road Logic platform, blending classic aesthetics with modern road performance.
This is not a nostalgic “vintage” frame, but a contemporary steel road frameset designed for real-world riding: regular training, long-distance road use, endurance riding, and granfondo-style events. The Sally’s Macarons finish does not change the intended use of the frame, but reinforces its identity as a clean, purposeful, and durable road platform.
Frame: Road Logic philosophy and Ritchey construction
The frame is built from heat-treated, triple-butted Ritchey Logic steel tubing and TIG welded to Tom Ritchey’s specifications. An ED Coat (Electrophoretic Deposition) treatment improves corrosion resistance, making the frameset suitable for frequent road use and variable weather conditions.

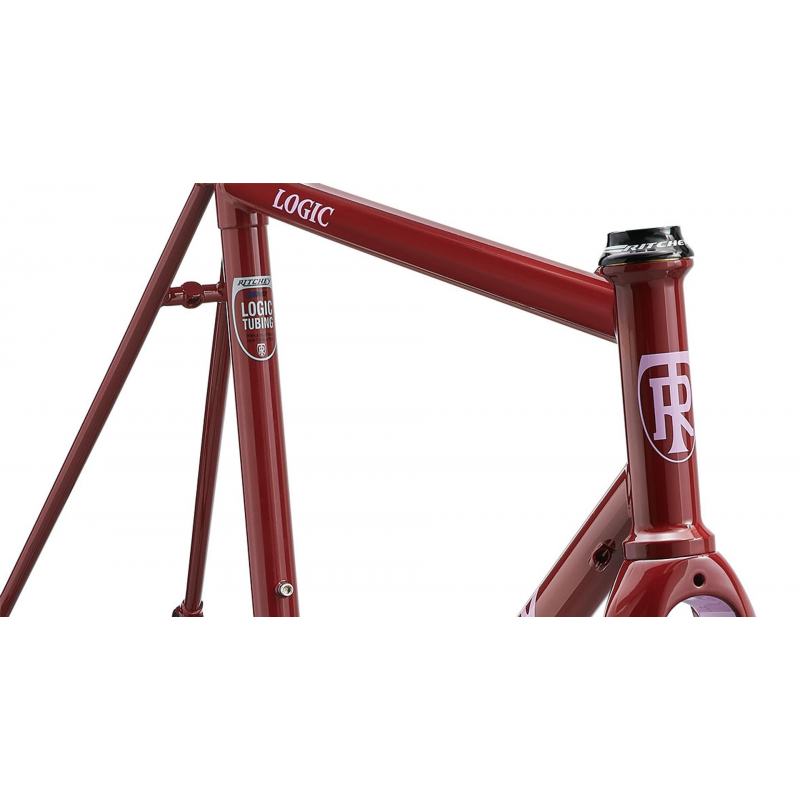

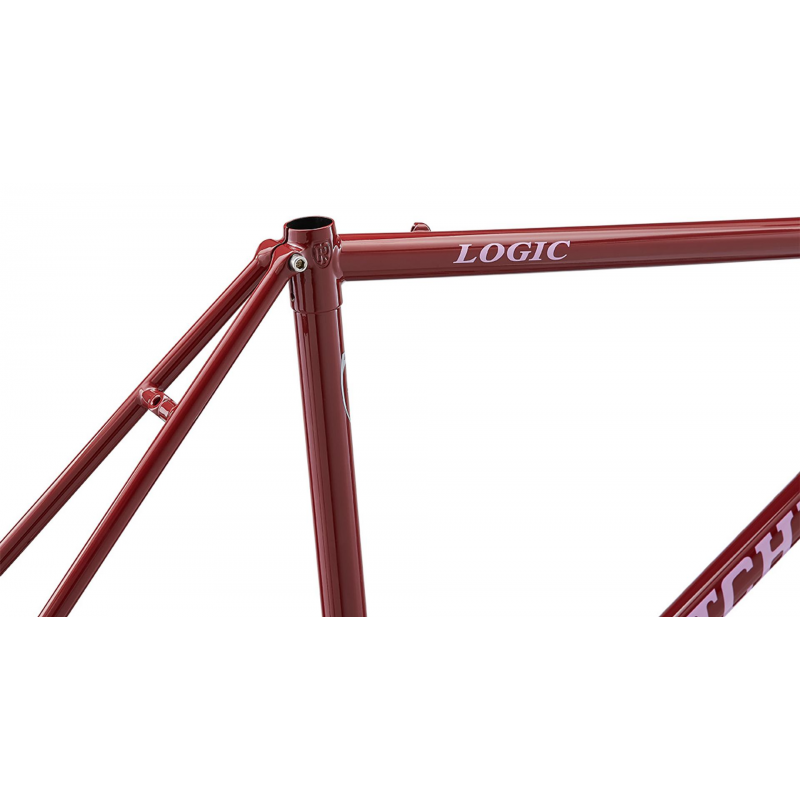

The straight 1-1/8" head tube is forged and machined, reflecting a clear design choice: prioritizing compatibility, long-term reliability, and ease of maintenance over complex or proprietary solutions. The integrated seat collar reduces external hardware and keeps the seat cluster clean and functional.
External cable routing is used throughout, aligning with the Road Logic concept: support for traditional mechanical drivetrains and straightforward servicing over time.
Fork: WCS carbon for road use
The frameset includes the Ritchey WCS Carbon Road Fork, featuring a straight 1-1/8" steerer with an integrated 45-degree crown race. The fork is designed specifically for road riding and complements the steel frame in terms of ride behavior.
As with carbon road forks of this type, it helps attenuate high-frequency road vibrations, working in combination with the steel frame. This is an inherent material characteristic and one of the reasons carbon forks are commonly paired with steel road frames, rather than a claim beyond the intended design.
Wheels, tires, and road setup
The Road Logic is designed around 700c wheels with tire clearance up to 30 mm. This allows for modern road setups that favor stability and efficiency over long distances while remaining firmly within a pure road riding scope.
Actual tire clearance always depends on the specific tire and rim combination used. When planning a build, we recommend considering real mounted tire widths, particularly when using rims with wider internal widths.
Geometry and size selection
The Road Logic geometry is balanced and road-focused. It is neither extreme nor aggressive, prioritizing stability, predictability, and a sustainable riding position for long hours in the saddle.
The platform works well for endurance-oriented road setups but can be tuned toward a more classic, sport-focused feel through component choice and fit, without turning into a pure race bike.
General size guidelines (Ritchey reference)
49: 152–160 cm
51: 157–165 cm
53: 163–173 cm
55: 170–180 cm
57: 179–185 cm
59: 183–191 cm
These guidelines are indicative only. No two riders are identical.
For a personalized size consultation, send us your height and inseam: we reply within 24 hours and can compare geometries with a bike you already ride.
TECHNICAL SPECIFICATIONS
Frame
| Item | Specification |
|---|---|
| Material | Heat-treated, triple-butted Ritchey Logic steel tubing, TIG welded |
| Head tube | Straight 1-1/8", forged and machined |
| Corrosion treatment | ED Coat (Electrophoretic Deposition) |
| Seat tube clamp size | 28.6 mm (max 2.5 Nm for derailleur clamps and chain guides) |
| Seatpost diameter | 27.2 mm with integrated seat collar (max torque 6 Nm) |

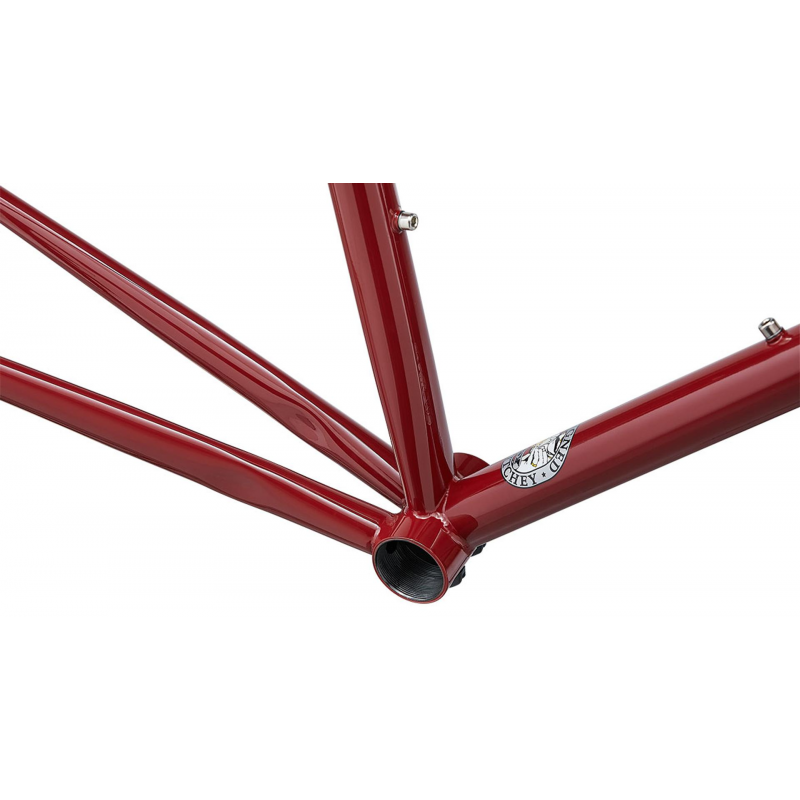

| Bottom bracket | 68 mm, English threaded (BSA) |
| Chainring compatibility | 46/30 to 53/39 |
| Chainline | 44 mm |
| Bottle cage mounts | 2 |
| Wheel system | Standard quick release front and rear |
| Cable routing | External |
| Headset included | Ritchey WCS (upper IS42/28.6 – 16 mm stack height | lower IS42/30) |
Fork
| Item | Specification |
|---|---|
| Included fork | Ritchey WCS Carbon Road Fork |
| Steerer | Straight 1-1/8" with integrated 45-degree crown race |
| Steerer length | 300 mm |
| Axle-to-crown | 371 mm |
| Rake / Offset | 46 mm (sizes 49 / 51 / 53) – 43 mm (sizes 55 / 57 / 59) |
| Max spacers below stem | 30 mm |
Wheel and tire compatibility
| Item | Specification |
|---|---|
| Wheel and tire size | 700 x 30c |
| Frame spacing | 38 mm |
| Fork spacing | 40 mm |
Details
| Item | Specification |
|---|---|
| Available sizes | 49 / 51 / 53 / 55 / 57 / 59 cm |
| Frame weight | 1,750 g (size 55) |
| Fork weight | 380 g (uncut steerer) |
| Color | Sally’s Macarons |
Why buy from Bikejamming
Tracked express shipping across Europe
Bilingual support (IT / EN)
Fast, real responses
Pre-purchase consultation on sizing, compatibility, and build choices
Compatible Ritchey spare parts and headsets can be supplied upon request with the frameset. Contact us for details.
