Reduced price! GENESIS Fugio 20

Display all pictures

GENESIS Fugio 20

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

Data sheet

Frame	Gravel / Bikepacking Ready
Wheel Size	700C/27.5"

More info

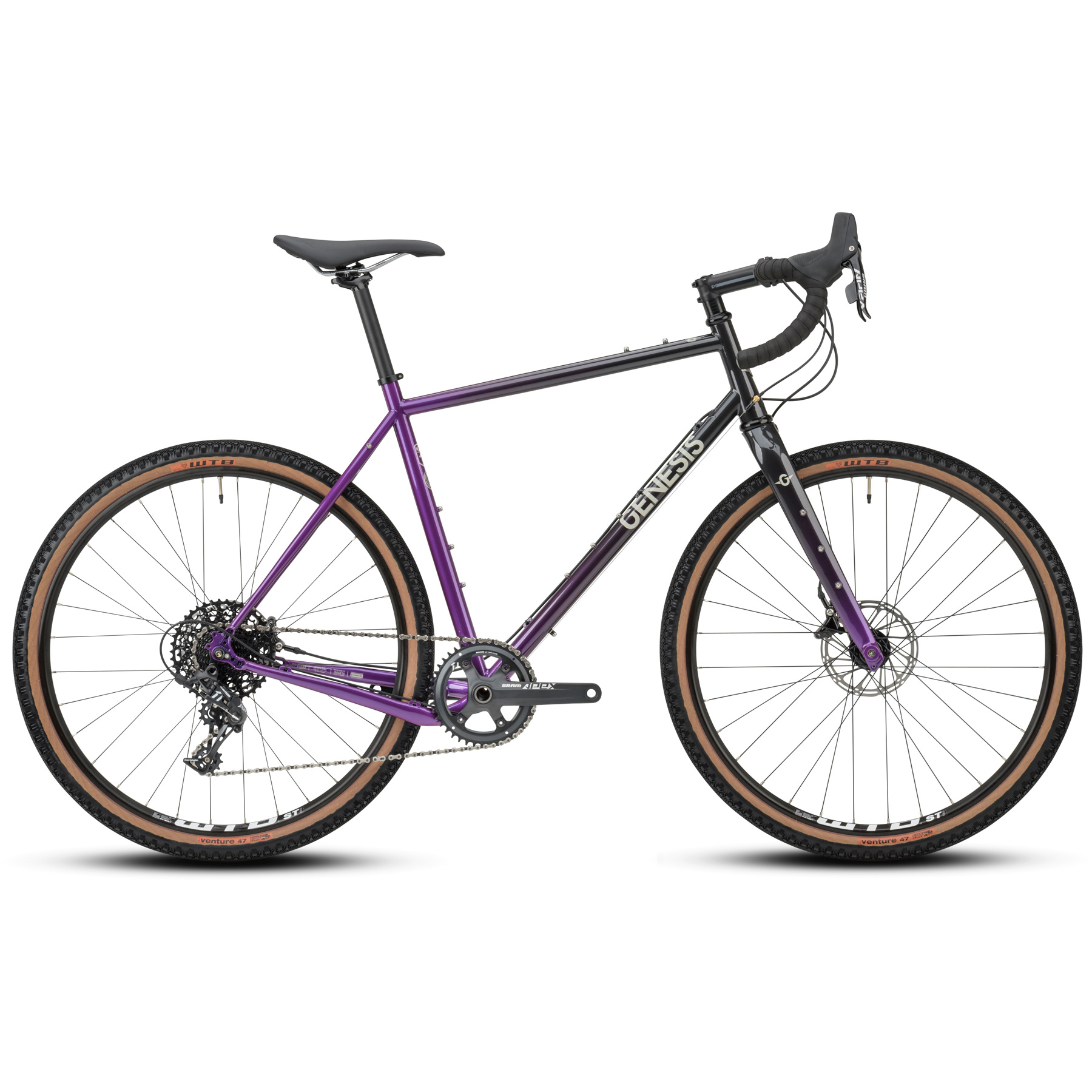

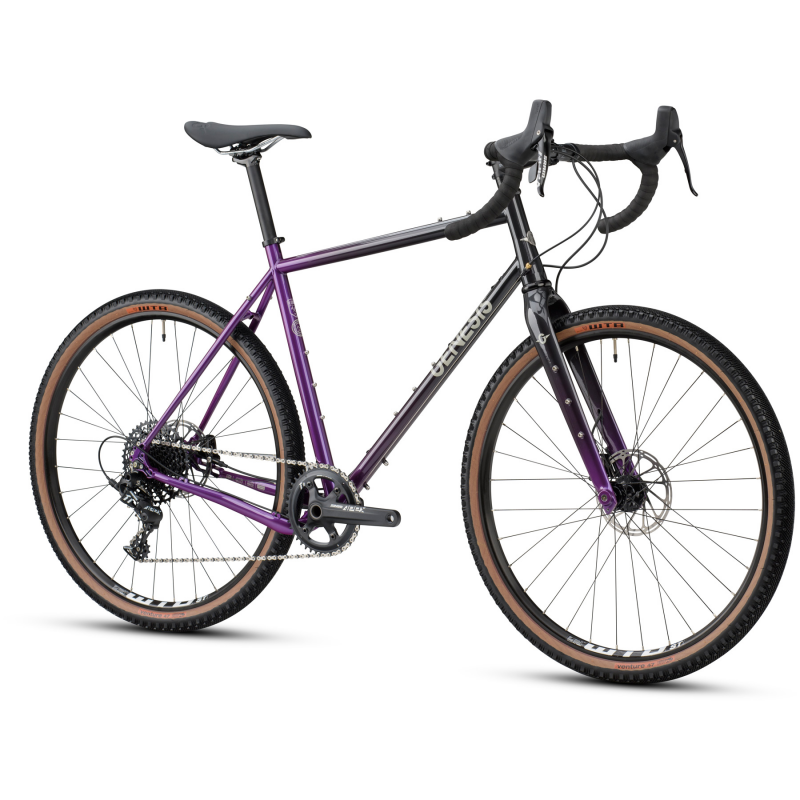

Genesis Fugio 20 – gravel adventure bike

The Genesis Fugio 20 is a drop-bar bicycle designed for gravel and adventure riding, intended for mixed surfaces, rough tracks and off-road routes.

It is built around the Genesis Mjolnir seamless double-butted chromoly steel frame, paired with a Carbon Road Plus fork. The stock configuration uses 650B wheels with high-volume tyres, while the frame is also compatible with 700C wheels, allowing alternative setups.

Key features (manufacturer stated)

Genesis Mjolnir Seamless Double-Butted Chromoly frame
Carbon Road Plus fork with tapered steerer 1 1/8” – 1 1/2”
SRAM Apex 1x11 drivetrain
SRAM Apex hydraulic disc brakes, 160 mm rotors
650B wheelset with high-volume gravel tyres
Mounts for mudguards, rear rack and bottle cages
Additional Anything Cage mounts
Internal routing with dynamo compatibility
12 mm thru-axles, front and rear

Wheel and tyre compatibility

650B: up to 60 mm
700C: up to 40 mm

Intended use

The Fugio 20 is configured for gravel and adventure riding on mixed terrain.
The 1x drivetrain with an 11–42T cassette provides a wide gear range for off-road climbs and road transitions.

Pre-order support

Frame size, wheel choice and tyre selection directly affect the final setup.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications (manufacturer translation)

Frame & fork

Frame: Genesis Mjolnir Seamless Double-Butted Chromoly
Fork: Carbon Road Plus, tapered alloy steerer 1 1/8” – 1 1/2”
Headset: Genesis tapered 1 1/8” – 1 1/2”, EC34 / EC44
Rear derailleur hanger: Replaceable – GNSPR40002
Warranty: Lifetime on frame and fork

Drivetrain

Shifters: SRAM Apex 1x, 11-speed
Rear derailleur: SRAM Apex 1x, long cage

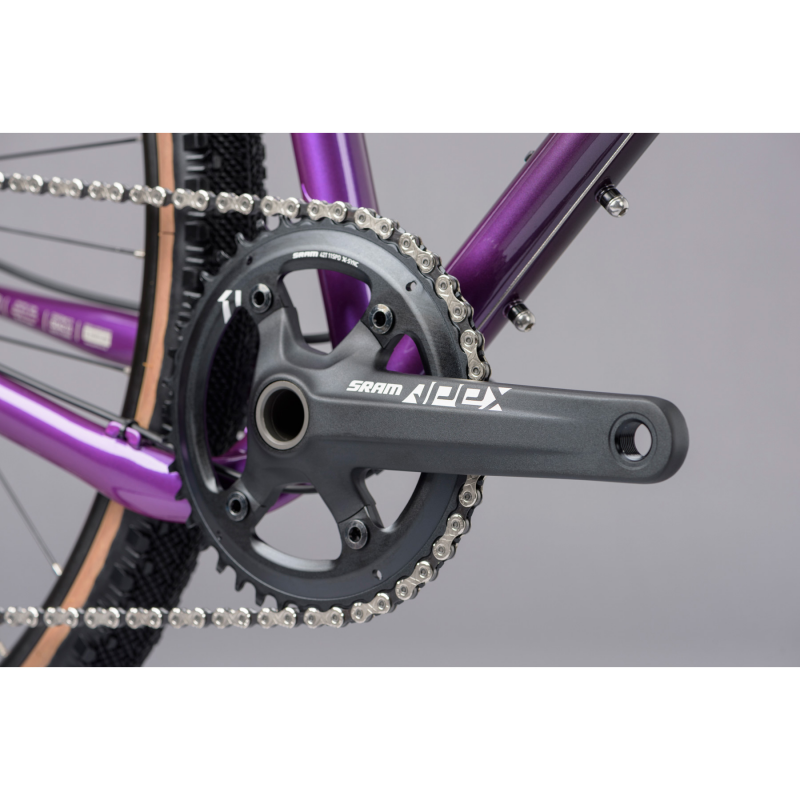

Crankset: SRAM Apex 1 X-SYNC, 42T
- XS: 170 mm
- S–M: 172.5 mm
- L–XL: 175 mm
Bottom bracket: SRAM DUB 68 mm
Cassette: SRAM PG1130, 11–42T
Chain: KMC X11

Brakes

Brakes: SRAM Apex hydraulic disc
Rotors: 160 mm
Brake mount: Flat Mount 140

Wheels & tyres

Rims: Jalco XM490, 32H
Hubs: Formula RX812F (front) / RX-300R (rear), 6-bolt, 12 mm axles
Spokes: Stainless steel 14G
Tyres: WTB Venture TCS, 650×47c

Components

Handlebar: Genesis Alloy, 16° flare
- XS: 420 mm
- S/M: 440 mm
- L: 460 mm
- XL: 480 mm
Stem: Genesis AS-007, ±7°, 100 mm
Bar tape: Velo Black Cork with Vexgel
Seatpost: Genesis Alloy 27.2×350 mm
Saddle: Genesis Road Comfort

Standards & compatibility

Hub spacing: 100 mm front / 142 mm rear
Seatpost diameter: 27.2 mm
Seat clamp diameter: 31.8 mm
Front derailleur mount: Band-on 28.6 mm
Max chainring size: 50/34, 42T

Mounts

Mudguard mounts: Yes
Rack mounts: Yes
Bottle cage mounts: Yes
Additional mounts: Anything Cage

Geometry (mm)

Size	XS	S	M	L	XL
Seat Tube	470	500	530	550	580
Top Tube	535	551	567	583	598
Reach	365	375	385	395	405
Stack	556	575	594	613	631
Head Tube	125	145	165	185	205
Head Angle	70.5	70.5	70.5	70.5	70.5
Seat Angle	73	73	73	73	73
Chainstay	425	425	425	425	425
BB Drop	65	65	65	65	65
Wheelbase	1012	1029	1045	1062	1077
Fork Offset	50	50	50	50	50
Standover	756	779	801	820	843
