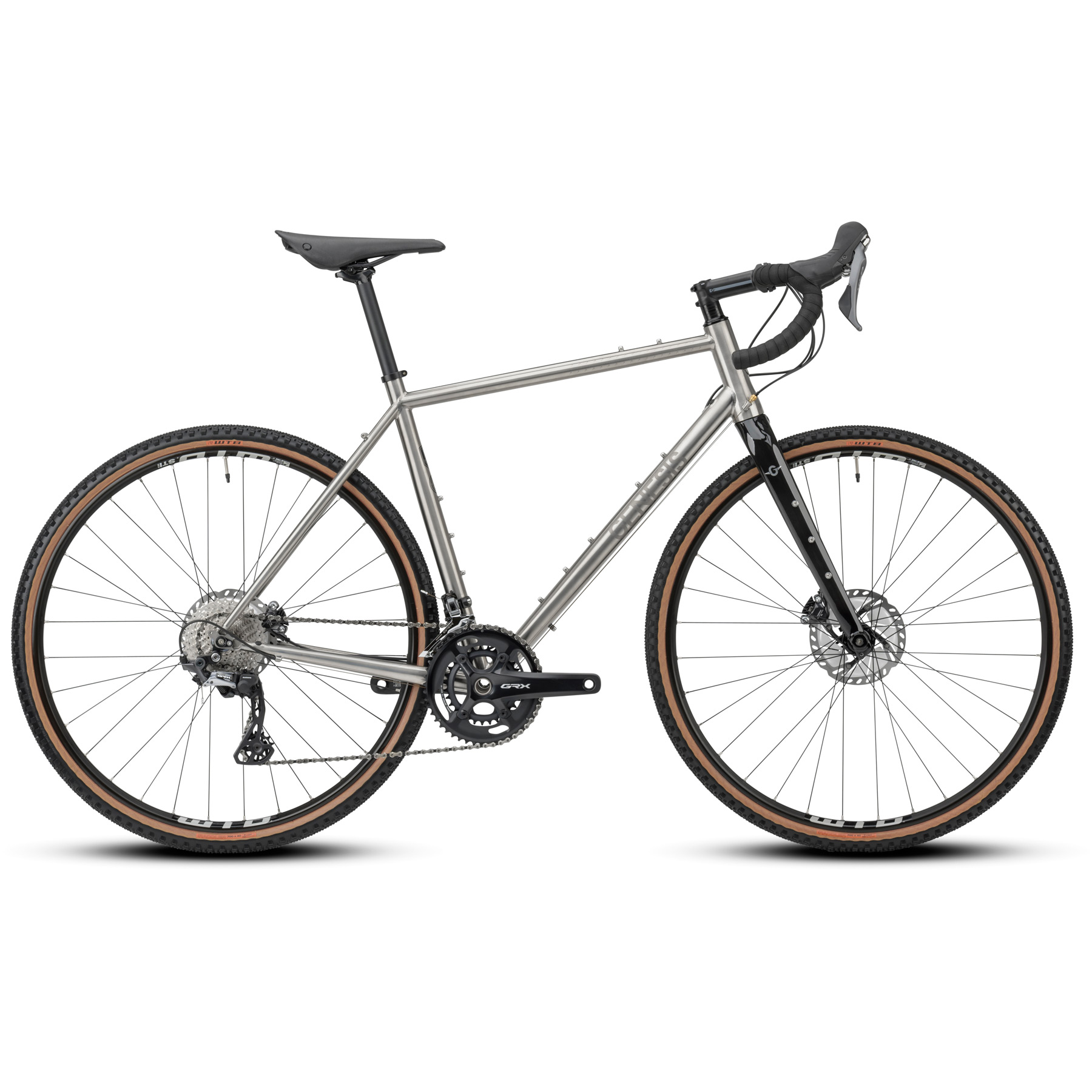

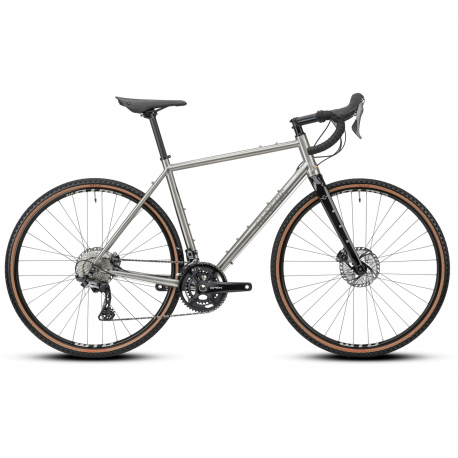

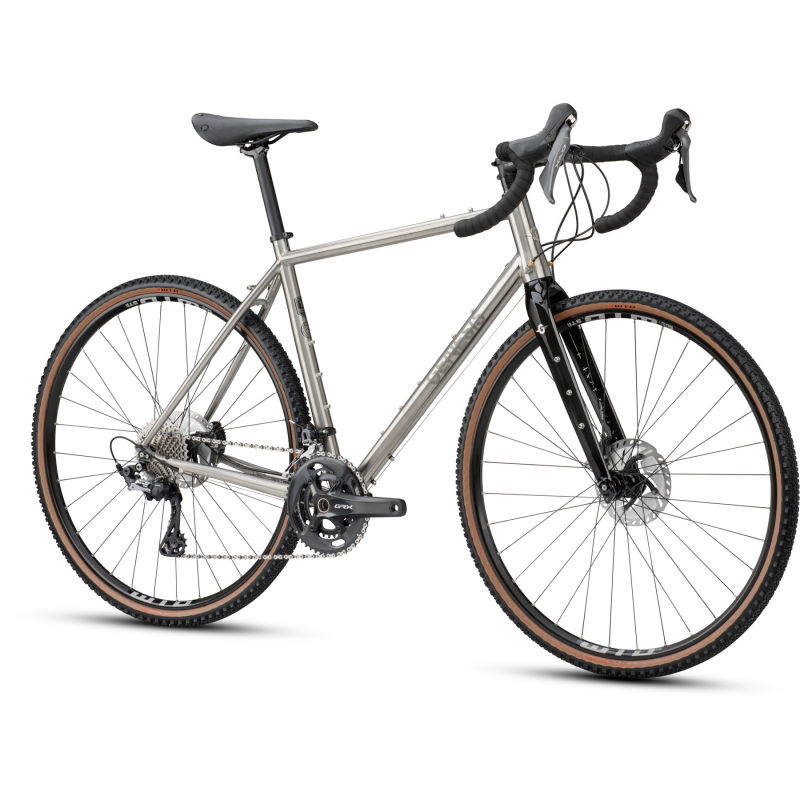

GENESIS 2022 Croix de Fer Ti

FEATURES

- 3AL-2.5V butted titanium frame.

- Multiple luggage mounting points.

- 12mm thru axle frame and new full carbon fork.

- Shimano GRX drivetrain and hydraulic brakes.

- Brooks Cambium saddle.

- Tubeless ready WTB rims and tyres.

SPECS

Frame 3AL-2.5v Butted Titainium

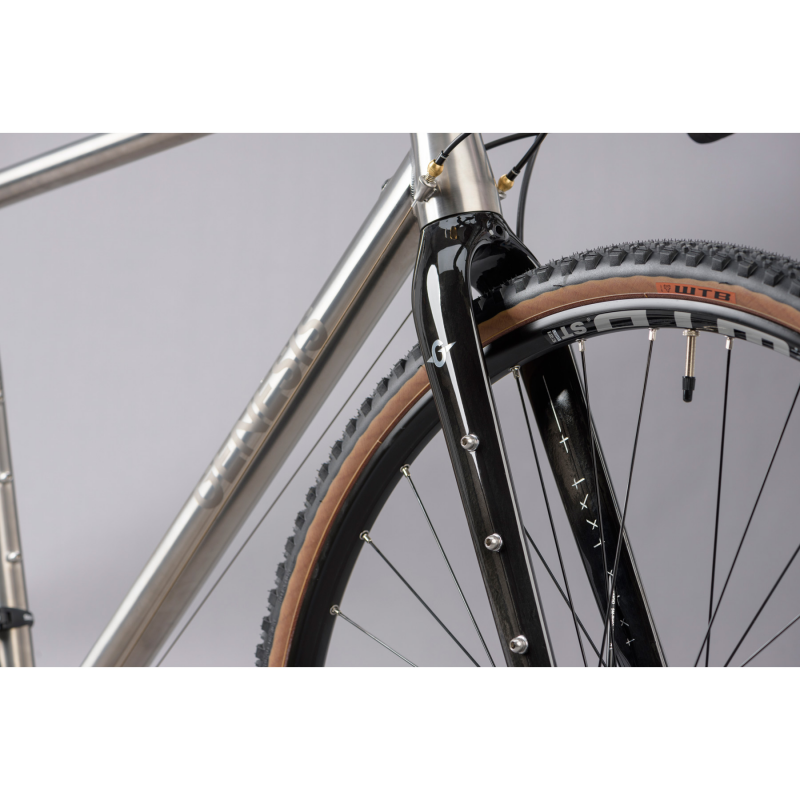

Fork Genesis Full Carbon Gravel Disc Fork With Anything Cage Mounts

Headset PT-1860bc IS42 Upper / Is52 Lower

Hanger GNSPR40002

Handlebars Genesis Alloy, 16 Deg Flare, XS = 400mm, SM/M = 420mm, L-XL = 440mm

Stem Genesis Alloy, 31.8mm, -6 Deg, 100mm

Grips/ Tape Genesis Vexgel

Saddle Brooks Cambium C, 145mm

Seatpost Genesis Alloy 27.2 X 350mm

Pedals NW-91K With Cage

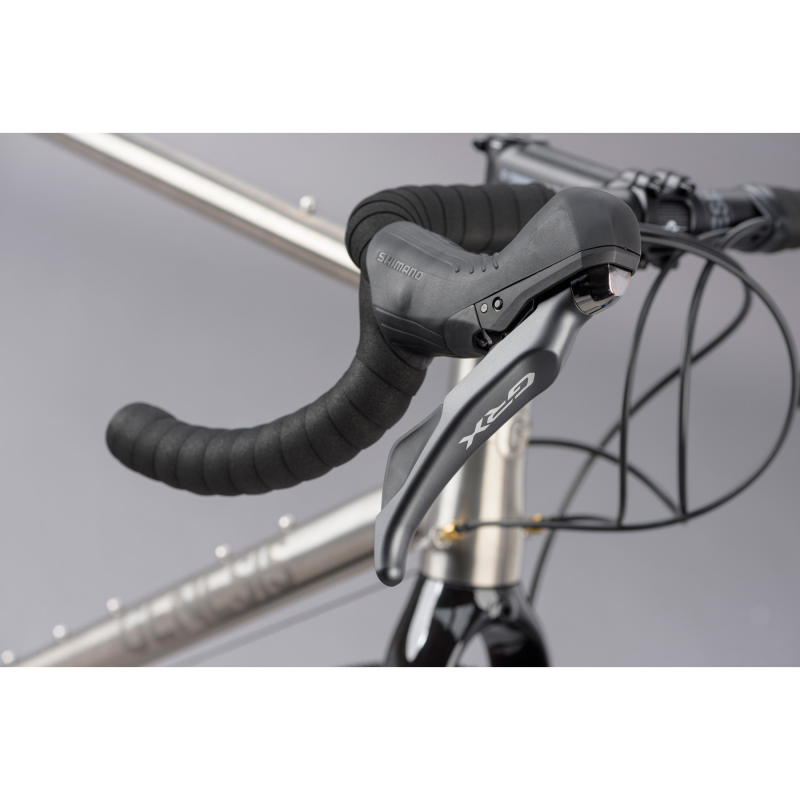

Shifters Shimano GRX ST-R810 11spd

Rear Derailluer Shimano GRX RD-RX810 Medium cage

Front Derailluer Shimano GRX FD-RX810

Chainset Shimano GRX FC-RX810-2 46/30T XS/S = 170mm, M/L= 172.5mm, XL= 175mm

BB Shimano BB-RS500

Chain KMX X11

Cassette Shimano CS-HG800-11 11/34T 11spd

Brakes Shimano GRX BR-RX810

Brake Levers Shimano GRX ST-R810 11spd

Rotors Shimano SM-RT800, 160mm, CL

Rims WTB ST Light I23 TCS 2.0, 32h

Hubs Formula Front - CL-712 / Rear - RXC-142s, CL, 32h

Spokes Steel 14g

Tyres Kenda Booster 700x40c TR / WTB Riddler 700x40c TR

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 10.2kg

Frame Weight Limit 130Kg

Fork Steerer Size 1 1/8” - 1 1/5”

Fork Spec

XS A-C = 401 Offset = 50 Rake/ Trail = 69

SM A-C = 401 Offset = 50 Rake/ Trail = 69

MD A-C = 401 Offset = 50 Rake/ Trail = 66

LG A-C = 401 Offset = 50 Rake/ Trail = 66

XL A-C = 401 Offset = 50 Rake/ Trail = 63

Wheel Size Options 700c, 650b

Max Tyre Clearance 650B rear 45c/ front 54c 700c rear 45c/ front 50c

Hub Size/ Spacing Front 100mm, Rear 142mm

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility Band On 31.8mm

Max Chainring Size 50/34, 42t

Seat Tube/Clamp Size 27.2mm/31.8mm

Mech Hanger Type & Part Code Intergrated

Colour Alice Clear

Colour Code Raw Polished Titanim

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts Anything Cage Mounts

GEOMETRY XS S M L XL

Seat Tube 470 500 530 550 580

Top Tube 524 544 561 582 605

Frame Reach 365 375 385 395 405

Frame Stack 553 572 593 612 633

Head Tube 115 135 155 175 195

Head Angle 71 71 71.5 71.5 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 430 430 430 430 430

BB Drop 73 73 73 73 73

Wheelbase 1007 1023 1035 1052 1063

Fork Offset 50 50 50 50 50

Standover 761 784 808 826 850

Stem 100 100 100 100 100

Handlebar 400 420 420 440 440

Crankarm 170 170 172.5 172.5 175
