Reduced price! GENESIS 2021 Fugio 10

Display all pictures

GENESIS Fugio 10

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

This product is available for international shipping! Click here for more information.

Data sheet

Frame	Gravel / Bikepacking Ready
Wheel Size	700C/27.5"

More info

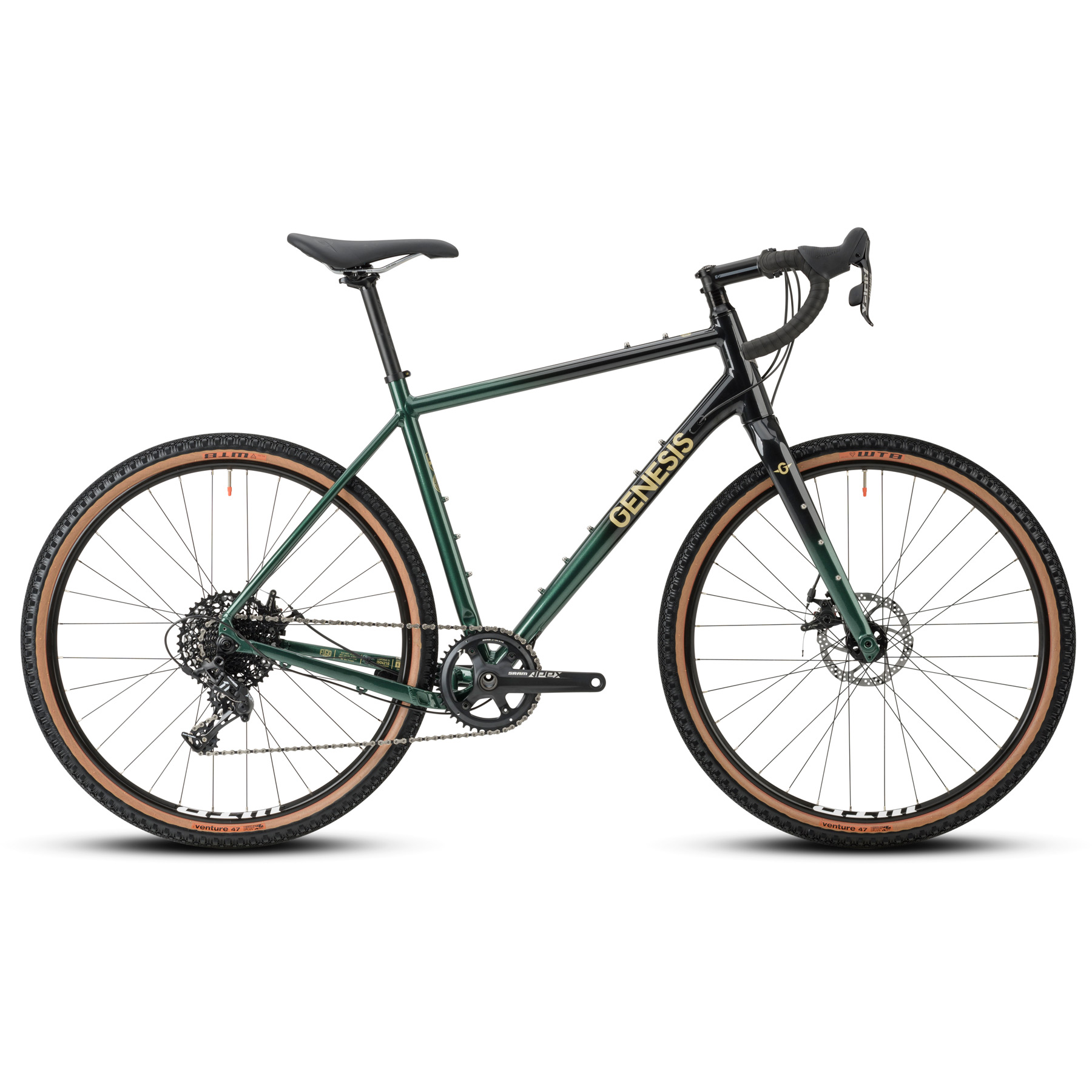

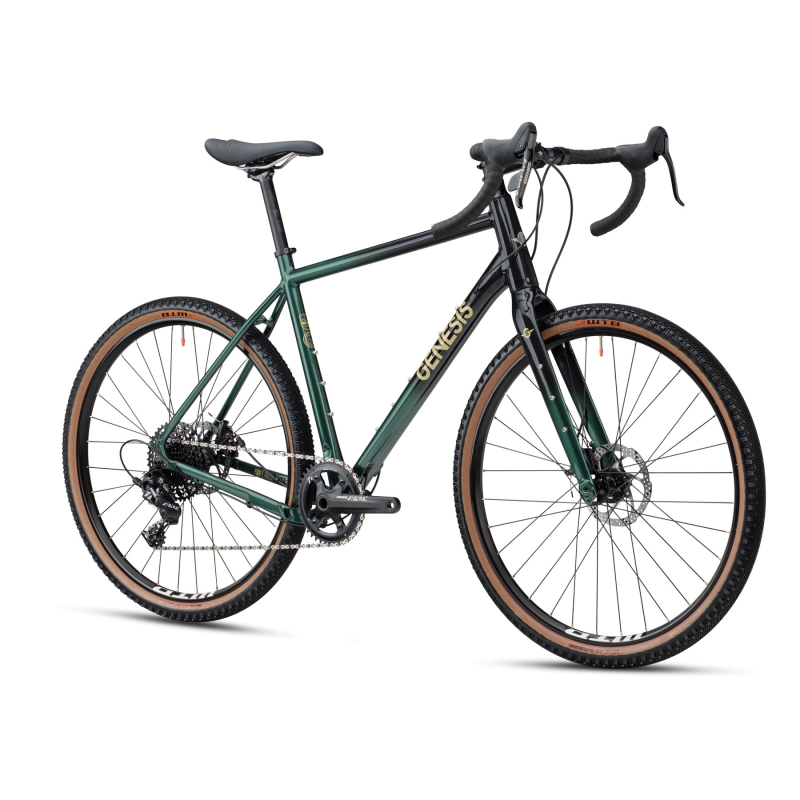

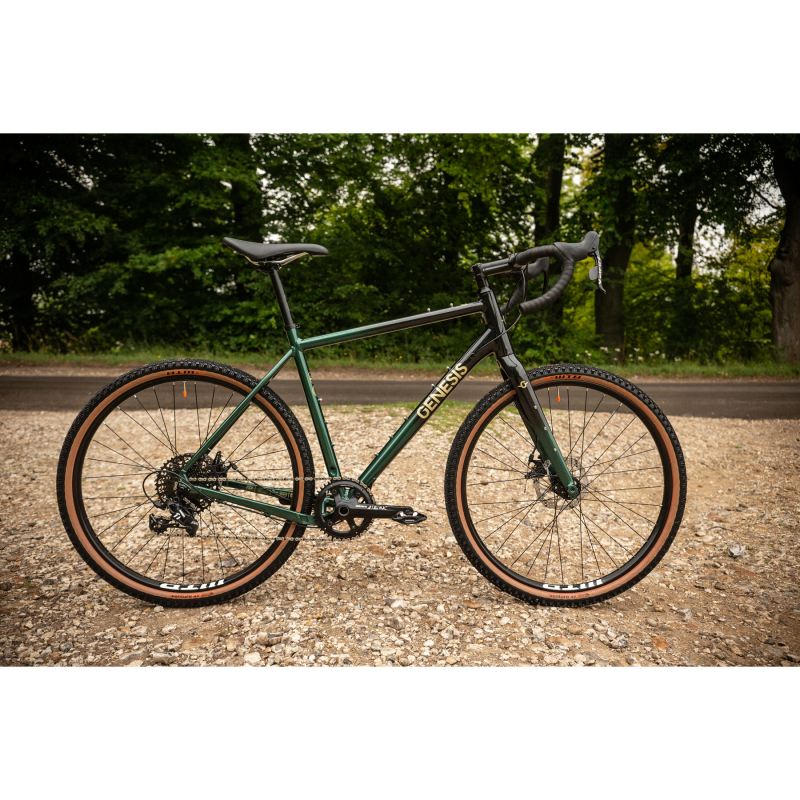

Genesis Fugio 10 – aluminium gravel bike with SRAM Apex

The Fugio 10 is the entry-level model in the Fugio range from Genesis Bikes, designed for gravel and adventure riding with an aluminium frameset and a simple, functional specification.

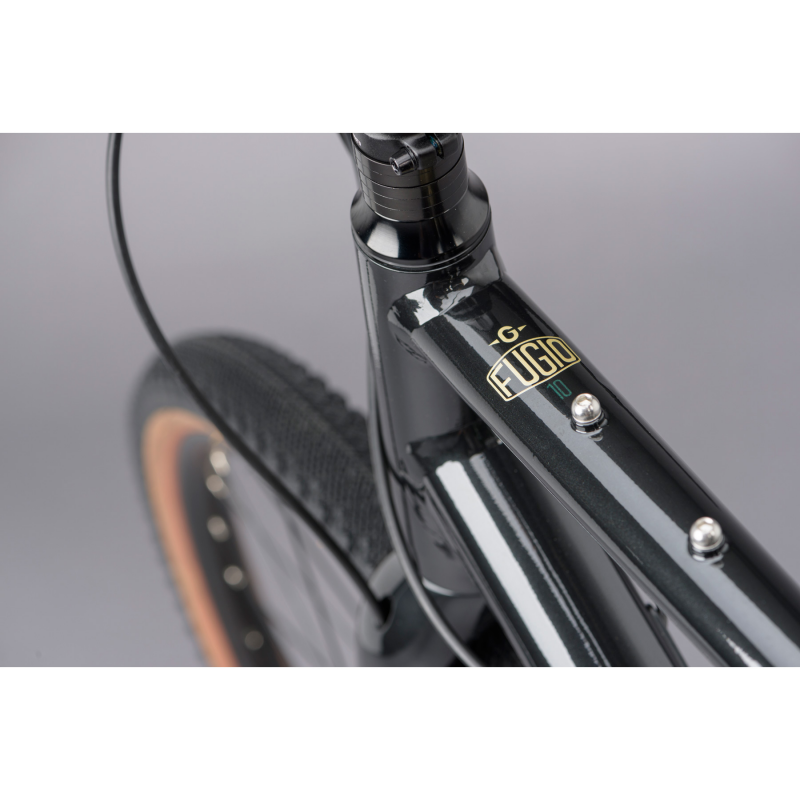

The bike is built around a double-butted ALX8 6066/6061-T6 aluminium frame, paired with a full carbon gravel fork.
It is supplied with 650B wheels as standard and is also compatible with 700C wheels, allowing different setup options.

Key features

ALX8 6066/6061-T6 double-butted aluminium frame
Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts
SRAM Apex 1x11 drivetrain
TRP Spyre-C dual-piston mechanical disc brakes
650B wheelset
12 mm thru-axles

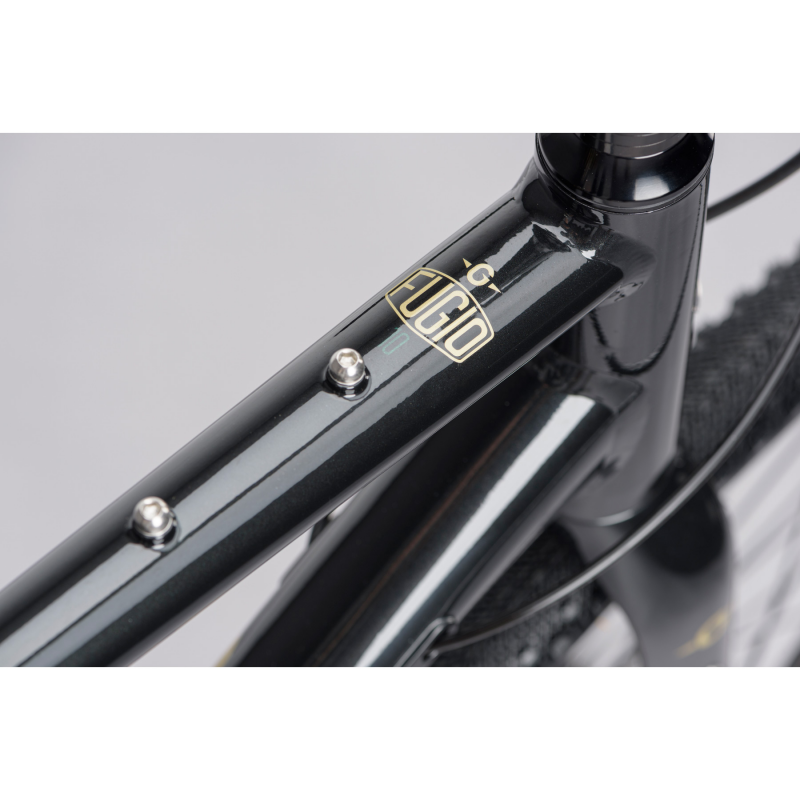

Multiple mounts for luggage, mudguards and accessories
Tubeless-ready rims and tyres

Stock configuration

The Genesis Fugio 10 is equipped with:

1x drivetrain with a 42T chainring
11–42T cassette
WTB Venture 650×47c tyres

Wheel and tyre compatibility

650B: up to 47 mm
700C: up to 40 mm

Pre-order support

Frame size and wheel/tyre setup directly affect the final configuration.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications

Frame & fork

Frame: 6061 Aluminium

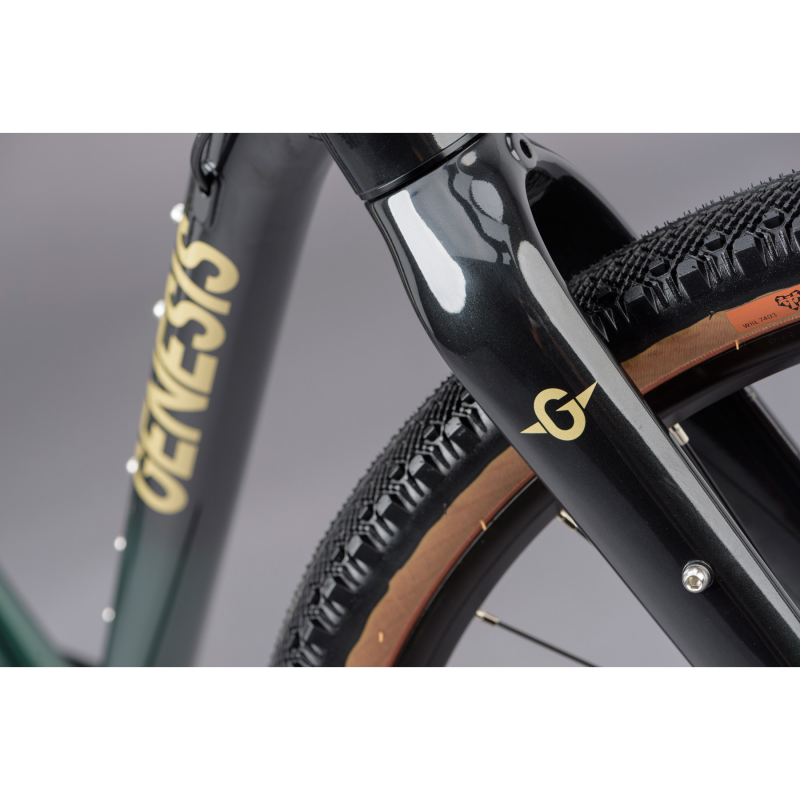

Fork: Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts
Headset: F23A-2 Taper 1 1/8” – 1 1/5”
Derailleur hanger: Replaceable – GNSPR40002
Warranty: Lifetime on frame and fork

Drivetrain

Shifters: SRAM Apex, 11-speed

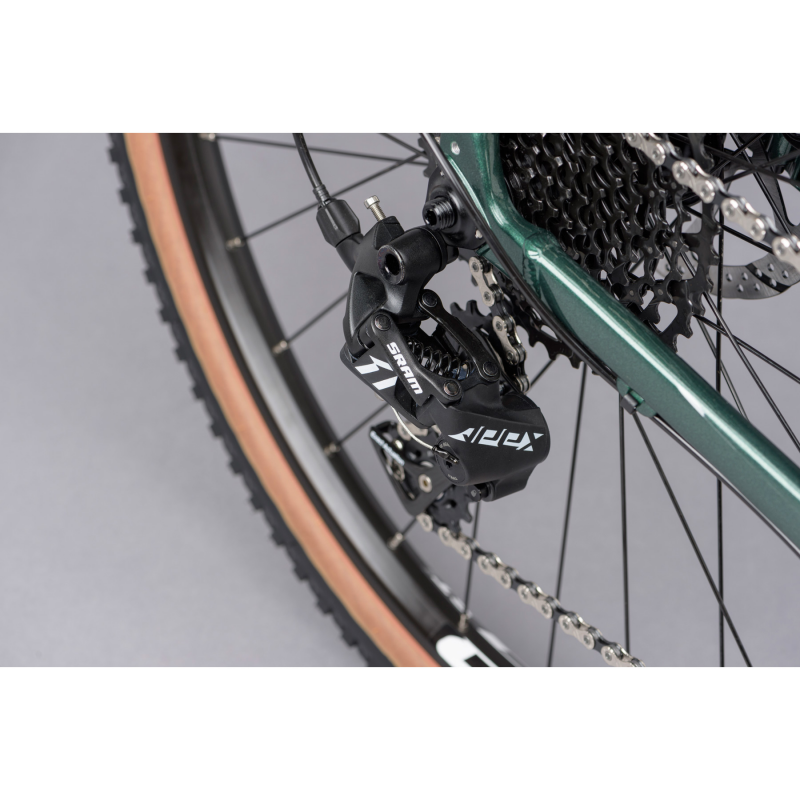

Rear derailleur: SRAM Apex 1 Long Cage, 11-speed
Front derailleur: N/A

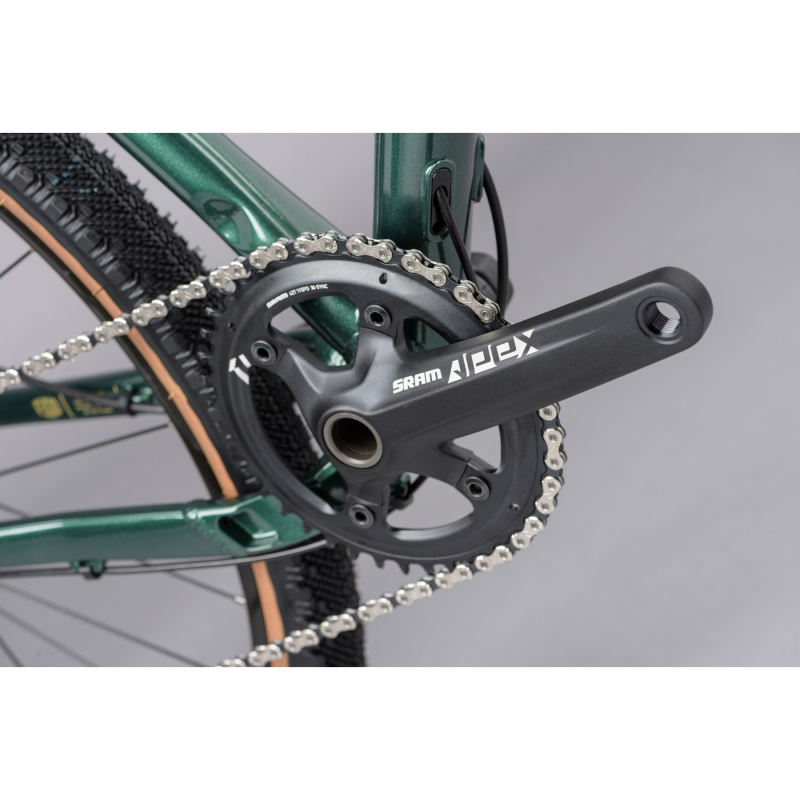

Crankset: SRAM Apex 1, 42T
- XS / S: 170 mm
- M / L: 172.5 mm
- XL: 175 mm
Bottom bracket: SRAM BB GXP
Cassette: SRAM PG-1130, 11–42T
Chain: KMC X11

Brakes

Brakes: TRP Spyre-C FM mechanical disc
Brake levers: SRAM Apex
Rotors: TRP TR160, 160 mm, 6-bolt
Brake mount: Flat Mount 140

Wheels & tyres

Rims: WTB ST i25 TCS 2.0
Hubs: KT QL-SL2F (front) / QL-X2DR (rear), 6-bolt, 32H
Spokes: Steel 14G

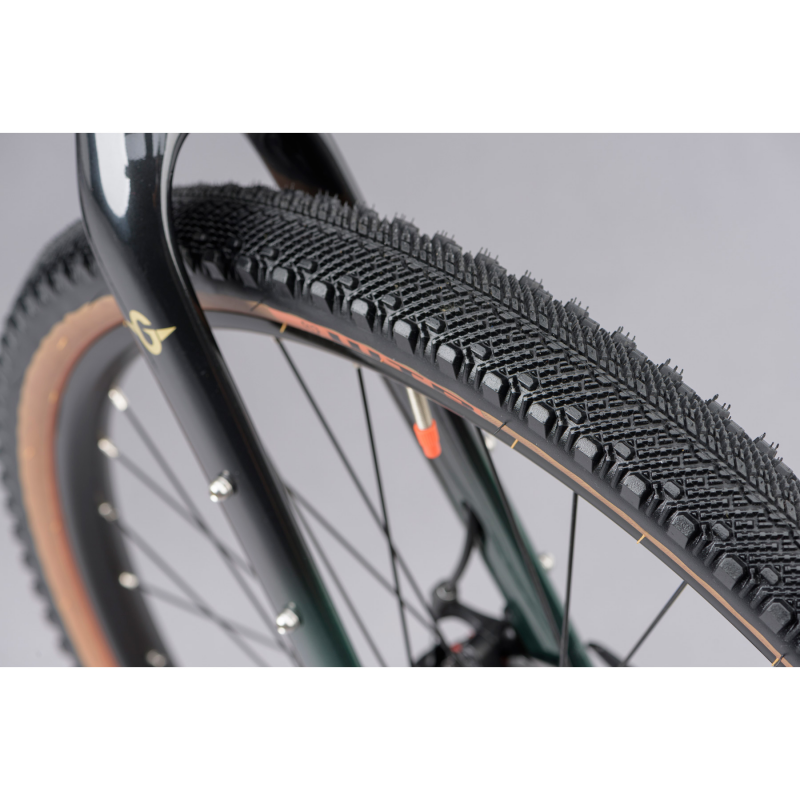

Tyres: WTB Venture 650×47c TCS

Components

Handlebar: Genesis Alloy, 16° flare
- XS: 420 mm
- S / M: 440 mm
- L: 460 mm
- XL: 480 mm
Stem: Genesis Alloy, 31.8 mm, −6°, 100 mm
Bar tape: Genesis Vexgel
Seatpost: Genesis Alloy 27.2×350 mm
Saddle: Genesis Adventure
Pedals: N/A

Standards & compatibility

Hub spacing: 100 mm front / 142 mm rear
Seatpost diameter: 27.2 mm
Seat clamp diameter: 31.8 mm
Front derailleur mount: Band-on 28.6 mm
Max chainring size: 46/30, 42T
Cable routing: External

General

Product code: GN21300
Claimed weight: 10.5 kg
Frame weight limit: Not stated
Colour: The Black Peas
Colour codes: RAL-750-M / RAL 9005
Sizes: XS, S, M, L, XL
Intended use: Gravel / Adventure

Frame geometry (mm)

Size	XS	S	M	L	XL
Seat Tube	470	500	530	550	580
Top Tube	535	551	567	583	598
Reach	365	375	385	395	405
Stack	556	575	594	613	631
Head Tube	125	145	165	185	205
Head Angle	70.5	70.5	70.5	70.5	70.5
Seat Angle	73	73	73	73	73
Chainstay	425	425	425	425	425
BB Drop	65	65	65	65	65
Wheelbase	1012	1029	1045	1062	1077
Standover	756	779	801	820	843
