Reduced price! GENESIS Croix De Fer 20 - RED

Display all pictures

GENESIS Croix De Fer 20 - RED

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

Read reviews (1)

This product is available for international shipping! Click here for more information.

Data sheet

Frame	Gravel / Bikepacking Ready
Wheel Size	700C/27.5"

More info

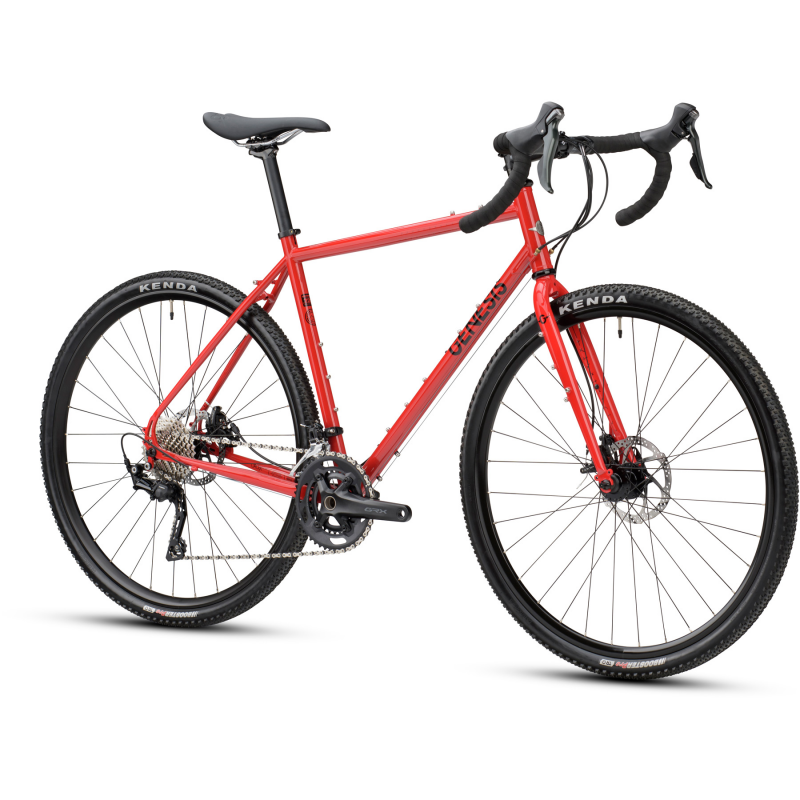

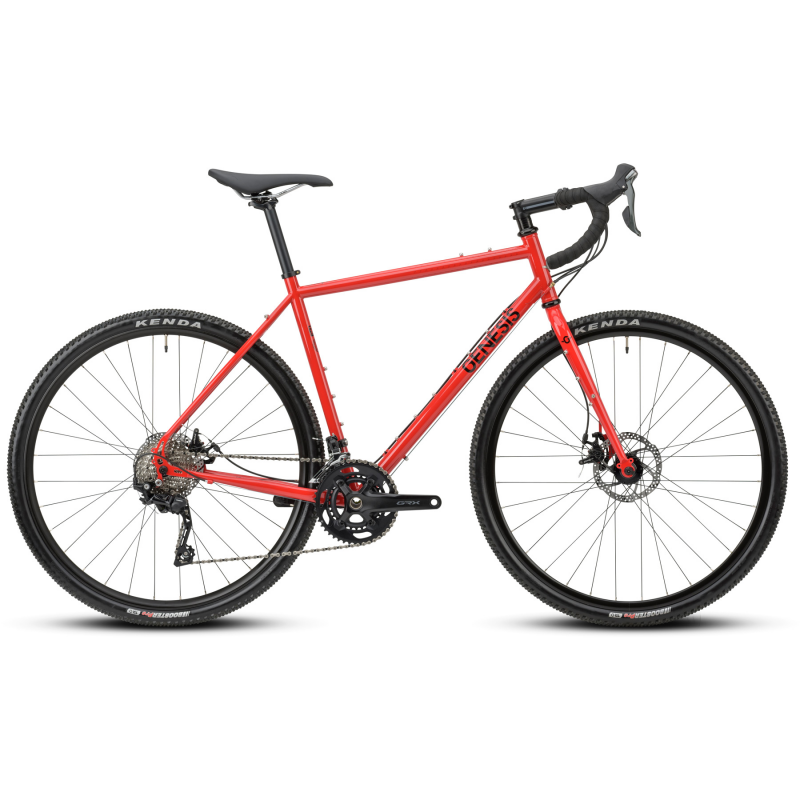

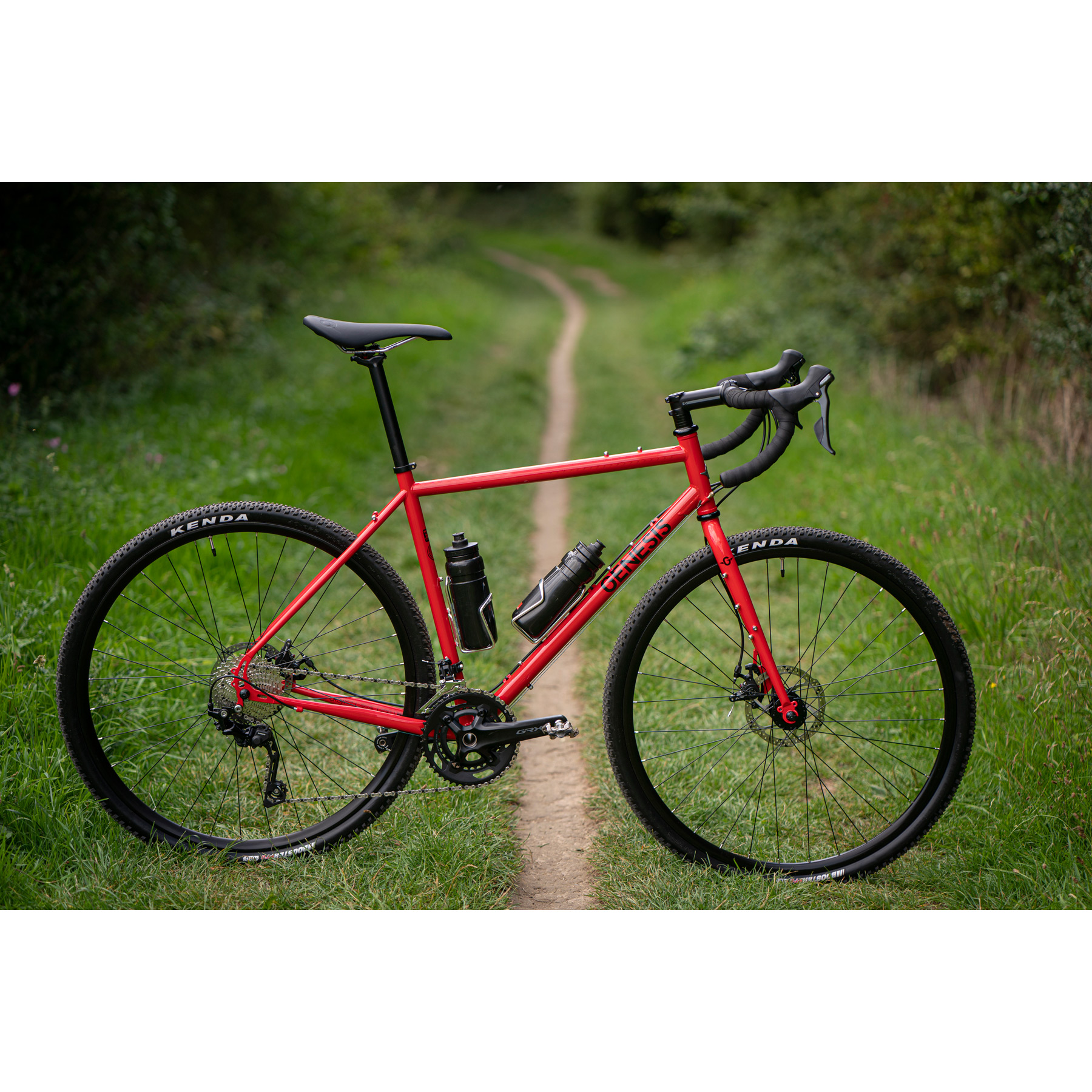

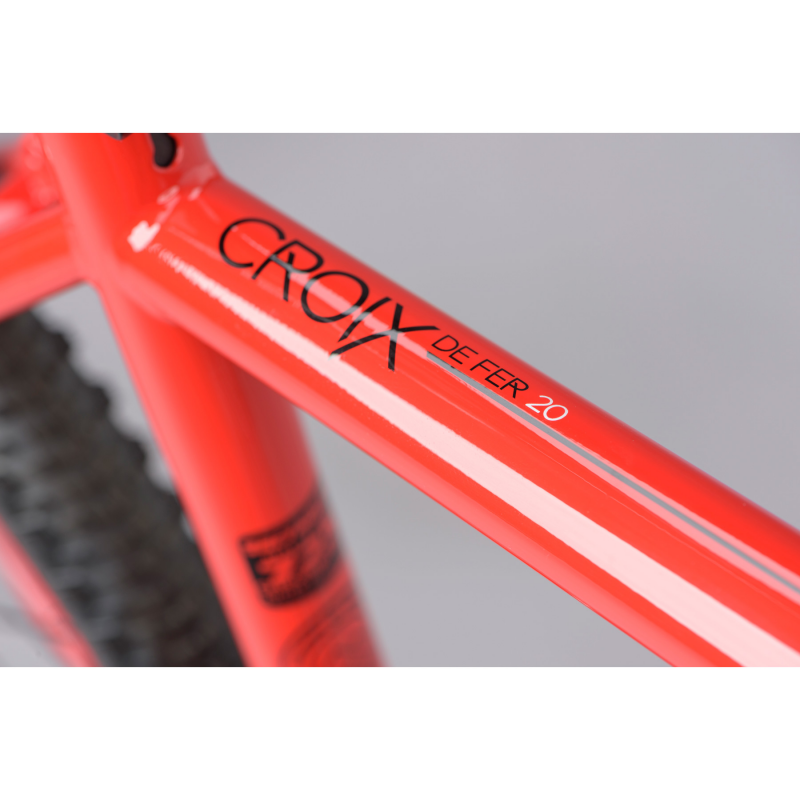

Genesis Croix de Fer 20 Reynolds 725 – previous version (last size L available)

The Croix de Fer 20 Reynolds 725 is a previous iteration of the Croix de Fer platform from Genesis Bikes, offered in limited availability.
It is a gravel / adventure bike built around a complete Reynolds 725 heat-treated chromoly frameset, designed as a versatile, do-it-all solution for mixed surfaces, daily riding and touring.

This version differs from the current Croix de Fer 20 in specification, standards and component choices, while retaining the original Croix de Fer geometry and versatility.

Key features

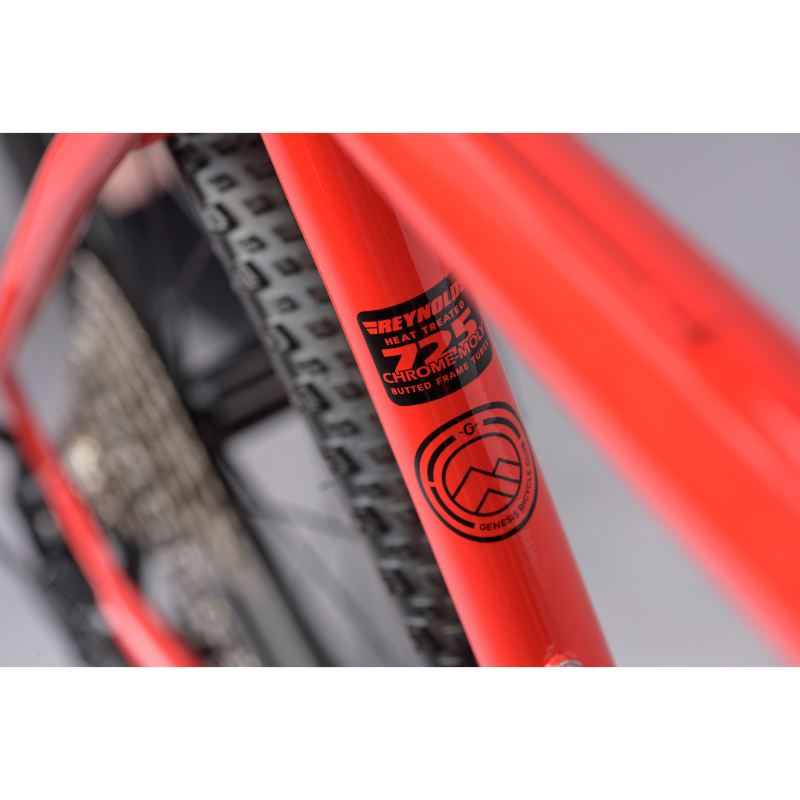

Reynolds 725 Heat-Treated Chromoly frame
Chromoly disc fork with Anything Cage mounts
Shimano GRX 2×10 drivetrain

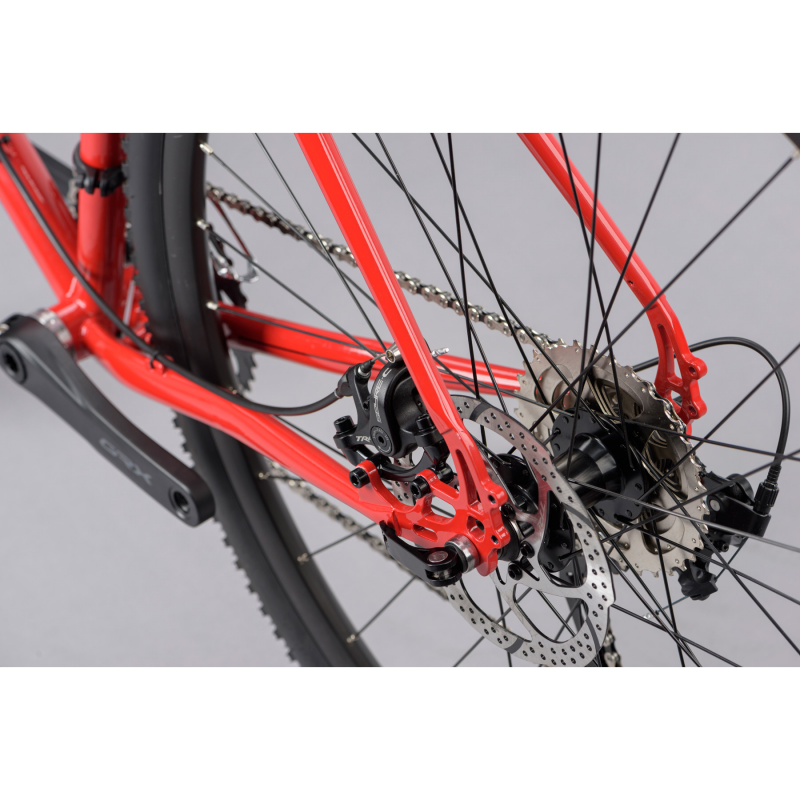

TRP Spyre-C dual-piston mechanical disc brakes
700c wheels (650B compatible)

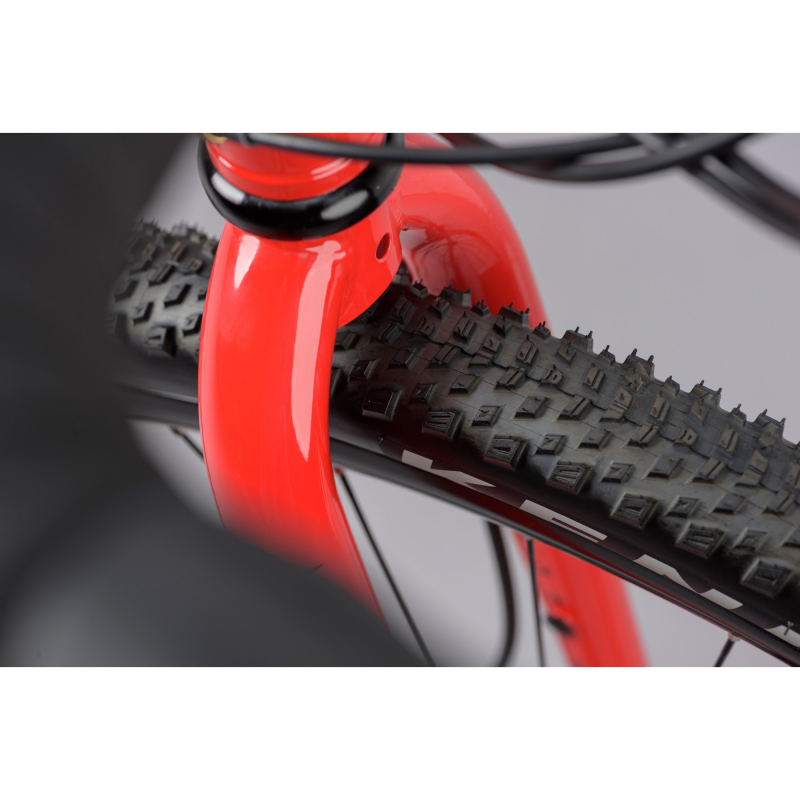

Tubeless-ready rims and tyres
Multiple mounts for racks, mudguards and accessories
External cable routing
QR hub standards

Model positioning

This Croix de Fer 20 represents a legacy configuration of the range, featuring:

full Reynolds 725 frameset
QR 9 mm dropouts
mechanical disc brakes
proven Croix de Fer geometry

It is offered as last remaining stock for riders seeking this specific setup.

Technical specifications

Frame & fork

Frame: Reynolds 725 Heat-Treated Chromoly
Fork: Chromoly Disc Fork with Anything Cage mounts

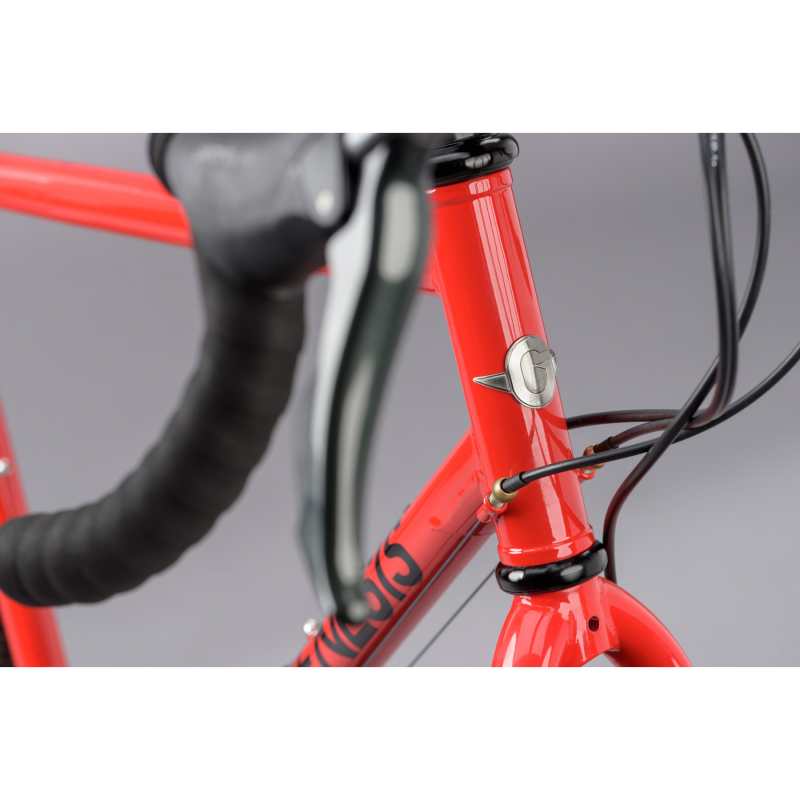

Headset: PT-1770 EC34 Upper / EC34 Lower
Warranty: Lifetime on frame and fork

Drivetrain

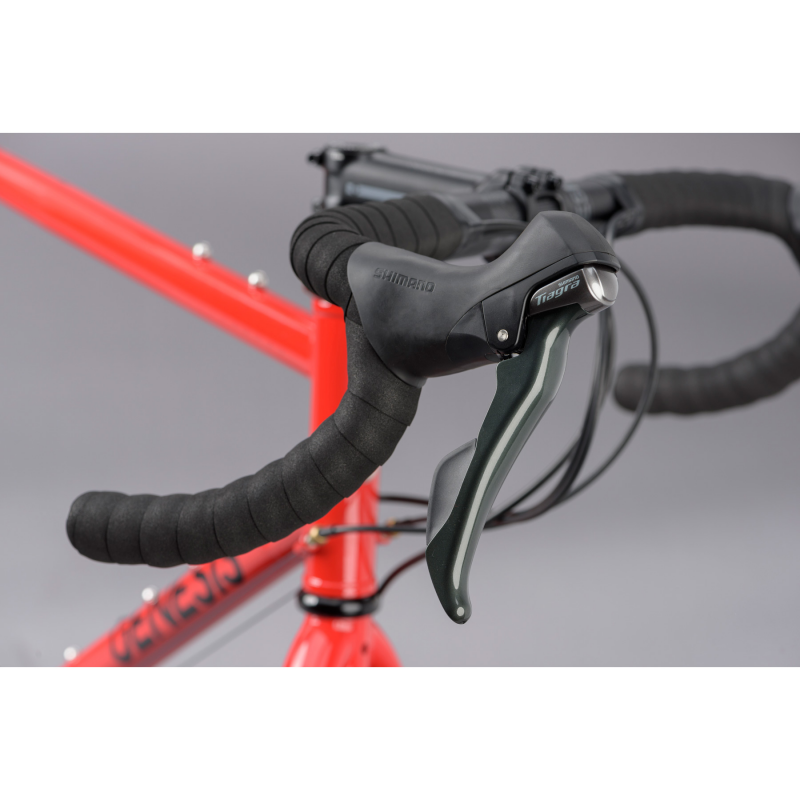

Shifters: Shimano Tiagra ST-4700, 10-speed
Rear derailleur: Shimano GRX RD-RX400, 10-speed
Front derailleur: Shimano GRX FD-RX400
Crankset: Shimano GRX FC-RX600, 46/30T
- XS: 165 mm
- S/M: 170 mm
- L/XL: 175 mm
Bottom bracket: Shimano BB-RS500
Cassette: Shimano CS-HG500-10, 11–34T
Chain: KMC X10

Brakes

Brakes: TRP Spyre-C mechanical disc
Brake levers: Shimano Tiagra ST-4700
Rotors: TRP TR160, 160 mm, 6-bolt
Brake mount: IS160

Wheels & tyres

Rims: Jalco XCD21, 32H, tubeless compatible
Hubs: KT-K08, 6-bolt, 32H
Spokes: Steel 14G
Tyres:
- Kenda Booster 700×40c TR
- WTB Riddler 700×40c TR

Components

Handlebar: Genesis Alloy, 16° flare
- XS: 400 mm
- S/M: 420 mm
- L/XL: 440 mm
Stem: Genesis Alloy, 31.8 mm, −6°, 100 mm
Bar tape: Genesis Vexgel
Seatpost: Genesis Alloy 27.2×350 mm
Saddle: Genesis Adventure
Pedals: NW-91K with cage

Standards & compatibility

Wheel size options: 700c / compatible with 650B
Max tyre clearance:
- 700c: rear 45c / front 50c
- 650B: rear 44c / front 50c
Hub spacing: 100 mm front / 135 mm rear
Seatpost diameter: 27.2 mm
Seat clamp diameter: 29.8 mm
Front derailleur mount: Band-on 28.6 mm
Max chainring size: 50/34, 42T
Derailleur hanger: Integrated

General

Claimed weight: 11.64 kg
Colour: Red Zeppelin
Colour code: Pantone 200 C
Availability: limited – size L only

Frame geometry (mm)

Size	XS	S	M	L	XL
Seat Tube	470	500	530	550	580
Top Tube	524	544	561	582	605
Reach	365	375	385	395	405
Stack	553	572	593	612	633
Head Tube	115	135	155	175	195
Head Angle	71	71	71.5	71.5	72
Seat Angle	74	73.5	73.5	73	72.5
Chainstay	430	430	430	430	430
BB Drop	73	73	73	73	73
Wheelbase	1007	1023	1035	1052	1063
Standover	761	784	808	826	850
