New Reduced price! GENESIS Fugio 30 - SRAM Apex

Display all pictures

GENESIS Fugio 30 - SRAM Apex

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

This product is available for international shipping! Click here for more information.

Data sheet

Frame	Adventure Touring / Bikepacking
Wheel Size	700C/27.5"

More info

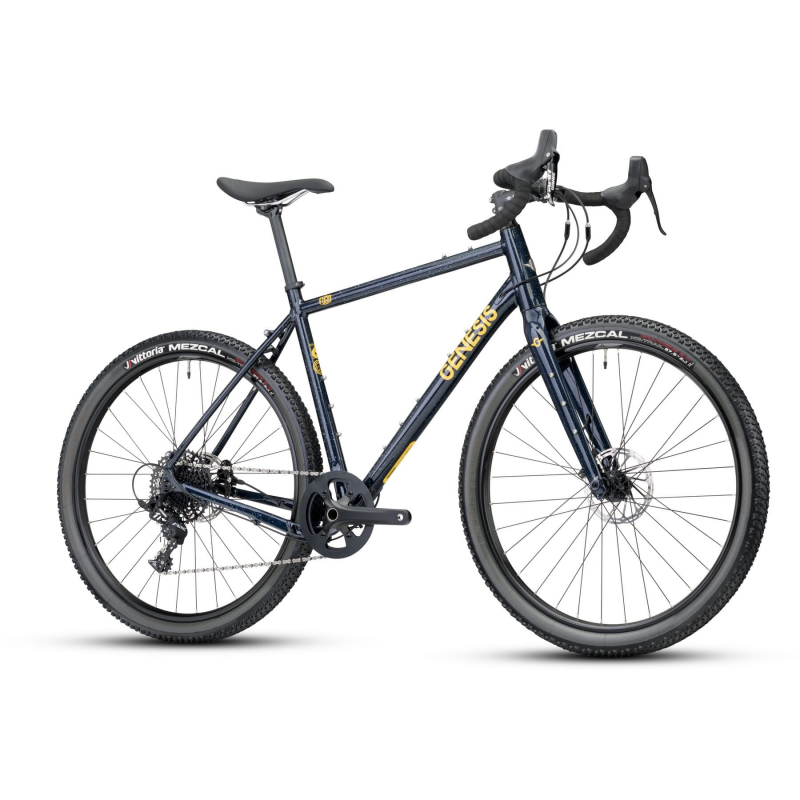

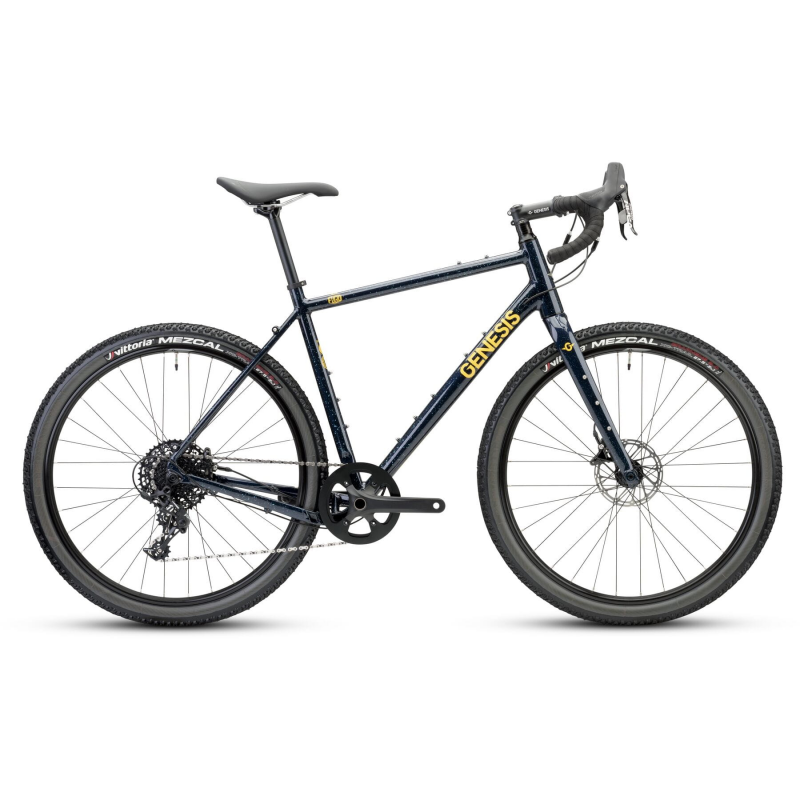

Genesis Fugio 30 – aluminium gravel bike with SRAM Apex

The Genesis Fugio 30 in SRAM Apex specification is a gravel bike built around a heat-treated 6061 aluminium Fugio frame, paired with a full carbon gravel fork.
This model is distinct from the steel Fugio versions in frame material, specification and positioning.

The bike is supplied with 650B wheels as standard, with tubeless-ready rims and tyres, and is also compatible with 700C wheels, allowing alternative configurations.

Key features

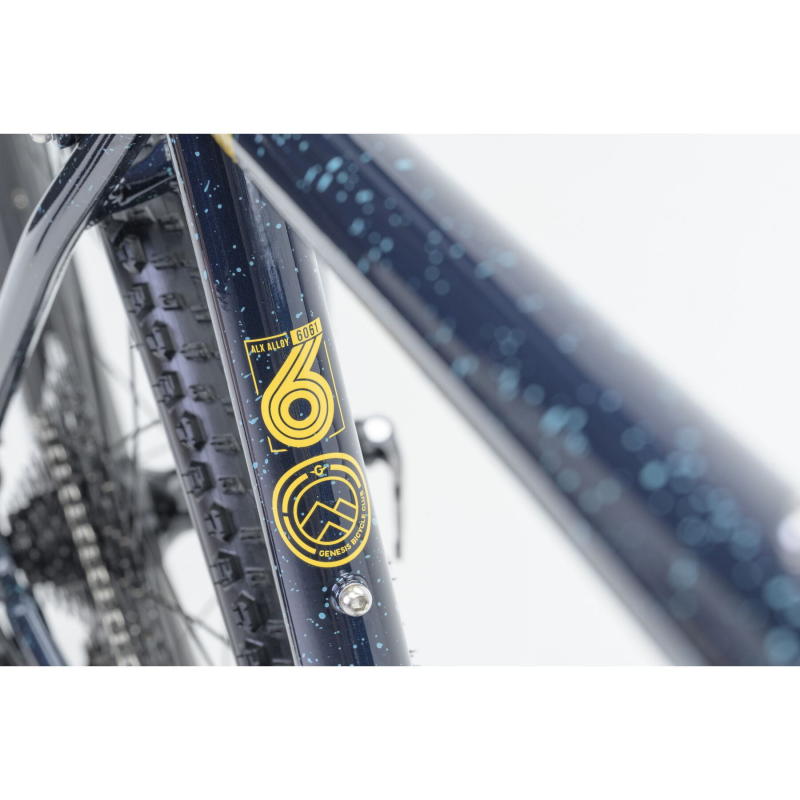

6061 heat-treated aluminium frame
Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts
SRAM Apex 1x11 drivetrain
SRAM Apex hydraulic disc brakes
650B wheelset

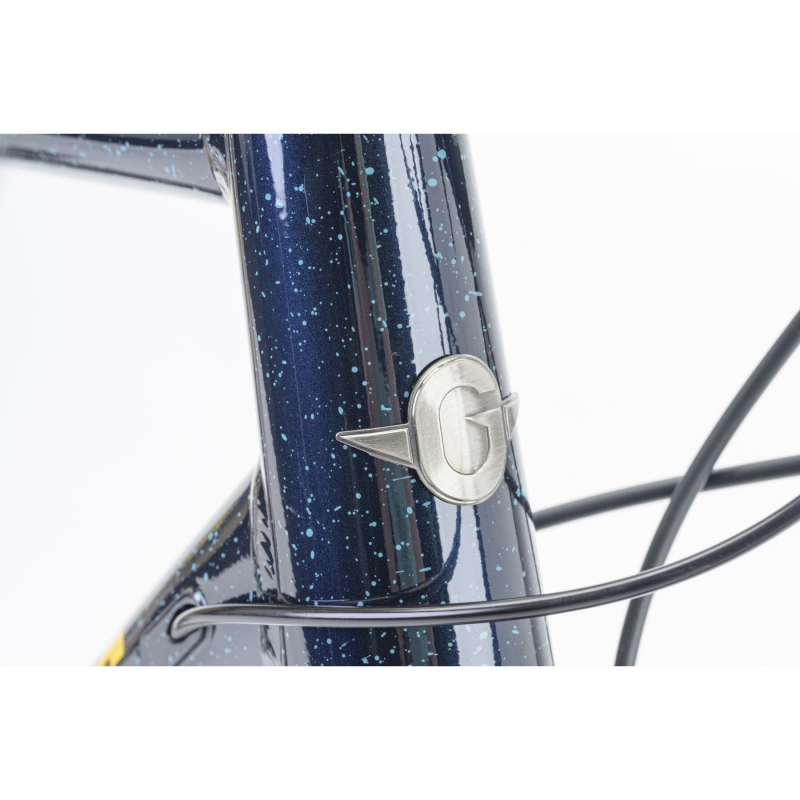

Internal cable routing
Wide tyre compatibility
Lifetime warranty on frame and fork

Stock configuration

The Genesis Fugio 30 Apex is equipped with:

1x drivetrain with 11–42T cassette
Vittoria Mezcal 27.5×2.1 tyres
Tubeless-ready rims and tyres

Wheel and tyre compatibility

650B: up to 52 mm
700C: up to 40 mm

Pre-order support

Frame size and wheel/tyre configuration directly affect the final setup.
For sizing or compatibility support, contact info@bikejamming.it.

Technical specifications

Frame & fork

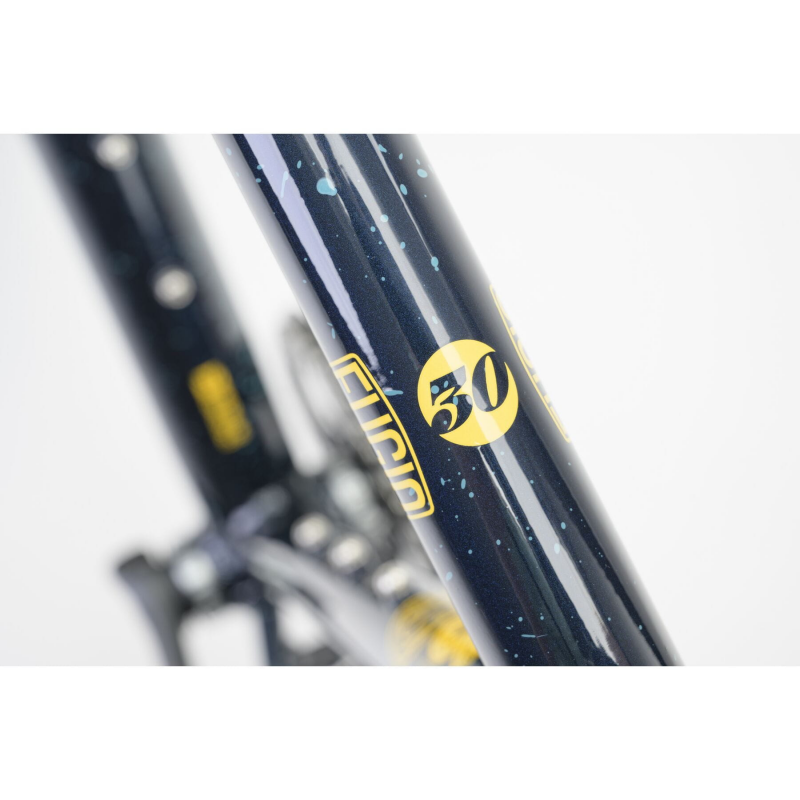

Frame: 6061 Aluminium

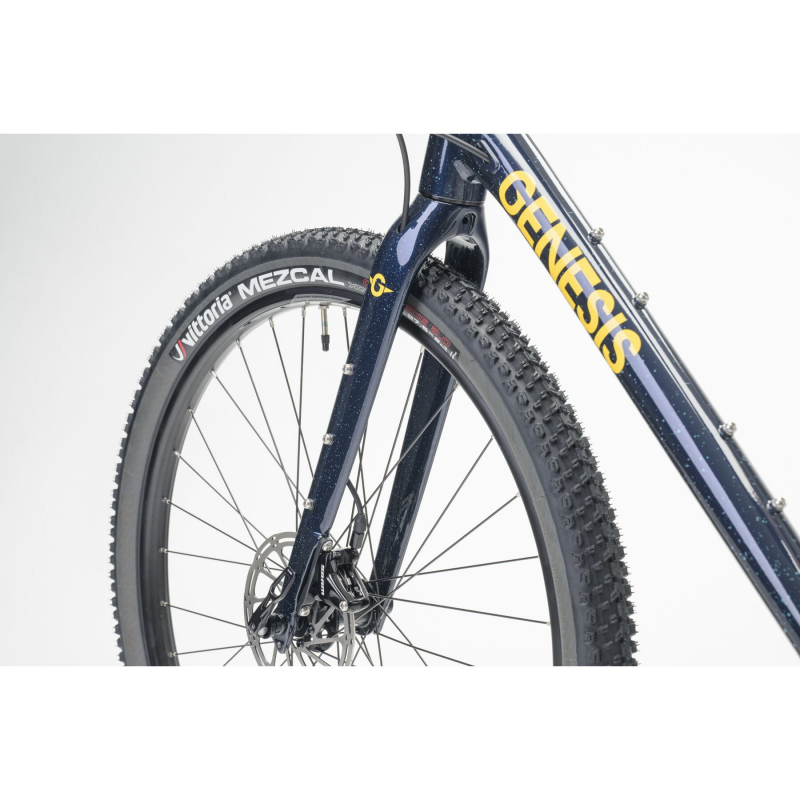

Fork: Genesis Full Carbon Gravel Disc Fork with Anything Cage mounts
Headset: Prestine F23A-2
Warranty: Lifetime on frame and fork

Drivetrain

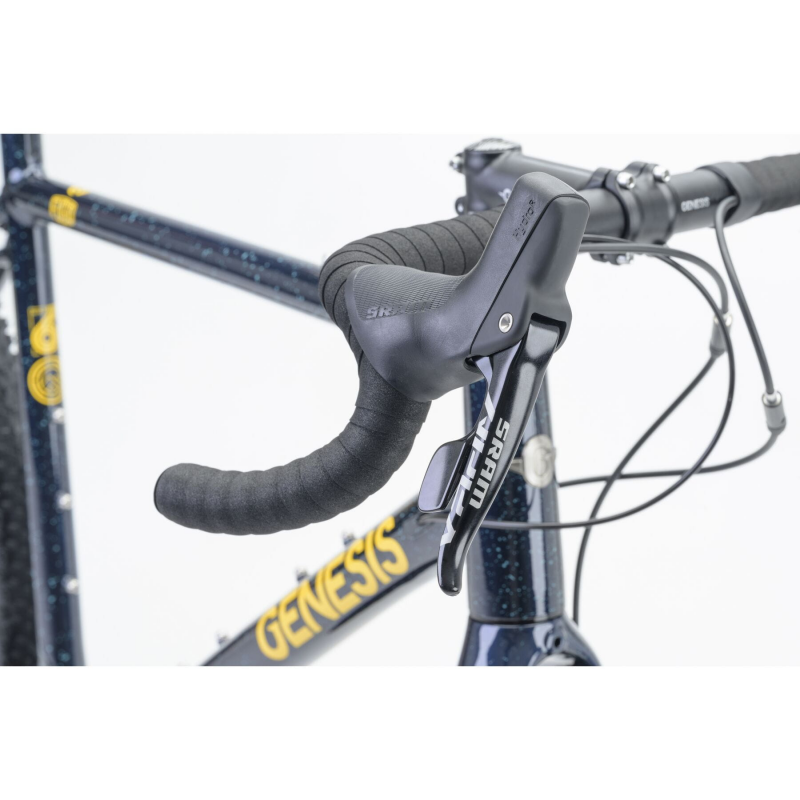

Shifters: SRAM Apex hydraulic, 11-speed
Rear derailleur: SRAM Apex 1 Long Cage, 11-speed
Crankset: Prowheel RPL-FD16AG, 42T
- XS / S: 170 mm
- M / L: 172.5 mm
- XL: 175 mm
Cassette: SRAM PG-1130, 11–42T

Brakes

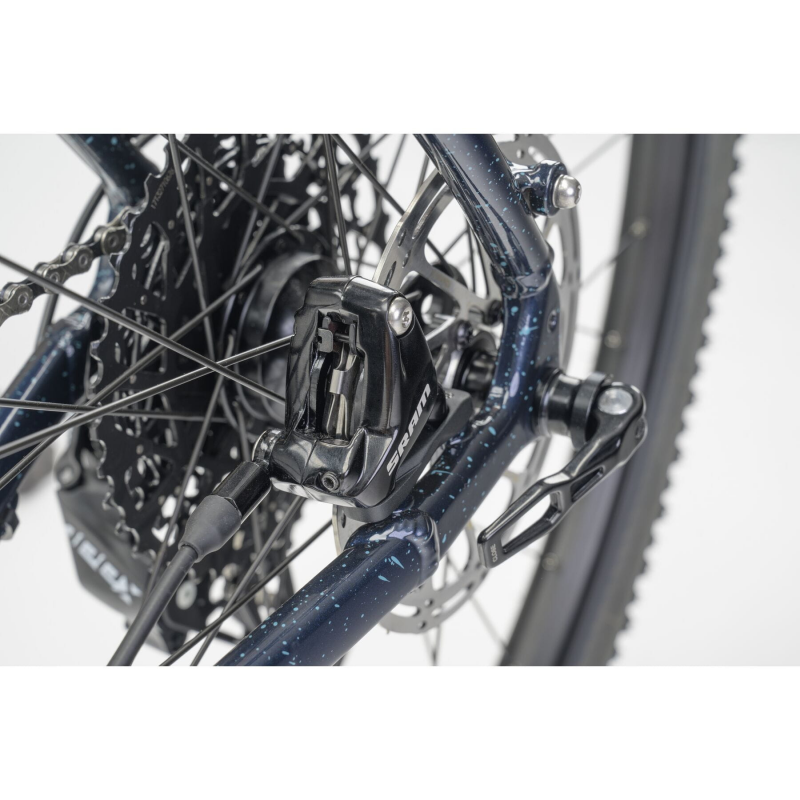

Brakes: SRAM Apex hydraulic disc

Wheels & tyres

Wheel size: 650B
Rims: Shining DB-X25
Hubs: KT QL-SL2F (front) / KT QL-XD2R (rear)

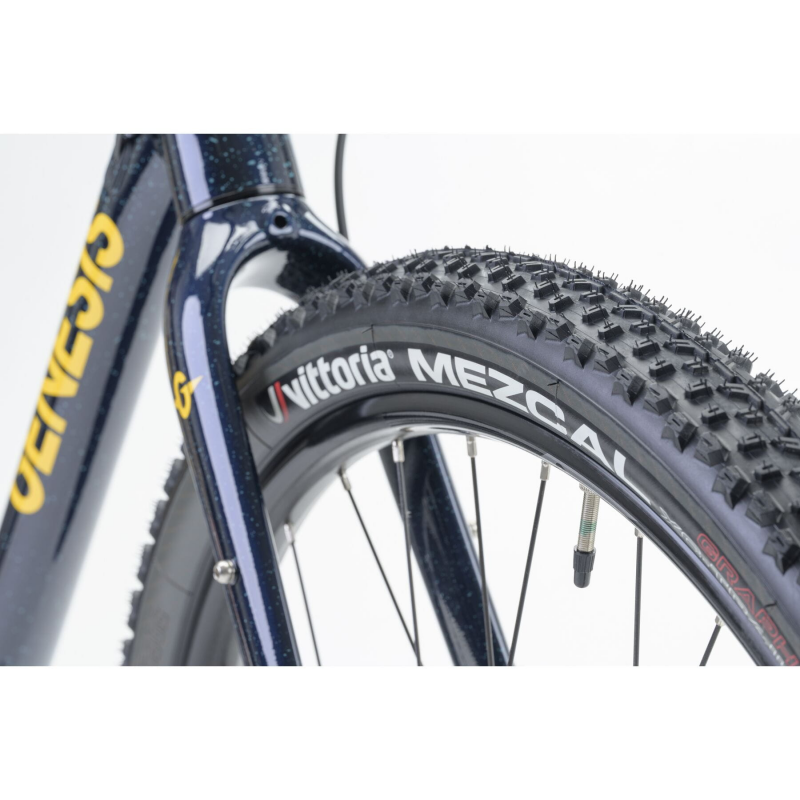

Tyres: Vittoria Mezcal 27.5×2.1

Components

Handlebar: Genesis AL6061 T6, 31.8 mm, 20° flare
- XS: 420 mm
- S / M: 440 mm
- L: 460 mm
- XL: 480 mm
Stem: Genesis Alloy, 100 mm, 31.8 mm, −7°
Seatpost: Genesis Alloy 27.2×350 mm
Saddle: Genesis Adventure
