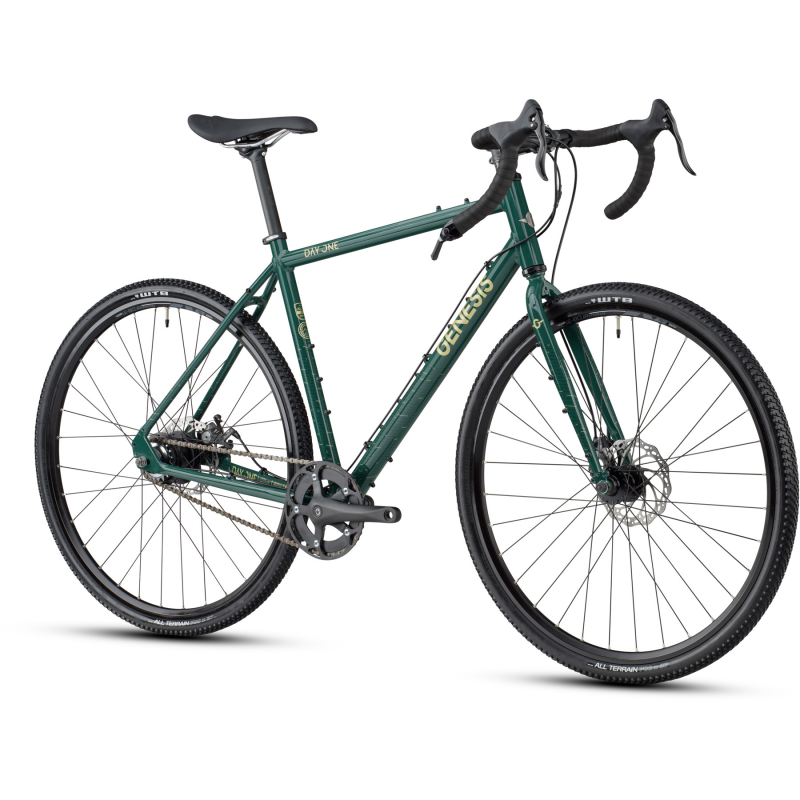

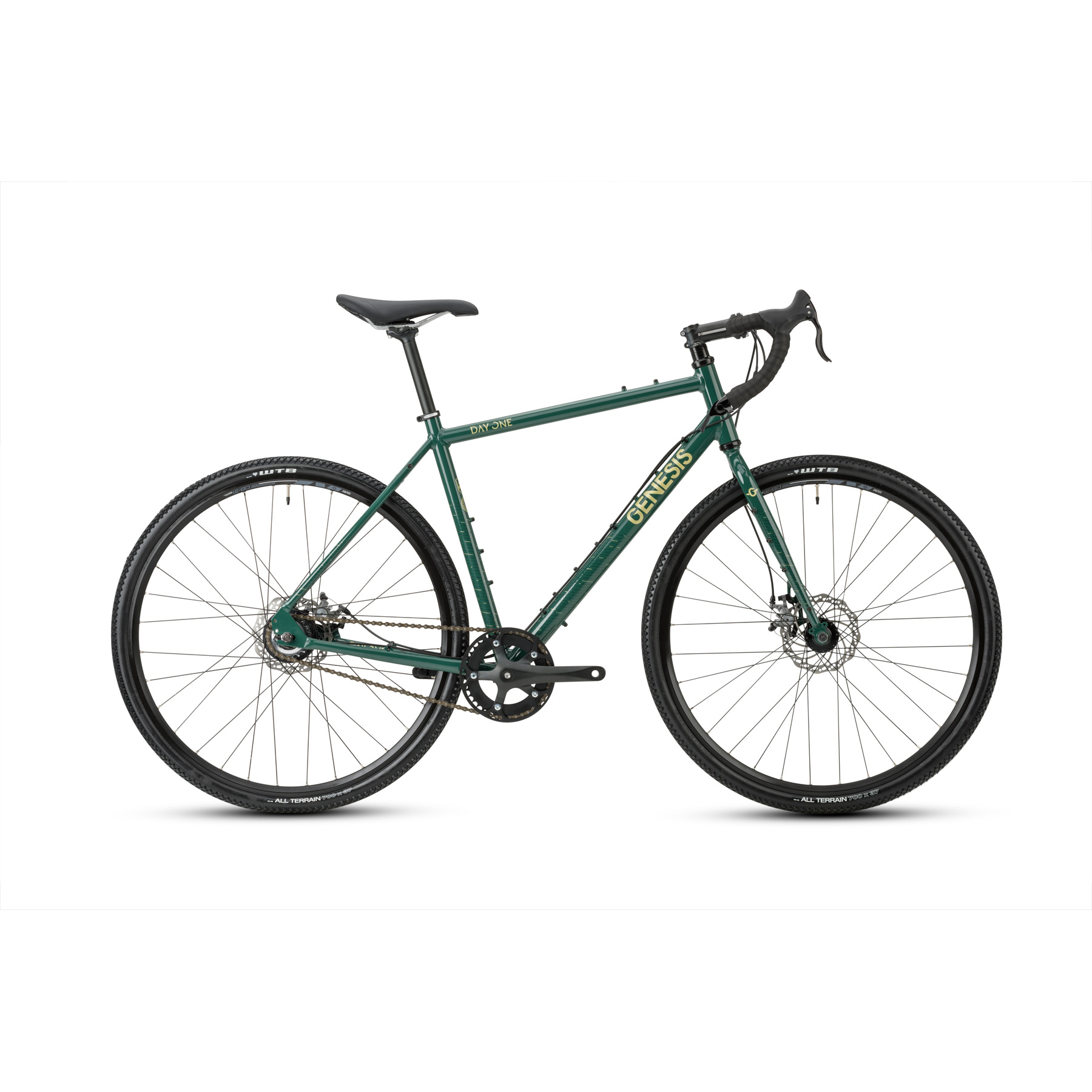

GENESIS 2021 Day One

FEATURES

- New urban range based on the CDA frame.

- Multiple luggage mounting points.

- Mudguard compatible.

- Shimano Nexus 8 speed hub gear.

- Mechanical disc brakes.

- WTB All Terrain tyres.

SPECS

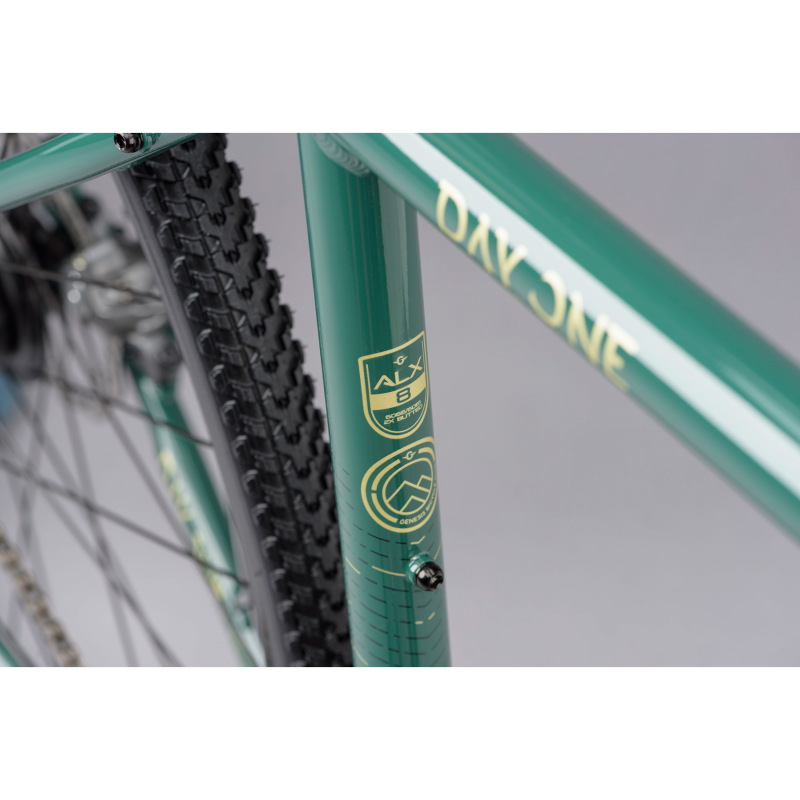

Frame ALX8 6066/6061-T6 Double-Butted Aluminium

Fork Genesis Chromoly Disc

Headset PT-1606 Upper EC34 / Lower EC34

Hanger N/A

Handlebars Genesis Alloy 16 Deg Flare, XS = 400mm, SM/M = 420mm, L-XL = 440mm

Stem Genesis Alloy - 7 Deg, 90mm = XS/S/M, 100mm = L/XL

Grips/ Tape Genesis Vexgel

Saddle Genesis Adventure

Seatpost Genesis Alloy 27.5mmx350mm

Pedals NW-303

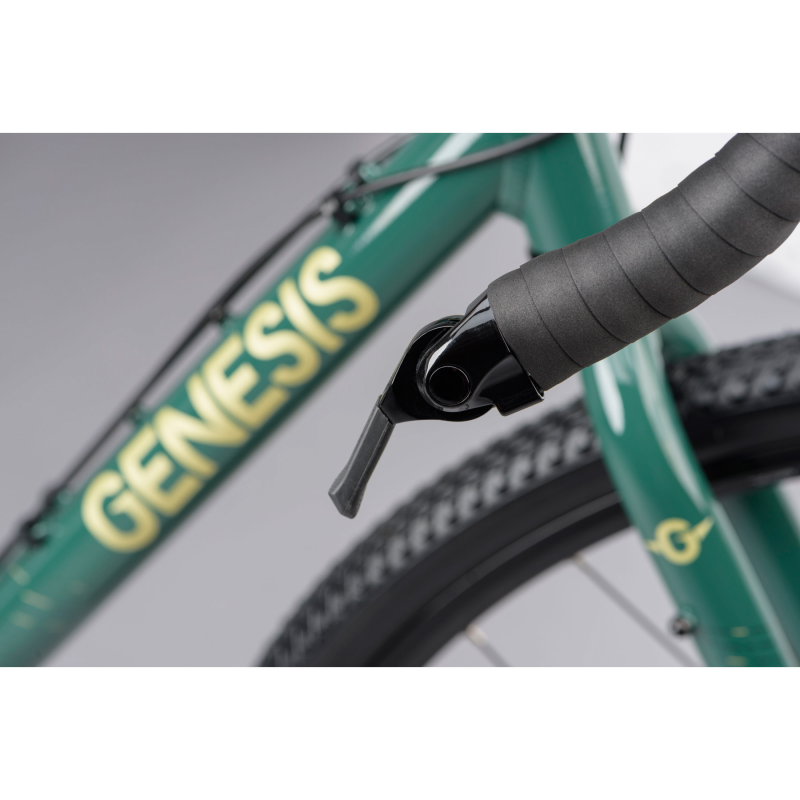

Shifters Microshift BS-N08

Rear Derailluer N/A

Front Derailluer N/A

Chainset Samox AF13, 42t, XS = 165mm, S/M/L/XL = 170mm

BB Cartridge, 68 x 127.5mm

Chain KMC Z1

Cassette Shimano SM-Gear 20t

Brakes Promax DSK-300 Road

Brake Levers Promax BL-253

Rotors Promax DT-160H, 160mm, 6 Bolt

Rims Shining DB-31 32h

Hubs Front KT-K88F / Rear Shimano Nexus SG-C6001-8d 8spd

Spokes Steel 14g

Tyres WTB All Terrain 700x37c

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 12.1kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8”

Fork Spec

XS A-C = 407 Offset = 50 Rake/ Trail = 72

SM A-C = 407 Offset = 50 Rake/ Trail = 65

MD A-C = 407 Offset = 50 Rake/ Trail = 62

LG A-C = 407 Offset = 50 Rake/ Trail = 62

XL A-C = 407 Offset = 50 Rake/ Trail = 59

Wheel Size Options 650b x 47

Max Tyre Clearance 700 x 37

Hub Size/ Spacing Front 100mm, Rear 135mm

Brake Mount Type IS160

Front Mech Size/ Compatibility n/a

Max Chainring Size 42t

Seat Tube/Clamp Size 27.2mm/31.8mm

Mech Hanger Type & Part Code n/a

Colour Diana Moss

Colour Code RAL 6005

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts Anything Cage Mounts

GEOMETRY XS S M L XL

Seat Tube 470 500 530 550 580

Top Tube 524 544 561 582 605

Frame Reach 365 375 385 395 405

Frame Stack 553 572 593 612 633

Head Tube 115 135 155 175 195

Head Angle 71 71 71.5 71.5 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 430 430 430 430 430

BB Drop 73 73 73 73 73

Wheelbase 1007 1023 1035 1052 1063

Fork Offset 50 50 50 50 50

Standover 761 784 808 826 850

Stem 90 90 100 100 100

Handlebar 400 420 420 440 440

Crankarm 165 170 170 170 170
