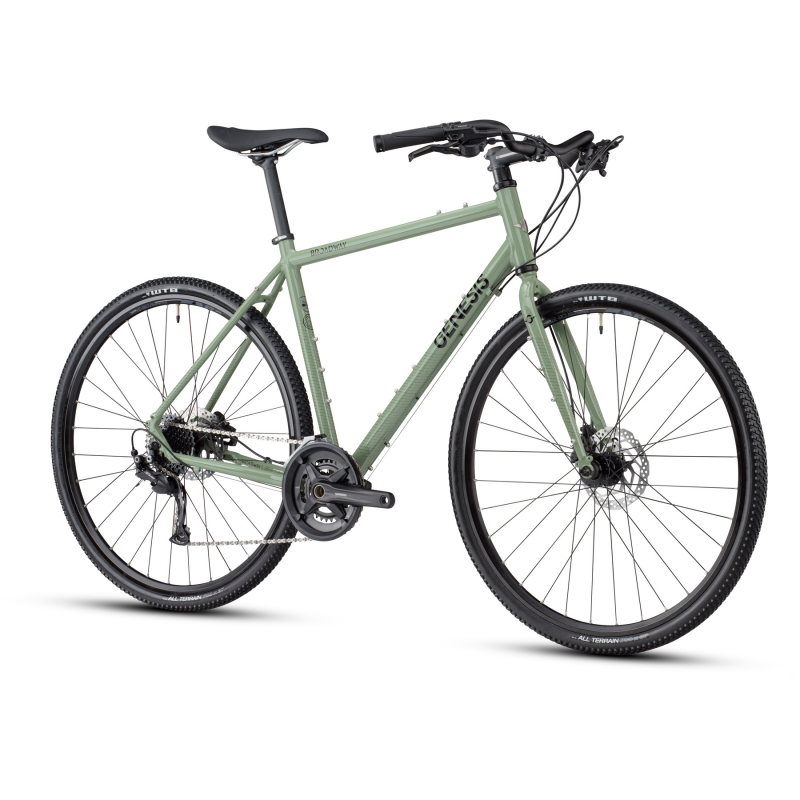

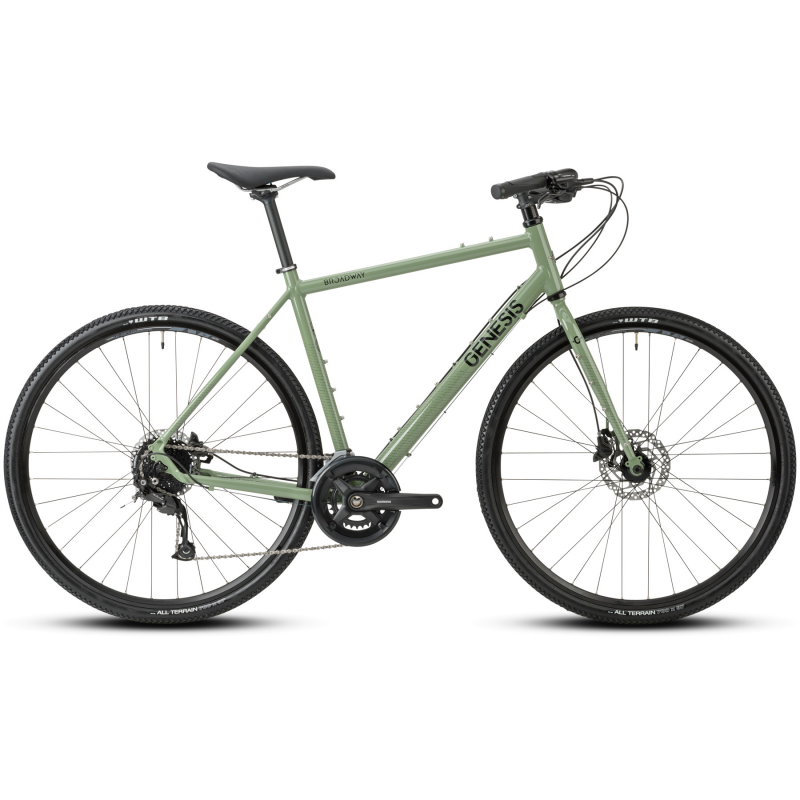

GENESIS 2021 Broadway

SPECS

Frame ALX8 6066/6061-T6 Double-Butted Aluminium

Fork Genesis Chromoly Disc

Headset PT-1606 Upper EC34 / Lower EC34

Hanger RBSPR40003

Handlebars Genesis Alloy 46 Deg Backsweep, 32mm Rise, 630mm

Stem Genesis Alloy -7 Deg, 90mm

Grips/ Tape Genesis Lock On

Saddle Genesis Adventure

Seatpost Genesis Alloy 27.5mmx350mm

Pedals NW-303

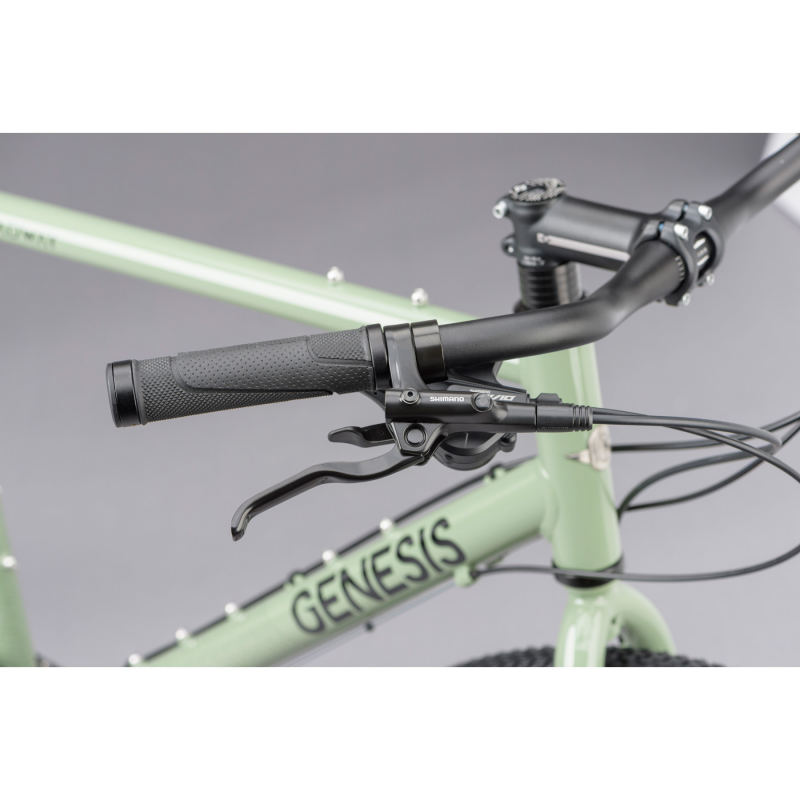

Shifters Shimano Alivio SL-M4010

Rear Derailluer Shimano Alivio RD-M4000-SGS 9spd

Front Derailluer Shimano Alivio FD-T4000

Chainset Shimano FC-MT210-2 46/36t XS/S/M = 170mm L/XL = 175mm

BB Shimano BB-UN26

Chain KMC X9

Cassette Shimano 9psd 11-34t

Brakes Shimano BR-MT200

Brake Levers Shimano BL-MT200

Rotors Shimano SM-RT26, 160mm, 6 Bolt

Rims Shining DB-31 32h

Hubs KT KT-K68, 6 Bolt, 32h

Spokes Steel 14g

Tyres WTB All Terrain 700x37c

ADDITONAL INFO

Product Code GN21240

Warranty Lifetime for Frame and Fork

Weight 11.9kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8”

Fork Spec

XS A-C = 407 Offset = 50 Rake/ Trail = 72

SM A-C = 407 Offset = 50 Rake/ Trail = 65

MD A-C = 407 Offset = 50 Rake/ Trail = 62

LG A-C = 407 Offset = 50 Rake/ Trail = 62

XL A-C = 407 Offset = 50 Rake/ Trail = 59

Wheel Size Options 650b x 47

Max Tyre Clearance 700 x 37

Hub Size/ Spacing Front 100mm, Rear 135mm

Brake Mount Type IS160

Front Mech Size/ Compatibility n/a

Max Chainring Size 42t

Seat Tube/Clamp Size 27.2mm/31.8mm

Mech Hanger Type & Part Code n/a

Colour Primal Green

Colour Code Pantone 5625 C

MOUNTS

Mudguard Mounts Yes

Rack Mounts Yes

Bottle Cage Mounts Yes

Additonal Mounts: Anything Cage Mounts

GEOMETRY XS S M L XL

Seat Tube 470 500 530 550 580

Top Tube 524 544 561 582 605

Frame Reach 365 375 385 395 405

Frame Stack 553 572 593 612 633

Head Tube 115 135 155 175 195

Head Angle 71 71 71.5 71.5 72

Seat Angle 74 73.5 73.5 73 72.5

Chainstay 430 430 430 430 430

BB Drop 73 73 73 73 73

Wheelbase 1007 1023 1035 1052 1063

Fork Offset 50 50 50 50 50

Standover 761 784 808 826 850

Stem 90 90 90 90 90

Handlebar 630 630 630 630 630

Crankarm 170 170 170 175 175
