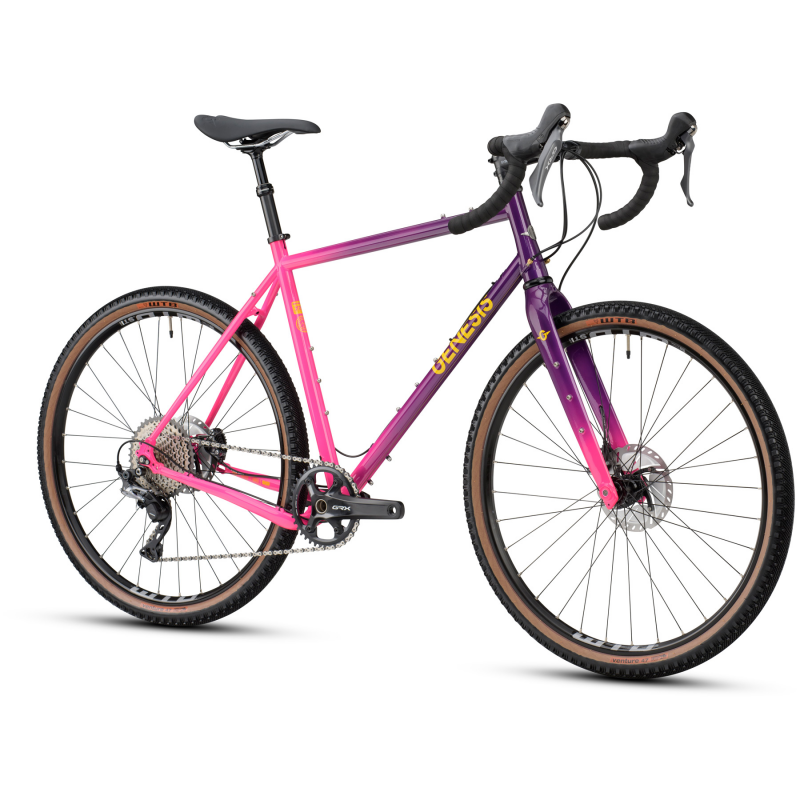

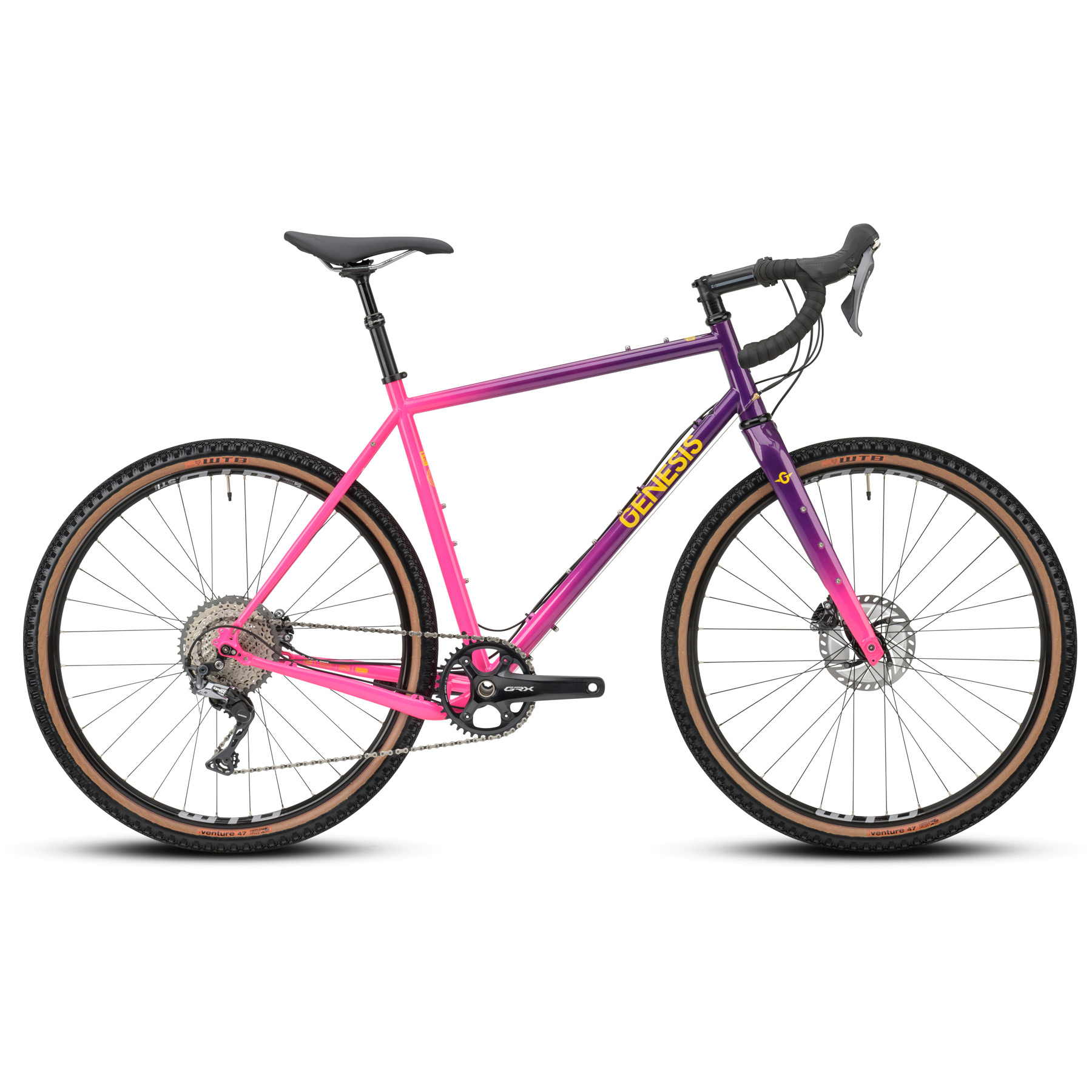

GENESIS 2022 Fugio 30

FEATURES

- Reynolds 725 CrMo tubeset.

- Multiple luggage mounting points.

- X-Fusion 50mm gravel dropper post.

- Left hand lever actuation for dropper post.

- Shimano GRX drivetrain and hydraulic disc brakes.

- WTB TCS rims and TR tyres.

SPECS

Frame Reynolds 725 Heat-Treated Chromoly

Fork Genesis Full Carbon Gravel Disc Fork With Anything Cage Mounts

Headset F17A Taper 1 1/8" - 1 1/5"

Hanger GNSPR40002

Handlebars Genesis Alloy, 16 Deg Flare, XS = 420mm, SM/M = 440mm, L=460mm, XL = 480mm

Stem Genesis Alloy, 31.8mm, -6 Deg, 100mm

Grips/ Tape Genesis Vexgel

Saddle Genesis Adventure

Seatpost X-Fusion Manic Gravel 50mm Drop

Pedals N/A

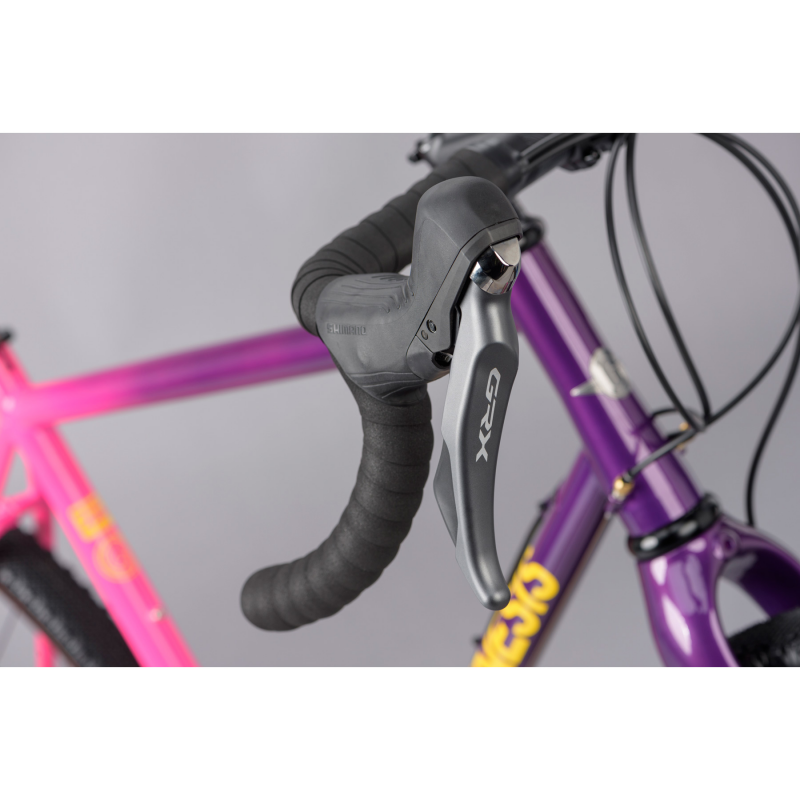

Shifters Shimano GRX ST-RX810 11spd

Rear Derailluer Shimano GRX RD-RX812 11spd

Front Derailluer N/A

Chainset Shimano GRX FC-RX810 40t XS/S = 170mm, M/L = 172.5mm, XL = 175mm

BB Shimano SM-BBR60

Chain KMC X11

Cassette Shimano CS-M8000 11-42t 11spd

Brakes Shimano GRX BR-RX810

Brake Levers Shimano GRX ST-RX810 11spd

Rotors Shimano SM-RT800, 160mm, CL

Rims WTB ST I25 TCS 2.0

Hubs Formula Front - CL-712 / Rear RXC-142a

Spokes Steel 14g

Tyres WTB Venture 650x47c TCS

ADDITONAL INFO

Warranty Lifetime for Frame and Fork

Weight 10.92kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8” - 1 1/5”
