FEATURES
- Reynolds 725 CrMo tubeset.
- Multiple luggage mounting points.
- Mudguard compatible.
- Shimano GRX drivetrain.
- WTB Nano fast rolling tyres
- Shimano hyraulic disc brakes
SPECS
Frame: Reynolds 725 Heat-Treated Chromoly
Fork: Chromoly Disc Fork With Anything Cage Mounts
Headset: PT-1606 EC34 Upper/EC34 Lower
Hanger N/A
Handlebars: Genesis Alloy 9 Deg Backsweep, XS = 640mm, SM/M = 660mm, L-XL = 680mm
Stem: Genesis Alloy, 31.8mm, -6 Deg, 100mm
Grips/ Tape: Genesis Lock On
Saddle: Genesis Adventure
Seatpost: Genesis Alloy 27.2 X 350mm
Pedals: NW-91K With Cage
Shifters: Shimano Tiagra SL-4700 10spd

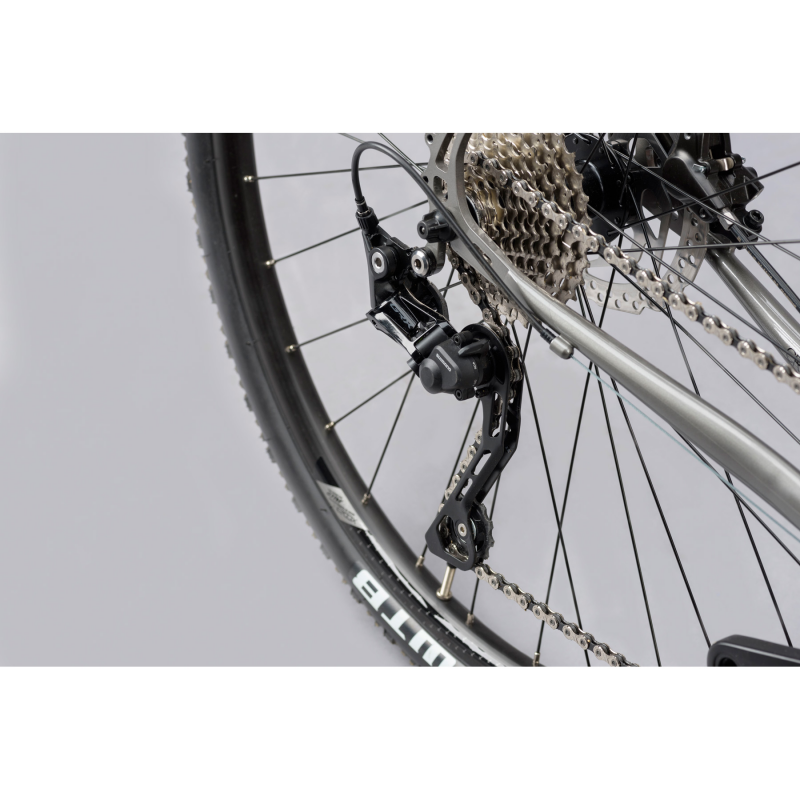

Rear Derailluer: Shimano GRX RD-RX400 10spd
Front Derailluer: Shimano GRX FD-RX400
Chainset: Shimano GRX FC-RX600 46/30t XS = 165mm, S/M = 170mm, L/XL = 175mm
BB: Shimano BB-RS500
Chain: KMC X10
Cassette: Shimano CS-HG500-10 11/34t 10spd
Brakes: Shimano BR-MT200
Brake Levers: Shimano BL-MT200
Rotors: Shimano SM-RT26, 160mm, 6 Bolt
Rims: Jalco XCD23, 32h
Hubs: KT-K68, 6 Bolt, 32h
Spokes: Steel 14g
Tyres: WTB Nano 700x40c
ADDITONAL INFO
Warranty: Lifetime for Frame and Fork
Weight: 12.25kg
Frame Weight Limit: No Weight Limit
Fork Steerer: Size 1 1/8”
Fork Spec:
XS A-C = 401 Offset = 50 Rake/ Trail = 69
SM A-C = 401 Offset = 50 Rake/ Trail = 69
MD A-C = 401 Offset = 50 Rake/ Trail = 66
LG A-C = 401 Offset = 50 Rake/ Trail = 66
XL A-C = 401 Offset = 50 Rake/ Trail = 63
Wheel Size Options 700c, 650b
Max Tyre Clearance: 650B rear 44c/ front 50c 700c rear 45c/ front 50c
Hub Size/ Spacing: Front 100mm, Rear 135mm
Brake Mount Type: IS160
Front Mech Size/ Compatibility: Band On 28.6mm
Max Chainring Size: 50/34, 42t
Seat Tube/Clamp Size: 27.2mm/ 29.8mm
Mech Hanger Type & Part Code Intergrated
Colour: Steely Naan
Colour Code: RAL 9023
MOUNTS
Mudguard Mounts: Yes
Rack Mounts: Yes
Bottle Cage Mounts: Yes
Additonal Mounts: Anything Cage Mounts
GEOMETRY XS S M L XL
Seat Tube 470 500 530 550 580
Top Tube 524 544 561 582 605
Frame Reach 365 375 385 395 405
Frame Stack 553 572 593 612 633
Head Tube 115 135 155 175 195
Head Angle 71 71 71.5 71.5 72
Seat Angle 74 73.5 73.5 73 72.5
Chainstay 430 430 430 430 430
BB Drop 73 73 73 73 73
Wheelbase 1007 1023 1035 1052 1063
Fork Offset 50 50 50 50 50
Standover 761 784 808 826 850
Stem 100 100 100 100 100
Handlebar 640 660 660 680 680
Crankarm 165 170 170 175 175
