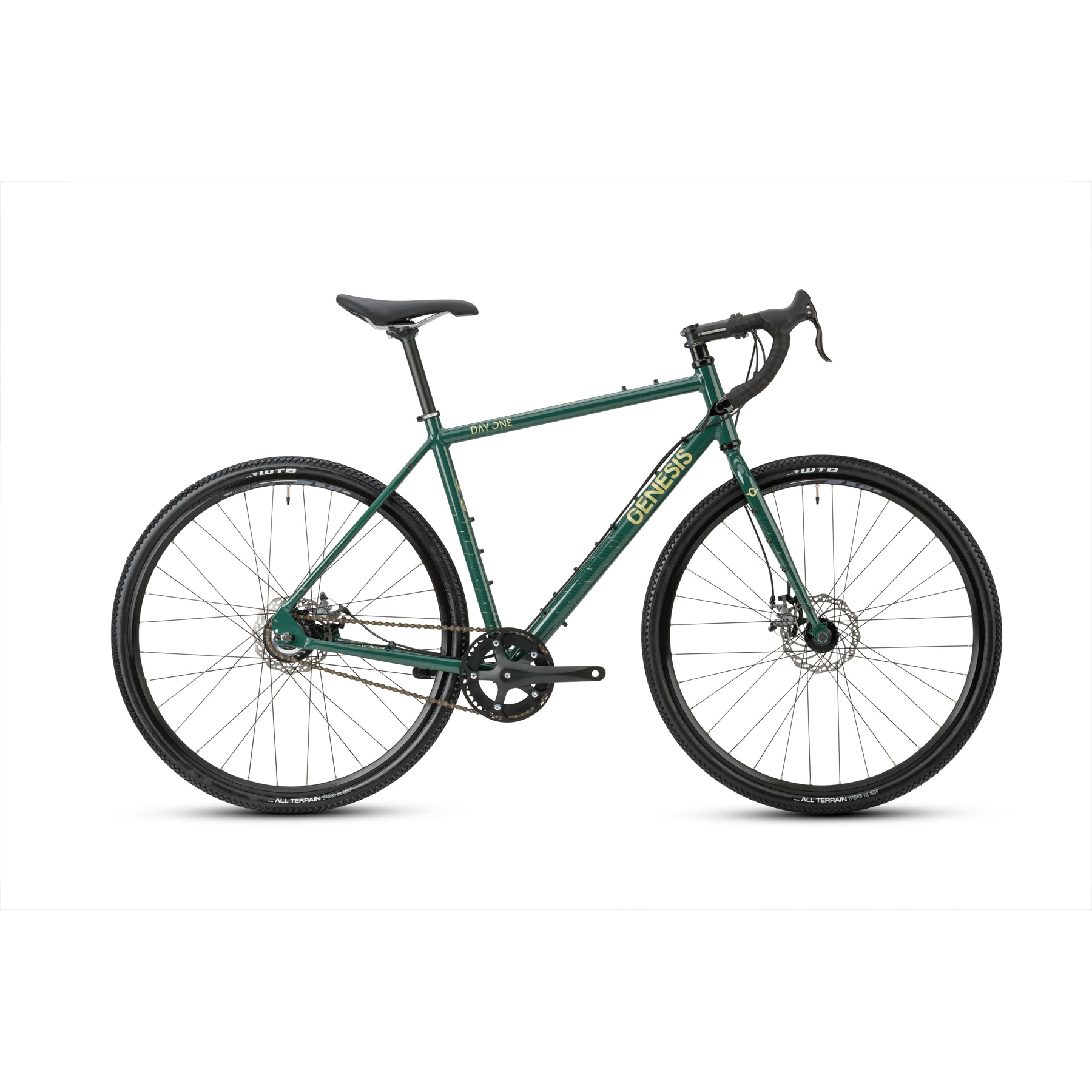

GENESIS 2021 Day One

Please contact us to check availability before ordering:
info@bikejamming.it

Condition New

This product is available for international shipping! Click here for more information.

Data sheet

Frame	Urban / Commuter
Wheel Size	700c

More info

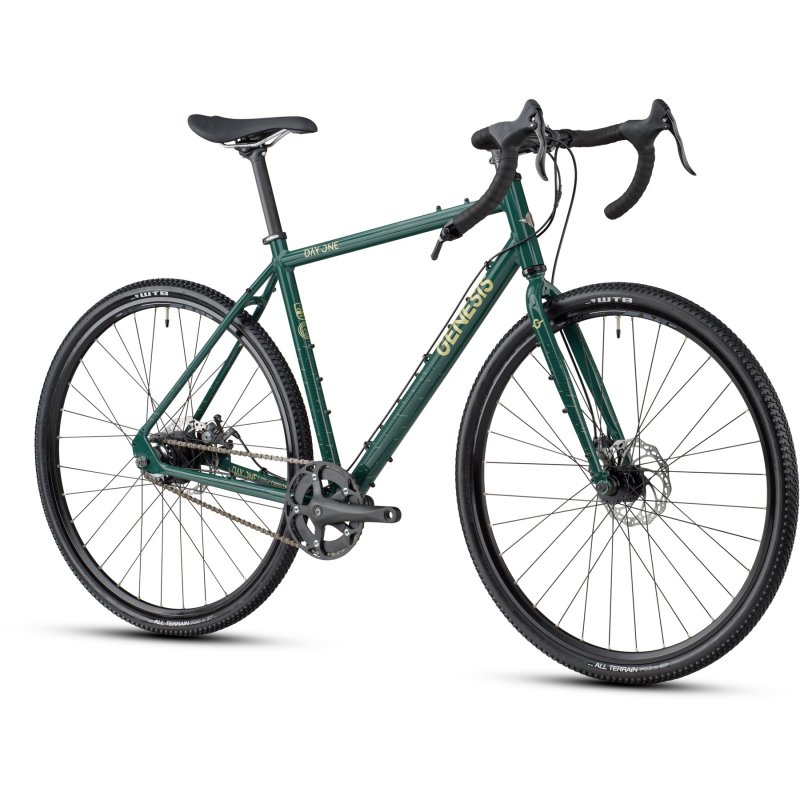

Genesis Day One – urban, commuting and essential gravel bike

The Day One is designed for advanced urban riding, blending elements of commuting, light touring and gravel into a single, highly versatile platform from Genesis Bikes.

Built around the proven CDA aluminium frameset, the Day One combines a double-butted ALX8 6066/6061-T6 aluminium frame with a chromoly steel fork, and introduces a Shimano Nexus 8-speed internal hub drivetrain, chosen for reduced maintenance and everyday reliability.

Key features

ALX8 6066/6061-T6 double-butted aluminium frame

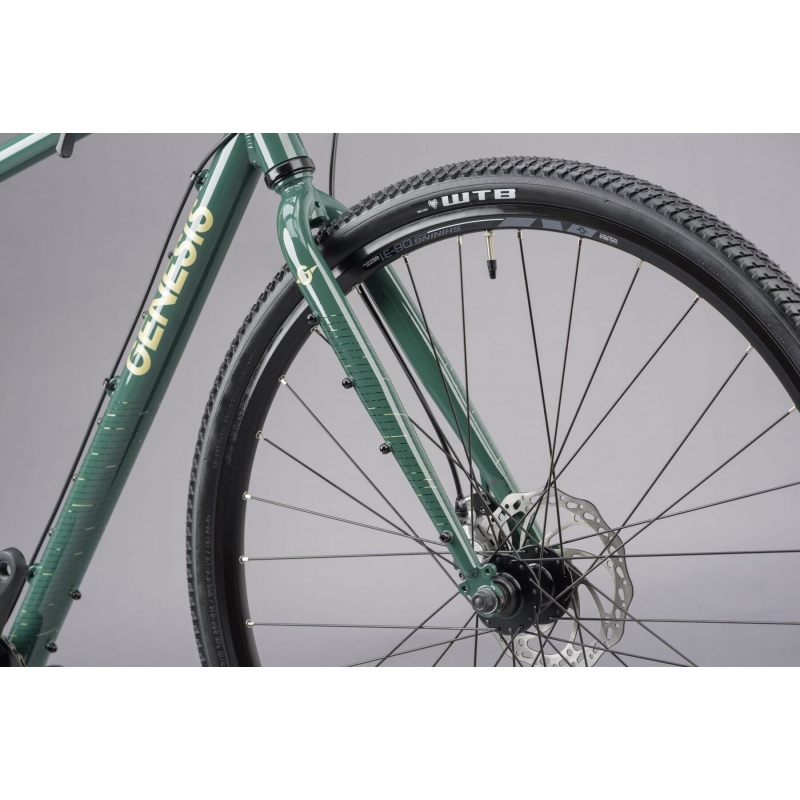

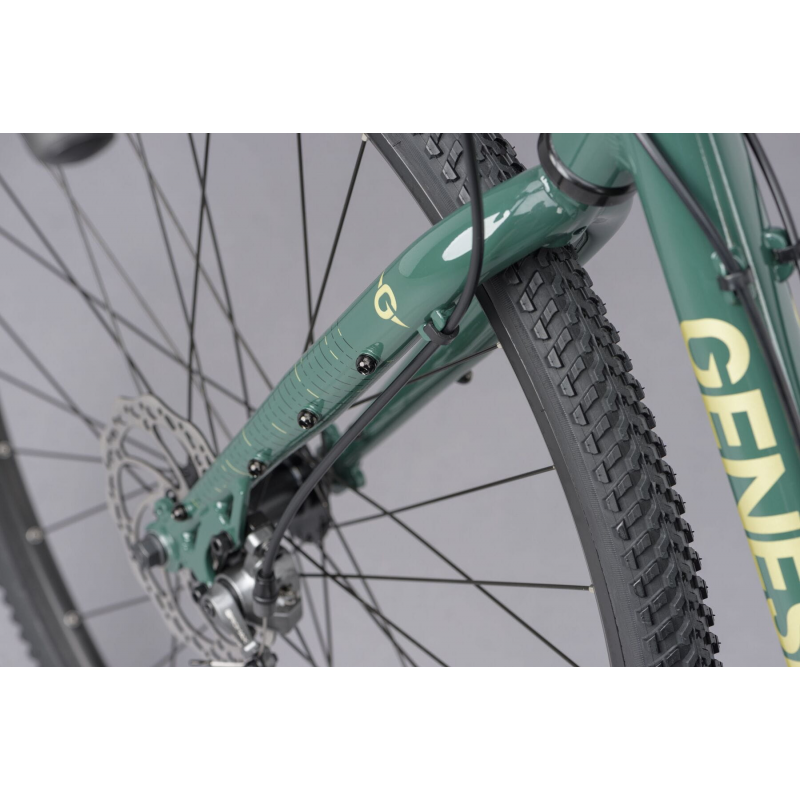

Genesis Chromoly Disc fork
Shimano Nexus 8-speed internal hub gearing
Mechanical disc brakes
700c wheels
WTB All Terrain 700×37c tyres

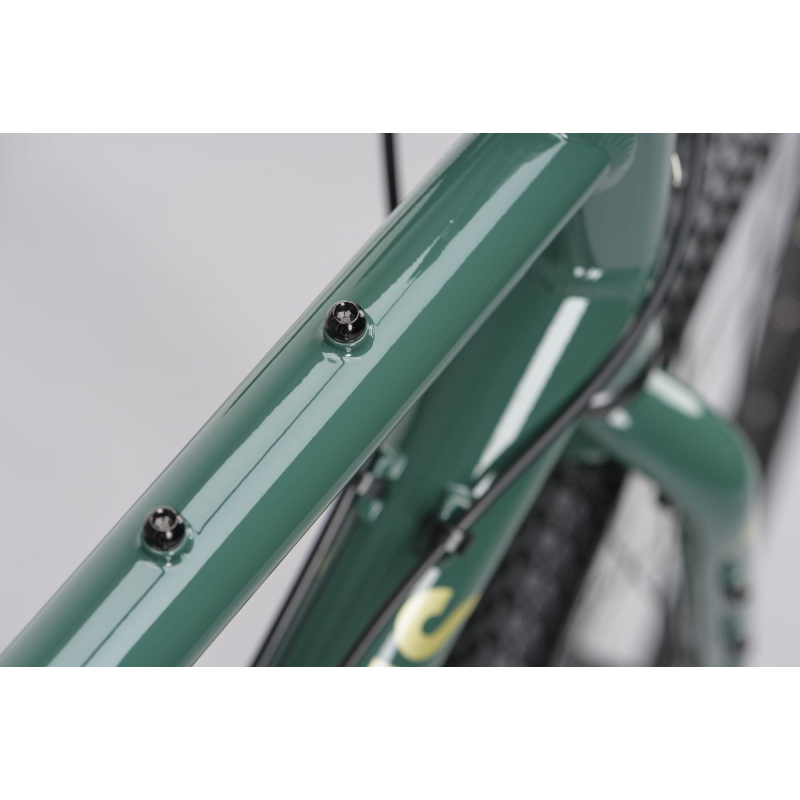

Extensive mounting options for mudguards, racks, bottles, frame bags and Anything Cages

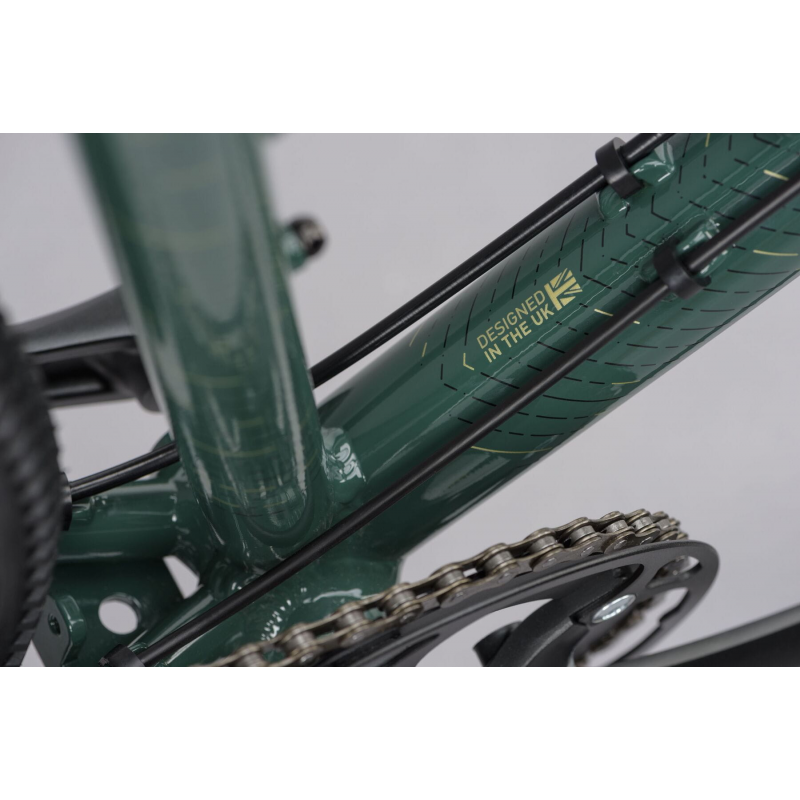

External cable routing
Mudguard compatible

Model positioning

The Genesis Day One is intended for:

year-round commuting
urban riding on mixed surfaces
light touring and everyday travel

The combination of hub gearing, disc brakes and moderate-volume tyres results in a bike focused on consistency, practicality and low day-to-day upkeep.

Technical specifications

Frame & fork

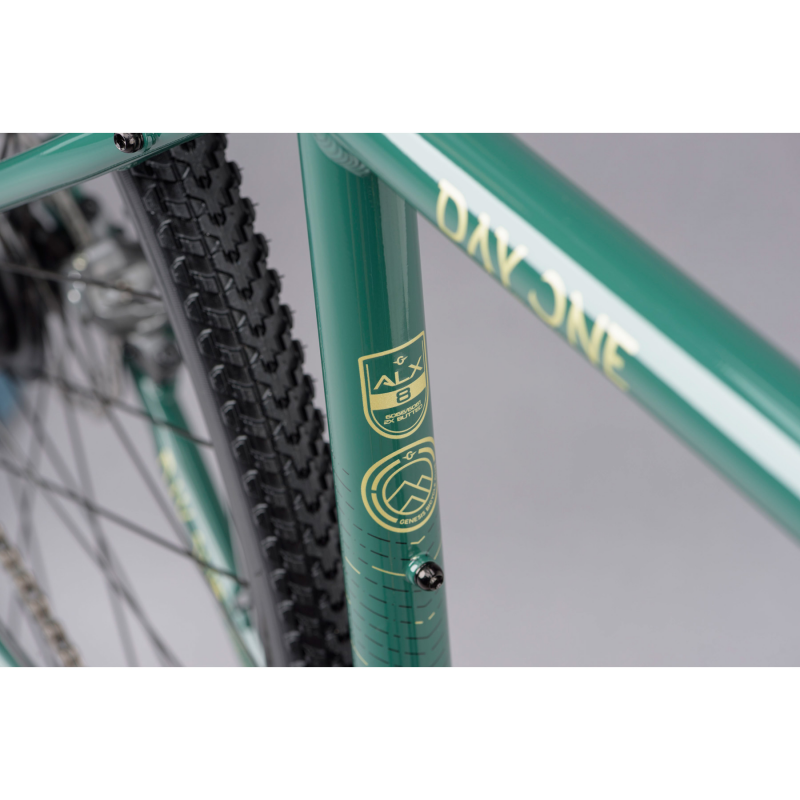

Frame: ALX8 6066/6061-T6 Double-Butted Aluminium
Fork: Genesis Chromoly Disc
Headset: PT-1606 Upper EC34 / Lower EC34
Warranty: Lifetime on frame and fork

Drivetrain

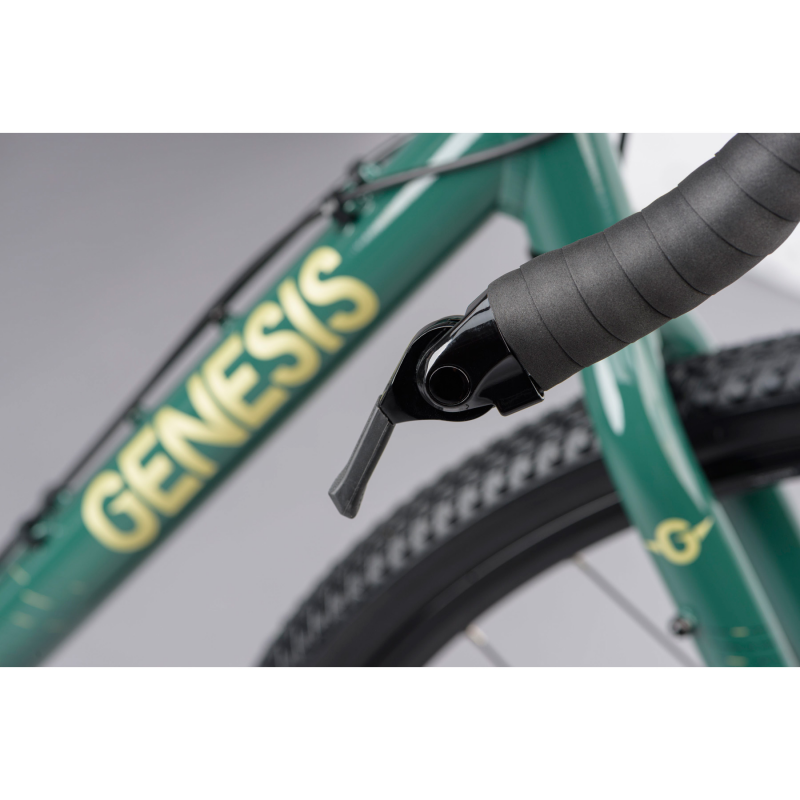

Shifters: Microshift BS-N08
Rear derailleur: N/A
Front derailleur: N/A

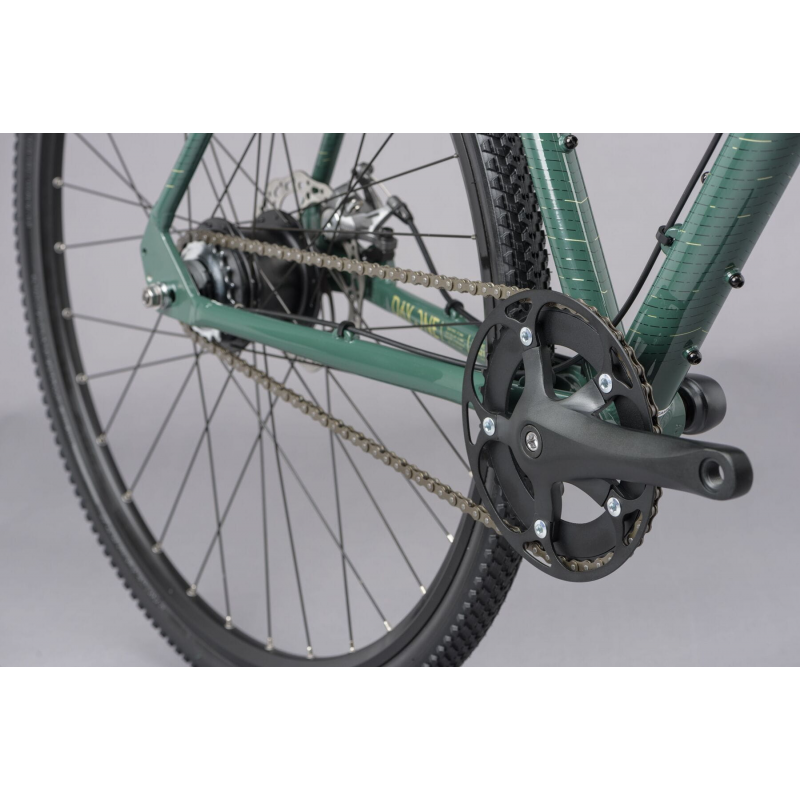

Crankset: Samox AF13, 42T
- XS: 165 mm
- S / M / L / XL: 170 mm
Bottom bracket: Cartridge, 68 × 127.5 mm
Chain: KMC Z1
Sprocket: Shimano SM-Gear 20T

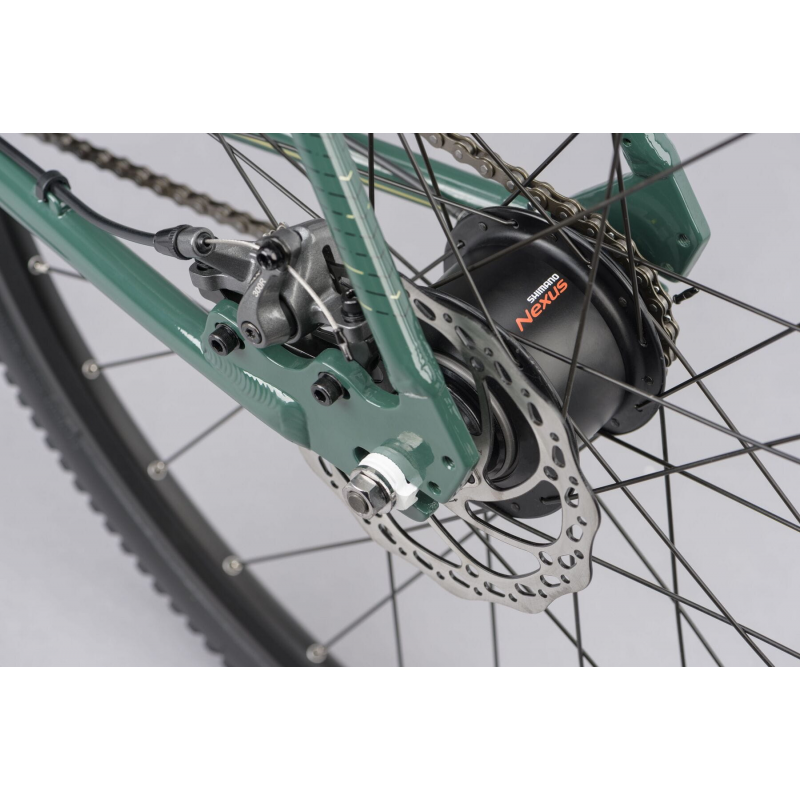

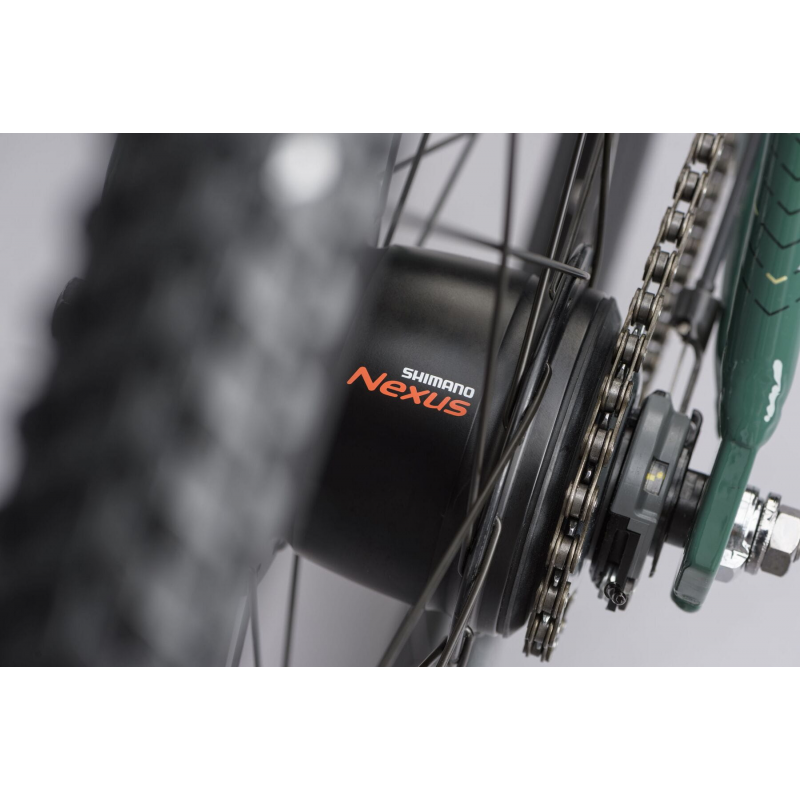

Rear hub: Shimano Nexus SG-C6001-8D, 8-speed

Brakes

Brakes: Promax DSK-300 Road mechanical disc
Brake levers: Promax BL-253
Rotors: Promax DT-160H, 160 mm, 6-bolt
Brake mount: IS160

Wheels & tyres

Rims: Shining DB-31, 32H
Hubs: KT-K88F (front) / Shimano Nexus SG-C6001-8D (rear)
Spokes: Steel 14G

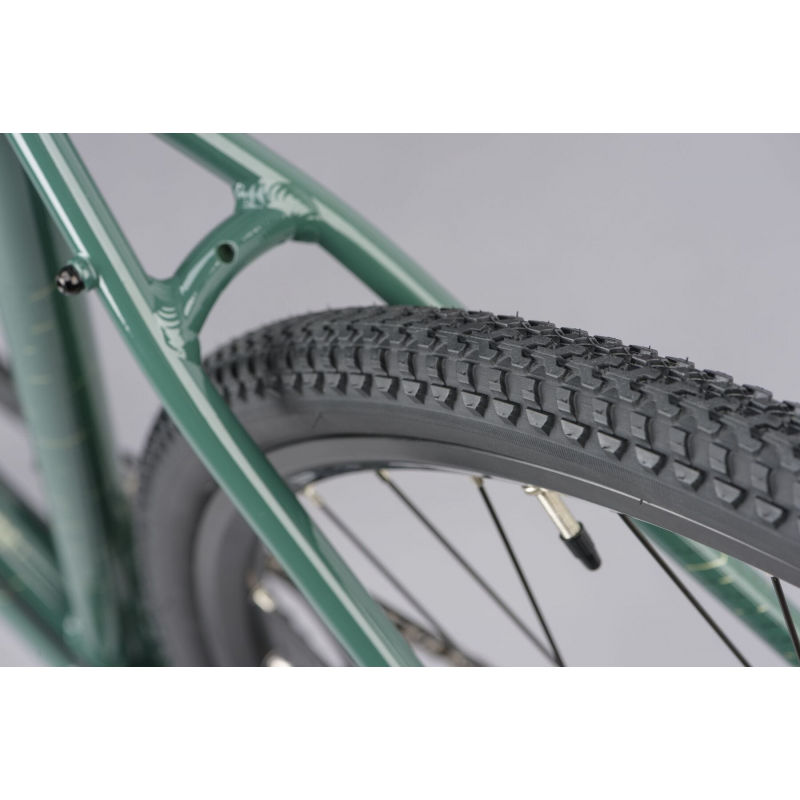

Tyres: WTB All Terrain 700×37c

Components

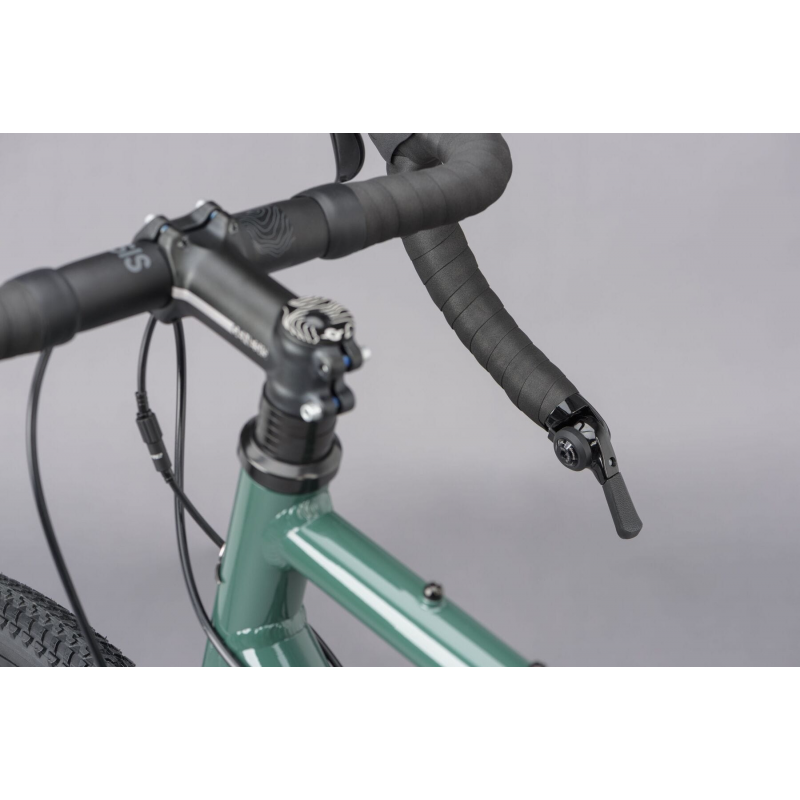

Handlebar: Genesis Alloy, 16° flare
- XS: 400 mm
- S / M: 420 mm
- L / XL: 440 mm
Stem: Genesis Alloy, −7°
- 90 mm: XS / S / M
- 100 mm: L / XL
Bar tape: Genesis Vexgel
Seatpost: Genesis Alloy 27.2×350 mm
Saddle: Genesis Adventure
Pedals: NW-303

Standards & compatibility

Wheel size: 700c
Alternative wheel option: 650B × 47
Maximum tyre size: 700 × 37
Hub spacing: 100 mm front / 135 mm rear
Seatpost diameter: 27.2 mm
Seat clamp diameter: 31.8 mm
Maximum chainring size: 42T

General

Claimed weight: 12.1 kg
Frame weight limit: Not stated
Colour: Diana Moss
Colour code: RAL 6005
Sizes: XS, S, M, L, XL

Frame geometry (mm)

Size	XS	S	M	L	XL
Seat Tube	470	500	530	550	580
Top Tube	524	544	561	582	605
Reach	365	375	385	395	405
Stack	553	572	593	612	633
Head Tube	115	135	155	175	195
Head Angle	71	71	71.5	71.5	72
Seat Angle	74	73.5	73.5	73	72.5
Chainstay	430	430	430	430	430
BB Drop	73	73	73	73	73
Wheelbase	1007	1023	1035	1052	1063
Standover	761	784	808	826	850
Stem	90	90	100	100	100
Handlebar	400	420	420	440	440
Crankarm	165	170	170	170	170
