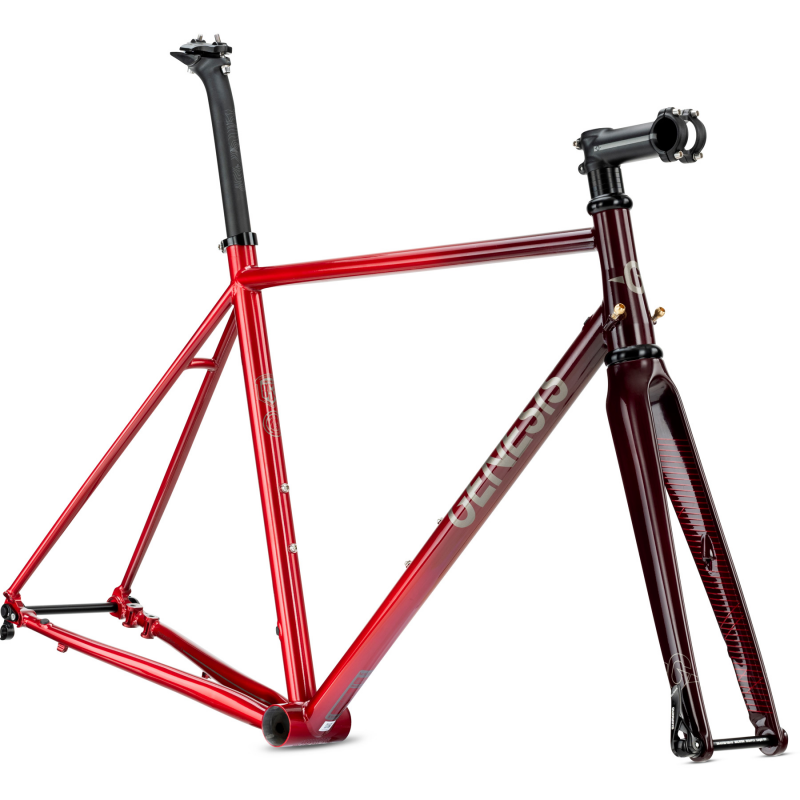

GENESIS 2021 Volare 853 Disc Frameset

FEATURES

- Reynolds 853 tubeset.

- Full carbon fork.

- 12mm axle standard.

- Di2 compatible.

- Headset, seat collar and axles included.

SPECS

Frame Reynolds 853 Steel

Fork Genesis Carbon Road Disc

Headset F17A 1 1/8" - 1 1/5"

Hanger GNSPR40002

ADDITONAL INFO

Product Code GN21840

Warranty Lifetime for Frame and Fork

Weight 2.48kg

Frame Weight Limit No Weight Limit

Fork Steerer Size 1 1/8” - 1 1/5”

Fork Spec:

XS A-C = 375 Offset = 50 Rake/ Trail = 61

SM A-C = 375 Offset = 50 Rake/ Trail = 58

MD A-C = 375 Offset = 50 Rake/ Trail = 57

LG A-C = 375 Offset = 50 Rake/ Trail = 55

XL A-C = 375 Offset = 50 Rake/ Trail = 55

Wheel Size Options n/a

Max Tyre Clearance 700 x 28

Hub Size/ Spacing n/a

Brake Mount Type Flat Mount 140

Front Mech Size/ Compatibility Band On 31.8mm

Max Chainring Size 53/39

Seat Tube/Clamp Size 27.2mm/29.8mm

Mech Hanger Type & Part Code Replaceable - GNSPR40002

Colour Redder The Devil You Know

Colour Code n/a

MOUNTS

Mudguard Mounts Yes

Rack Mounts n/a

Bottle Cage Mounts Yes

Additonal Mounts n/a

GEOMETRY XS S M L XL

Seat Tube 470 490 520 540 560

Top Tube 516 536 554 572 592

Frame Reach 365 375 385 395 405

Frame Stack 525 542 560 578 593

Head Tube 115 130 145 165 180

Head Angle 71.5 72 73 73.3 73.3

Seat Angle 74 735 73.5 73.25 72.5

Chainstay 405 407 407 410 410

BB Drop 72 72 70 68 68

Wheelbase 970 983 983 996 1011

Fork Offset 52 52 45 45 45

Standover 753 769 796 804 825
